- EMDB-27458: Cryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1) -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-27458
TitleCryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)
Map dataCryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)
Sample
  • Complex: Amyloid fibrils formed by moPrP23-144
    • Protein or peptide: Major prion protein
KeywordsmoPrP23-144 / amyloid / prion diseases / PROTEIN FIBRIL
Function / homology
Function and homology information


Insertion of tail-anchored proteins into the endoplasmic reticulum membrane / negative regulation of amyloid precursor protein catabolic process / regulation of glutamate receptor signaling pathway / positive regulation of glutamate receptor signaling pathway / lamin binding / regulation of calcium ion import across plasma membrane / aspartic-type endopeptidase inhibitor activity / glycosaminoglycan binding / ATP-dependent protein binding / type 5 metabotropic glutamate receptor binding ...Insertion of tail-anchored proteins into the endoplasmic reticulum membrane / negative regulation of amyloid precursor protein catabolic process / regulation of glutamate receptor signaling pathway / positive regulation of glutamate receptor signaling pathway / lamin binding / regulation of calcium ion import across plasma membrane / aspartic-type endopeptidase inhibitor activity / glycosaminoglycan binding / ATP-dependent protein binding / type 5 metabotropic glutamate receptor binding / negative regulation of interleukin-17 production / regulation of potassium ion transmembrane transport / negative regulation of dendritic spine maintenance / cupric ion binding / nucleobase-containing compound metabolic process / activation of protein kinase activity / negative regulation of calcineurin-NFAT signaling cascade / negative regulation of interleukin-2 production / negative regulation of T cell receptor signaling pathway / negative regulation of activated T cell proliferation / negative regulation of amyloid-beta formation / response to amyloid-beta / cuprous ion binding / negative regulation of type II interferon production / negative regulation of long-term synaptic potentiation / positive regulation of protein targeting to membrane / intracellular copper ion homeostasis / regulation of peptidyl-tyrosine phosphorylation / negative regulation of protein phosphorylation / response to cadmium ion / side of membrane / inclusion body / cellular response to copper ion / neuron projection maintenance / positive regulation of calcium-mediated signaling / molecular function activator activity / positive regulation of protein localization to plasma membrane / negative regulation of DNA-binding transcription factor activity / molecular condensate scaffold activity / terminal bouton / protein destabilization / protein homooligomerization / positive regulation of neuron apoptotic process / cellular response to amyloid-beta / positive regulation of peptidyl-tyrosine phosphorylation / cellular response to xenobiotic stimulus / signaling receptor activity / regulation of protein localization / amyloid-beta binding / protein-folding chaperone binding / protease binding / microtubule binding / nuclear membrane / molecular adaptor activity / transmembrane transporter binding / response to oxidative stress / learning or memory / postsynaptic density / membrane raft / copper ion binding / dendrite / protein-containing complex binding / negative regulation of apoptotic process / Golgi apparatus / cell surface / endoplasmic reticulum / identical protein binding / membrane / metal ion binding / plasma membrane / cytosol
Similarity search - Function
Major prion protein N-terminal domain / Major prion protein bPrPp - N terminal / Prion protein signature 1. / Prion protein signature 2. / Prion protein / Major prion protein / Prion/Doppel protein, beta-ribbon domain / Prion/Doppel beta-ribbon domain superfamily / Prion/Doppel alpha-helical domain
Similarity search - Domain/homology
Biological speciesMus musculus (house mouse)
Methodhelical reconstruction / cryo EM / Resolution: 3.92 Å
AuthorsLi Q / Surewicz WK
Funding support United States, 2 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM094357 United States
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)NS103848 United States
CitationJournal: Nat Struct Mol Biol / Year: 2022
Title: Cryo-EM structure of disease-related prion fibrils provides insights into seeding barriers.
Authors: Qiuye Li / Christopher P Jaroniec / Witold K Surewicz /
Abstract: One of the least understood aspects of prion diseases is the structure of infectious prion protein aggregates. Here we report a high-resolution cryo-EM structure of amyloid fibrils formed by human ...One of the least understood aspects of prion diseases is the structure of infectious prion protein aggregates. Here we report a high-resolution cryo-EM structure of amyloid fibrils formed by human prion protein with the Y145Stop mutation that is associated with a familial prion disease. This structural insight allows us not only to explain previous biochemical findings, but also provides direct support for the conformational adaptability model of prion transmissibility barriers.
History
DepositionJun 30, 2022-
Header (metadata) releaseSep 7, 2022-
Map releaseSep 7, 2022-
UpdateJun 12, 2024-
Current statusJun 12, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_27458.map.gz / Format: CCP4 / Size: 64 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationCryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 256 pix.
= 211.968 Å		0.83 Å/pix.
x 256 pix.
= 211.968 Å		0.83 Å/pix.
x 256 pix.
= 211.968 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.828 Å
Density

Histogram

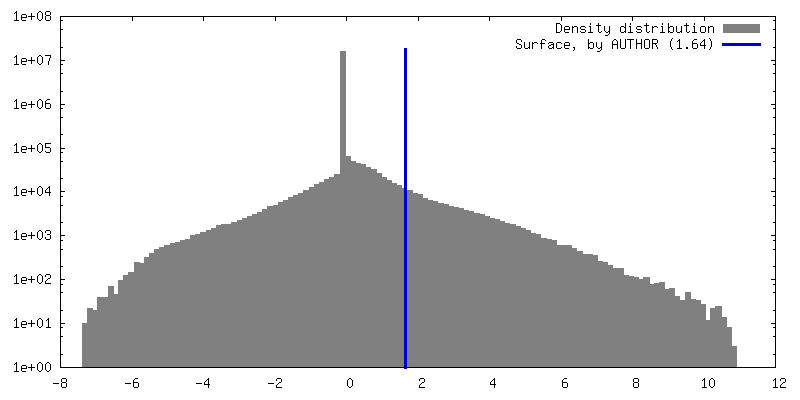

Histogram (log scale)
Contour LevelBy AUTHOR: 1.64
Minimum - Maximum-7.3120294 - 10.982588
Average (Standard dev.)0.021318099 (±0.36948198)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions256256256
Spacing256256256
CellA=B=C: 211.968 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: Cryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)

Fileemd_27458_half_map_1.map
AnnotationCryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Cryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)

Fileemd_27458_half_map_2.map
AnnotationCryo-EM structure of mouse PrP23-144 amyloid fibrils (polymorph 1)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Amyloid fibrils formed by moPrP23-144

EntireName: Amyloid fibrils formed by moPrP23-144
Components
  • Complex: Amyloid fibrils formed by moPrP23-144
    • Protein or peptide: Major prion protein

-
Supramolecule #1: Amyloid fibrils formed by moPrP23-144

SupramoleculeName: Amyloid fibrils formed by moPrP23-144 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Mus musculus (house mouse)

-
Macromolecule #1: Major prion protein

MacromoleculeName: Major prion protein / type: protein_or_peptide / ID: 1 / Number of copies: 20 / Enantiomer: LEVO
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 12.398579 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
GSKKRPKPGG WNTGGSRYPG QGSPGGNRYP PQGGTWGQPH GGGWGQPHGG SWGQPHGGSW GQPHGGGWGQ GGGTHNQWNK PSKPKTNLK HVAGAAAAGA VVGGLGGYML GSAMSRPMIH FGND

UniProtKB: Major prion protein

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

Concentration0.5 mg/mL
BufferpH: 6.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 52.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: OTHER / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.5 µm / Nominal defocus min: 0.8 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 4.74 Å
Applied symmetry - Helical parameters - Δ&Phi: -2.36 °
Applied symmetry - Helical parameters - Axial symmetry: C2 (2 fold cyclic)
Resolution.type: BY AUTHOR / Resolution: 3.92 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 10628
Startup modelType of model: NONE
Final angle assignmentType: NOT APPLICABLE

+
