- EMDB-26988: Class 2 of erythrocyte ankyrin-1 complex (Composite map) -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-26988
TitleClass 2 of erythrocyte ankyrin-1 complex (Composite map)
Map dataMain map used for model fitting; composite map of local refinements (EMDs: 26978, 26979, 26975, 26973, 26972, 26974) aligned to the class 2 consensus refinement.
Sample
  • Complex: Class 1 of erythrocyte ankyrin complex (composite map)
    • Protein or peptide: x 7 types
  • Ligand: x 4 types
KeywordsMembrane Protein / Anion Exchange / Erythrocyte / Glycoprotein / TRANSPORT PROTEIN-STRUCTURAL PROTEIN complex
Function / homology
Function and homology information


metanephric descending thin limb development / metanephric proximal straight tubule development / metanephric proximal convoluted tubule segment 2 development / metanephric glomerulus vasculature development / hydrogen peroxide channel activity / nitric oxide transmembrane transporter activity / lipid digestion / methylammonium transmembrane transport / Defective RHAG causes regulator type Rh-null hemolytic anemia (RHN) / Rhesus blood group biosynthesis ...metanephric descending thin limb development / metanephric proximal straight tubule development / metanephric proximal convoluted tubule segment 2 development / metanephric glomerulus vasculature development / hydrogen peroxide channel activity / nitric oxide transmembrane transporter activity / lipid digestion / methylammonium transmembrane transport / Defective RHAG causes regulator type Rh-null hemolytic anemia (RHN) / Rhesus blood group biosynthesis / methylammonium transmembrane transporter activity / Rhesus glycoproteins mediate ammonium transport / cellular response to salt stress / renal water transport / corticotropin secretion / carbon dioxide transmembrane transport / renal water absorption / carbon dioxide transmembrane transporter activity / glycerol transmembrane transporter activity / secretory granule organization / ammonium homeostasis / water transmembrane transporter activity / Passive transport by Aquaporins / cerebrospinal fluid secretion / positive regulation of saliva secretion / pancreatic juice secretion / establishment or maintenance of actin cytoskeleton polarity / spectrin-associated cytoskeleton / hemoglobin metabolic process / lateral ventricle development / positive regulation of organelle organization / glycerol transmembrane transport / cellular response to mercury ion / maintenance of epithelial cell apical/basal polarity / leak channel activity / protein-glutamine gamma-glutamyltransferase activity / intracellularly cGMP-activated cation channel activity / potassium ion transmembrane transporter activity / pH elevation / Defective SLC4A1 causes hereditary spherocytosis type 4 (HSP4), distal renal tubular acidosis (dRTA) and dRTA with hemolytic anemia (dRTA-HA) / intracellular water homeostasis / negative regulation of urine volume / NrCAM interactions / water transport / transepithelial water transport / Neurofascin interactions / water channel activity / Bicarbonate transporters / ammonium transmembrane transport / intracellular monoatomic ion homeostasis / ankyrin-1 complex / ammonium channel activity / glomerular filtration / CHL1 interactions / monoatomic anion transmembrane transporter activity / plasma membrane phospholipid scrambling / camera-type eye morphogenesis / cytoskeletal anchor activity / chloride:bicarbonate antiporter activity / fibroblast migration / multicellular organismal-level water homeostasis / solute:inorganic anion antiporter activity / cellular homeostasis / cellular hyperosmotic response / bicarbonate transport / bicarbonate transmembrane transporter activity / cell volume homeostasis / monoatomic anion transport / M band / hyperosmotic response / : / chloride transport / chloride transmembrane transporter activity / odontogenesis / positive regulation of fibroblast migration / Interaction between L1 and Ankyrins / ankyrin binding / : / nitric oxide transport / hemoglobin binding / spectrin binding / erythrocyte maturation / negative regulation of glycolytic process through fructose-6-phosphate / erythrocyte development / cortical cytoskeleton / exocytosis / brush border / axolemma / transmembrane transporter activity / cellular response to dexamethasone stimulus / endoplasmic reticulum to Golgi vesicle-mediated transport / potassium channel activity / renal water homeostasis / COPI-mediated anterograde transport / ephrin receptor binding / spleen development / cellular response to retinoic acid / protein-membrane adaptor activity / sensory perception of pain / cytoskeleton organization
Similarity search - Function
Aquaporin 1 / Blood group Rhesus C/E/D polypeptide / Glycophorin, conserved site / : / Glycophorin A / Glycophorin A signature. / Glycophorin / Ankyrin, UPA domain / UPA domain / : ...Aquaporin 1 / Blood group Rhesus C/E/D polypeptide / Glycophorin, conserved site / : / Glycophorin A / Glycophorin A signature. / Glycophorin / Ankyrin, UPA domain / UPA domain / : / Ammonium transporter AmtB-like domain / Ammonium Transporter Family / Transglutaminase, N-terminal / Transglutaminase, C-terminal / Transglutaminase, active site / Protein-glutamine gamma-glutamyltransferase, animal / Transglutaminase, C-terminal domain superfamily / : / Transglutaminase family / Transglutaminase family, C-terminal ig like domain / Transglutaminases active site. / Aquaporin transporter / Domain present in ZO-1 and Unc5-like netrin receptors / ZU5 domain / ZU5 domain / ZU5 domain profile. / Transglutaminase-like superfamily / Transglutaminase/protease-like homologues / Transglutaminase-like / Anion exchange protein 1 / Ammonium/urea transporter / Major intrinsic protein, conserved site / MIP family signature. / Transglutaminase-like superfamily / Anion exchange protein / Anion exchange, conserved site / Anion exchangers family signature 1. / Anion exchangers family signature 2. / Band 3 cytoplasmic domain / Band 3 cytoplasmic domain / Major intrinsic protein / Major intrinsic protein / Phosphotransferase/anion transporter / Bicarbonate transporter, eukaryotic / Bicarbonate transporter-like, transmembrane domain / HCO3- transporter integral membrane domain / Aquaporin-like / Ankyrin repeat / Death domain profile. / DEATH domain, found in proteins involved in cell death (apoptosis). / Death domain / Death domain / Death-like domain superfamily / Ankyrin repeat / Papain-like cysteine peptidase superfamily / Ankyrin repeats (3 copies) / Ankyrin repeat profile. / Ankyrin repeat region circular profile. / ankyrin repeats / Ankyrin repeat / Ankyrin repeat-containing domain superfamily / Immunoglobulin E-set / Immunoglobulin-like fold
Similarity search - Domain/homology
Glycophorin-A / Band 3 anion transport protein / Ankyrin-1 / Protein 4.2 / Blood group Rh(CE) polypeptide / Aquaporin-1 / Ammonium transporter Rh type A
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.9 Å
AuthorsVallese F / Kim K / Yen LY / Johnston JD / Noble AJ / Cali T / Clarke OB
Funding support1 items
OrganizationGrant numberCountry
Not funded
CitationJournal: Nat Struct Mol Biol / Year: 2022
Title: Architecture of the human erythrocyte ankyrin-1 complex.
Authors: Francesca Vallese / Kookjoo Kim / Laura Y Yen / Jake D Johnston / Alex J Noble / Tito Calì / Oliver Biggs Clarke /
Abstract: The stability and shape of the erythrocyte membrane is provided by the ankyrin-1 complex, but how it tethers the spectrin-actin cytoskeleton to the lipid bilayer and the nature of its association ...The stability and shape of the erythrocyte membrane is provided by the ankyrin-1 complex, but how it tethers the spectrin-actin cytoskeleton to the lipid bilayer and the nature of its association with the band 3 anion exchanger and the Rhesus glycoproteins remains unknown. Here we present structures of ankyrin-1 complexes purified from human erythrocytes. We reveal the architecture of a core complex of ankyrin-1, the Rhesus proteins RhAG and RhCE, the band 3 anion exchanger, protein 4.2, glycophorin A and glycophorin B. The distinct T-shaped conformation of membrane-bound ankyrin-1 facilitates recognition of RhCE and, unexpectedly, the water channel aquaporin-1. Together, our results uncover the molecular details of ankyrin-1 association with the erythrocyte membrane, and illustrate the mechanism of ankyrin-mediated membrane protein clustering.
History
DepositionMay 14, 2022-
Header (metadata) releaseJul 20, 2022-
Map releaseJul 20, 2022-
UpdateMay 21, 2025-
Current statusMay 21, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_26988.map.gz / Format: CCP4 / Size: 347.6 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationMain map used for model fitting; composite map of local refinements (EMDs: 26978, 26979, 26975, 26973, 26972, 26974) aligned to the class 2 consensus refinement.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 450 pix.
= 373.5 Å		0.83 Å/pix.
x 450 pix.
= 373.5 Å		0.83 Å/pix.
x 450 pix.
= 373.5 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.83 Å
Density

Histogram

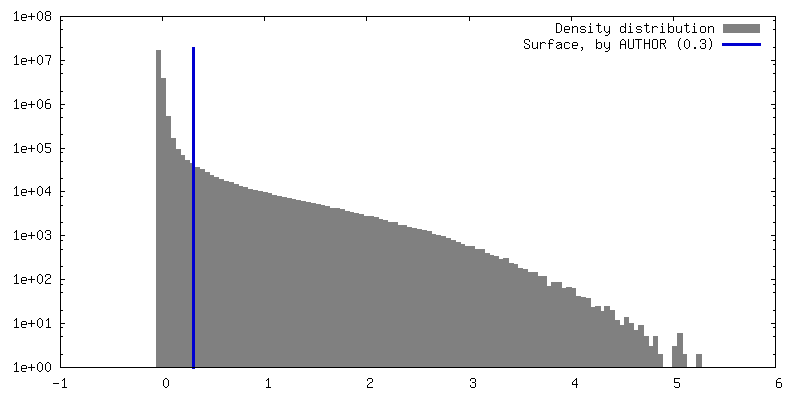

Histogram (log scale)
Contour LevelBy AUTHOR: 0.3
Minimum - Maximum-0.041053895 - 5.9592032
Average (Standard dev.)0.0069169807 (±0.082703486)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions450450450
Spacing450450450
CellA=B=C: 373.5 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Composite map of local refinements (unsharpened, unfiltered), aligned...

Fileemd_26988_additional_1.map
AnnotationComposite map of local refinements (unsharpened, unfiltered), aligned to the global consensus refinement provided in additional maps.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Composite map of local refinements (unsharpened, unfiltered), aligned...

Fileemd_26988_additional_2.map
AnnotationComposite map of local refinements (unsharpened, unfiltered), aligned to the global consensus refinement provided in additional maps. Lowpass filtered at 4A.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Composite map of local refinements, aligned to the...

Fileemd_26988_additional_3.map
AnnotationComposite map of local refinements, aligned to the global consensus refinement provided in additional maps. Density modified using phenix.resolve_cryo_em. Lowpass filtered at 4A.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Class 2 consensus refinement. B-factor sharpened.

Fileemd_26988_additional_4.map
AnnotationClass 2 consensus refinement. B-factor sharpened.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Class 2 consensus refinement, unsharpened.

Fileemd_26988_additional_5.map
AnnotationClass 2 consensus refinement, unsharpened.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Mask used for FSC calculation.

Fileemd_26988_additional_6.map
AnnotationMask used for FSC calculation.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map 1 (of global consensus refinement; main...

Fileemd_26988_half_map_1.map
AnnotationHalf map 1 (of global consensus refinement; main map is a composite of local refinements)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map 2 (of global consensus refinement; main...

Fileemd_26988_half_map_2.map
AnnotationHalf map 2 (of global consensus refinement; main map is a composite of local refinements)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Class 1 of erythrocyte ankyrin complex (composite map)

EntireName: Class 1 of erythrocyte ankyrin complex (composite map)
Components
  • Complex: Class 1 of erythrocyte ankyrin complex (composite map)
    • Protein or peptide: Ankyrin-1
    • Protein or peptide: Band 3 anion transport protein
    • Protein or peptide: Protein 4.2
    • Protein or peptide: Blood group Rh(CE) polypeptide
    • Protein or peptide: Ammonium transporter Rh type A
    • Protein or peptide: Glycophorin-A
    • Protein or peptide: Aquaporin-1
  • Ligand: CHOLESTEROL
  • Ligand: Digitonin
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose
  • Ligand: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate

+
Supramolecule #1: Class 1 of erythrocyte ankyrin complex (composite map)

SupramoleculeName: Class 1 of erythrocyte ankyrin complex (composite map)
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#7
Source (natural)Organism: Homo sapiens (human)

+
Macromolecule #1: Ankyrin-1

MacromoleculeName: Ankyrin-1 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 206.522625 KDa
SequenceString: MPYSVGFREA DAATSFLRAA RSGNLDKALD HLRNGVDINT CNQNGLNGLH LASKEGHVKM VVELLHKEII LETTTKKGNT ALHIAALAG QDEVVRELVN YGANVNAQSQ KGFTPLYMAA QENHLEVVKF LLENGANQNV ATEDGFTPLA VALQQGHENV V AHLINYGT ...String:
MPYSVGFREA DAATSFLRAA RSGNLDKALD HLRNGVDINT CNQNGLNGLH LASKEGHVKM VVELLHKEII LETTTKKGNT ALHIAALAG QDEVVRELVN YGANVNAQSQ KGFTPLYMAA QENHLEVVKF LLENGANQNV ATEDGFTPLA VALQQGHENV V AHLINYGT KGKVRLPALH IAARNDDTRT AAVLLQNDPN PDVLSKTGFT PLHIAAHYEN LNVAQLLLNR GASVNFTPQN GI TPLHIAS RRGNVIMVRL LLDRGAQIET KTKDELTPLH CAARNGHVRI SEILLDHGAP IQAKTKNGLS PIHMAAQGDH LDC VRLLLQ YDAEIDDITL DHLTPLHVAA HCGHHRVAKV LLDKGAKPNS RALNGFTPLH IACKKNHVRV MELLLKTGAS IDAV TESGL TPLHVASFMG HLPIVKNLLQ RGASPNVSNV KVETPLHMAA RAGHTEVAKY LLQNKAKVNA KAKDDQTPLH CAARI GHTN MVKLLLENNA NPNLATTAGH TPLHIAAREG HVETVLALLE KEASQACMTK KGFTPLHVAA KYGKVRVAEL LLERDA HPN AAGKNGLTPL HVAVHHNNLD IVKLLLPRGG SPHSPAWNGY TPLHIAAKQN QVEVARSLLQ YGGSANAESV QGVTPLH LA AQEGHAEMVA LLLSKQANGN LGNKSGLTPL HLVAQEGHVP VADVLIKHGV MVDATTRMGY TPLHVASHYG NIKLVKFL L QHQADVNAKT KLGYSPLHQA AQQGHTDIVT LLLKNGASPN EVSSDGTTPL AIAKRLGYIS VTDVLKVVTD ETSFVLVSD KHRMSFPETV DEILDVSEDE GEELISFKAE RRDSRDVDEE KELLDFVPKL DQVVESPAIP RIPCAMPETV VIRSEEQEQA SKEYDEDSL IPSSPATETS DNISPVASPV HTGFLVSFMV DARGGSMRGS RHNGLRVVIP PRTCAAPTRI TCRLVKPQKL S TPPPLAEE EGLASRIIAL GPTGAQFLSP VIVEIPHFAS HGRGDRELVV LRSENGSVWK EHRSRYGESY LDQILNGMDE EL GSLEELE KKRVCRIITT DFPLYFVIMS RLCQDYDTIG PEGGSLKSKL VPLVQATFPE NAVTKRVKLA LQAQPVPDEL VTK LLGNQA TFSPIVTVEP RRRKFHRPIG LRIPLPPSWT DNPRDSGEGD TTSLRLLCSV IGGTDQAQWE DITGTTKLVY ANEC ANFTT NVSARFWLSD CPRTAEAVNF ATLLYKELTA VPYMAKFVIF AKMNDPREGR LRCYCMTDDK VDKTLEQHEN FVEVA RSRD IEVLEGMSLF AELSGNLVPV KKAAQQRSFH FQSFRENRLA MPVKVRDSSR EPGGSLSFLR KAMKYEDTQH ILCHLN ITM PPCAKGSGAE DRRRTPTPLA LRYSILSEST PGSLSGTEQA EMKMAVISEH LGLSWAELAR ELQFSVEDIN RIRVENP NS LLEQSVALLN LWVIREGQNA NMENLYTALQ SIDRGEIVNM LEGSGRQSRN LKPDRRHTDR DYSLSPSQMN GYSSLQDE L LSPASLGCAL SSPLRADQYW NEVAVLDAIP LAATEHDTML EMSDMQVWSA GLTPSLVTAE DSSLECSKAE DSDATGHEW KLEGALSEEP RGPELGSLEL VEDDTVDSDA TNGLIDLLEQ EEGQRSEEKL PGSKRQDDAT GAGQDSENEV SLVSGHQRGQ ARITHSPTV SQVTERSQDR LQDWDADGSI VSYLQDAAQG SWQEEVTQGP HSFQGTSTMT EGLEPGGSQE YEKVLVSVSE H TWTEQPEA ESSQADRDRR QQGQEEQVQE AKNTFTQVVQ GNEFQNIPGE QVTEEQFTDE QGNIVTKKII RKVVRQIDLS SA DAAQEHE EVTVEGPLED PSELEVDIDY FMKHSKDHTS TPNP

UniProtKB: Ankyrin-1

+
Macromolecule #2: Band 3 anion transport protein

MacromoleculeName: Band 3 anion transport protein / type: protein_or_peptide / ID: 2 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 101.883859 KDa
SequenceString: MEELQDDYED MMEENLEQEE YEDPDIPESQ MEEPAAHDTE ATATDYHTTS HPGTHKVYVE LQELVMDEKN QELRWMEAAR WVQLEENLG ENGAWGRPHL SHLTFWSLLE LRRVFTKGTV LLDLQETSLA GVANQLLDRF IFEDQIRPQD REELLRALLL K HSHAGELE ...String:
MEELQDDYED MMEENLEQEE YEDPDIPESQ MEEPAAHDTE ATATDYHTTS HPGTHKVYVE LQELVMDEKN QELRWMEAAR WVQLEENLG ENGAWGRPHL SHLTFWSLLE LRRVFTKGTV LLDLQETSLA GVANQLLDRF IFEDQIRPQD REELLRALLL K HSHAGELE ALGGVKPAVL TRSGDPSQPL LPQHSSLETQ LFCEQGDGGT EGHSPSGILE KIPPDSEATL VLVGRADFLE QP VLGFVRL QEAAELEAVE LPVPIRFLFV LLGPEAPHID YTQLGRAAAT LMSERVFRID AYMAQSRGEL LHSLEGFLDC SLV LPPTDA PSEQALLSLV PVQRELLRRR YQSSPAKPDS SFYKGLDLNG GPDDPLQQTG QLFGGLVRDI RRRYPYYLSD ITDA FSPQV LAAVIFIYFA ALSPAITFGG LLGEKTRNQM GVSELLISTA VQGILFALLG AQPLLVVGFS GPLLVFEEAF FSFCE TNGL EYIVGRVWIG FWLILLVVLV VAFEGSFLVR FISRYTQEIF SFLISLIFIY ETFSKLIKIF QDHPLQKTYN YNVLMV PKP QGPLPNTALL SLVLMAGTFF FAMMLRKFKN SSYFPGKLRR VIGDFGVPIS ILIMVLVDFF IQDTYTQKLS VPDGFKV SN SSARGWVIHP LGLRSEFPIW MMFASALPAL LVFILIFLES QITTLIVSKP ERKMVKGSGF HLDLLLVVGM GGVAALFG M PWLSATTVRS VTHANALTVM GKASTPGAAA QIQEVKEQRI SGLLVAVLVG LSILMEPILS RIPLAVLFGI FLYMGVTSL SGIQLFDRIL LLFKPPKYHP DVPYVKRVKT WRMHLFTGIQ IICLAVLWVV KSTPASLALP FVLILTVPLR RVLLPLIFRN VELQCLDAD DAKATFDEEE GRDEYDEVAM PV

UniProtKB: Band 3 anion transport protein

+
Macromolecule #3: Protein 4.2

MacromoleculeName: Protein 4.2 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 77.096914 KDa
SequenceString: MGQALGIKSC DFQAARNNEE HHTKALSSRR LFVRRGQPFT IILYFRAPVR AFLPALKKVA LTAQTGEQPS KINRTQATFP ISSLGDRKW WSAVVEERDA QSWTISVTTP ADAVIGHYSL LLQVSGRKQL LLGQFTLLFN PWNREDAVFL KNEAQRMEYL L NQNGLIYL ...String:
MGQALGIKSC DFQAARNNEE HHTKALSSRR LFVRRGQPFT IILYFRAPVR AFLPALKKVA LTAQTGEQPS KINRTQATFP ISSLGDRKW WSAVVEERDA QSWTISVTTP ADAVIGHYSL LLQVSGRKQL LLGQFTLLFN PWNREDAVFL KNEAQRMEYL L NQNGLIYL GTADCIQAES WDFGQFEGDV IDLSLRLLSK DKQVEKWSQP VHVARVLGAL LHFLKEQRVL PTPQTQATQE GA LLNKRRG SVPILRQWLT GRGRPVYDGQ AWVLAAVACT VLRCLGIPAR VVTTFASAQG TGGRLLIDEY YNEEGLQNGE GQR GRIWIF QTSTECWMTR PALPQGYDGW QILHPSAPNG GGVLGSCDLV PVRAVKEGTL GLTPAVSDLF AAINASCVVW KCCE DGTLE LTDSNTKYVG NNISTKGVGS DRCEDITQNY KYPEGSLQEK EVLERVEKEK MEREKDNGIR PPSLETASPL YLLLK APSS LPLRGDAQIS VTLVNHSEQE KAVQLAIGVQ AVHYNGVLAA KLWRKKLHLT LSANLEKIIT IGLFFSNFER NPPENT FLR LTAMATHSES NLSCFAQEDI AICRPHLAIK MPEKAEQYQP LTASVSLQNS LDAPMEDCVI SILGRGLIHR ERSYRFR SV WPENTMCAKF QFTPTHVGLQ RLTVEVDCNM FQNLTNYKSV TVVAPELSA

UniProtKB: Protein 4.2

+
Macromolecule #4: Blood group Rh(CE) polypeptide

MacromoleculeName: Blood group Rh(CE) polypeptide / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 45.598918 KDa
SequenceString: MSSKYPRSVR RCLPLWALTL EAALILLFYF FTHYDASLED QKGLVASYQV GQDLTVMAAL GLGFLTSNFR RHSWSSVAFN LFMLALGVQ WAILLDGFLS QFPPGKVVIT LFSIRLATMS AMSVLISAGA VLGKVNLAQL VVMVLVEVTA LGTLRMVISN I FNTDYHMN ...String:
MSSKYPRSVR RCLPLWALTL EAALILLFYF FTHYDASLED QKGLVASYQV GQDLTVMAAL GLGFLTSNFR RHSWSSVAFN LFMLALGVQ WAILLDGFLS QFPPGKVVIT LFSIRLATMS AMSVLISAGA VLGKVNLAQL VVMVLVEVTA LGTLRMVISN I FNTDYHMN LRHFYVFAAY FGLTVAWCLP KPLPKGTEDN DQRATIPSLS AMLGALFLWM FWPSVNSPLL RSPIQRKNAM FN TYYALAV SVVTAISGSS LAHPQRKISM TYVHSAVLAG GVAVGTSCHL IPSPWLAMVL GLVAGLISIG GAKCLPVCCN RVL GIHHIS VMHSIFSLLG LLGEITYIVL LVLHTVWNGN GMIGFQVLLS IGELSLAIVI ALTSGLLTGL LLNLKIWKAP HVAK YFDDQ VFWKFPHLAV GF

UniProtKB: Blood group Rh(CE) polypeptide

+
Macromolecule #5: Ammonium transporter Rh type A

MacromoleculeName: Ammonium transporter Rh type A / type: protein_or_peptide / ID: 5 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 44.229629 KDa
SequenceString: MRFTFPLMAI VLEIAMIVLF GLFVEYETDQ TVLEQLNITK PTDMGIFFEL YPLFQDVHVM IFVGFGFLMT FLKKYGFSSV GINLLVAAL GLQWGTIVQG ILQSQGQKFN IGIKNMINAD FSAATVLISF GAVLGKTSPT QMLIMTILEI VFFAHNEYLV S EIFKASDI ...String:
MRFTFPLMAI VLEIAMIVLF GLFVEYETDQ TVLEQLNITK PTDMGIFFEL YPLFQDVHVM IFVGFGFLMT FLKKYGFSSV GINLLVAAL GLQWGTIVQG ILQSQGQKFN IGIKNMINAD FSAATVLISF GAVLGKTSPT QMLIMTILEI VFFAHNEYLV S EIFKASDI GASMTIHAFG AYFGLAVAGI LYRSGLRKGH ENEESAYYSD LFAMIGTLFL WMFWPSFNSA IAEPGDKQCR AI VNTYFSL AACVLTAFAF SSLVEHRGKL NMVHIQNATL AGGVAVGTCA DMAIHPFGSM IIGSIAGMVS VLGYKFLTPL FTT KLRIHD TCGVHNLHGL PGVVGGLAGI VAVAMGASNT SMAMQAAALG SSIGTAVVGG LMTGLILKLP LWGQPSDQNC YDDS VYWKV PKTR

UniProtKB: Ammonium transporter Rh type A

+
Macromolecule #6: Glycophorin-A

MacromoleculeName: Glycophorin-A / type: protein_or_peptide / ID: 6 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 16.348433 KDa
SequenceString:
MYGKIIFVLL LSEIVSISAS STTGVAMHTS TSSSVTKSYI SSQTNDTHKR DTYAATPRAH EVSEISVRTV YPPEEETGER VQLAHHFSE PEITLIIFGV MAGVIGTILL ISYGIRRLIK KSPSDVKPLP SPDTDVPLSS VEIENPETSD Q

UniProtKB: Glycophorin-A

+
Macromolecule #7: Aquaporin-1

MacromoleculeName: Aquaporin-1 / type: protein_or_peptide / ID: 7 / Number of copies: 4 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 28.78832 KDa
SequenceString: MASEFKKKLF WRAVVAEFLA TTLFVFISIG SALGFKYPVG NNQTAVQDNV KVSLAFGLSI ATLAQSVGHI SGAHLNPAVT LGLLLS(P1L)QI SIFRALMYII AQCVGAIVAT AILSGITSSL TGNSLGRNDL ADGVNSGQGL GIEIIGTLQL VLCVLAT TD RRRRDLGGSA ...String:
MASEFKKKLF WRAVVAEFLA TTLFVFISIG SALGFKYPVG NNQTAVQDNV KVSLAFGLSI ATLAQSVGHI SGAHLNPAVT LGLLLS(P1L)QI SIFRALMYII AQCVGAIVAT AILSGITSSL TGNSLGRNDL ADGVNSGQGL GIEIIGTLQL VLCVLAT TD RRRRDLGGSA PLAIGLSVAL GHLLAIDYTG CGINPARSFG SAVITHNFSN HWIFWVGPFI GGALAVLIYD FILAPRSS D LTDRVKVWTS GQVEEYDLDA DDINSRVEMK PK

UniProtKB: Aquaporin-1

+
Macromolecule #8: CHOLESTEROL

MacromoleculeName: CHOLESTEROL / type: ligand / ID: 8 / Number of copies: 10 / Formula: CLR
Molecular weightTheoretical: 386.654 Da
Chemical component information

ChemComp-CLR:
CHOLESTEROL

+
Macromolecule #9: Digitonin

MacromoleculeName: Digitonin / type: ligand / ID: 9 / Number of copies: 2 / Formula: AJP
Molecular weightTheoretical: 1.229312 KDa
Chemical component information

ChemComp-AJP:
Digitonin / detergent*YM

+
Macromolecule #10: 2-acetamido-2-deoxy-beta-D-glucopyranose

MacromoleculeName: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 10 / Number of copies: 2 / Formula: NAG
Molecular weightTheoretical: 221.208 Da
Chemical component information

ChemComp-NAG:
2-acetamido-2-deoxy-beta-D-glucopyranose

+
Macromolecule #11: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(o...

MacromoleculeName: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate
type: ligand / ID: 11 / Number of copies: 2 / Formula: PIO
Molecular weightTheoretical: 746.566 Da
Chemical component information

ChemComp-PIO:
[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration8 mg/mL
BufferpH: 7.4
Details: Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v ...Details: Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277 K / Instrument: FEI VITROBOT MARK IV / Details: 4-6 seconds, wait time 30 seconds.
DetailsAnkyrin complex mixture purified from digitonin-solubilized erythrocyte ghost membranes

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number grids imaged: 2 / Number real images: 14464 / Average exposure time: 2.5 sec. / Average electron dose: 58.0 e/Å2 / Details: Two grids were imaged in a single session.
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.5 µm / Nominal defocus min: 0.5 µm
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionDetails: Patch CTF (cryoSPARC v3) followed by per particle defocus refinement and refinement of higher order aberrations (cryoSPARC v3)
Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL
In silico model: Generated by stochastic gradient descent using ab intio reconstruction job type in cryoSPARC v3.
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.9 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC
Details: Composite reconstruction; local refinements aligned to global consensus refinement, provided in additional maps.
Number images used: 145465
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
