Basic information

Entry
Database: EMDB / ID: EMD-26908
TitleRat Kidney V1 Complex without H with SidK and NCOA7B, State 1, Subunit DF focused refinement
Map dataV1 Complex without H with SidK and NCOA7B, State 1, Subunit DF focused refinement
Sample
  • Complex: Rat Kidney V1 with SidK and NCOA7B
KeywordsV-ATPase / Complex / Membrane protein / PROTON TRANSPORT
Biological speciesRattus norvegicus (Norway rat)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.6 Å
AuthorsAbbas YM / Rubinstein JL
Funding support Canada, 1 items
OrganizationGrant numberCountry
Canadian Institutes of Health Research (CIHR) Canada
CitationJournal: To Be Published
Title: Structure of V-ATPase with NCOA7B
Authors: Abbas YM / Rubinstein JL
History
DepositionMay 9, 2022-
Header (metadata) releaseNov 22, 2023-
Map releaseNov 22, 2023-
UpdateNov 22, 2023-
Current statusNov 22, 2023Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_26908.map.gz / Format: CCP4 / Size: 163.6 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationV1 Complex without H with SidK and NCOA7B, State 1, Subunit DF focused refinement
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.06 Å/pix.
x 350 pix.
= 371. Å		1.06 Å/pix.
x 350 pix.
= 371. Å		1.06 Å/pix.
x 350 pix.
= 371. Å

Surface

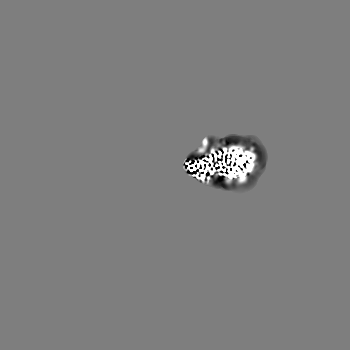

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.06 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 1.35
Minimum - Maximum-12.988769 - 15.894346000000001
Average (Standard dev.)0.00027525087 (±0.057289567)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions350350350
Spacing350350350
CellA=B=C: 370.99997 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: V1 Complex without H with SidK and NCOA7B,...

Fileemd_26908_half_map_1.map
AnnotationV1 Complex without H with SidK and NCOA7B, State 1, Subunit DF focused refinement
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: V1 Complex without H with SidK and NCOA7B,...

Fileemd_26908_half_map_2.map
AnnotationV1 Complex without H with SidK and NCOA7B, State 1, Subunit DF focused refinement
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Rat Kidney V1 with SidK and NCOA7B

EntireName: Rat Kidney V1 with SidK and NCOA7B
Components
  • Complex: Rat Kidney V1 with SidK and NCOA7B

-
Supramolecule #1: Rat Kidney V1 with SidK and NCOA7B

SupramoleculeName: Rat Kidney V1 with SidK and NCOA7B / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Rattus norvegicus (Norway rat)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 40.826 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.8000000000000003 µm / Nominal defocus min: 0.3 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.6 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 175138
Initial angle assignmentType: PROJECTION MATCHING
Final angle assignmentType: PROJECTION MATCHING

+
