- EMDB-24835: Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-24835
TitleCas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
Map dataCas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
Sample
  • Complex: Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
    • Protein or peptide: CRISPR-associated endonuclease Cas9/Csn1
    • RNA: gRNA
    • DNA: TS
    • DNA: NTS
KeywordsCas9 / Mismatch / IMMUNE SYSTEM-DNA-RNA complex
Function / homology
Function and homology information


maintenance of CRISPR repeat elements / 3'-5' exonuclease activity / DNA endonuclease activity / defense response to virus / Hydrolases; Acting on ester bonds / DNA binding / RNA binding / metal ion binding
Similarity search - Function
CRISPR-associated endonuclease Cas9, bridge helix / Bridge helix of CRISPR-associated endonuclease Cas9 / CRISPR-associated endonuclease Cas9, PAM-interacting domain / CRISPR-associated endonuclease Cas9, REC lobe / REC lobe of CRISPR-associated endonuclease Cas9 / PAM-interacting domain of CRISPR-associated endonuclease Cas9 / : / Cas9 RuvC domain / HNH endonuclease / CRISPR-associated endonuclease Cas9 ...CRISPR-associated endonuclease Cas9, bridge helix / Bridge helix of CRISPR-associated endonuclease Cas9 / CRISPR-associated endonuclease Cas9, PAM-interacting domain / CRISPR-associated endonuclease Cas9, REC lobe / REC lobe of CRISPR-associated endonuclease Cas9 / PAM-interacting domain of CRISPR-associated endonuclease Cas9 / : / Cas9 RuvC domain / HNH endonuclease / CRISPR-associated endonuclease Cas9 / Cas9-type HNH domain / Cas9-type HNH domain profile. / HNH nuclease / Ribonuclease H superfamily
Similarity search - Domain/homology
CRISPR-associated endonuclease Cas9/Csn1
Similarity search - Component
Biological speciesStreptococcus pyogenes (bacteria) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.28 Å
AuthorsBravo JPK / Taylor DW / Liu MS / Johnson KA
Funding support United States, 2 items
OrganizationGrant numberCountry
Welch FoundationF-1938 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R35GM138348 United States
CitationJournal: Nature / Year: 2022
Title: Structural basis for mismatch surveillance by CRISPR-Cas9.
Authors: Jack P K Bravo / Mu-Sen Liu / Grace N Hibshman / Tyler L Dangerfield / Kyungseok Jung / Ryan S McCool / Kenneth A Johnson / David W Taylor /
Abstract: CRISPR-Cas9 as a programmable genome editing tool is hindered by off-target DNA cleavage, and the underlying mechanisms by which Cas9 recognizes mismatches are poorly understood. Although Cas9 ...CRISPR-Cas9 as a programmable genome editing tool is hindered by off-target DNA cleavage, and the underlying mechanisms by which Cas9 recognizes mismatches are poorly understood. Although Cas9 variants with greater discrimination against mismatches have been designed, these suffer from substantially reduced rates of on-target DNA cleavage. Here we used kinetics-guided cryo-electron microscopy to determine the structure of Cas9 at different stages of mismatch cleavage. We observed a distinct, linear conformation of the guide RNA-DNA duplex formed in the presence of mismatches, which prevents Cas9 activation. Although the canonical kinked guide RNA-DNA duplex conformation facilitates DNA cleavage, we observe that substrates that contain mismatches distal to the protospacer adjacent motif are stabilized by reorganization of a loop in the RuvC domain. Mutagenesis of mismatch-stabilizing residues reduces off-target DNA cleavage but maintains rapid on-target DNA cleavage. By targeting regions that are exclusively involved in mismatch tolerance, we provide a proof of concept for the design of next-generation high-fidelity Cas9 variants.
History
DepositionSep 9, 2021-
Header (metadata) releaseMar 2, 2022-
Map releaseMar 2, 2022-
UpdateMay 14, 2025-
Current statusMay 14, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.16
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by radius
  • Surface level: 0.16
  • Imaged by UCSF Chimera
  • Download
  • Surface view with fitted model
  • Atomic models: PDB-7s4v
  • Surface level: 0.16
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_24835.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationCas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.1 Å/pix.
x 384 pix.
= 422.4 Å		1.1 Å/pix.
x 384 pix.
= 422.4 Å		1.1 Å/pix.
x 384 pix.
= 422.4 Å

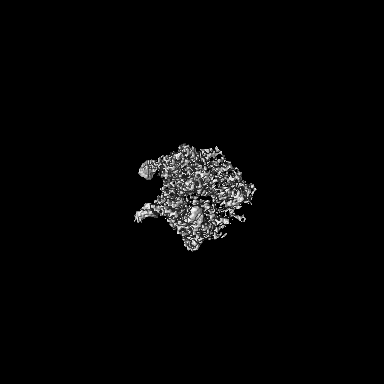

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.1 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.16 / Movie #1: 0.16
Minimum - Maximum-0.42992485 - 1.0726231
Average (Standard dev.)-0.00021991694 (±0.015302184)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 422.40002 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z1.11.11.1
M x/y/z384384384
origin x/y/z0.0000.0000.000
length x/y/z422.400422.400422.400
α/β/γ90.00090.00090.000
start NX/NY/NZ000
NX/NY/NZ300300300
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS384384384
D min/max/mean-0.4301.073-0.000

-
Supplemental data

-
Sample components

-
Entire : Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation

EntireName: Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
Components
  • Complex: Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
    • Protein or peptide: CRISPR-associated endonuclease Cas9/Csn1
    • RNA: gRNA
    • DNA: TS
    • DNA: NTS

-
Supramolecule #1: Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation

SupramoleculeName: Cas9 bound to 12-14MM DNA, 60 min time-point, kinked conformation
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Streptococcus pyogenes (bacteria)

-
Macromolecule #1: CRISPR-associated endonuclease Cas9/Csn1

MacromoleculeName: CRISPR-associated endonuclease Cas9/Csn1 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: Hydrolases; Acting on ester bonds
Source (natural)Organism: Streptococcus pyogenes (bacteria)
Molecular weightTheoretical: 158.699844 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MDKKYSIGLD IGTNSVGWAV ITDEYKVPSK KFKVLGNTDR HSIKKNLIGA LLFDSGETAE ATRLKRTARR RYTRRKNRIC YLQEIFSNE MAKVDDSFFH RLEESFLVEE DKKHERHPIF GNIVDEVAYH EKYPTIYHLR KKLVDSTDKA DLRLIYLALA H MIKFRGHF ...String:
MDKKYSIGLD IGTNSVGWAV ITDEYKVPSK KFKVLGNTDR HSIKKNLIGA LLFDSGETAE ATRLKRTARR RYTRRKNRIC YLQEIFSNE MAKVDDSFFH RLEESFLVEE DKKHERHPIF GNIVDEVAYH EKYPTIYHLR KKLVDSTDKA DLRLIYLALA H MIKFRGHF LIEGDLNPDN SDVDKLFIQL VQTYNQLFEE NPINASGVDA KAILSARLSK SRRLENLIAQ LPGEKKNGLF GN LIALSLG LTPNFKSNFD LAEDAKLQLS KDTYDDDLDN LLAQIGDQYA DLFLAAKNLS DAILLSDILR VNTEITKAPL SAS MIKRYD EHHQDLTLLK ALVRQQLPEK YKEIFFDQSK NGYAGYIDGG ASQEEFYKFI KPILEKMDGT EELLVKLNRE DLLR KQRTF DNGSIPHQIH LGELHAILRR QEDFYPFLKD NREKIEKILT FRIPYYVGPL ARGNSRFAWM TRKSEETITP WNFEE VVDK GASAQSFIER MTNFDKNLPN EKVLPKHSLL YEYFTVYNEL TKVKYVTEGM RKPAFLSGEQ KKAIVDLLFK TNRKVT VKQ LKEDYFKKIE CFDSVEISGV EDRFNASLGT YHDLLKIIKD KDFLDNEENE DILEDIVLTL TLFEDREMIE ERLKTYA HL FDDKVMKQLK RRRYTGWGRL SRKLINGIRD KQSGKTILDF LKSDGFANRN FMQLIHDDSL TFKEDIQKAQ VSGQGDSL H EHIANLAGSP AIKKGILQTV KVVDELVKVM GRHKPENIVI EMARENQTTQ KGQKNSRERM KRIEEGIKEL GSQILKEHP VENTQLQNEK LYLYYLQNGR DMYVDQELDI NRLSDYDVDH IVPQSFLKDD SIDNKVLTRS DKNRGKSDNV PSEEVVKKMK NYWRQLLNA KLITQRKFDN LTKAERGGLS ELDKAGFIKR QLVETRQITK HVAQILDSRM NTKYDENDKL IREVKVITLK S KLVSDFRK DFQFYKVREI NNYHHAHDAY LNAVVGTALI KKYPKLESEF VYGDYKVYDV RKMIAKSEQE IGKATAKYFF YS NIMNFFK TEITLANGEI RKRPLIETNG ETGEIVWDKG RDFATVRKVL SMPQVNIVKK TEVQTGGFSK ESILPKRNSD KLI ARKKDW DPKKYGGFDS PTVAYSVLVV AKVEKGKSKK LKSVKELLGI TIMERSSFEK NPIDFLEAKG YKEVKKDLII KLPK YSLFE LENGRKRMLA SAGELQKGNE LALPSKYVNF LYLASHYEKL KGSPEDNEQK QLFVEQHKHY LDEIIEQISE FSKRV ILAD ANLDKVLSAY NKHRDKPIRE QAENIIHLFT LTNLGAPAAF KYFDTTIDRK RYTSTKEVLD ATLIHQSITG LYETRI DLS QLGGD

UniProtKB: CRISPR-associated endonuclease Cas9/Csn1

-
Macromolecule #2: gRNA

MacromoleculeName: gRNA / type: rna / ID: 2 / Number of copies: 1
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 31.7029 KDa
SequenceString:
GACGCAUAAA GAUGAGACGC GUUUUAGAGC UAGAAAUAGC AAGUUAAAAU AAGGCUAGUC CGUUAUCAAC UUGAAAAAGU GGCACCGAG UCGGUGCUU

-
Macromolecule #3: TS

MacromoleculeName: TS / type: dna / ID: 3 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 10.04146 KDa
SequenceString:
(DC)(DT)(DA)(DA)(DT)(DC)(DG)(DC)(DC)(DA) (DG)(DC)(DG)(DT)(DC)(DT)(DC)(DA)(DT)(DC) (DT)(DA)(DA)(DT)(DT)(DG)(DC)(DG)(DT) (DC)(DA)(DG)(DC)

-
Macromolecule #4: NTS

MacromoleculeName: NTS / type: dna / ID: 4 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 9.410265 KDa
SequenceString:
(DG)(DC)(DT)(N)(N)(N)(N)(N)(N)(N) (N)(N)(N)(N)(N)(N)(N)(N)(N)(N) (N)(N)(N)(N)(N) (N)(N)(N)(N) (DC)(DT)(DG)(DG)(DC)(DG)(DA)(DT)(DT)(DA) (DG)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 80.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.28 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 198005
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
