Basic information

Entry
Database: EMDB / ID: EMD-18512
TitleCRYO-EM FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Map dataCRYO-EM 60S FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Sample
  • Complex: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
KeywordsLeishmania major snoRNA Ribosome / RIBOSOME
Biological speciesLeishmania major strain Friedlin (eukaryote)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.72 Å
AuthorsRajan KS / Yonath A / Bashan A
Funding supportEuropean Union, 1 items
OrganizationGrant numberCountry
European Research Council (ERC)European Union
CitationJournal: To Be Published
Title: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Authors: Rajan KS / Yonath A / Bashan A
History
DepositionSep 26, 2023-
Header (metadata) releaseOct 2, 2024-
Map releaseOct 2, 2024-
UpdateOct 2, 2024-
Current statusOct 2, 2024Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_18512.map.gz / Format: CCP4 / Size: 421.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationCRYO-EM 60S FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.75 Å/pix.
x 480 pix.
= 358.56 Å		0.75 Å/pix.
x 480 pix.
= 358.56 Å		0.75 Å/pix.
x 480 pix.
= 358.56 Å

Surface

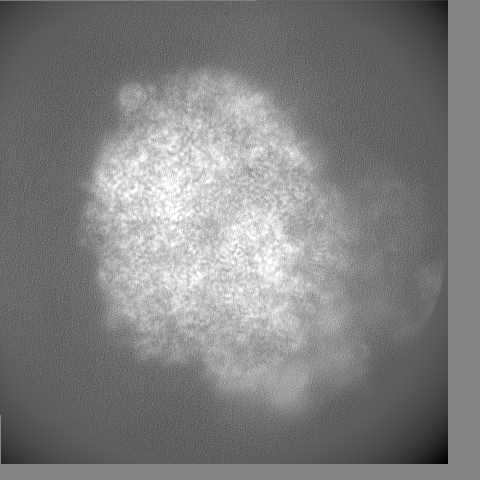

Projections

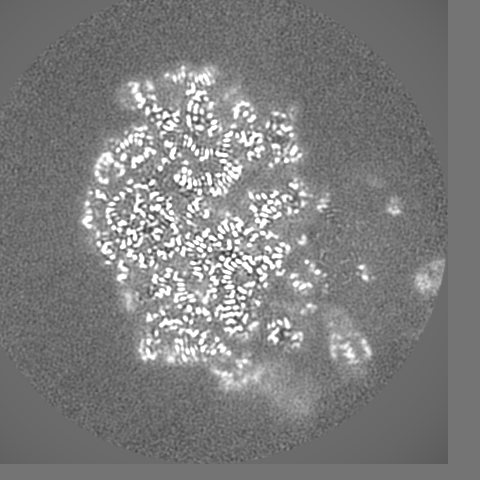

Slices (1/3)

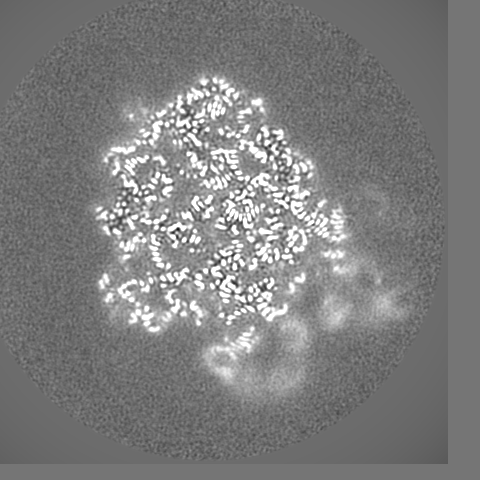

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.747 Å
Density

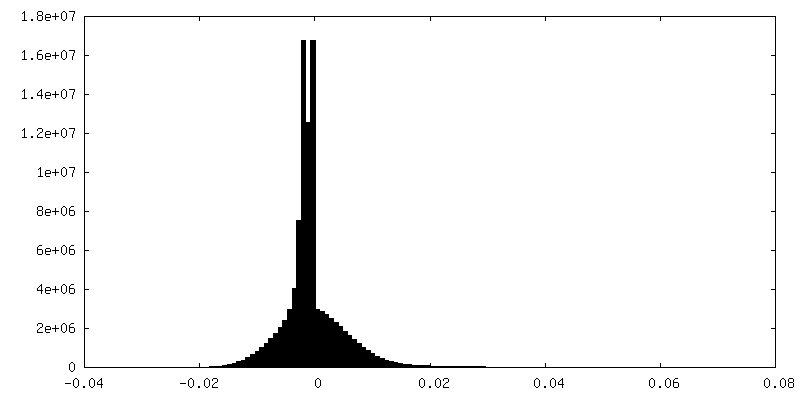

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0141
Minimum - Maximum-0.017011095 - 0.05618501
Average (Standard dev.)-0.0001887186 (±0.0031544173)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions480480480
Spacing480480480
CellA=B=C: 358.56 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: CRYO-EM 40S HEAD FOCUSED REFINED MAP OF LEISHMANIA...

Fileemd_18512_additional_1.map
AnnotationCRYO-EM 40S HEAD FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Projections & Slices
AxesZYX

Projections

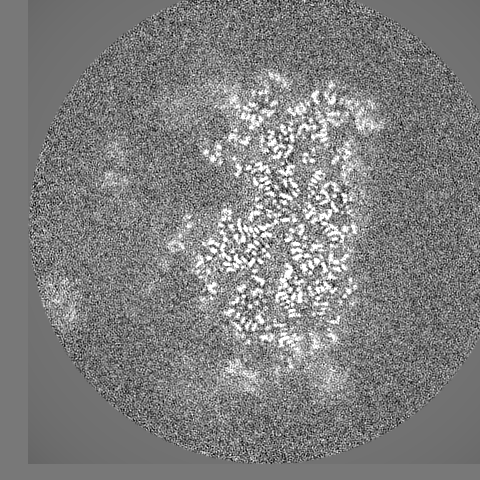

Slices (1/2)
Density Histograms

Histogram

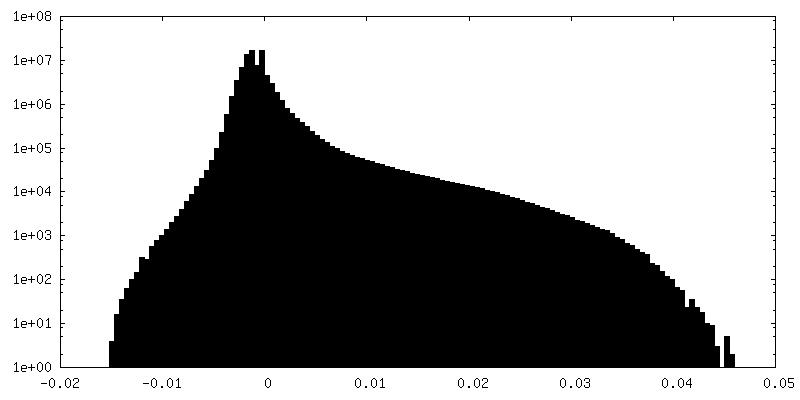

Histogram (log scale)

-
Additional map: CRYO-EM 40S BODY FOCUSED REFINED MAP OF LEISHMANIA...

Fileemd_18512_additional_2.map
AnnotationCRYO-EM 40S BODY FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Projections & Slices
AxesZYX

Projections

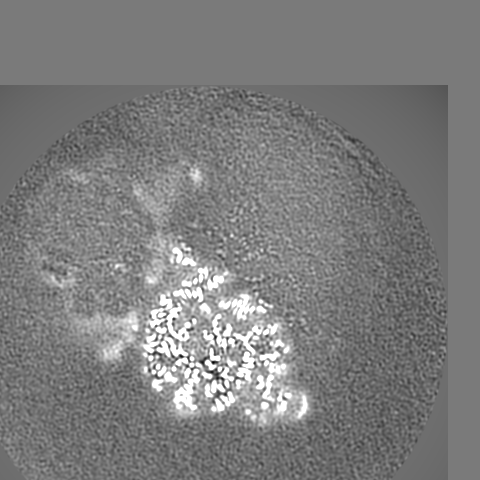

Slices (1/2)
Density Histograms

Histogram

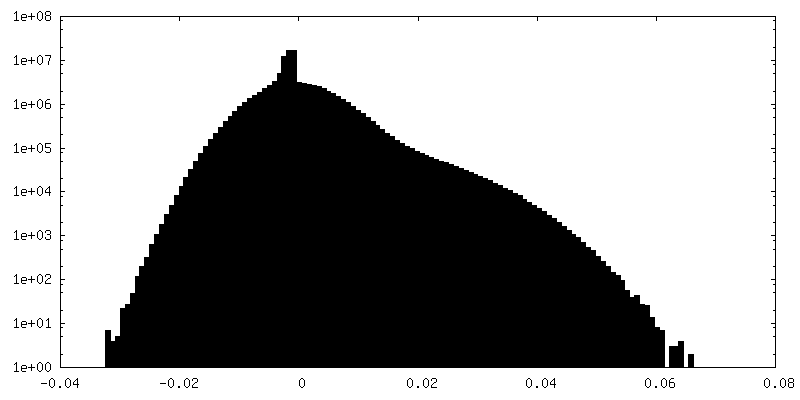

Histogram (log scale)

-
Half map: HALF MAP 1 FOR 60S FOCUSED REFINED MAP...

Fileemd_18512_half_map_1.map
AnnotationHALF MAP 1 FOR 60S FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: HALF MAP 2 FOR 60S FOCUSED REFINED MAP...

Fileemd_18512_half_map_2.map
AnnotationHALF MAP 2 FOR 60S FOCUSED REFINED MAP OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 sn...

EntireName: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Components
  • Complex: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression

-
Supramolecule #1: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 sn...

SupramoleculeName: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#86
Details: CRYO-EM STRUCTURE OF LEISHMANIA MAJOR 80S RIBOSOME : LM32Cs1C1 snoRNA overexpression
Source (natural)Organism: Leishmania major strain Friedlin (eukaryote)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 1.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.5 µm / Nominal defocus min: 0.7000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: EMDB MAP
EMDB ID:

17216

Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.72 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 134493
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
