Basic information

Entry
Database: EMDB / ID: EMD-17364
TitleStaphylococcus aureus 70S ribosome with elongation factor G locked with fusidic acid cyclopentane with a tRNA in pe/E chimeric hybrid state
Map dataLocal filtered map
Sample
  • Complex: Staphylococcus aureus 70S ribosome with elongation factor G and fusidic acid cyclopentane
    • Protein or peptide: x 48 types
    • RNA: x 5 types
  • Ligand: x 7 types
KeywordsRIBOSOME / fusidic acid / EF-G / antibiotic
Function / homology
Function and homology information


ribosome disassembly / translation elongation factor activity / ribosomal small subunit biogenesis / small ribosomal subunit rRNA binding / large ribosomal subunit / ribosomal small subunit assembly / large ribosomal subunit rRNA binding / 5S rRNA binding / transferase activity / small ribosomal subunit ...ribosome disassembly / translation elongation factor activity / ribosomal small subunit biogenesis / small ribosomal subunit rRNA binding / large ribosomal subunit / ribosomal small subunit assembly / large ribosomal subunit rRNA binding / 5S rRNA binding / transferase activity / small ribosomal subunit / cytosolic small ribosomal subunit / ribosomal large subunit assembly / cytoplasmic translation / cytosolic large ribosomal subunit / tRNA binding / negative regulation of translation / rRNA binding / ribosome / structural constituent of ribosome / translation / ribonucleoprotein complex / GTPase activity / mRNA binding / GTP binding / RNA binding / zinc ion binding / cytosol / cytoplasm
Similarity search - Function
Ribosomal protein L31 type B / Translation elongation factor EFG/EF2 / : / Elongation factor G, domain III / EFG, domain V / Elongation Factor G, domain II / Elongation Factor G, domain III / Translation elongation factor EFG/EF2, domain IV / Elongation factor G, domain IV / Elongation factor G, domain IV ...Ribosomal protein L31 type B / Translation elongation factor EFG/EF2 / : / Elongation factor G, domain III / EFG, domain V / Elongation Factor G, domain II / Elongation Factor G, domain III / Translation elongation factor EFG/EF2, domain IV / Elongation factor G, domain IV / Elongation factor G, domain IV / Ribosomal protein L25, long-form / Elongation factor G C-terminus / Ribosomal protein L25, beta domain / Ribosomal protein L25, C-terminal / Ribosomal protein TL5, C-terminal domain / Elongation factor EFG, domain V-like / Elongation factor G C-terminus / EF-G domain III/V-like / Tr-type G domain, conserved site / Translational (tr)-type guanine nucleotide-binding (G) domain signature. / : / Ribosomal protein S14, type Z / Translation elongation factor EFTu-like, domain 2 / Elongation factor Tu domain 2 / Translational (tr)-type GTP-binding domain / Elongation factor Tu GTP binding domain / Translational (tr)-type guanine nucleotide-binding (G) domain profile. / Ribosomal protein L31 signature. / Ribosomal protein L31 / Ribosomal protein L31 superfamily / Ribosomal protein L31 / : / Ribosomal protein L16 signature 1. / : / Ribosomal protein L6, conserved site / Ribosomal protein L6 signature 1. / Ribosomal protein L16, conserved site / Ribosomal protein L16 signature 2. / Ribosomal protein L17 signature. / Ribosomal L25p family / Ribosomal protein L25 / Ribosomal protein L28/L24 superfamily / Ribosomal protein L36 signature. / Ribosomal protein L25/Gln-tRNA synthetase, N-terminal / Ribosomal protein L25/Gln-tRNA synthetase, anti-codon-binding domain superfamily / Ribosomal protein L32p, bacterial type / : / : / Ribosomal protein L28 / Ribosomal protein L35, conserved site / Ribosomal protein L35 signature. / Ribosomal protein L33, conserved site / Ribosomal protein L33 signature. / Ribosomal protein L35, non-mitochondrial / Ribosomal protein L5, bacterial-type / Ribosomal protein L18, bacterial-type / Ribosomal protein L6, bacterial-type / Ribosomal protein S14/S29 / Ribosomal protein L19, conserved site / Ribosomal protein L19 signature. / Ribosomal protein L36 / Ribosomal protein L36 superfamily / Ribosomal protein L36 / Ribosomal protein S3, bacterial-type / Ribosomal protein S6, conserved site / Ribosomal protein L20 signature. / Ribosomal protein S6 signature. / Ribosomal protein S19, bacterial-type / Ribosomal protein S13, bacterial-type / Ribosomal protein L27, conserved site / Ribosomal protein L27 signature. / Ribosomal protein S7, bacterial/organellar-type / Ribosomal protein S11, bacterial-type / Ribosomal protein S20 / Ribosomal protein S20 superfamily / Ribosomal protein S20 / Ribosomal protein S9, bacterial/plastid / Ribosomal protein S4, bacterial-type / 30S ribosomal protein S17 / Ribosomal protein S5, bacterial-type / Ribosomal protein L14P, bacterial-type / Ribosomal protein L34, conserved site / Ribosomal protein L34 signature. / Ribosomal protein L22, bacterial/chloroplast-type / Ribosomal protein S6, plastid/chloroplast / Ribosomal protein L2, bacterial/organellar-type / Ribosomal protein L35 / Ribosomal protein L35 superfamily / Ribosomal protein S2, bacteria/mitochondria/plastid / Ribosomal protein L35 / Ribosomal L28 family / Ribosomal protein L33 / Ribosomal protein L33 / Ribosomal protein L28/L24 / Ribosomal protein L30, bacterial-type / Ribosomal protein L18 / Ribosomal L18 of archaea, bacteria, mitoch. and chloroplast / Ribosomal protein L33 superfamily / Ribosomal protein L16 / Ribosomal protein S18, conserved site
Similarity search - Domain/homology
Small ribosomal subunit protein uS10 / Large ribosomal subunit protein uL15 / Large ribosomal subunit protein uL30 / Small ribosomal subunit protein uS12 / Small ribosomal subunit protein uS7 / Large ribosomal subunit protein uL2 / Large ribosomal subunit protein bL34 / Large ribosomal subunit protein uL3 / Large ribosomal subunit protein uL4 / Large ribosomal subunit protein uL23 ...Small ribosomal subunit protein uS10 / Large ribosomal subunit protein uL15 / Large ribosomal subunit protein uL30 / Small ribosomal subunit protein uS12 / Small ribosomal subunit protein uS7 / Large ribosomal subunit protein uL2 / Large ribosomal subunit protein bL34 / Large ribosomal subunit protein uL3 / Large ribosomal subunit protein uL4 / Large ribosomal subunit protein uL23 / Small ribosomal subunit protein uS19 / Large ribosomal subunit protein uL22 / Small ribosomal subunit protein uS3 / Large ribosomal subunit protein uL16 / Large ribosomal subunit protein uL29 / Small ribosomal subunit protein uS17 / Large ribosomal subunit protein uL14 / Large ribosomal subunit protein uL24 / Large ribosomal subunit protein uL5 / Small ribosomal subunit protein uS14B / Small ribosomal subunit protein uS8 / Large ribosomal subunit protein uL6 / Large ribosomal subunit protein uL18 / Small ribosomal subunit protein uS5 / Large ribosomal subunit protein bL36 / Small ribosomal subunit protein uS13 / Small ribosomal subunit protein uS11 / Large ribosomal subunit protein bL17 / Large ribosomal subunit protein uL13 / Small ribosomal subunit protein uS9 / Large ribosomal subunit protein bL31B / Small ribosomal subunit protein uS4 / Large ribosomal subunit protein bL35 / Large ribosomal subunit protein bL20 / Large ribosomal subunit protein bL21 / Large ribosomal subunit protein bL27 / Small ribosomal subunit protein bS20 / Large ribosomal subunit protein bL33A / Small ribosomal subunit protein uS2 / Large ribosomal subunit protein bL19 / Small ribosomal subunit protein bS16 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein bL32 / Elongation factor G / Large ribosomal subunit protein bL25 / Small ribosomal subunit protein bS18 / Small ribosomal subunit protein bS6 / Small ribosomal subunit protein uS15
Similarity search - Component
Biological speciesStaphylococcus aureus subsp. aureus NCTC 8325 (bacteria) / Escherichia coli (E. coli)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.02 Å
AuthorsGonzalez-Lopez A / Selmer M
Funding support Sweden, 4 items
OrganizationGrant numberCountry
Other private Sweden
Other government Sweden
Swedish Research Council2016-06264 Sweden
Swedish Research Council2022-04511 Sweden
CitationJournal: Sci Rep / Year: 2024
Title: Structures of the Staphylococcus aureus ribosome inhibited by fusidic acid and fusidic acid cyclopentane.
Authors: Adrián González-López / Daniel S D Larsson / Ravi Kiran Koripella / Brett N Cain / Martin Garcia Chavez / Paul J Hergenrother / Suparna Sanyal / Maria Selmer /
Abstract: The antibiotic fusidic acid (FA) is used to treat Staphylococcus aureus infections. It inhibits protein synthesis by binding to elongation factor G (EF-G) and preventing its release from the ribosome ...The antibiotic fusidic acid (FA) is used to treat Staphylococcus aureus infections. It inhibits protein synthesis by binding to elongation factor G (EF-G) and preventing its release from the ribosome after translocation. While FA, due to permeability issues, is only effective against gram-positive bacteria, the available structures of FA-inhibited complexes are from gram-negative model organisms. To fill this knowledge gap, we solved cryo-EM structures of the S. aureus ribosome in complex with mRNA, tRNA, EF-G and FA to 2.5 Å resolution and the corresponding complex structures with the recently developed FA derivative FA-cyclopentane (FA-CP) to 2.0 Å resolution. With both FA variants, the majority of the ribosomal particles are observed in chimeric state and only a minor population in post-translocational state. As expected, FA binds in a pocket between domains I, II and III of EF-G and the sarcin-ricin loop of 23S rRNA. FA-CP binds in an identical position, but its cyclopentane moiety provides additional contacts to EF-G and 23S rRNA, suggesting that its improved resistance profile towards mutations in EF-G is due to higher-affinity binding. These high-resolution structures reveal new details about the S. aureus ribosome, including confirmation of many rRNA modifications, and provide an optimal starting point for future structure-based drug discovery on an important clinical drug target.
History
DepositionMay 16, 2023-
Header (metadata) releaseMay 1, 2024-
Map releaseMay 1, 2024-
UpdateJul 3, 2024-
Current statusJul 3, 2024Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_17364.map.gz / Format: CCP4 / Size: 1.3 GB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationLocal filtered map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.73 Å/pix.
x 700 pix.
= 509.6 Å		0.73 Å/pix.
x 700 pix.
= 509.6 Å		0.73 Å/pix.
x 700 pix.
= 509.6 Å

Surface

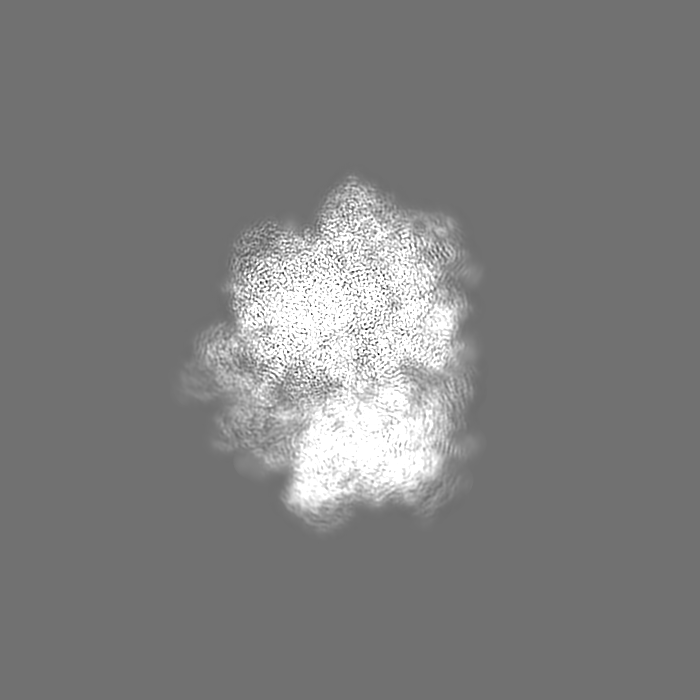

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.728 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.2
Minimum - Maximum-2.3458745 - 5.370636
Average (Standard dev.)0.0030986364 (±0.06340962)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions700700700
Spacing700700700
CellA=B=C: 509.59998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_17364_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Unsharpened map

Fileemd_17364_additional_1.map
AnnotationUnsharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Local map around EF-G

Fileemd_17364_additional_2.map
AnnotationLocal map around EF-G
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map A

Fileemd_17364_half_map_1.map
AnnotationHalf map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map B

Fileemd_17364_half_map_2.map
AnnotationHalf map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Staphylococcus aureus 70S ribosome with elongation factor G and f...

EntireName: Staphylococcus aureus 70S ribosome with elongation factor G and fusidic acid cyclopentane
Components
  • Complex: Staphylococcus aureus 70S ribosome with elongation factor G and fusidic acid cyclopentane
    • Protein or peptide: 50S ribosomal protein L28
    • Protein or peptide: 50S ribosomal protein L29
    • Protein or peptide: 50S ribosomal protein L30
    • Protein or peptide: 50S ribosomal protein L31 type B
    • Protein or peptide: Large ribosomal subunit protein bL32
    • Protein or peptide: Large ribosomal subunit protein bL33A
    • Protein or peptide: 50S ribosomal protein L34
    • Protein or peptide: 50S ribosomal protein L35
    • Protein or peptide: 50S ribosomal protein L36
    • RNA: 23S ribosomal RNA
    • RNA: 5S ribosomal RNA
    • RNA: tRNA
    • Protein or peptide: Elongation factor G
    • Protein or peptide: 50S ribosomal protein L2
    • Protein or peptide: 50S ribosomal protein L3
    • Protein or peptide: 50S ribosomal protein L4
    • Protein or peptide: 50S ribosomal protein L5
    • Protein or peptide: 50S ribosomal protein L6
    • Protein or peptide: 50S ribosomal protein L13
    • Protein or peptide: 50S ribosomal protein L14
    • Protein or peptide: 50S ribosomal protein L15
    • Protein or peptide: 50S ribosomal protein L16
    • Protein or peptide: 50S ribosomal protein L17
    • Protein or peptide: 50S ribosomal protein L18
    • Protein or peptide: 50S ribosomal protein L19
    • Protein or peptide: 50S ribosomal protein L20
    • Protein or peptide: 50S ribosomal protein L21
    • Protein or peptide: 50S ribosomal protein L22
    • Protein or peptide: 50S ribosomal protein L23
    • Protein or peptide: 50S ribosomal protein L24
    • Protein or peptide: 50S ribosomal protein L25
    • Protein or peptide: 50S ribosomal protein L27
    • RNA: 16S ribosomal RNA
    • RNA: mRNA
    • Protein or peptide: 30S ribosomal protein S2
    • Protein or peptide: 30S ribosomal protein S3
    • Protein or peptide: 30S ribosomal protein S4
    • Protein or peptide: 30S ribosomal protein S5
    • Protein or peptide: 30S ribosomal protein S6
    • Protein or peptide: 30S ribosomal protein S7
    • Protein or peptide: 30S ribosomal protein S8
    • Protein or peptide: 30S ribosomal protein S9
    • Protein or peptide: Small ribosomal subunit protein uS10
    • Protein or peptide: 30S ribosomal protein S11
    • Protein or peptide: 30S ribosomal protein S12
    • Protein or peptide: 30S ribosomal protein S13
    • Protein or peptide: 30S ribosomal protein S14 type Z
    • Protein or peptide: 30S ribosomal protein S15
    • Protein or peptide: 30S ribosomal protein S16
    • Protein or peptide: 30S ribosomal protein S17
    • Protein or peptide: 30S ribosomal protein S18
    • Protein or peptide: 30S ribosomal protein S19
    • Protein or peptide: 30S ribosomal protein S20
  • Ligand: MAGNESIUM ION
  • Ligand: SPERMIDINE
  • Ligand: 1,4-DIAMINOBUTANE
  • Ligand: GUANOSINE-5'-DIPHOSPHATE
  • Ligand: 2-[(3~{R},4~{S},5~{S},8~{S},9~{S},10~{S},11~{R},13~{S},14~{S},16~{S})-16-acetyloxy-4,8,10,14-tetramethyl-3,11-bis(oxidanyl)-1,2,3,4,5,6,7,9,11,12,13,15,16,17-tetradecahydrocyclopenta[a]phenanthren-17-yl]-5-cyclopentyl-pentanoic acid
  • Ligand: ZINC ION
  • Ligand: water

+
Supramolecule #1: Staphylococcus aureus 70S ribosome with elongation factor G and f...

SupramoleculeName: Staphylococcus aureus 70S ribosome with elongation factor G and fusidic acid cyclopentane
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #24-#32, #1-#23, #33-#53
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 2.6 MDa

+
Macromolecule #1: 23S ribosomal RNA

MacromoleculeName: 23S ribosomal RNA / type: rna / ID: 1 / Number of copies: 1
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8324-4
Molecular weightTheoretical: 946.782688 KDa
SequenceString: GAUUAAGUUA UUAAGGGCGC ACGGUGGAUG CCUUGGCACU AGAAGCCGAU GAAGGACGUU ACUAACGACG AUAUGCUUUG GGGAGCUGU AAGUAAGCUU UGAUCCAGAG AUUUCCGAAU GGGGAAACCC AGCAUGAGUU AUGUCAUGUU AUCGAUAUGU G AAUACAUA ...String:
GAUUAAGUUA UUAAGGGCGC ACGGUGGAUG CCUUGGCACU AGAAGCCGAU GAAGGACGUU ACUAACGACG AUAUGCUUUG GGGAGCUGU AAGUAAGCUU UGAUCCAGAG AUUUCCGAAU GGGGAAACCC AGCAUGAGUU AUGUCAUGUU AUCGAUAUGU G AAUACAUA GCAUAUCAGA AGGCACACCC GGAGAACUGA AACAUCUUAG UACCCGGAGG AAGAGAAAGA AAAUUCGAUU CC CUUAGUA GCGGCGAGCG AAACGGGAAG AGCCCAAACC AACAAGCUUG CUUGUUGGGG UUGUAGGACA CUCUAUACGG AGU UACAAA GGACGACAUU AGACGAAUCA UCUGGAAAGA UGAAUCAAAG AAGGUAAUAA UCCUGUAGUC GAAAAUGUUG UCUC UCUUG AGUGGAUCCU GAGUACGACG GAGCACGUGA AAUUCCGUCG GAAUCUGGGA GGACCAUCUC CUAAGGCUAA AUACU CUCU AGUGACCGAU AGUGAACCAG UACCGUGAGG GAAAGGUGAA AAGCACCCCG GAAGGGGAGU GAAAUAGAAC CUGAAA CCG UGUGCUUACA AGUAGUCAGA GCCCGUUAAU GGGUGAUGGC GUGCCUUUUG UAGAAUGAAC CGGCGAGUUA CGAUUUG AU GCAAGGUUAA GCAGUAAAUG UGGAGCCGUA GCGAAAGCGA GUCUGAAUAG GGCGUUUAGU AUUUGGUCGU AGACCCGA A ACCAGGUGAU CUACCCUUGG UCAGGUUGAA GUUCAGGUAA CACUGAAUGG AGGACCGAAC CGACUUACGU (5MU)GAAA AGUG AGCGGAUGAA CUGAGGGUAG CGGAGAAAUU CCAAUCGAAC CUGGAGAUAG CUGGUUCUCU CCGAAAUAGC UUUAGG GCU AGCCUCAAGU GAUGAUUAUU GGAGGUAGAG CACUGUUUGG ACGAGGGGCC CCUCUCGGGU UACCGAAUUC AGACAAA CU CCGAAUGCCA AUUAAUUUAA CUUGGGAGUC AGAACAUGGG UGAUAAGGUC CGUGUUCGAA AGGGAAACAG CCCAGACC A CCAGCUAAGG UCCCAAAAUA UAUGUUAAGU GGAAAAGGAU GUGGCGUUGC CCAGACAACU AGGAUGUUGG CUUAGAAGC AGCCAUCAUU UAAAGAGUGC GUAAUAGCUC ACUAGUCGAG UGACACUGCG CCGAAAAUGU ACCGGGGCUA AACAUAUUAC CGAAGCUGU GGAUUGUCCU UUGGACAAUG GUAGGAGAGC GUUCUAAGGG CGUUGAAGCA UGAUCGUAAG GACAUGUGGA G CGCUUAGA AGUGAGAAUG CCGGUGUGAG UAGCGAAAGA CGGGUGAGAA UCCCGUCCAC CGAUUGACUA AGGUUUCCAG AG GAAGGCU CGUCCGCUCU GGGUUAGUCG GGUCCUAAGC UGAGGCCGAC AGGCGUAGGC GAUGGAUAAC AGGUUGAUAU UCC UGUACC ACCUAUAAUC GUUUUAAUCG AUGGGGGGAC GCAGUAGGAU AGGCGAAGCG UGCGAUUGGA UUGCACGUCU AAGC AGUAA GGCUGAGUAU UAGGCAAAUC CGGUACUCGU UAAGGCUGAG CUGUGAUGGG GAGAAGACAU UGUGUCUUCG AGUCG UUGA UUUCACACUG CCGAGAAAAG CCUCUAGAUA GAAAAUAGGU GCCCGUACCG CAAACCGACA CAGGUAGUCA AGAUGA GAA UUCUAAGGUG AGCGAGCGAA CUCUCGUUAA GGAACUCGGC AAAAUGACCC CGUAACUUCG GGAGAAGGGG UGCUCUU UA GGGUUAACGC CCAGAAGAGC CGCAGUGAAU AGGCCCAAGC GACUGUUUAU CAAAAACACA GGUCUCUGCU AAACCGUA A GGUGAUGUAU AGGGGCUGAC GCCUGCCCGG UGCUGGAAGG UUAAGAGGAG UGGUUAGCUU CUGCGAAGCU ACGAAUCGA AGCCCCAGUA AACGGCGGCC GUAAC(3TD)AUAA CGGUCCUAAG GUAGCGAAA(5MU) UCCUUGUCGG GUAAGUUCCG AC CCGCACG AAAGGCGUAA CGAUUUGGGC ACUGUCUCAA CGAGAGACUC GGUGAAAUCA UAGUACCUGU GAAGAUGCAG GUU ACCCGC GACAGGACGG AAAGACCCCG UGGAGCUUUA CUGUAGCCUG AUAUUGAAAU UCGGCACAGC UUGUACAGGA UAGG UAGGA GCCUUUGAAA CGUGAGCGCU AGCUUACGUG GAGGCGCUGG UGGGAUACUA CCCUAGCUGU GUUGGCUUUC UAACC CGCA CCACUUAUCG UGGUGGGAGA CAGUGUCAGG CGGGCAGUUU GACUG(OMG)GGCG GUCGCCUCCU AAAAGGUAAC GG AGGCGCU CAAAGGUUCC CUCAGAAUGG UUGGAAAUCA UUCAUAGAGU GUAAAGGCAU AAGGGAGCUU GACUGCGAGA CCU ACAAGU CGAGCAGGGU CGAAAGACGG ACUUAGUGAU CCGGUGGUUC CGCAUGGAAG GGCCAUCGCU CAACGGAUAA AAGC UACCC CG(2MG)GGA(H2U)AAC AGGCUUAUCU CCCCCAAGAG UUCACAUCGA CGGGGAGGUU UGGCACCUCG (2MA)UG UCGGCU CAUCGCAUCC UGGGGCUGUA GUCGGUCCCA AGGGUUGGGC UGUUCGCCCA UUAAAGCGGU ACGCGAGCUG GGUU CAGAA CGUCGUGAGA CAGUUCGGUC CCUAUCCGUC GUGGGCGUAG GAAAUUUGAG AGGAGCUGUC CUUAGUACGA GAGGA CCGG GAUGGACAUA CCUCUGGUGU ACCAGUUGUC GUGCCAACGG CAUAGCUGGG UAGCUAUGUG UGGACGGGAU AAGUGC UGA AAGCAUCUAA GCAUGAAGCC CCCCUCAAGA UGAGAUUUCC CAACUUCGGU UAUAAGAUCC CUCAAAGAUG AUGAGGU UA AUAGGUUCGA GGUGGAAGCA UGGUGACAUG UGGAGCUGAC GAAUACUAAU CGAUCGAAGA CUUAAUCAA

GENBANK: GENBANK: CP000253.1

+
Macromolecule #2: 5S ribosomal RNA

MacromoleculeName: 5S ribosomal RNA / type: rna / ID: 2 / Number of copies: 1
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8324-4
Molecular weightTheoretical: 36.974945 KDa
SequenceString:
UCUGGUGACU AUAGCAAGGA GGUCACACCU GUUCCCAUGC CGAACACAGA AGUUAAGCUC CUUAGCGUCG AUGGUAGUCG AACUUACGU UCCGCUAGAG UAGAACGUUG CCAGGC

GENBANK: GENBANK: CP000253.1

+
Macromolecule #3: tRNA

MacromoleculeName: tRNA / type: rna / ID: 3 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 24.802785 KDa
SequenceString:
CGCGGGGUGG AGCAGCCUGG UAGCUCGUCG GGCUCAUAAC CCGAAGGUCG UCGGUUCAAA UCCGGCCCCC GCAACCA

GENBANK: GENBANK: AP023205.1

+
Macromolecule #33: 16S ribosomal RNA

MacromoleculeName: 16S ribosomal RNA / type: rna / ID: 33 / Number of copies: 1
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 503.117219 KDa
SequenceString: UUUUAUGGAG AGUUUGAUCC UGGCUCAGGA UGAACGCUGG CGGCGUGCCU AAUACAUGCA AGUCGAGCGA ACGGACGAGA AGCUUGCUU CUCUGAUGUU AGCGGCGGAC GGGUGAGUAA CACGUGGAUA ACCUACCUAU AAGACUGGGA UAACUUCGGG A AACCGGAG ...String:
UUUUAUGGAG AGUUUGAUCC UGGCUCAGGA UGAACGCUGG CGGCGUGCCU AAUACAUGCA AGUCGAGCGA ACGGACGAGA AGCUUGCUU CUCUGAUGUU AGCGGCGGAC GGGUGAGUAA CACGUGGAUA ACCUACCUAU AAGACUGGGA UAACUUCGGG A AACCGGAG CUAAUACCGG AUAAUAUUUU GAACCGCAUG GUUCAAAAGU GAAAGACGGU CUUGCUGUCA CUUAUAGAUG GA UCCGCGC UGCAUUAGCU AGUUGGUAAG GUAACGGCUU ACCAAGGCAA CGAUGCAUAG CCGACCUGAG AGGGUGAUCG GCC ACACUG GAACUGAGAC ACGGUCCAGA CUCCUACGGG AGGCAGCAGU AGGGAAUCUU CCGCAAUGGG CGAAAGCCUG ACGG AGCAA CGCCGCGUGA GUGAUGAAGG UCUUCGGAUC GUAAAACUCU GUUAUUAGGG AAGAACAUAU GUGUAAGUAA CUGUG CACA UCUUGACGGU ACCUAAUCAG AAAGCCACGG CUAACUACGU GCCAGCAGCC (G7M)CGGUAAUAC GUAGGUGGCA AG CGUUAUC CGGAAUUAUU GGGCGUAAAG CGCGCGUAGG CGGUUUUUUA AGUCUGAUGU GAAAGCCCAC GGCUCAACCG UGG AGGGUC AUUGGAAACU GGAAAACUUG AGUGCAGAAG AGGAAAGUGG AAUUCCAUGU GUAGCGGUGA AAUGCGCAGA GAUA UGGAG GAACACCAGU GGCGAAGGCG ACUUUCUGGU CUGUAACUGA CGCUGAUGUG CGAAAGCGUG GGGAUCAAAC AGGAU UAGA UACCCUGGUA GUCCACGCCG UAAACGAUGA GUGCUAAGUG UUAGGGGGUU UCCGCCCCUU AGUGCUGCAG CUAACG CAU UAAGCACUCC GCCUGGGGAG UACGACCGCA AGGUUGAAAC UCAAAGGAAU UGACGGGGAC CCGCACAAGC GGUGGAG CA UGUGGUUUAA UUCGAA(2MG)(5MC)AA CGCGAAGAAC CUUACCAAAU CUUGACAUCC UUUGACAACU CUAGAGAUAG AGCCUUCCC CUUCGGGGGA CAAAGUGACA GGUGGUGCAU GGUUGUCGUC AGCUCGUGUC GUGAGAUGUU GGGUUAAGUC C CGCAACGA GCGCAACCCU UAAGCUUAGU UGCCAUCAUU AAGUUGGGCA CUCUAAGUUG ACUGCCGGUG ACAAACCGGA GG AAGGUGG GGAUGACGUC AAAUCAUCAU GCCCCUUAUG AUUUGGGCUA CACACGUGCU ACAAUGGACA AUACAAAGGG CAG CGAAAC CGCGAGGUCA AGCAAAUCCC AUAAAGUUGU UCUCAGUUCG GAUUGUAGUC UGCAACUCGA CUACAUGAAG CUGG AAUCG CUAGUAAUCG UAGAUCAGCA UGCUACGGUG AAUACGUUCC CGGGUCUUGU ACACACCG(4OC)C CGUCACACCA C GAGAGUUU GUAACACCCG AAGCCGGUGG AGUAACCUUU UAGGAGCUAG CCGUCGAAGG UGGGACAAAU GAUUGGGGUG AA GUCG(UR3)AA CAAGGUAGCC GUAUCGG(MA6)(MA6)G GUGCGGCUGG AUCACCUCCU UUCU

GENBANK: GENBANK: CP000253.1

+
Macromolecule #34: mRNA

MacromoleculeName: mRNA / type: rna / ID: 34 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 7.889855 KDa
SequenceString:
GGCAAGGAGG UAAAAAUGGC AAAA

+
Macromolecule #4: Elongation factor G

MacromoleculeName: Elongation factor G / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Molecular weightTheoretical: 76.699289 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: MAREFSLEKT RNIGIMAHID AGKTTTTERI LYYTGRIHKI GETHEGASQM DWMEQEQDRG ITITSAATTA AWEGHRVNII DTPGHVDFT VEVERSLRVL DGAVTVLDAQ SGVEPQTETV WRQATTYGVP RIVFVNKMDK LGANFEYSVS TLHDRLQANA A PIQLPIGA ...String:
MAREFSLEKT RNIGIMAHID AGKTTTTERI LYYTGRIHKI GETHEGASQM DWMEQEQDRG ITITSAATTA AWEGHRVNII DTPGHVDFT VEVERSLRVL DGAVTVLDAQ SGVEPQTETV WRQATTYGVP RIVFVNKMDK LGANFEYSVS TLHDRLQANA A PIQLPIGA EDEFEAIIDL VEMKCFKYTN DLGTEIEEIE IPEDHLDRAE EARASLIEAV AETSDELMEK YLGDEEISVS EL KEAIRQA TTNVEFYPVL CGTAFKNKGV QLMLDAVIDY LPSPLDVKPI IGHRASNPEE EVIAKADDSA EFAALAFKVM TDP YVGKLT FFRVYSGTMT SGSYVKNSTK GKRERVGRLL QMHANSRQEI DTVYSGDIAA AVGLKDTGTG DTLCGEKNDI ILES MEFPE PVIHLSVEPK SKADQDKMTQ ALVKLQEEDP TFHAHTDEET GQVIIGGMGE LHLDILVDRM KKEFNVECNV GAPMV SYRE TFKSSAQVQG KFSRQSGGRG QYGDVHIEFT PNETGAGFEF ENAIVGGVVP REYIPSVEAG LKDAMENGVL AGYPLI DVK AKLYDGSYHD VDSSEMAFKI AASLALKEAA KKCDPVILEP MMKVTIEMPE EYMGDIMGDV TSRRGRVDGM EPRGNAQ VV NAYVPLSEMF GYATSLRSNT QGRGTYTMYF DHYAEVPKSI AEDIIKKNKG E

UniProtKB: Elongation factor G

+
Macromolecule #5: 50S ribosomal protein L2

MacromoleculeName: 50S ribosomal protein L2 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 30.217164 KDa
SequenceString: MAIKKYKPIT NGRRNMTSLD FAEITKTTPE KSLLKPLPKK AGRNNQGKLT VRHHGGGHKR QYRVIDFKRN KDGINAKVDS IQYDPNRSA NIALVVYADG EKRYIIAPKG LEVGQIVESG AEADIKVGNA LPLQNIPVGT VVHNIELKPG KGGQIARSAG A SAQVLGKE ...String:
MAIKKYKPIT NGRRNMTSLD FAEITKTTPE KSLLKPLPKK AGRNNQGKLT VRHHGGGHKR QYRVIDFKRN KDGINAKVDS IQYDPNRSA NIALVVYADG EKRYIIAPKG LEVGQIVESG AEADIKVGNA LPLQNIPVGT VVHNIELKPG KGGQIARSAG A SAQVLGKE GKYVLIRLRS GEVRMILSTC RATIGQVGNL QHELVNVGKA GRSRWKGIRP TVRGSVMNPN DHPHGGGEGR AP IGRPSPM SPWGKPTLGK KTRRGKKSSD KLIVRGRKKK

UniProtKB: Large ribosomal subunit protein uL2

+
Macromolecule #6: 50S ribosomal protein L3

MacromoleculeName: 50S ribosomal protein L3 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 23.760256 KDa
SequenceString: MTKGILGRKI GMTQVFGENG ELIPVTVVEA KENVVLQKKT VEVDGYNAIQ VGFEDKKAYK KDAKSNKYAN KPAEGHAKKA DAAPKRFIR EFRNVDVDAY EVGQEVSVDT FVAGDVIDVT GVSKGKGFQG AIKRHGQSRG PMSHGSHFHR APGSVGMASD A SRVFKGQK ...String:
MTKGILGRKI GMTQVFGENG ELIPVTVVEA KENVVLQKKT VEVDGYNAIQ VGFEDKKAYK KDAKSNKYAN KPAEGHAKKA DAAPKRFIR EFRNVDVDAY EVGQEVSVDT FVAGDVIDVT GVSKGKGFQG AIKRHGQSRG PMSHGSHFHR APGSVGMASD A SRVFKGQK MPGRMGGNTV TVQNLEVVQV DTENKVILVK GNVPGPKKGL VEIRTSIKKG NK

UniProtKB: Large ribosomal subunit protein uL3

+
Macromolecule #7: 50S ribosomal protein L4

MacromoleculeName: 50S ribosomal protein L4 / type: protein_or_peptide / ID: 7 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 22.495697 KDa
SequenceString: MANYDVLKLD GTKSGSIELS DAVFGIEPNN SVLFEAINLQ RASLRQGTHA VKNRSAVSGG GRKPWKQKGT GRARQGTIRA PQWRGGGIV FGPTPRSYAY KMPKKMRRLA LRSALSFKAQ ENGLTVVDAF NFEAPKTKEF KNVLSTLEQP KKVLVVTENE D VNVELSAR ...String:
MANYDVLKLD GTKSGSIELS DAVFGIEPNN SVLFEAINLQ RASLRQGTHA VKNRSAVSGG GRKPWKQKGT GRARQGTIRA PQWRGGGIV FGPTPRSYAY KMPKKMRRLA LRSALSFKAQ ENGLTVVDAF NFEAPKTKEF KNVLSTLEQP KKVLVVTENE D VNVELSAR NIPGVQVTTA QGLNVLDITN ADSLVITEAA AKKVEEVLG

UniProtKB: Large ribosomal subunit protein uL4

+
Macromolecule #8: 50S ribosomal protein L5

MacromoleculeName: 50S ribosomal protein L5 / type: protein_or_peptide / ID: 8 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 20.296637 KDa
SequenceString:
MNRLKEKFNT EVTENLMKKF NYSSVMEVPK IDKIVVNMGV GDAVQNSKVL DNAVEELELI TGQKPLVTKA KKSIATFRLR EGMPIGAKV TLRGERMYEF LDKLISVSLP RVRDFQGVSK KAFDGRGNYT LGVKEQLIFP EIDYDKVSKV RGMDIVIVTT A NTDEEARE LLANFGMPFR K

UniProtKB: Large ribosomal subunit protein uL5

+
Macromolecule #9: 50S ribosomal protein L6

MacromoleculeName: 50S ribosomal protein L6 / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 19.81858 KDa
SequenceString:
MSRVGKKIID IPSDVTVTFD GNHVTVKGPK GELSRTLNER MTFKQEENTI EVVRPSDSKE DRTNHGTTRA LLNNMVQGVS QGYVKVLEL VGVGYRAQMQ GKDLILNVGY SHPVEIKAEE NITFSVEKNT VVKVEGISKE QVGALASNIR SVRPPEPYKG K GIRYQGEY VRRKEGKTGK

UniProtKB: Large ribosomal subunit protein uL6

+
Macromolecule #10: 50S ribosomal protein L13

MacromoleculeName: 50S ribosomal protein L13 / type: protein_or_peptide / ID: 10 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 16.359427 KDa
SequenceString:
MRQTFMANES NIERKWYVID AEGQTLGRLS SEVASILRGK NKVTYTPHVD TGDYVIVINA SKIEFTGNKE TDKVYYRHSN HPGGIKSIT AGELRRTNPE RLIENSIKGM LPSTRLGEKQ GKKLFVYGGA EHPHAAQQPE NYELRG

UniProtKB: Large ribosomal subunit protein uL13

+
Macromolecule #11: 50S ribosomal protein L14

MacromoleculeName: 50S ribosomal protein L14 / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.157342 KDa
SequenceString:
MIQQETRLKV ADNSGAREVL TIKVLGGSGR KTANIGDVIV CTVKNATPGG VVKKGDVVKA VIVRTKSGVR RNDGSYIKFD ENACVIIRD DKGPRGTRIF GPVARELREG NFMKIVSLAP EVL

UniProtKB: Large ribosomal subunit protein uL14

+
Macromolecule #12: 50S ribosomal protein L15

MacromoleculeName: 50S ribosomal protein L15 / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 15.62889 KDa
SequenceString:
MKLHELKPAE GSRKERNRVG RGVATGNGKT SGRGHKGQKA RSGGGVRPGF EGGQLPLFRR LPKRGFTNIN RKEYAIVNLD QLNKFEDGT EVTPALLVES GVVKNEKSGI KILGNGSLDK KLTVKAHKFS ASAAEAIDAK GGAHEVI

UniProtKB: Large ribosomal subunit protein uL15

+
Macromolecule #13: 50S ribosomal protein L16

MacromoleculeName: 50S ribosomal protein L16 / type: protein_or_peptide / ID: 13 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 16.274049 KDa
SequenceString:
MLLPKRVKYR RQHRPKTTGR SKGGNYVTFG EFGLQATTTS WITSRQIESA RIAMTRYMKR GGKVWIKIFP HTPYTKKPLE VRMGAGKGA VEGWIAVVKP GRILFEVAGV SEEVAREALR LASHKLPVKT KFVKREELGG ETNES

UniProtKB: Large ribosomal subunit protein uL16

+
Macromolecule #14: 50S ribosomal protein L17

MacromoleculeName: 50S ribosomal protein L17 / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.771773 KDa
SequenceString:
MGYRKLGRTS DQRKAMLRDL ATSLIISERI ETTEARAKEV RSVVEKLITL GKKGDLASRR NAAKTLRNVE ILNEDETTQT ALQKLFGEI AERYTERQGG YTRILKQGPR RGDGAESVII ELV

UniProtKB: Large ribosomal subunit protein bL17

+
Macromolecule #15: 50S ribosomal protein L18

MacromoleculeName: 50S ribosomal protein L18 / type: protein_or_peptide / ID: 15 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.124093 KDa
SequenceString:
MISKIDKNKV RLKRHARVRT NLSGTAEKPR LNVYRSNKHI YAQIIDDNKG VTLAQASSKD SDIATTATKV ELATKVGEAI AKKAADKGI KEIVFDRGGY LYHGRVKALA EAARESGLEF

UniProtKB: Large ribosomal subunit protein uL18

+
Macromolecule #16: 50S ribosomal protein L19

MacromoleculeName: 50S ribosomal protein L19 / type: protein_or_peptide / ID: 16 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.392771 KDa
SequenceString:
MTNHKLIEAV TKSQLRTDLP SFRPGDTLRV HVRIIEGTRE RIQVFEGVVI KRRGGGVSET FTVRKISSGV GVERTFPLHT PKIEKIEVK RRGKVRRAKL YYLRSLRGKA ARIQEIR

UniProtKB: Large ribosomal subunit protein bL19

+
Macromolecule #17: 50S ribosomal protein L20

MacromoleculeName: 50S ribosomal protein L20 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.720295 KDa
SequenceString:
MPRVKGGTVT RARRKKTIKL AKGYFGSKHT LYKVAKQQVM KSGQYAFRDR RQRKRDFRKL WITRINAAAR QHEMSYSRLM NGLKKAGID INRKMLSEIA ISDEKAFAQL VTKAKDALK

UniProtKB: Large ribosomal subunit protein bL20

+
Macromolecule #18: 50S ribosomal protein L21

MacromoleculeName: 50S ribosomal protein L21 / type: protein_or_peptide / ID: 18 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 11.354081 KDa
SequenceString:
MFAIIETGGK QIKVEEGQEI FVEKLDVNEG DTFTFDKVLF VGGDSVKVGA PTVEGATVTA TVNKQGRGKK ITVFTYKRRK NSKRKKGHR QPYTKLTIDK INA

UniProtKB: Large ribosomal subunit protein bL21

+
Macromolecule #19: 50S ribosomal protein L22

MacromoleculeName: 50S ribosomal protein L22 / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 12.857922 KDa
SequenceString:
MEAKAVARTI RIAPRKVRLV LDLIRGKNAA EAIAILKLTN KASSPVIEKV LMSALANAEH NYDMNTDELV VKEAYANEGP TLKRFRPRA QGRASAINKR TSHITIVVSD GKEEAKEA

UniProtKB: Large ribosomal subunit protein uL22

+
Macromolecule #20: 50S ribosomal protein L23

MacromoleculeName: 50S ribosomal protein L23 / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 10.625398 KDa
SequenceString:
MEARDILKRP VITEKSSEAM AEDKYTFDVD TRVNKTQVKM AVEEIFNVKV ASVNIMNYKP KKKRMGRYQG YTNKRRKAIV TLKEGSIDL FN

UniProtKB: Large ribosomal subunit protein uL23

+
Macromolecule #21: 50S ribosomal protein L24

MacromoleculeName: 50S ribosomal protein L24 / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 11.561504 KDa
SequenceString:
MHIKKGDNVK VIAGKDKGKE GKVIATLPKK DRVVVEGVNI MKKHQKPTQL NPEGGILETE AAIHVSNVQL LDPKTNEPTR VGYKFVDGK KVRIAKKSGE EIKSNN

UniProtKB: Large ribosomal subunit protein uL24

+
Macromolecule #22: 50S ribosomal protein L25

MacromoleculeName: 50S ribosomal protein L25 / type: protein_or_peptide / ID: 22 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 23.810609 KDa
SequenceString: MASLKSIIRQ GKQTRSDLKQ LRKSGKVPAV VYGYGTKNVS VKVDEVEFIK VIREVGRNGV IELGVGSKTI KVMVADYQFD PLKNQITHI DFLAINMSEE RTVEVPVQLV GEAVGAKEGG VVEQPLFNLE VTATPDNIPE AIEVDITELN INDSLTVADV K VTGDFKIE ...String:
MASLKSIIRQ GKQTRSDLKQ LRKSGKVPAV VYGYGTKNVS VKVDEVEFIK VIREVGRNGV IELGVGSKTI KVMVADYQFD PLKNQITHI DFLAINMSEE RTVEVPVQLV GEAVGAKEGG VVEQPLFNLE VTATPDNIPE AIEVDITELN INDSLTVADV K VTGDFKIE NDSAESVVTV VAPTEEPTEE EIEAMEGEQQ TEEPEVVGES KEDEEKTEE

UniProtKB: Large ribosomal subunit protein bL25

+
Macromolecule #23: 50S ribosomal protein L27

MacromoleculeName: 50S ribosomal protein L27 / type: protein_or_peptide / ID: 23 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 10.334798 KDa
SequenceString:
MLKLNLQFFA SKKGVSSTKN GRDSESKRLG AKRADGQFVT GGSILYRQRG TKIYPGENVG RGGDDTLFAK IDGVVKFERK GRDKKQVSV YAVAE

UniProtKB: Large ribosomal subunit protein bL27

+
Macromolecule #24: 50S ribosomal protein L28

MacromoleculeName: 50S ribosomal protein L28 / type: protein_or_peptide / ID: 24 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 6.995289 KDa
SequenceString:
MGKQCFVTGR KASTGNRRSH ALNSTKRRWN ANLQKVRILV DGKPKKVWVS ARALKSGKVT RV

UniProtKB: Large ribosomal subunit protein bL28

+
Macromolecule #25: 50S ribosomal protein L29

MacromoleculeName: 50S ribosomal protein L29 / type: protein_or_peptide / ID: 25 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 8.105266 KDa
SequenceString:
MKAKEIRDLT TSEIEEQIKS SKEELFNLRF QLATGQLEET ARIRTVRKTI ARLKTVARER EIEQSKANQ

UniProtKB: Large ribosomal subunit protein uL29

+
Macromolecule #26: 50S ribosomal protein L30

MacromoleculeName: 50S ribosomal protein L30 / type: protein_or_peptide / ID: 26 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 6.565683 KDa
SequenceString:
MAKLQITLTR SVIGRPETQR KTVEALGLKK TNSSVVVEDN PAIRGQINKV KHLVTVEEK

UniProtKB: Large ribosomal subunit protein uL30

+
Macromolecule #27: 50S ribosomal protein L31 type B

MacromoleculeName: 50S ribosomal protein L31 type B / type: protein_or_peptide / ID: 27 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 9.737912 KDa
SequenceString:
MKQGIHPEYH QVIFLDTTTN FKFLSGSTKT SSEMMEWEDG KEYPVIRLDI SSDSHPFYTG RQKFAAADGR VERFNKKFGL KSNN

UniProtKB: Large ribosomal subunit protein bL31B

+
Macromolecule #28: Large ribosomal subunit protein bL32

MacromoleculeName: Large ribosomal subunit protein bL32 / type: protein_or_peptide / ID: 28 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 6.500609 KDa
SequenceString:
MAVPKRRTSK TRKNKRRTHF KISVPGMTEC PNCGEYKLSH RVCKNCGSYN GEEVAAK

UniProtKB: Large ribosomal subunit protein bL32

+
Macromolecule #29: Large ribosomal subunit protein bL33A

MacromoleculeName: Large ribosomal subunit protein bL33A / type: protein_or_peptide / ID: 29 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 5.944937 KDa
SequenceString:
MRVNVTLACT ECGDRNYITT KNKRNNPERI EMKKYCPRLN KYTLHRETK

UniProtKB: Large ribosomal subunit protein bL33A

+
Macromolecule #30: 50S ribosomal protein L34

MacromoleculeName: 50S ribosomal protein L34 / type: protein_or_peptide / ID: 30 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 5.454642 KDa
SequenceString:
MVKRTYQPNK RKHSKVHGFR KRMSTKNGRK VLARRRRKGR KVLSA

UniProtKB: Large ribosomal subunit protein bL34

+
Macromolecule #31: 50S ribosomal protein L35

MacromoleculeName: 50S ribosomal protein L35 / type: protein_or_peptide / ID: 31 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 7.722368 KDa
SequenceString:
MPKMKTHRGA AKRVKRTASG QLKRSRAFTS HLFANKSTKQ KRQLRKARLV SKSDMKRVKQ LLAYKK

UniProtKB: Large ribosomal subunit protein bL35

+
Macromolecule #32: 50S ribosomal protein L36

MacromoleculeName: 50S ribosomal protein L36 / type: protein_or_peptide / ID: 32 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 4.318422 KDa
SequenceString:
MKVRPSVKPI CEKCKVIKRK GKVMVICENP KHKQRQG

UniProtKB: Large ribosomal subunit protein bL36

+
Macromolecule #35: 30S ribosomal protein S2

MacromoleculeName: 30S ribosomal protein S2 / type: protein_or_peptide / ID: 35 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 29.136369 KDa
SequenceString: MAVISMKQLL EAGVHFGHQT RRWNPKMKKY IFTERNGIYI IDLQKTVKKV DEAYNFLKQV SEDGGQVLFV GTKKQAQESV KSEAERAGQ FYINQRWLGG LLTNYKTISK RIKRISEIEK MEEDGLFEVL PKKEVVELKK EYDRLIKFLG GIRDMKSMPQ A LFVVDPRK ...String:
MAVISMKQLL EAGVHFGHQT RRWNPKMKKY IFTERNGIYI IDLQKTVKKV DEAYNFLKQV SEDGGQVLFV GTKKQAQESV KSEAERAGQ FYINQRWLGG LLTNYKTISK RIKRISEIEK MEEDGLFEVL PKKEVVELKK EYDRLIKFLG GIRDMKSMPQ A LFVVDPRK ERNAIAEARK LNIPIVGIVD TNCDPDEIDY VIPANDDAIR AVKLLTAKMA DAILEGQQGV SNEEVAAEQN ID LDEKEKS EETEATEE

UniProtKB: Small ribosomal subunit protein uS2

+
Macromolecule #36: 30S ribosomal protein S3

MacromoleculeName: 30S ribosomal protein S3 / type: protein_or_peptide / ID: 36 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 24.143867 KDa
SequenceString: MGQKINPIGL RVGIIRDWEA KWYAEKDFAS LLHEDLKIRK FIDNELKEAS VSHVEIERAA NRINIAIHTG KPGMVIGKGG SEIEKLRNK LNALTDKKVH INVIEIKKVD LDARLVAENI ARQLENRASF RRVQKQAITR AMKLGAKGIK TQVSGRLGGA D IARAEQYS ...String:
MGQKINPIGL RVGIIRDWEA KWYAEKDFAS LLHEDLKIRK FIDNELKEAS VSHVEIERAA NRINIAIHTG KPGMVIGKGG SEIEKLRNK LNALTDKKVH INVIEIKKVD LDARLVAENI ARQLENRASF RRVQKQAITR AMKLGAKGIK TQVSGRLGGA D IARAEQYS EGTVPLHTLR ADIDYAHAEA DTTYGKLGVK VWIYRGEVLP TKNTSGGGK

UniProtKB: Small ribosomal subunit protein uS3

+
Macromolecule #37: 30S ribosomal protein S4

MacromoleculeName: 30S ribosomal protein S4 / type: protein_or_peptide / ID: 37 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 23.051416 KDa
SequenceString: MARFRGSNWK KSRRLGISLS GTGKELEKRP YAPGQHGPNQ RKKLSEYGLQ LREKQKLRYL YGMTERQFRN TFDIAGKKFG VHGENFMIL LASRLDAVVY SLGLARTRRQ ARQLVNHGHI LVDGKRVDIP SYSVKPGQTI SVREKSQKLN IIVESVEINN F VPEYLNFD ...String:
MARFRGSNWK KSRRLGISLS GTGKELEKRP YAPGQHGPNQ RKKLSEYGLQ LREKQKLRYL YGMTERQFRN TFDIAGKKFG VHGENFMIL LASRLDAVVY SLGLARTRRQ ARQLVNHGHI LVDGKRVDIP SYSVKPGQTI SVREKSQKLN IIVESVEINN F VPEYLNFD ADSLTGTFVR LPERSELPAE INEQLIVEYY SR

UniProtKB: Small ribosomal subunit protein uS4

+
Macromolecule #38: 30S ribosomal protein S5

MacromoleculeName: 30S ribosomal protein S5 / type: protein_or_peptide / ID: 38 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 17.770512 KDa
SequenceString:
MARREEETKE FEERVVTINR VAKVVKGGRR FRFTALVVVG DKNGRVGFGT GKAQEVPEAI KKAVEAAKKD LVVVPRVEGT TPHTITGRY GSGSVFMKPA APGTGVIAGG PVRAVLELAG ITDILSKSLG SNTPINMVRA TIDGLQNLKN AEDVAKLRGK T VEELYN

UniProtKB: Small ribosomal subunit protein uS5

+
Macromolecule #39: 30S ribosomal protein S6

MacromoleculeName: 30S ribosomal protein S6 / type: protein_or_peptide / ID: 39 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 11.613146 KDa
SequenceString:
MRTYEVMYIV RPNIEEDAKK ALVERFNGIL ATEGAEVLEA KDWGKRRLAY EINDFKDGFY NIVRVKSDNN KATDEFQRLA KISDDIIRY MVIREDEDK

UniProtKB: Small ribosomal subunit protein bS6

+
Macromolecule #40: 30S ribosomal protein S7

MacromoleculeName: 30S ribosomal protein S7 / type: protein_or_peptide / ID: 40 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 17.826555 KDa
SequenceString:
MPRKGSVPKR DVLPDPIHNS KLVTKLINKI MLDGKRGTAQ RILYSAFDLV EQRSGRDALE VFEEAINNIM PVLEVKARRV GGSNYQVPV EVRPERRTTL GLRWLVNYAR LRGEKTMEDR LANEILDAAN NTGGAVKKRE DTHKMAEANK AFAHYRW

UniProtKB: Small ribosomal subunit protein uS7

+
Macromolecule #41: 30S ribosomal protein S8

MacromoleculeName: 30S ribosomal protein S8 / type: protein_or_peptide / ID: 41 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 14.854315 KDa
SequenceString:
MTMTDPIADM LTRVRNANMV RHEKLELPAS NIKKEIAEIL KSEGFIKNVE YVEDDKQGVL RLFLKYGQND ERVITGLKRI SKPGLRVYA KASEMPKVLN GLGIALVSTS EGVITDKEAR KRNVGGEIIA YVW

UniProtKB: Small ribosomal subunit protein uS8

+
Macromolecule #42: 30S ribosomal protein S9

MacromoleculeName: 30S ribosomal protein S9 / type: protein_or_peptide / ID: 42 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 14.856987 KDa
SequenceString:
MTLAQVEYRG TGRRKNSVAR VRLVPGEGNI TVNNRDVREY LPFESLILDL NQPFDVTETK GNYDVLVNVH GGGFTGQAQA IRHGIARAL LEADPEYRGS LKRAGLLTRD PRMKERKKPG LKAARRSPQF SKR

UniProtKB: Small ribosomal subunit protein uS9

+
Macromolecule #43: Small ribosomal subunit protein uS10

MacromoleculeName: Small ribosomal subunit protein uS10 / type: protein_or_peptide / ID: 43 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 11.598503 KDa
SequenceString:
MAKQKIRIRL KAYDHRVIDQ SAEKIVETAK RSGADVSGPI PLPTEKSVYT IIRAVHKYKD SREQFEQRTH KRLIDIVNPT PKTVDALMG LNLPSGVDIE IKL

UniProtKB: Small ribosomal subunit protein uS10

+
Macromolecule #44: 30S ribosomal protein S11

MacromoleculeName: 30S ribosomal protein S11 / type: protein_or_peptide / ID: 44 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.907978 KDa
SequenceString:
MARKQVSRKR RVKKNIENGV AHIRSTFNNT IVTITDEFGN ALSWSSAGAL GFKGSKKSTP FAAQMASETA SKSAMEHGLK TVEVTVKGP GPGRESAIRA LQSAGLEVTA IRDVTPVPHN GCRPPKRRRV

UniProtKB: Small ribosomal subunit protein uS11

+
Macromolecule #45: 30S ribosomal protein S12

MacromoleculeName: 30S ribosomal protein S12 / type: protein_or_peptide / ID: 45 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 15.32087 KDa
SequenceString:
MPTINQLVRK PRQSKIKKSD SPALNKGFNS KKKKFTDLNS PQKRGVCTRV GTMTPKKPNS ALRKYARVRL SNNIEINAYI PGIGHNLQE HSVVLVRGGR VKDLPGVRYH IVRGALDTSG VDGRRQGRSL YGTKKPKN

UniProtKB: Small ribosomal subunit protein uS12

+
Macromolecule #46: 30S ribosomal protein S13

MacromoleculeName: 30S ribosomal protein S13 / type: protein_or_peptide / ID: 46 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 13.747919 KDa
SequenceString:
MARIAGVDIP REKRVVISLT YIYGIGTSTA QKILEEANVS ADTRVKDLTD DELGRIREVV DGYKVEGDLR RETNLNIKRL MEISSYRGI RHRRGLPVRG QKTKNNARTR KGPVKTVANK KK

UniProtKB: Small ribosomal subunit protein uS13

+
Macromolecule #47: 30S ribosomal protein S14 type Z

MacromoleculeName: 30S ribosomal protein S14 type Z / type: protein_or_peptide / ID: 47 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 7.317769 KDa
SequenceString:
MAKTSMVAKQ QKKQKYAVRE YTRCERCGRP HSVYRKFKLC RICFRELAYK GQIPGVRKAS W

UniProtKB: Small ribosomal subunit protein uS14B

+
Macromolecule #48: 30S ribosomal protein S15

MacromoleculeName: 30S ribosomal protein S15 / type: protein_or_peptide / ID: 48 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 10.63433 KDa
SequenceString:
MAISQERKNE IIKEYRVHET DTGSPEVQIA VLTAEINAVN EHLRTHKKDH HSRRGLLKMV GRRRHLLNYL RSKDIQRYRE LIKSLGIRR

UniProtKB: Small ribosomal subunit protein uS15

+
Macromolecule #49: 30S ribosomal protein S16

MacromoleculeName: 30S ribosomal protein S16 / type: protein_or_peptide / ID: 49 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 10.253886 KDa
SequenceString:
MAVKIRLTRL GSKRNPFYRI VVADARSPRD GRIIEQIGTY NPTSANAPEI KVDEALALKW LNDGAKPTDT VHNILSKEGI MKKFDEQKK AK

UniProtKB: Small ribosomal subunit protein bS16

+
Macromolecule #50: 30S ribosomal protein S17

MacromoleculeName: 30S ribosomal protein S17 / type: protein_or_peptide / ID: 50 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 10.196888 KDa
SequenceString:
MSERNDRKVY VGKVVSDKMD KTITVLVETY KTHKLYGKRV KYSKKYKTHD ENNSAKLGDI VKIQETRPLS ATKRFRLVEI VEESVII

UniProtKB: Small ribosomal subunit protein uS17

+
Macromolecule #51: 30S ribosomal protein S18

MacromoleculeName: 30S ribosomal protein S18 / type: protein_or_peptide / ID: 51 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 9.332018 KDa
SequenceString:
MAGGPRRGGR RRKKVCYFTA NGITHIDYKD TELLKRFISE RGKILPRRVT GTSAKYQRML TTAIKRSRHM ALLPYVKEEQ

UniProtKB: Small ribosomal subunit protein bS18

+
Macromolecule #52: 30S ribosomal protein S19

MacromoleculeName: 30S ribosomal protein S19 / type: protein_or_peptide / ID: 52 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 10.639309 KDa
SequenceString:
MARSIKKGPF VDEHLMKKVE AQEGSEKKQV IKTWSRRSTI FPNFIGHTFA VYDGRKHVPV YVTEDMVGHK LGEFAPTRTF KGHVADDKK TRR

UniProtKB: Small ribosomal subunit protein uS19

+
Macromolecule #53: 30S ribosomal protein S20

MacromoleculeName: 30S ribosomal protein S20 / type: protein_or_peptide / ID: 53 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Strain: 8325-4
Molecular weightTheoretical: 9.039472 KDa
SequenceString:
MANIKSAIKR VKTTEKAEAR NISQKSAMRT AVKNAKTAVS NNADNKNELV SLAVKLVDKA AQSNLIHSNK ADRIKSQLMT ANK

UniProtKB: Small ribosomal subunit protein bS20

+
Macromolecule #54: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 54 / Number of copies: 169 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #55: SPERMIDINE

MacromoleculeName: SPERMIDINE / type: ligand / ID: 55 / Number of copies: 3 / Formula: SPD
Molecular weightTheoretical: 145.246 Da
Chemical component information

ChemComp-SPD:
SPERMIDINE

+
Macromolecule #56: 1,4-DIAMINOBUTANE

MacromoleculeName: 1,4-DIAMINOBUTANE / type: ligand / ID: 56 / Number of copies: 1 / Formula: PUT
Molecular weightTheoretical: 88.151 Da
Chemical component information

ChemComp-PUT:
1,4-DIAMINOBUTANE

+
Macromolecule #57: GUANOSINE-5'-DIPHOSPHATE

MacromoleculeName: GUANOSINE-5'-DIPHOSPHATE / type: ligand / ID: 57 / Number of copies: 1 / Formula: GDP
Molecular weightTheoretical: 443.201 Da
Chemical component information

ChemComp-GDP:
GUANOSINE-5'-DIPHOSPHATE / GDP, energy-carrying molecule*YM

+
Macromolecule #58: 2-[(3~{R},4~{S},5~{S},8~{S},9~{S},10~{S},11~{R},13~{S},14~{S},16~...

MacromoleculeName: 2-[(3~{R},4~{S},5~{S},8~{S},9~{S},10~{S},11~{R},13~{S},14~{S},16~{S})-16-acetyloxy-4,8,10,14-tetramethyl-3,11-bis(oxidanyl)-1,2,3,4,5,6,7,9,11,12,13,15,16,17-tetradecahydrocyclopenta[a] ...Name: 2-[(3~{R},4~{S},5~{S},8~{S},9~{S},10~{S},11~{R},13~{S},14~{S},16~{S})-16-acetyloxy-4,8,10,14-tetramethyl-3,11-bis(oxidanyl)-1,2,3,4,5,6,7,9,11,12,13,15,16,17-tetradecahydrocyclopenta[a]phenanthren-17-yl]-5-cyclopentyl-pentanoic acid
type: ligand / ID: 58 / Number of copies: 1 / Formula: WUX
Molecular weightTheoretical: 546.778 Da

+
Macromolecule #59: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 59 / Number of copies: 3 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

+
Macromolecule #60: water

MacromoleculeName: water / type: ligand / ID: 60 / Number of copies: 3169 / Formula: HOH
Molecular weightTheoretical: 18.015 Da
Chemical component information

ChemComp-HOH:
WATER

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
Component:
ConcentrationFormulaName
20.0 mMC8H18N2O4SHEPES-KOH
95.0 mMKClPotassium chloride
5.0 mMNH4ClAmmonium chloride
5.0 mMMg(OAc)2Magnesium acetate
0.5 mMCaCl2Calcium chloride
8.0 mM(CH2)4(NH2)2Putrescine
1.0 mMC7H19N3Spermidine
0.4 mMC33H50O6NaFusidic acid cyclopentane
GridModel: Quantifoil R2/1 / Material: COPPER / Mesh: 200 / Support film - Material: CARBON / Support film - topology: CONTINUOUS / Support film - Film thickness: 2 / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Time: 15 sec. / Pretreatment - Atmosphere: AIR / Pretreatment - Pressure: 0.039 kPa
VitrificationCryogen name: ETHANE / Chamber humidity: 90 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: TFS Selectris / Energy filter - Slit width: 10 eV
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Number grids imaged: 1 / Number real images: 17252 / Average exposure time: 2.23 sec. / Average electron dose: 27.77 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Calibrated defocus max: 2.4 µm / Calibrated defocus min: 0.2 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.3 µm / Nominal defocus min: 0.7000000000000001 µm / Nominal magnification: 165000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 559995
Startup modelType of model: NONE
Final reconstructionNumber classes used: 9 / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 2.02 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 4.1.2) / Number images used: 303005
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.0.2)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.1.2)
Final 3D classificationNumber classes: 10 / Avg.num./class: 35000 / Software - Name: cryoSPARC (ver. 4.1.2)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChain

7nhm

source_name: PDB, initial_model_type: experimental model

2xex

chain_id: E, source_name: PDB, initial_model_type: experimental model

7ssd

chain_id: D, source_name: PDB, initial_model_type: experimental model
RefinementSpace: REAL / Protocol: FLEXIBLE FIT
Output model

PDB-8p2g:
Staphylococcus aureus 70S ribosome with elongation factor G locked with fusidic acid cyclopentane with a tRNA in pe/E chimeric state

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
