Basic information

Entry
Database: EMDB / ID: EMD-15957
TitleDirect observation of the conformational state of formin mDia1 dimer along the actin filament
Map dataActin filament core encircled by a formin mDia1 dimer.
Sample
  • Complex: Actin barbed-end bound by formin mDia1 dimer in his "open state"
    • Organelle or cellular component: Formin mDia1 dimer
    • Organelle or cellular component: Alpha Actin subunits assembled in helicoidal F-actin filament
KeywordsActin binding protein / Complex / actin filament / formin / MOTOR PROTEIN
Biological speciesMus musculus (house mouse) / Oryctolagus cuniculus (rabbit)
Methodsingle particle reconstruction / negative staining / Resolution: 30.0 Å
AuthorsMaufront J / Guichard B / Cao L / Di Cicco A / Jegou A / Romet-Lemonne G / Bertin A
Funding support France, 1 items
OrganizationGrant numberCountry
Agence Nationale de la Recherche (ANR)ANR-16-CE11-0013-01 France
CitationJournal: Am J Public Health / Year: 1976
Title: Task delegation to physician extenders--some comparisons.
Abstract: This study uses a task delegation questionnaire to compare 1973 physician extender practices in seven primary care-oriented sites with a physician attitude survey made in 1969. One additional site ...This study uses a task delegation questionnaire to compare 1973 physician extender practices in seven primary care-oriented sites with a physician attitude survey made in 1969. One additional site using no physician extenders was included as a control. The study involves both major types of physician extenders (physician assistants and nurse practitioners) in ambulatory practices with at least one year of experience in using such personnel. With minor exceptions, actual task delegation patterns conform with the 1969 attitudes of physicians as to which tasks "could and should" be delegated to physician extenders.
History
DepositionOct 14, 2022-
Header (metadata) releaseDec 7, 2022-
Map releaseDec 7, 2022-
UpdateDec 13, 2023-
Current statusDec 13, 2023Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_15957.map.gz / Format: CCP4 / Size: 18.7 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationActin filament core encircled by a formin mDia1 dimer.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
2.13 Å/pix.
x 170 pix.
= 362.1 Å		2.13 Å/pix.
x 170 pix.
= 362.1 Å		2.13 Å/pix.
x 170 pix.
= 362.1 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 2.13 Å
Density

Histogram

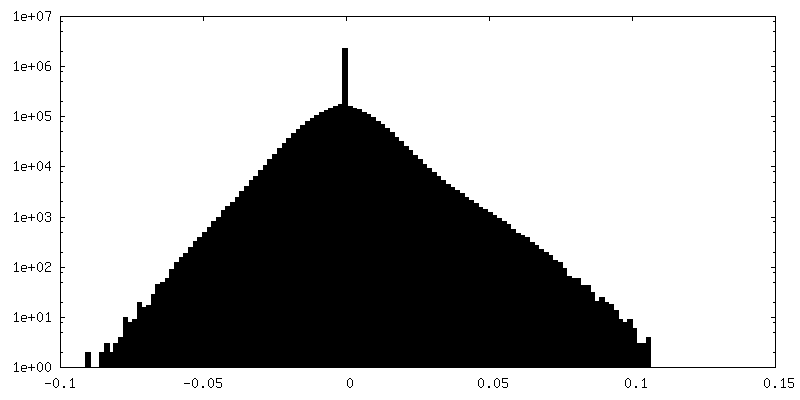

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0129
Minimum - Maximum-0.025502361 - 0.06334296
Average (Standard dev.)0.0005592919 (±0.0033808304)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions170170170
Spacing170170170
CellA=B=C: 362.1 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_15957_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Actin filament core encircled by a formin mDia1 dimer.

Fileemd_15957_half_map_1.map
AnnotationActin filament core encircled by a formin mDia1 dimer.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Actin filament core encircled by a formin mDia1 dimer.

Fileemd_15957_half_map_2.map
AnnotationActin filament core encircled by a formin mDia1 dimer.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Actin barbed-end bound by formin mDia1 dimer in his "open state"

EntireName: Actin barbed-end bound by formin mDia1 dimer in his "open state"
Components
  • Complex: Actin barbed-end bound by formin mDia1 dimer in his "open state"
    • Organelle or cellular component: Formin mDia1 dimer
    • Organelle or cellular component: Alpha Actin subunits assembled in helicoidal F-actin filament

-
Supramolecule #1: Actin barbed-end bound by formin mDia1 dimer in his "open state"

SupramoleculeName: Actin barbed-end bound by formin mDia1 dimer in his "open state"
type: complex / ID: 1 / Parent: 0

-
Supramolecule #2: Formin mDia1 dimer

SupramoleculeName: Formin mDia1 dimer / type: organelle_or_cellular_component / ID: 2 / Parent: 1
Source (natural)Organism: Mus musculus (house mouse)

-
Supramolecule #3: Alpha Actin subunits assembled in helicoidal F-actin filament

SupramoleculeName: Alpha Actin subunits assembled in helicoidal F-actin filament
type: organelle_or_cellular_component / ID: 3 / Parent: 1
Source (natural)Organism: Oryctolagus cuniculus (rabbit)

-
Experimental details

-
Structure determination

Methodnegative staining
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation #1

Preparation ID1
Concentration0.04 mg/mL
BufferpH: 7.8
StainingType: NEGATIVE / Material: Uranyl Formate

-
Sample preparation #2

Preparation ID2
Concentration0.01 mg/mL
BufferpH: 7.8
StainingType: NEGATIVE / Material: Uranyl Formate

-
Electron microscopy

MicroscopeFEI TECNAI 20
Image recordingFilm or detector model: TVIPS TEMCAM-F416 (4k x 4k) / Average electron dose: 20.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: LAB6
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.0 µm / Nominal defocus min: 1.0 µm

+
Image processing

Particle selectionNumber selected: 20919
Startup modelType of model: INSILICO MODEL
In silico model: Structural models of a formin dimer encircling actin filament was generated within UCSF Chimera based on FH2-actin atomic structure PDB 1Y64 and actin filament atomic structure PDB ...In silico model: Structural models of a formin dimer encircling actin filament was generated within UCSF Chimera based on FH2-actin atomic structure PDB 1Y64 and actin filament atomic structure PDB 5OOE then low-pass filtered at 50 angstrom.
Final reconstructionResolution.type: BY AUTHOR / Resolution: 30.0 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: RELION / Number images used: 717
Initial angle assignmentType: PROJECTION MATCHING
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
