Basic information

Entry
Database: EMDB / ID: EMD-12091
TitleStaphylococcus aureus 30S ribosomal subunit in absence of spermidine with reoriented helix 44
Map data
Sample
  • Complex: Staphylococcus aureus 30S ribosomal subunit in absence of spermidine, class 5
Function / homology
Function and homology information


ribosomal small subunit assembly / ribosomal small subunit biogenesis / small ribosomal subunit / small ribosomal subunit rRNA binding / cytosolic small ribosomal subunit / tRNA binding / rRNA binding / ribosome / structural constituent of ribosome / translation ...ribosomal small subunit assembly / ribosomal small subunit biogenesis / small ribosomal subunit / small ribosomal subunit rRNA binding / cytosolic small ribosomal subunit / tRNA binding / rRNA binding / ribosome / structural constituent of ribosome / translation / ribonucleoprotein complex / mRNA binding / RNA binding / zinc ion binding / cytosol / cytoplasm
Similarity search - Function
Ribosomal protein S14, type Z / Ribosomal protein S3, bacterial-type / Ribosomal protein S19, bacterial-type / Ribosomal protein S13, bacterial-type / Ribosomal protein S6, conserved site / Ribosomal protein S6 signature. / Ribosomal protein S14/S29 / Ribosomal protein S7, bacterial/organellar-type / Ribosomal protein S9, bacterial/plastid / Ribosomal protein S11, bacterial-type ...Ribosomal protein S14, type Z / Ribosomal protein S3, bacterial-type / Ribosomal protein S19, bacterial-type / Ribosomal protein S13, bacterial-type / Ribosomal protein S6, conserved site / Ribosomal protein S6 signature. / Ribosomal protein S14/S29 / Ribosomal protein S7, bacterial/organellar-type / Ribosomal protein S9, bacterial/plastid / Ribosomal protein S11, bacterial-type / Ribosomal protein S20 / Ribosomal protein S20 superfamily / Ribosomal protein S20 / Ribosomal protein S4, bacterial-type / 30S ribosomal protein S17 / Ribosomal protein S5, bacterial-type / Ribosomal protein S6, plastid/chloroplast / Ribosomal protein S2, bacteria/mitochondria/plastid / Ribosomal protein S18, conserved site / Ribosomal protein S18 signature. / Ribosomal protein S16 / Ribosomal protein S16 domain superfamily / Ribosomal protein S16 / Ribosomal protein S15, bacterial-type / Ribosomal protein S6 / Ribosomal protein S6 / Ribosomal protein S6 superfamily / Ribosomal protein S12, bacterial-type / Translation elongation factor EF1B/ribosomal protein S6 / Ribosomal protein S18 / Ribosomal protein S18 / Ribosomal protein S18 superfamily / K Homology domain / K homology RNA-binding domain / Ribosomal protein S2 signature 2. / Ribosomal protein S10, conserved site / Ribosomal protein S10 signature. / Ribosomal protein S3, conserved site / Ribosomal protein S3 signature. / Ribosomal protein S14, conserved site / Ribosomal protein S14 signature. / Ribosomal protein S2 signature 1. / KH domain / Type-2 KH domain profile. / K Homology domain, type 2 / Ribosomal protein S3, C-terminal / Ribosomal protein S3, C-terminal domain / Ribosomal protein S3, C-terminal domain superfamily / Ribosomal protein S15/S19, conserved site / Ribosomal protein S19 signature. / Ribosomal protein S10 / Ribosomal protein S19/S15 / Ribosomal protein S19/S15, superfamily / Ribosomal protein S19 / : / Ribosomal protein S2, conserved site / Ribosomal protein S7, conserved site / Ribosomal protein S7 signature. / Ribosomal protein S5, N-terminal, conserved site / Ribosomal protein S5 signature. / Ribosomal protein S2 / Ribosomal protein S2, flavodoxin-like domain superfamily / Ribosomal protein S2 / Ribosomal protein S17, conserved site / Ribosomal protein S17 signature. / K homology domain superfamily, prokaryotic type / Ribosomal protein S5 / S5 double stranded RNA-binding domain profile. / Ribosomal protein S5, N-terminal / Ribosomal protein S5, N-terminal domain / Ribosomal protein S5, C-terminal / Ribosomal protein S13, conserved site / Ribosomal protein S13 signature. / Ribosomal protein S5, C-terminal domain / Ribosomal protein S13 / 30s ribosomal protein S13, C-terminal / Ribosomal protein S13/S18 / Ribosomal protein S13 family profile. / Ribosomal protein S8 signature. / Ribosomal protein S4/S9 N-terminal domain / Ribosomal protein S4, conserved site / Ribosomal protein S4 signature. / Ribosomal protein S4/S9 N-terminal domain / Ribosomal protein S4/S9, N-terminal / Ribosomal protein S14 / Ribosomal protein S14p/S29e / Ribosomal protein S15 signature. / Ribosomal protein S4/S9 / K homology domain-like, alpha/beta / Ribosomal protein S8 / Ribosomal protein S8 superfamily / Ribosomal protein S8 / S4 RNA-binding domain profile. / Ribosomal S11, conserved site / Ribosomal protein S11 signature. / Ribosomal protein S10p/S20e / Ribosomal protein S13-like, H2TH / Ribosomal protein S10 domain / Ribosomal protein S10 domain superfamily / Ribosomal protein S10p/S20e
Similarity search - Domain/homology
30S ribosomal protein S10 / Small ribosomal subunit protein uS12 / Small ribosomal subunit protein uS7 / Small ribosomal subunit protein uS19 / Small ribosomal subunit protein uS3 / Small ribosomal subunit protein uS17 / Small ribosomal subunit protein uS14B / Small ribosomal subunit protein uS8 / Small ribosomal subunit protein uS5 / Small ribosomal subunit protein uS13 ...30S ribosomal protein S10 / Small ribosomal subunit protein uS12 / Small ribosomal subunit protein uS7 / Small ribosomal subunit protein uS19 / Small ribosomal subunit protein uS3 / Small ribosomal subunit protein uS17 / Small ribosomal subunit protein uS14B / Small ribosomal subunit protein uS8 / Small ribosomal subunit protein uS5 / Small ribosomal subunit protein uS13 / Small ribosomal subunit protein uS11 / Small ribosomal subunit protein uS9 / Small ribosomal subunit protein uS4 / Small ribosomal subunit protein bS20 / Small ribosomal subunit protein uS2 / Small ribosomal subunit protein bS16 / Small ribosomal subunit protein bS18 / Small ribosomal subunit protein bS6 / Small ribosomal subunit protein uS15 / Small ribosomal subunit protein uS10
Similarity search - Component
Biological speciesStaphylococcus aureus subsp. aureus NCTC 8325 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 13.76 Å
AuthorsBelinite M / Khusainov I / Marzi S / Romby P / Yusupov M / Hashem Y
Funding support France, 2 items
OrganizationGrant numberCountry
Laboratories of Excellence (LabEx)ANR-10-LABX-0036 NETRNA France
Agence Nationale de la Recherche (ANR)ANR-16-CE11-0007-01 France
CitationJournal: Front Mol Biosci / Year: 2021
Title: Stabilization of Ribosomal RNA of the Small Subunit by Spermidine in .
Authors: Margarita Belinite / Iskander Khusainov / Heddy Soufari / Stefano Marzi / Pascale Romby / Marat Yusupov / Yaser Hashem /
Abstract: Cryo-electron microscopy is now used as a method of choice in structural biology for studying protein synthesis, a process mediated by the ribosome machinery. In order to achieve high-resolution ...Cryo-electron microscopy is now used as a method of choice in structural biology for studying protein synthesis, a process mediated by the ribosome machinery. In order to achieve high-resolution structures using this approach, one needs to obtain homogeneous and stable samples, which requires optimization of ribosome purification in a species-dependent manner. This is especially critical for the bacterial small ribosomal subunit that tends to be unstable in the absence of ligands. Here, we report a protocol for purification of stable 30 S from the Gram-positive bacterium and its cryo-EM structures: in presence of spermidine at a resolution ranging between 3.4 and 3.6 Å and in its absence at 5.3 Å. Using biochemical characterization and cryo-EM, we demonstrate the importance of spermidine for stabilization of the 30 S preserving favorable conformation of the helix 44.
History
DepositionDec 13, 2020-
Header (metadata) releaseDec 1, 2021-
Map releaseDec 1, 2021-
UpdateDec 22, 2021-
Current statusDec 22, 2021Processing site: PDBe / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.0494
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by height
  • Surface level: 0.0494
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_12091.map.gz / Format: CCP4 / Size: 931.6 KB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
4.96 Å/pix.
x 62 pix.
= 307.52 Å		4.96 Å/pix.
x 62 pix.
= 307.52 Å		4.96 Å/pix.
x 62 pix.
= 307.52 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 4.96 Å
Density

Histogram

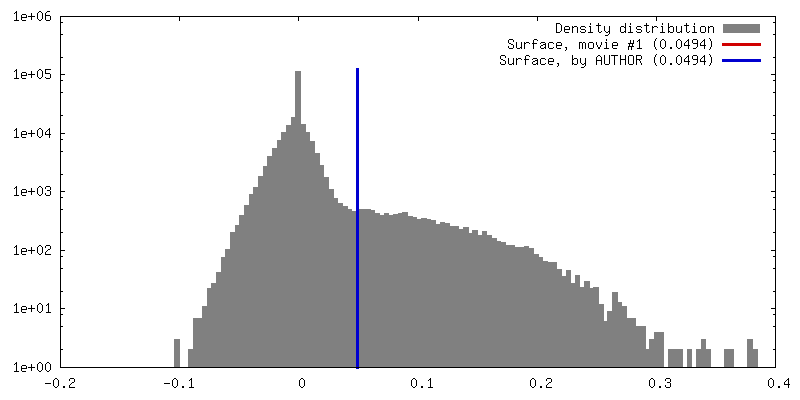

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0494 / Movie #1: 0.0494
Minimum - Maximum-0.11010709 - 0.38646588
Average (Standard dev.)0.004789936 (±0.029456832)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions626262
Spacing626262
CellA=B=C: 307.52 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z4.964.964.96
M x/y/z626262
origin x/y/z0.0000.0000.000
length x/y/z307.520307.520307.520
α/β/γ90.00090.00090.000
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS626262
D min/max/mean-0.1100.3860.005

-
Supplemental data

-
Sample components

-
Entire : Staphylococcus aureus 30S ribosomal subunit in absence of spermid...

EntireName: Staphylococcus aureus 30S ribosomal subunit in absence of spermidine, class 5
Components
  • Complex: Staphylococcus aureus 30S ribosomal subunit in absence of spermidine, class 5

-
Supramolecule #1: Staphylococcus aureus 30S ribosomal subunit in absence of spermid...

SupramoleculeName: Staphylococcus aureus 30S ribosomal subunit in absence of spermidine, class 5
type: complex / ID: 1 / Parent: 0
Source (natural)Organism: Staphylococcus aureus subsp. aureus NCTC 8325 (bacteria)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Image recordingFilm or detector model: FEI FALCON III (4k x 4k) / Average electron dose: 3.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: OTHER / Imaging mode: BRIGHT FIELD
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

-
Image processing

CTF correctionSoftware - Name: Gctf (ver. 1.06)
Final reconstructionResolution.type: BY AUTHOR / Resolution: 13.76 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 215450
Initial angle assignmentType: PROJECTION MATCHING
Final angle assignmentType: PROJECTION MATCHING

+
