Basic information

Entry
Database: EMDB / ID: EMD-75893
TitleOmi32 germline Fab in complex with LC-Kappa VHH
Map dataOmi32 germline Fab in complex with LC-Kappa VHH - sharpened full map
Sample
  • Complex: Omi32 germline Fab in complex with LC-Kappa VHH
    • Protein or peptide: LC-Kappa VHH
    • Protein or peptide: Omi32 germline light chain
    • Protein or peptide: Omi32 germline heavy chain
Keywordsantibody / fab / germline / ancestor / IMMUNE SYSTEM
Biological speciesHomo sapiens (human) / Lama glama (llama)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.2 Å
AuthorsKang G / Phillips AM / Catalano C / Scapin G
Funding support United States, 2 items
OrganizationGrant numberCountry
Howard Hughes Medical Institute (HHMI) United States
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID) United States
CitationJournal: bioRxiv / Year: 2026
Title: Biophysical trade-offs in antibody evolution are resolved by conformation-mediated epistasis.
Authors: Cole R Tharp / Claudio Catalano / Anthony Khalifeh / Sam Ghaffari-Kashani / Ruimin Huang / Gyunghoon Kang / Giovanna Scapin / Angela M Phillips /
Abstract: Protein evolution is constrained by multidimensional biophysical factors, in which mutations that enhance one property often compromise another. Antibodies represent an extreme case: they evolve ...Protein evolution is constrained by multidimensional biophysical factors, in which mutations that enhance one property often compromise another. Antibodies represent an extreme case: they evolve rapidly to bind diverse antigens, yet mutations that improve affinity can disrupt folding, reduce cell-surface trafficking, or promote self-reactivity, and are typically selected against during affinity maturation. Though biophysical characterization of individual antibodies suggests that such trade-offs are pervasive, their impact on antibody evolutionary trajectories remains unclear, in part because existing high-throughput biophysical methods rely on heterologous systems that are often poorly suited for human proteins. Here, we develop a high-throughput platform to quantify multiple biophysical parameters of large libraries of full-length proteins that are natively synthesized, processed, and displayed on human cells. We apply this approach to a human antibody lineage that matures to recognize divergent SARS-CoV-2 variants by measuring the surface expression, antigen affinity, and self-reactivity for all 2 possible evolutionary intermediates between the unmutated and mature sequences. These measurements reveal that mutations differentially affect these biophysical properties - in some cases, improving one property at the expense of another. We leverage these data to compute the likelihood of all possible evolutionary paths, finding that very few paths can navigate these multidimensional requirements. The few accessible paths acquire mutations in a specific order that either circumvent trade-offs between biophysical properties or offset deleterious effects on one property with beneficial effects on another. By determining the structures of the ancestral and evolved antibodies, we find that these coordinated mutational effects arise from a conformational rearrangement that alleviates steric clashes and reshapes the biophysical landscape, enabling otherwise inaccessible mutational paths. Together, this work defines the multidimensional biophysical constraints and structural mechanisms that govern antibody evolution and establishes a general framework for mapping and predicting the biophysical effects of mutations in human proteins.
History
DepositionMar 6, 2026-
Header (metadata) releaseApr 8, 2026-
Map releaseApr 8, 2026-
UpdateApr 8, 2026-
Current statusApr 8, 2026Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_75893.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationOmi32 germline Fab in complex with LC-Kappa VHH - sharpened full map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.51 Å/pix.
x 384 pix.
= 194.304 Å		0.51 Å/pix.
x 384 pix.
= 194.304 Å		0.51 Å/pix.
x 384 pix.
= 194.304 Å

Surface

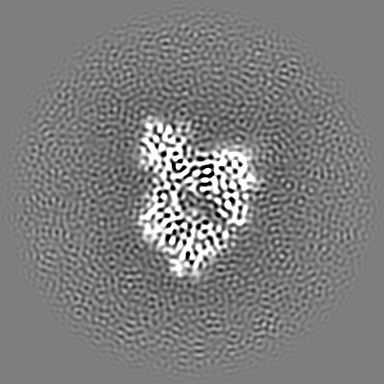

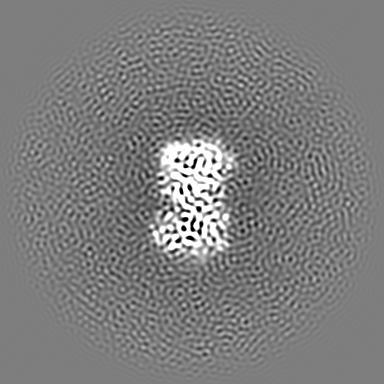

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.506 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0637
Minimum - Maximum-0.31633237 - 0.39517605
Average (Standard dev.)0.000044429893 (±0.008410671)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 194.30399 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: unsharpened full map

Fileemd_75893_additional_1.map
Annotationunsharpened full map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: half map A

Fileemd_75893_half_map_1.map
Annotationhalf map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: half map B

Fileemd_75893_half_map_2.map
Annotationhalf map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Omi32 germline Fab in complex with LC-Kappa VHH

EntireName: Omi32 germline Fab in complex with LC-Kappa VHH
Components
  • Complex: Omi32 germline Fab in complex with LC-Kappa VHH
    • Protein or peptide: LC-Kappa VHH
    • Protein or peptide: Omi32 germline light chain
    • Protein or peptide: Omi32 germline heavy chain

-
Supramolecule #1: Omi32 germline Fab in complex with LC-Kappa VHH

SupramoleculeName: Omi32 germline Fab in complex with LC-Kappa VHH / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: LC-Kappa VHH

MacromoleculeName: LC-Kappa VHH / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Lama glama (llama)
Molecular weightTheoretical: 13.162396 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString:
EVQLQESGGG LVQPGGSLRL SCAASGRTIS RYAMSWFRQA PGKEREFVAT ARRSGDGAFY ADSVQGRFTV SRDDAKNTVY LQMNSLKPE DTAVYYCAID SDTFYSGSYD YWGQGTQVTV S

-
Macromolecule #2: Omi32 germline light chain

MacromoleculeName: Omi32 germline light chain / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.22776 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: IVLTQSPGTL SLSPGERATL SCRASQSVSS SYLAWYQQKP GQAPRLLIYG ASSRATGIPD RFSGSGSGTD FTLTISRLEP EDFAVYYCQ QYGSSPRLTF GGGTKVEIKR TVAAPSVFIF PPSDEQLKSG TASVVCLLNN FYPREAKVQW KVDNALQSGN S QESVTEQD ...String:
IVLTQSPGTL SLSPGERATL SCRASQSVSS SYLAWYQQKP GQAPRLLIYG ASSRATGIPD RFSGSGSGTD FTLTISRLEP EDFAVYYCQ QYGSSPRLTF GGGTKVEIKR TVAAPSVFIF PPSDEQLKSG TASVVCLLNN FYPREAKVQW KVDNALQSGN S QESVTEQD SKDSTYSLSS TLTLSKADYE KHKVYACEVT HQGLSSPVTK SFNRGE

-
Macromolecule #3: Omi32 germline heavy chain

MacromoleculeName: Omi32 germline heavy chain / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.379189 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: QVQLVESGGG VVQPGRSLRL SCAASGFTFS SYGMHWVRQA PGKGLEWVAV IWYDGSNKYY ADSVKGRFTI SRDNSKNTLY LQMNSLRAE DTAVYYCARD TAPPDYWGQG TLVTVSSAST KGPSVFPLAP SSKSTSGGTA ALGCLVKDYF PEPVTVSWNS G ALTSGVHT ...String:
QVQLVESGGG VVQPGRSLRL SCAASGFTFS SYGMHWVRQA PGKGLEWVAV IWYDGSNKYY ADSVKGRFTI SRDNSKNTLY LQMNSLRAE DTAVYYCARD TAPPDYWGQG TLVTVSSAST KGPSVFPLAP SSKSTSGGTA ALGCLVKDYF PEPVTVSWNS G ALTSGVHT FPAVLQSSGL YSLSSVVTVP SSSLGTQTYI CNVNHKPSNT KVDKKVEPKS C

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.13 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: SPOT SCAN / Imaging mode: OTHER / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.5 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: NONE
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.2 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 73477
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
