Basic information

Entry
Database: EMDB / ID: EMD-64821
TitleCryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Map dataCryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Sample
  • Complex: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
    • RNA: RNA (203-MER)
  • Ligand: MAGNESIUM ION
KeywordsAzoarcus pre-tRNA(ILE) / self-splicing / circular intron / RNA structure / RNA
Biological speciesAzoarcus olearius (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.27 Å
AuthorsHong Y / Liu J / Zhang X / Li S / Zhang K / Liu L
Funding support China, 1 items
OrganizationGrant numberCountry
Other government China
CitationJournal: Nat Commun / Year: 2026
Title: Pre-splicing conformation and stepwise circularization of a group I intron in Azoarcus pre-tRNA
Authors: Hong Y / Liu J / Zhang X / Liu J / Li S / Zhang K
History
DepositionMay 28, 2025-
Header (metadata) releaseMar 25, 2026-
Map releaseMar 25, 2026-
UpdateMar 25, 2026-
Current statusMar 25, 2026Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_64821.map.gz / Format: CCP4 / Size: 144.7 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationCryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.82 Å/pix.
x 336 pix.
= 275.52 Å		0.82 Å/pix.
x 336 pix.
= 275.52 Å		0.82 Å/pix.
x 336 pix.
= 275.52 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.82 Å
Density

Histogram

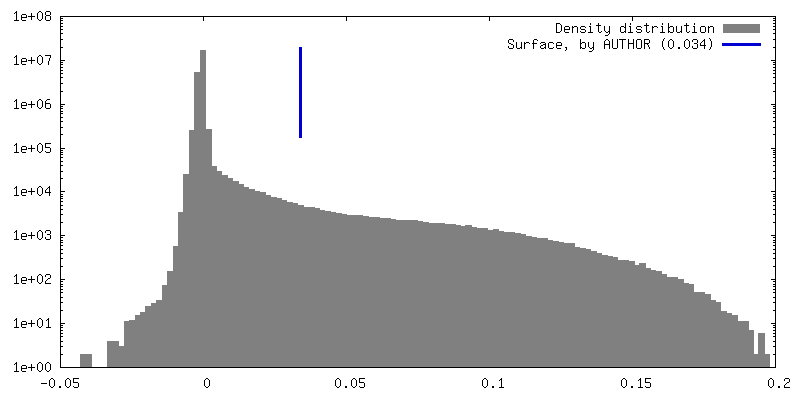

Histogram (log scale)
Contour LevelBy AUTHOR: 0.034
Minimum - Maximum-0.041954145 - 0.19895896
Average (Standard dev.)0.0002908006 (±0.004508778)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions336336336
Spacing336336336
CellA=B=C: 275.52 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation...

Fileemd_64821_additional_1.map
AnnotationCryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation...

Fileemd_64821_half_map_1.map
AnnotationCryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation...

Fileemd_64821_half_map_2.map
AnnotationCryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformat...

EntireName: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
Components
  • Complex: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
    • RNA: RNA (203-MER)
  • Ligand: MAGNESIUM ION

-
Supramolecule #1: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformat...

SupramoleculeName: Cryo-EM structures of the Azoarcus pre-tRNA(ILE) intron conformation after the cyclization
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Azoarcus olearius (bacteria)
Molecular weightTheoretical: 67 KDa

-
Macromolecule #1: RNA (203-MER)

MacromoleculeName: RNA (203-MER) / type: rna / ID: 1 / Number of copies: 1
Source (natural)Organism: Azoarcus olearius (bacteria)
Molecular weightTheoretical: 65.786305 KDa
SequenceString: UUCGAUGUGC CUUGCGCCGG GAAACCACGC AAGGGAUGGU GUCAAAUUCG GCGAAACCUA AGCGCCCGCC CGGGCGUAUG GCAACGCCG AGCCAAGCUU CGGCGCCUGC GCCGAUGAAG GUGUAGAGAC UAGACGGCAC CCACCUAAGG CAAACGCUAU G GUGAAGGC ...String:
UUCGAUGUGC CUUGCGCCGG GAAACCACGC AAGGGAUGGU GUCAAAUUCG GCGAAACCUA AGCGCCCGCC CGGGCGUAUG GCAACGCCG AGCCAAGCUU CGGCGCCUGC GCCGAUGAAG GUGUAGAGAC UAGACGGCAC CCACCUAAGG CAAACGCUAU G GUGAAGGC AUAGUCCAGG GAGUGGCGAA AGUCACACAA ACCGG

GENBANK: GENBANK: DQ103524.1

-
Macromolecule #2: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 2 / Number of copies: 6 / Formula: MG
Molecular weightTheoretical: 24.305 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration1 mg/mL
BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 59.5 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.0 µm / Nominal defocus min: 1.2 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 1314171
CTF correctionType: NONE
Startup modelType of model: NONE
Final reconstructionApplied symmetry - Point group: C1 (asymmetric) / Resolution.type: BY AUTHOR / Resolution: 3.27 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 4.7) / Number images used: 335306
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
