- EMDB-53889: Wild-type alpha-synuclein fibril - Type 4 -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-53889
TitleWild-type alpha-synuclein fibril - Type 4
Map dataWild-type alpha-synuclein fibril - Type 4
Sample
  • Complex: Wild-type alpha-synuclein fibril - Type 4
    • Protein or peptide: Alpha-synuclein
Keywordsalpha-synuclein / fibril / PROTEIN FIBRIL
Function / homology
Function and homology information


negative regulation of mitochondrial electron transport, NADH to ubiquinone / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / response to desipramine / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / regulation of synaptic vesicle recycling ...negative regulation of mitochondrial electron transport, NADH to ubiquinone / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / response to desipramine / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / regulation of synaptic vesicle recycling / negative regulation of chaperone-mediated autophagy / mitochondrial membrane organization / regulation of reactive oxygen species biosynthetic process / positive regulation of protein localization to cell periphery / negative regulation of exocytosis / negative regulation of platelet-derived growth factor receptor signaling pathway / regulation of glutamate secretion / Lewy body / dopamine biosynthetic process / response to iron(II) ion / negative regulation of thrombin-activated receptor signaling pathway / SNARE complex assembly / positive regulation of neurotransmitter secretion / negative regulation of dopamine metabolic process / regulation of macrophage activation / positive regulation of inositol phosphate biosynthetic process / regulation of locomotion / negative regulation of microtubule polymerization / regulation of norepinephrine uptake / synaptic vesicle priming / transporter regulator activity / synaptic vesicle transport / protein kinase inhibitor activity / dopamine uptake involved in synaptic transmission / regulation of dopamine secretion / mitochondrial ATP synthesis coupled electron transport / positive regulation of receptor recycling / dynein complex binding / cuprous ion binding / nuclear outer membrane / response to magnesium ion / positive regulation of exocytosis / synaptic vesicle exocytosis / positive regulation of endocytosis / negative regulation of serotonin uptake / response to type II interferon / synaptic vesicle endocytosis / kinesin binding / regulation of presynapse assembly / cysteine-type endopeptidase inhibitor activity / alpha-tubulin binding / beta-tubulin binding / phospholipase binding / behavioral response to cocaine / supramolecular fiber organization / cellular response to fibroblast growth factor stimulus / phospholipid metabolic process / inclusion body / cellular response to epinephrine stimulus / Hsp70 protein binding / enzyme inhibitor activity / axon terminus / response to interleukin-1 / regulation of microtubule cytoskeleton organization / cellular response to copper ion / positive regulation of release of sequestered calcium ion into cytosol / SNARE binding / adult locomotory behavior / glutathione metabolic process / excitatory postsynaptic potential / protein tetramerization / protein sequestering activity / tubulin binding / phosphoprotein binding / microglial cell activation / ferrous iron binding / fatty acid metabolic process / synapse organization / PKR-mediated signaling / regulation of long-term neuronal synaptic plasticity / receptor internalization / phospholipid binding / protein destabilization / tau protein binding / enzyme activator activity / terminal bouton / positive regulation of inflammatory response / long-term synaptic potentiation / synaptic vesicle membrane / actin cytoskeleton / growth cone / actin binding / neuron apoptotic process / cellular response to oxidative stress / cell cortex / histone binding / response to lipopolysaccharide / microtubule binding / amyloid fibril formation / chemical synaptic transmission
Similarity search - Function
Synuclein / Alpha-synuclein / Synuclein
Similarity search - Domain/homology
Biological speciesHomo sapiens (human)
Methodhelical reconstruction / cryo EM / Resolution: 3.54 Å
AuthorsSo RWL / Frieg B / Schroeder GF / Watts JC
Funding support Canada, Germany, 2 items
OrganizationGrant numberCountry
Canadian Institutes of Health Research (CIHR) Canada
Helmholtz Association Germany
CitationJournal: Neuron / Year: 2026
Title: Stochastic misfolding drives the emergence of distinct α-synuclein strains.
Authors: Raphaella W L So / Benedikt Frieg / José D Camino / Christopher Situ / Mark N Metri / Nicholas R G Silver / Le Yao Li / Alison Mao / Erica Stuart / Gunnar F Schröder / Joel C Watts /
Abstract: α-Synuclein conformational strains provide a potential explanation for the clinical and pathological differences among synucleinopathies such as Parkinson's disease and multiple system atrophy. ...α-Synuclein conformational strains provide a potential explanation for the clinical and pathological differences among synucleinopathies such as Parkinson's disease and multiple system atrophy. However, how distinct α-synuclein strains arise remains unknown. Here, we observed conformational heterogeneity between individual preparations of α-synuclein pre-formed fibrils (PFFs) generated by polymerizing wild-type or A53T-mutant human α-synuclein under identical conditions. Moreover, we found that α-synuclein aggregates formed spontaneously in the brains of a transgenic synucleinopathy mouse model are conformationally diverse. Propagation of stochastically formed PFF- and brain-derived α-synuclein strains in mice initiated several distinct synucleinopathies. The conformational diversity of α-synuclein aggregates across PFF preparations and between individual mice demonstrates that α-synuclein can spontaneously form multiple self-propagating strains within an identical environment. This suggests that stochastic misfolding into distinct aggregate structures drives the emergence of α-synuclein strains and reveals that the intrinsic variability of common synucleinopathy research tools must be considered when designing and interpreting experiments.
History
DepositionMay 21, 2025-
Header (metadata) releaseMar 11, 2026-
Map releaseMar 11, 2026-
UpdateMar 11, 2026-
Current statusMar 11, 2026Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_53889.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationWild-type alpha-synuclein fibril - Type 4
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.81 Å/pix.
x 320 pix.
= 258.56 Å		0.81 Å/pix.
x 320 pix.
= 258.56 Å		0.81 Å/pix.
x 320 pix.
= 258.56 Å

Surface

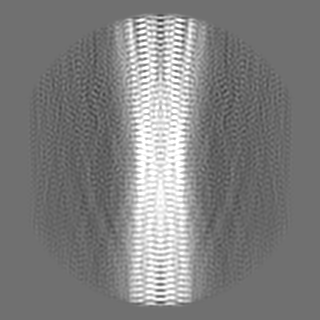

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.808 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.025
Minimum - Maximum-0.041760813 - 0.07845242
Average (Standard dev.)0.00039280794 (±0.0042803097)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions320320320
Spacing320320320
CellA=B=C: 258.56 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: Wild-type alpha-synuclein fibril - Type 4 (half map 2)

Fileemd_53889_half_map_1.map
AnnotationWild-type alpha-synuclein fibril - Type 4 (half map 2)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Wild-type alpha-synuclein fibril - Type 4 (half map 1)

Fileemd_53889_half_map_2.map
AnnotationWild-type alpha-synuclein fibril - Type 4 (half map 1)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Wild-type alpha-synuclein fibril - Type 4

EntireName: Wild-type alpha-synuclein fibril - Type 4
Components
  • Complex: Wild-type alpha-synuclein fibril - Type 4
    • Protein or peptide: Alpha-synuclein

-
Supramolecule #1: Wild-type alpha-synuclein fibril - Type 4

SupramoleculeName: Wild-type alpha-synuclein fibril - Type 4 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Alpha-synuclein

MacromoleculeName: Alpha-synuclein / type: protein_or_peptide / ID: 1 / Number of copies: 10 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 14.476108 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
MDVFMKGLSK AKEGVVAAAE KTKQGVAEAA GKTKEGVLYV GSKTKEGVVH GVATVAEKTK EQVTNVGGAV VTGVTAVAQK TVEGAGSIA AATGFVKKDQ LGKNEEGAPQ EGILEDMPVD PDNEAYEMPS EEGYQDYEPE A

UniProtKB: Alpha-synuclein

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.5 µm / Nominal defocus min: 0.5 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 4.79 Å
Applied symmetry - Helical parameters - Δ&Phi: -1.5 °
Applied symmetry - Helical parameters - Axial symmetry: C2 (2 fold cyclic)
Resolution.type: BY AUTHOR / Resolution: 3.54 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 8212
CTF correctionType: NONE
Startup modelType of model: OTHER / Details: Featureless cylinder
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
