Basic information

Entry
Database: EMDB / ID: EMD-43662
TitleStructure of full-length human cardiac sodium channel - Class-I.
Map dataStructure of full-length human cardiac sodium channel - Model II
Sample
  • Organelle or cellular component: Sodium channel protein type 5 subunit alpha
    • Protein or peptide: Sodium channel protein type 5 subunit alpha
  • Ligand: [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate
  • Ligand: CHOLESTEROL HEMISUCCINATE
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose
KeywordsVoltage gated sodium channel / Nav1.5 / Ion Transporter / MEMBRANE PROTEIN
Function / homology
Function and homology information


voltage-gated sodium channel activity involved in AV node cell action potential / voltage-gated sodium channel activity involved in bundle of His cell action potential / voltage-gated sodium channel activity involved in Purkinje myocyte action potential / voltage-gated sodium channel activity involved in SA node cell action potential / bundle of His cell action potential / AV node cell action potential / SA node cell action potential / AV node cell to bundle of His cell communication / membrane depolarization during SA node cell action potential / response to denervation involved in regulation of muscle adaptation ...voltage-gated sodium channel activity involved in AV node cell action potential / voltage-gated sodium channel activity involved in bundle of His cell action potential / voltage-gated sodium channel activity involved in Purkinje myocyte action potential / voltage-gated sodium channel activity involved in SA node cell action potential / bundle of His cell action potential / AV node cell action potential / SA node cell action potential / AV node cell to bundle of His cell communication / membrane depolarization during SA node cell action potential / response to denervation involved in regulation of muscle adaptation / regulation of ventricular cardiac muscle cell membrane depolarization / membrane depolarization during atrial cardiac muscle cell action potential / cardiac ventricle development / regulation of atrial cardiac muscle cell membrane repolarization / voltage-gated sodium channel activity involved in cardiac muscle cell action potential / brainstem development / membrane depolarization during AV node cell action potential / positive regulation of action potential / membrane depolarization during bundle of His cell action potential / atrial cardiac muscle cell action potential / membrane depolarization during Purkinje myocyte cell action potential / cardiac conduction system development / telencephalon development / regulation of sodium ion transmembrane transport / regulation of atrial cardiac muscle cell membrane depolarization / membrane depolarization during cardiac muscle cell action potential / membrane depolarization during action potential / positive regulation of sodium ion transport / ventricular cardiac muscle cell action potential / cardiac muscle cell action potential involved in contraction / regulation of ventricular cardiac muscle cell membrane repolarization / voltage-gated sodium channel complex / regulation of cardiac muscle cell contraction / Interaction between L1 and Ankyrins / ankyrin binding / voltage-gated sodium channel activity / nitric-oxide synthase binding / sodium ion transport / Phase 0 - rapid depolarisation / regulation of heart rate by cardiac conduction / fibroblast growth factor binding / odontogenesis of dentin-containing tooth / membrane depolarization / intercalated disc / lateral plasma membrane / cardiac muscle contraction / T-tubule / sodium ion transmembrane transport / cellular response to calcium ion / cerebellum development / regulation of heart rate / positive regulation of epithelial cell proliferation / sarcolemma / caveola / Z disc / scaffold protein binding / transmembrane transporter binding / calmodulin binding / protein domain specific binding / ubiquitin protein ligase binding / protein kinase binding / nucleolus / perinuclear region of cytoplasm / enzyme binding / cell surface / endoplasmic reticulum / nucleoplasm / membrane / plasma membrane
Similarity search - Function
Voltage gated sodium channel, alpha-5 subunit / Voltage-gated Na+ ion channel, cytoplasmic domain / Cytoplasmic domain of voltage-gated Na+ ion channel / Sodium ion transport-associated / Voltage-gated sodium channel alpha subunit, inactivation gate / Sodium ion transport-associated / Voltage gated sodium channel, alpha subunit / Voltage-gated cation channel calcium and sodium / Voltage-dependent channel domain superfamily / Ion transport domain / Ion transport protein
Similarity search - Domain/homology
Sodium channel protein type 5 subunit alpha
Similarity search - Component
Biological speciesMammalia (mammals) / Homo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.6 Å
AuthorsBiswas R / Chinthalapudi K
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)R01HL094450 United States
CitationJournal: To Be Published
Title: Structure of full-length human cardiac sodium channel - Model II.
Authors: Biswas R / Chinthalapudi K
History
DepositionFeb 8, 2024-
Header (metadata) releaseFeb 12, 2025-
Map releaseFeb 12, 2025-
UpdateFeb 12, 2025-
Current statusFeb 12, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_43662.map.gz / Format: CCP4 / Size: 421.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationStructure of full-length human cardiac sodium channel - Model II
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.9 Å/pix.
x 480 pix.
= 431.52 Å		0.9 Å/pix.
x 480 pix.
= 431.52 Å		0.9 Å/pix.
x 480 pix.
= 431.52 Å

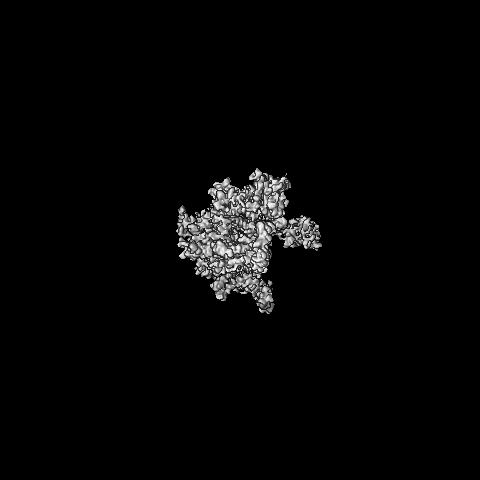

Surface

Projections

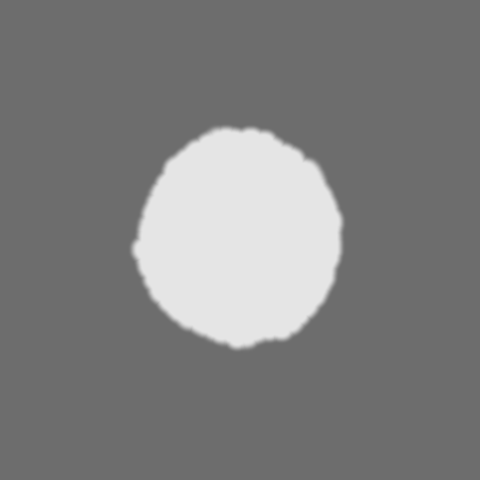

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.899 Å
Density

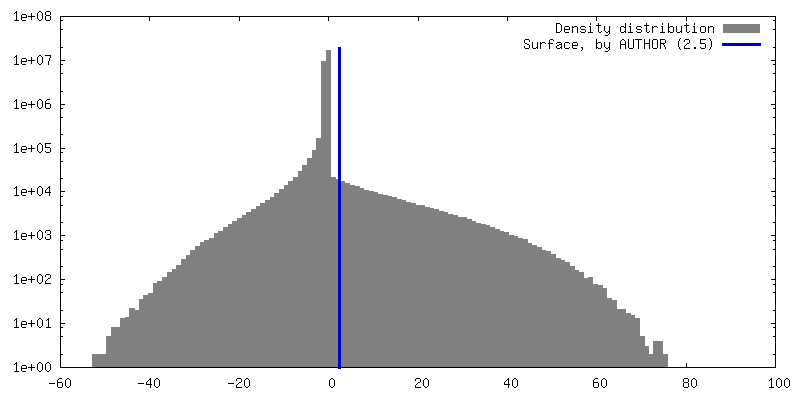

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 2.5
Minimum - Maximum-52.308193000000003 - 80.549509999999998
Average (Standard dev.)0.000000000002309 (±1.0)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions480480480
Spacing480480480
CellA=B=C: 431.52 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_43662_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

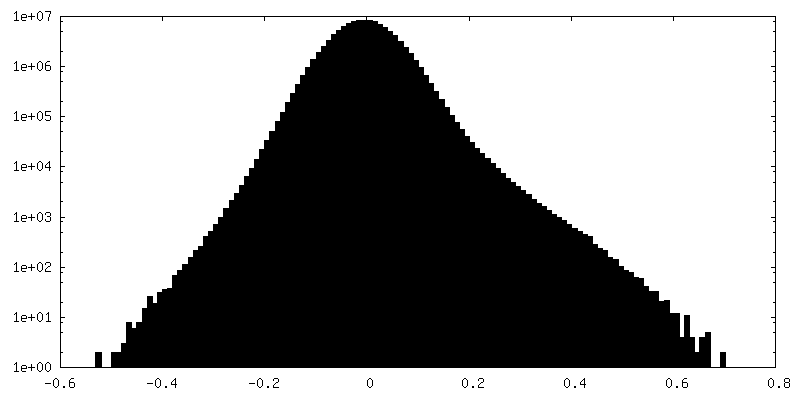

Histogram

Histogram (log scale)

-
Half map: Half Map B

Fileemd_43662_half_map_1.map
AnnotationHalf Map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half Map A

Fileemd_43662_half_map_2.map
AnnotationHalf Map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Sodium channel protein type 5 subunit alpha

EntireName: Sodium channel protein type 5 subunit alpha
Components
  • Organelle or cellular component: Sodium channel protein type 5 subunit alpha
    • Protein or peptide: Sodium channel protein type 5 subunit alpha
  • Ligand: [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate
  • Ligand: CHOLESTEROL HEMISUCCINATE
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose

-
Supramolecule #1: Sodium channel protein type 5 subunit alpha

SupramoleculeName: Sodium channel protein type 5 subunit alpha / type: organelle_or_cellular_component / ID: 1 / Parent: 0 / Macromolecule list: #1 / Details: Full-length protein
Source (natural)Organism: Mammalia (mammals)
Molecular weightTheoretical: 226.9 KDa

-
Macromolecule #1: Sodium channel protein type 5 subunit alpha

MacromoleculeName: Sodium channel protein type 5 subunit alpha / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 227.152156 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MANFLLPRGT SSFRRFTRES LAAIEKRMAE KQARGSTTLQ ESREGLPEEE APRPQLDLQA SKKLPDLYGN PPQELIGEPL EDLDPFYST QKTFIVLNKG KTIFRFSATN ALYVLSPFHP IRRAAVKILV HSLFNMLIMC TILTNCVFMA QHDPPPWTKY V EYTFTAIY ...String:
MANFLLPRGT SSFRRFTRES LAAIEKRMAE KQARGSTTLQ ESREGLPEEE APRPQLDLQA SKKLPDLYGN PPQELIGEPL EDLDPFYST QKTFIVLNKG KTIFRFSATN ALYVLSPFHP IRRAAVKILV HSLFNMLIMC TILTNCVFMA QHDPPPWTKY V EYTFTAIY TFESLVKILA RGFCLHAFTF LRDPWNWLDF SVIIMAYTTE FVDLGNVSAL RTFRVLRALK TISVISGLKT IV GALIQSV KKLADVMVLT VFCLSVFALI GLQLFMGNLR HKCVRNFTAL NGTNGSVEAD GLVWESLDLY LSDPENYLLK NGT SDVLLC GNSSDAGTCP EGYRCLKAGE NPDHGYTSFD SFAWAFLALF RLMTQDCWER LYQQTLRSAG KIYMIFFMLV IFLG SFYLV NLILAVVAMA YEEQNQATIA ETEEKEKRFQ EAMEMLKKEH EALTIRGVDT VSRSSLEMSP LAPVNSHERR SKRRK RMSS GTEECGEDRL PKSDSEDGPR AMNHLSLTRG LSRTSMKPRS SRGSIFTFRR RDLGSEADFA DDENSTAGES ESHHTS LLV PWPLRRTSAQ GQPSPGTSAP GHALHGKKNS TVDCNGVVSL LGAGDPEATS PGSHLLRPVM LEHPPDTTTP SEEPGGP QM LTSQAPCVDG FEEPGARQRA LSAVSVLTSA LEELEESRHK CPPCWNRLAQ RYLIWECCPL WMSIKQGVKL VVMDPFTD L TITMCIVLNT LFMALEHYNM TSEFEEMLQV GNLVFTGIFT AEMTFKIIAL DPYYYFQQGW NIFDSIIVIL SLMELGLSR MSNLSVLRSF RLLRVFKLAK SWPTLNTLIK IIGNSVGALG NLTLVLAIIV FIFAVVGMQL FGKNYSELRD SDSGLLPRWH MMDFFHAFL IIFRILCGEW IETMWDCMEV SGQSLCLLVF LLVMVIGNLV VLNLFLALLL SSFSADNLTA PDEDREMNNL Q LALARIQR GLRFVKRTTW DFCCGLLRQR PQKPAALAAQ GQLPSCIATP YSPPPPETEK VPPTRKETRF EEGEQPGQGT PG DPEPVCV PIAVAESDTD DQEEDEENSL GTEEESSKQQ ESQPVSGGPE APPDSRTWSQ VSATASSEAE ASASQADWRQ QWK AEPQAP GCGETPEDSC SEGSTADMTN TAELLEQIPD LGQDVKDPED CFTEGCVRRC PCCAVDTTQA PGKVWWRLRK TCYH IVEHS WFETFIIFMI LLSSGALAFE DIYLEERKTI KVLLEYADKM FTYVFVLEML LKWVAYGFKK YFTNAWCWLD FLIVD VSLV SLVANTLGFA EMGPIKSLRT LRALRPLRAL SRFEGMRVVV NALVGAIPSI MNVLLVCLIF WLIFSIMGVN LFAGKF GRC INQTEGDLPL NYTIVNNKSQ CESLNLTGEL YWTKVKVNFD NVGAGYLALL QVATFKGWMD IMYAAVDSRG YEEQPQW EY NLYMYIYFVI FIIFGSFFTL NLFIGVIIDN FNQQKKKLGG QDIFMTEEQK KYYNAMKKLG SKKPQKPIPR PLNKYQGF I FDIVTKQAFD VTIMFLICLN MVTMMVETDD QSPEKINILA KINLLFVAIF TGECIVKLAA LRHYYFTNSW NIFDFVVVI LSIVGTVLSD IIQKYFFSPT LFRVIRLARI GRILRLIRGA KGIRTLLFAL MMSLPALFNI GLLLFLVMFI YSIFGMANFA YVKWEAGID DMFNFQTFAN SMLCLFQITT SAGWDGLLSP ILNTGPPYCD PTLPNSNGSR GDCGSPAVGI LFFTTYIIIS F LIVVNMYI AIILENFSVA TEESTEPLSE DDFDMFYEIW EKFDPEATQF IEYSVLSDFA DALSEPLRIA KPNQISLINM DL PMVSGDR IHCMDILFAF TKRVLGESGE MDALKIQMEE KFMAANPSKI SYEPITTTLR RKHEEVSAMV IQRAFRRHLL QRS LKHASF LFRQQAGSGL SEEDAPEREG LIAYVMSENF SRPLGPPSSS SISSTSFPPS YDSVTRATSD NLQVRGSDYS HSED LADFP PSPDRDRESI V

UniProtKB: Sodium channel protein type 5 subunit alpha

-
Macromolecule #4: [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyl...

MacromoleculeName: [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate
type: ligand / ID: 4 / Number of copies: 2 / Formula: 6OU
Molecular weightTheoretical: 717.996 Da
Chemical component information

ChemComp-6OU:
[(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate / phospholipid*YM

-
Macromolecule #5: CHOLESTEROL HEMISUCCINATE

MacromoleculeName: CHOLESTEROL HEMISUCCINATE / type: ligand / ID: 5 / Number of copies: 7 / Formula: Y01
Molecular weightTheoretical: 486.726 Da
Chemical component information

ChemComp-Y01:
CHOLESTEROL HEMISUCCINATE

-
Macromolecule #6: 2-acetamido-2-deoxy-beta-D-glucopyranose

MacromoleculeName: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 6 / Number of copies: 3 / Formula: NAG
Molecular weightTheoretical: 221.208 Da
Chemical component information

ChemComp-NAG:
2-acetamido-2-deoxy-beta-D-glucopyranose

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 0.01 mm / Nominal defocus max: 2.5 µm / Nominal defocus min: 0.5 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.6 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 75907
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
