Basic information

Entry
Database: EMDB / ID: EMD-17446
TitleConsensus map of TauB-DNA dimer (Nu-refinement)
Map data
Sample
  • Complex: TFIIIC tauB-DNA Dimer
KeywordsTFIIIC / tRNA gene / B-Box promoter / DNA recognition / TRANSCRIPTION
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.4 Å
AuthorsSeifert-Davila W / Girbig M / Hauptmann L / Hoffmann T / Eustermann S / Mueller CW
Funding support1 items
OrganizationGrant numberCountry
Not funded
CitationJournal: Sci Adv / Year: 2023
Title: Structural insights into human TFIIIC promoter recognition.
Authors: Wolfram Seifert-Davila / Mathias Girbig / Luis Hauptmann / Thomas Hoffmann / Sebastian Eustermann / Christoph W Müller /
Abstract: Transcription factor (TF) IIIC recruits RNA polymerase (Pol) III to most of its target genes. Recognition of intragenic A- and B-box motifs in transfer RNA (tRNA) genes by TFIIIC modules τA and τB ...Transcription factor (TF) IIIC recruits RNA polymerase (Pol) III to most of its target genes. Recognition of intragenic A- and B-box motifs in transfer RNA (tRNA) genes by TFIIIC modules τA and τB is the first critical step for tRNA synthesis but is mechanistically poorly understood. Here, we report cryo-electron microscopy structures of the six-subunit human TFIIIC complex unbound and bound to a tRNA gene. The τB module recognizes the B-box via DNA shape and sequence readout through the assembly of multiple winged-helix domains. TFIIIC220 forms an integral part of both τA and τB connecting the two subcomplexes via a ~550-amino acid residue flexible linker. Our data provide a structural mechanism by which high-affinity B-box recognition anchors TFIIIC to promoter DNA and permits scanning for low-affinity A-boxes and TFIIIB for Pol III activation.
History
DepositionMay 23, 2023-
Header (metadata) releaseJun 21, 2023-
Map releaseJun 21, 2023-
UpdateJul 19, 2023-
Current statusJul 19, 2023Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_17446.map.gz / Format: CCP4 / Size: 421.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.82 Å/pix.
x 480 pix.
= 394.56 Å		0.82 Å/pix.
x 480 pix.
= 394.56 Å		0.82 Å/pix.
x 480 pix.
= 394.56 Å

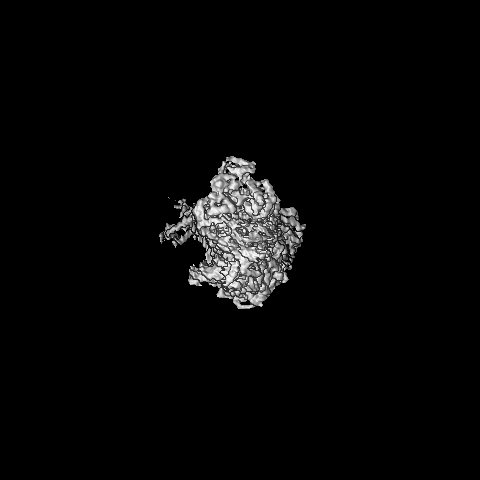

Surface

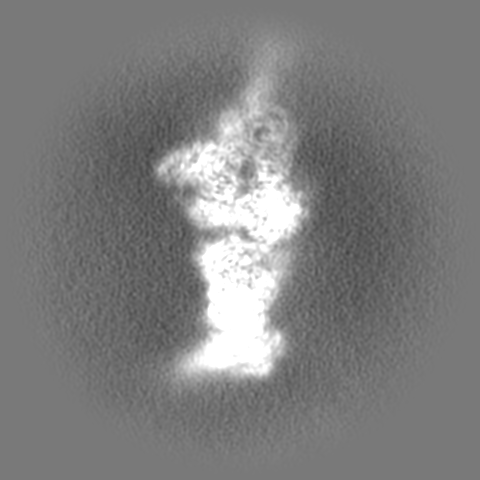

Projections

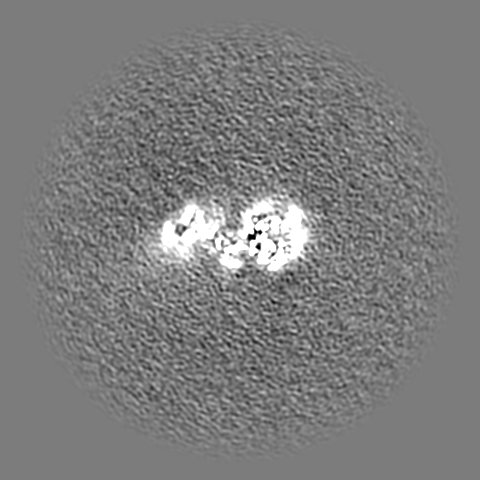

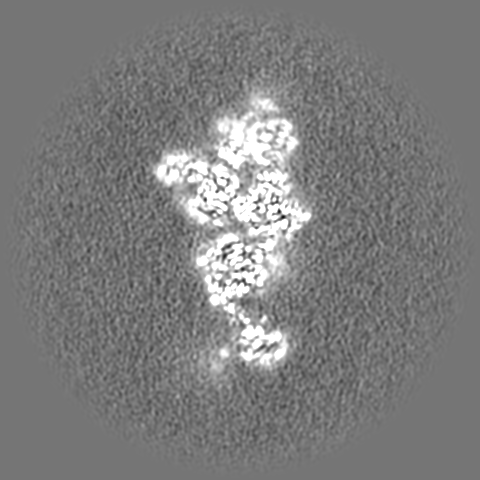

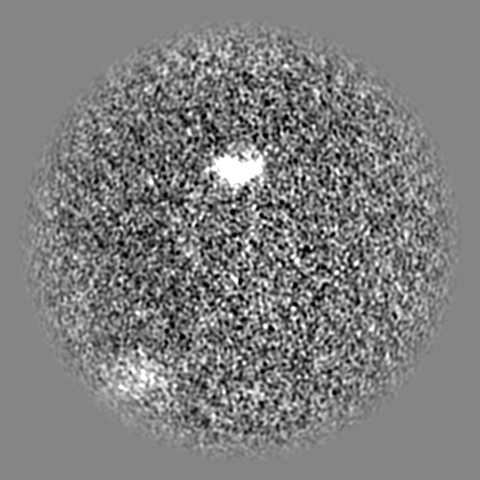

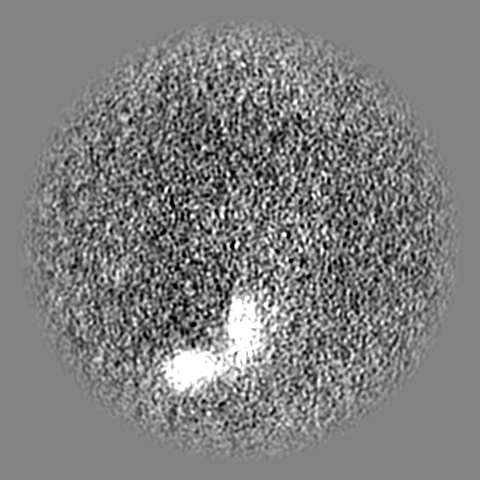

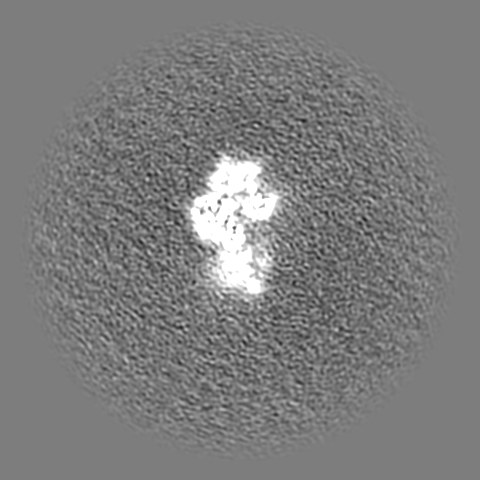

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.822 Å
Density

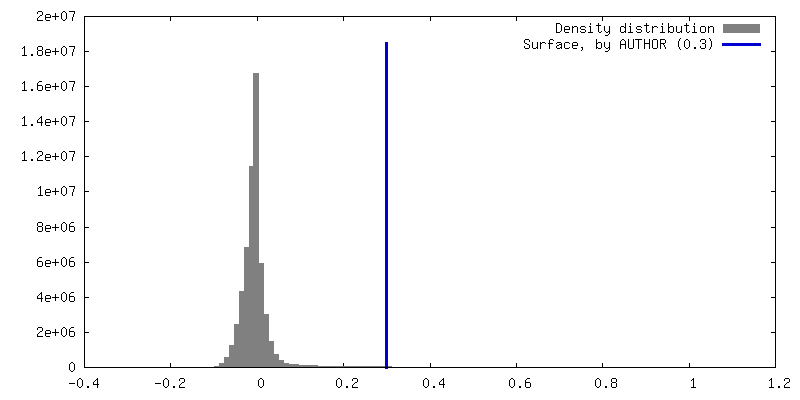

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.3
Minimum - Maximum-0.34350696 - 1.1027539
Average (Standard dev.)0.0019188697 (±0.03935186)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions480480480
Spacing480480480
CellA=B=C: 394.56 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_17446_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_17446_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_17446_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : TFIIIC tauB-DNA Dimer

EntireName: TFIIIC tauB-DNA Dimer
Components
  • Complex: TFIIIC tauB-DNA Dimer

-
Supramolecule #1: TFIIIC tauB-DNA Dimer

SupramoleculeName: TFIIIC tauB-DNA Dimer / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#5
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 600 KDa

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 42.8 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.7 µm / Nominal defocus min: 0.7000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: INSILICO MODEL / In silico model: Alphafold2 model
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.4 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 35379
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
