Basic information

Entry
Database: EMDB / ID: EMD-23739
TitleCryo-EM structure of MLL1-NCP (H3K4M) complex, mode02
Map dataMode02
Sample
  • Complex: MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Mode02)
    • Complex: RbBP5, WDR5, SET1, and ASH2L
      • Protein or peptide: Retinoblastoma-binding protein 5
      • Protein or peptide: WD repeat-containing protein 5
      • Protein or peptide: Histone-lysine N-methyltransferase 2A
      • Protein or peptide: Set1/Ash2 histone methyltransferase complex subunit ASH2
    • Complex: nucleosome
      • Protein or peptide: Histone H3
      • Protein or peptide: Histone H4
      • Protein or peptide: Histone H2A
      • Protein or peptide: Histone H2B 1.1
      • DNA: DNA (146-MER)
      • DNA: DNA (146-MER)
KeywordsMLL1-NCP / H3K4 methylation / TRANSFERASE / TRANSFERASE-DNA BINDING PROTEIN-DNA complex
Function / homology
Function and homology information


negative regulation of DNA methylation-dependent heterochromatin formation / protein-cysteine methyltransferase activity / [histone H3]-lysine4 N-methyltransferase / histone H3K4 monomethyltransferase activity / response to potassium ion / unmethylated CpG binding / histone H3K4 trimethyltransferase activity / Epigenetic regulation of gene expression by MLL3 and MLL4 complexes / MLL3/4 complex / regulation of short-term neuronal synaptic plasticity ...negative regulation of DNA methylation-dependent heterochromatin formation / protein-cysteine methyltransferase activity / [histone H3]-lysine4 N-methyltransferase / histone H3K4 monomethyltransferase activity / response to potassium ion / unmethylated CpG binding / histone H3K4 trimethyltransferase activity / Epigenetic regulation of gene expression by MLL3 and MLL4 complexes / MLL3/4 complex / regulation of short-term neuronal synaptic plasticity / MLL1/2 complex / Set1C/COMPASS complex / ATAC complex / NSL complex / definitive hemopoiesis / histone H3K4 methyltransferase activity / Cardiogenesis / embryonic hemopoiesis / T-helper 2 cell differentiation / exploration behavior / anterior/posterior pattern specification / regulation of tubulin deacetylation / histone methyltransferase complex / Formation of WDR5-containing histone-modifying complexes / minor groove of adenine-thymine-rich DNA binding / regulation of cell division / hemopoiesis / MLL1 complex / regulation of embryonic development / membrane depolarization / histone acetyltransferase complex / negative regulation of fibroblast proliferation / spleen development / cellular response to transforming growth factor beta stimulus / homeostasis of number of cells within a tissue / positive regulation of gluconeogenesis / methylated histone binding / transcription initiation-coupled chromatin remodeling / Transferases; Transferring one-carbon groups; Methyltransferases / post-embryonic development / skeletal system development / gluconeogenesis / Deactivation of the beta-catenin transactivating complex / lysine-acetylated histone binding / circadian regulation of gene expression / Formation of the beta-catenin:TCF transactivating complex / RUNX1 regulates genes involved in megakaryocyte differentiation and platelet function / euchromatin / visual learning / protein modification process / beta-catenin binding / PKMTs methylate histone lysines / mitotic spindle / RMTs methylate histone arginines / Activation of anterior HOX genes in hindbrain development during early embryogenesis / Transcriptional regulation of granulopoiesis / response to estrogen / structural constituent of chromatin / nucleosome / RUNX1 regulates transcription of genes involved in differentiation of HSCs / Neddylation / HATs acetylate histones / MLL4 and MLL3 complexes regulate expression of PPARG target genes in adipogenesis and hepatic steatosis / protein-containing complex assembly / fibroblast proliferation / methylation / histone binding / regulation of cell cycle / transcription cis-regulatory region binding / protein heterodimerization activity / apoptotic process / positive regulation of cell population proliferation / DNA damage response / chromatin binding / regulation of DNA-templated transcription / regulation of transcription by RNA polymerase II / nucleolus / positive regulation of DNA-templated transcription / negative regulation of transcription by RNA polymerase II / protein homodimerization activity / positive regulation of transcription by RNA polymerase II / DNA binding / zinc ion binding / nucleoplasm / identical protein binding / nucleus / metal ion binding / cytosol
Similarity search - Function
: / : / Set1/Ash2 histone methyltransferase complex subunit ASH2-like, WH / ASH2, PHD zinc finger / Histone methyltransferase complex subunit ASH2 / Retinoblastoma-binding protein 5/Swd1 / KMT2A, ePHD domain / KMT2A, PHD domain 1 / KMT2A, PHD domain 2 / KMT2A, PHD domain 3 ...: / : / Set1/Ash2 histone methyltransferase complex subunit ASH2-like, WH / ASH2, PHD zinc finger / Histone methyltransferase complex subunit ASH2 / Retinoblastoma-binding protein 5/Swd1 / KMT2A, ePHD domain / KMT2A, PHD domain 1 / KMT2A, PHD domain 2 / KMT2A, PHD domain 3 / Methyltransferase, trithorax / : / FY-rich, N-terminal / F/Y-rich N-terminus / PHD-like zinc-binding domain / FYR domain FYRN motif profile. / "FY-rich" domain, N-terminal region / FY-rich, C-terminal / F/Y rich C-terminus / FYR domain FYRC motif profile. / "FY-rich" domain, C-terminal region / CXXC zinc finger domain / Zinc finger, CXXC-type / Zinc finger CXXC-type profile. / Cysteine-rich motif following a subset of SET domains / Post-SET domain / Post-SET domain profile. / SET (Su(var)3-9, Enhancer-of-zeste, Trithorax) domain / Extended PHD (ePHD) domain / Extended PHD (ePHD) domain profile. / SET domain / SET domain superfamily / SET domain profile. / SET domain / SPRY domain / B30.2/SPRY domain / B30.2/SPRY domain profile. / B30.2/SPRY domain superfamily / Domain in SPla and the RYanodine Receptor. / SPRY domain / PHD-finger / Zinc finger PHD-type signature. / : / Zinc finger PHD-type profile. / Histone H2B signature. / Histone H2A conserved site / Histone H2A signature. / Histone H2B / Histone H2B / Histone H2A, C-terminal domain / C-terminus of histone H2A / Histone H2A / Histone 2A / TATA box binding protein associated factor / TATA box binding protein associated factor (TAF), histone-like fold domain / Histone H4, conserved site / Histone H4 signature. / Histone H4 / Histone H4 / Zinc finger, PHD-finger / CENP-T/Histone H4, histone fold / Centromere kinetochore component CENP-T histone fold / Zinc finger, PHD-type / PHD zinc finger / Histone H3 signature 1. / Zinc finger, FYVE/PHD-type / Histone H3 signature 2. / Histone H3 / Histone H3/CENP-A / Histone H2A/H2B/H3 / Core histone H2A/H2B/H3/H4 / Histone-fold / Bromodomain profile. / bromo domain / Bromodomain / Bromodomain-like superfamily / Concanavalin A-like lectin/glucanase domain superfamily / Zinc finger, RING/FYVE/PHD-type / G-protein beta WD-40 repeat / WD40 repeat, conserved site / Trp-Asp (WD) repeats signature. / Trp-Asp (WD) repeats profile. / Trp-Asp (WD) repeats circular profile. / WD domain, G-beta repeat / WD40 repeats / WD40 repeat / WD40-repeat-containing domain superfamily / WD40/YVTN repeat-like-containing domain superfamily
Similarity search - Domain/homology
Histone H3 / Histone H2B 1.1 / WD repeat-containing protein 5 / Histone H4 / Histone-lysine N-methyltransferase 2A / Retinoblastoma-binding protein 5 / Histone H2A / Set1/Ash2 histone methyltransferase complex subunit ASH2
Similarity search - Component
Biological speciesHomo sapiens (human) / Xenopus laevis (African clawed frog) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 4.02 Å
AuthorsPark SH / Ayoub A
Funding support United States, 2 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM082856 United States
National Institutes of Health/National Cancer Institute (NIH/NCI)CA250329 United States
CitationJournal: Biochemistry / Year: 2022
Title: Regulation of MLL1 Methyltransferase Activity in Two Distinct Nucleosome Binding Modes.
Authors: Alex Ayoub / Sang Ho Park / Young-Tae Lee / Uhn-Soo Cho / Yali Dou /
Abstract: Cryo-EM structures of the KMT2A/MLL1 core complex bound on nucleosome core particles (NCPs) suggest unusual rotational dynamics of the MLL1 complex approaching its physiological substrate. However, ...Cryo-EM structures of the KMT2A/MLL1 core complex bound on nucleosome core particles (NCPs) suggest unusual rotational dynamics of the MLL1 complex approaching its physiological substrate. However, the functional implication of such dynamics remains unclear. Here, we show that the MLL1 core complex also shows high rotational dynamics bound on the NCP carrying the catalytically inert histone H3 lysine 4 to methionine (K4M) mutation. There are two major binding modes of the MLL1 complex on the NCP. Importantly, disruption of only one of the binding modes compromised the overall MLL1 activity in an NCP-specific manner. We propose that the MLL1 core complex probably exists in an equilibrium of poised and active binding modes. The high rotational dynamics of the MLL1 complex on the NCP is a feature that can be exploited for loci-specific regulation of H3K4 methylation in higher eukaryotes.
History
DepositionApr 1, 2021-
Header (metadata) releaseDec 29, 2021-
Map releaseDec 29, 2021-
UpdateMar 5, 2025-
Current statusMar 5, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.013
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by cylindrical radius
  • Surface level: 0.013
  • Imaged by UCSF Chimera
  • Download
  • Surface view with fitted model
  • Atomic models: PDB-7mbn
  • Surface level: 0.013
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_23739.map.gz / Format: CCP4 / Size: 163.6 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationMode02
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.06 Å/pix.
x 350 pix.
= 371. Å		1.06 Å/pix.
x 350 pix.
= 371. Å		1.06 Å/pix.
x 350 pix.
= 371. Å

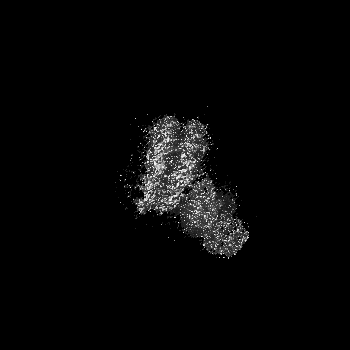

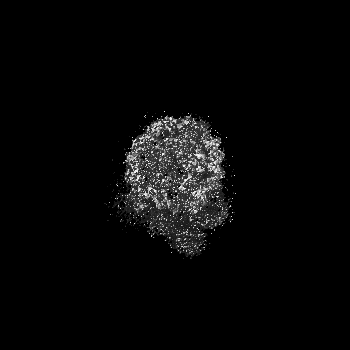

Surface

Projections

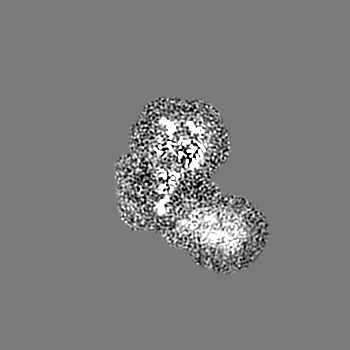

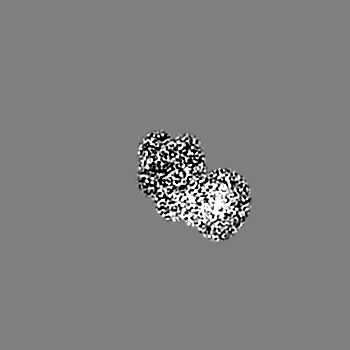

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.06 Å
Density

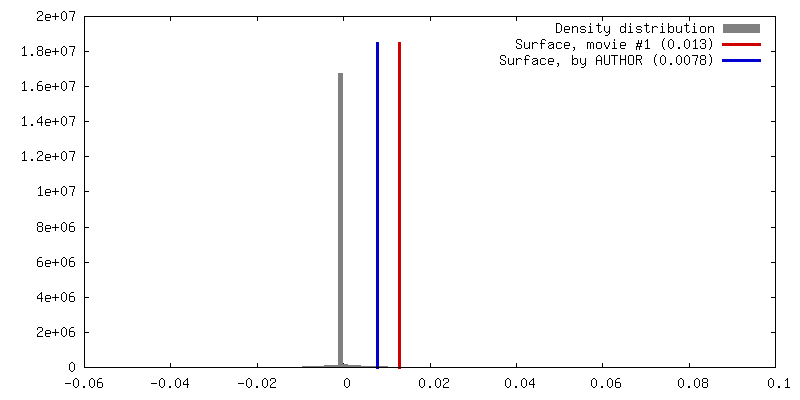

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0078 / Movie #1: 0.013
Minimum - Maximum-0.044393327 - 0.087683424
Average (Standard dev.)0.00008777213 (±0.0017991567)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions350350350
Spacing350350350
CellA=B=C: 370.99997 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z1.061.061.06
M x/y/z350350350
origin x/y/z0.0000.0000.000
length x/y/z371.000371.000371.000
α/β/γ90.00090.00090.000
start NX/NY/NZ000
NX/NY/NZ320320320
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS350350350
D min/max/mean-0.0440.0880.000

-
Supplemental data

-
Sample components

+
Entire : MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nu...

EntireName: MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Mode02)
Components
  • Complex: MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Mode02)
    • Complex: RbBP5, WDR5, SET1, and ASH2L
      • Protein or peptide: Retinoblastoma-binding protein 5
      • Protein or peptide: WD repeat-containing protein 5
      • Protein or peptide: Histone-lysine N-methyltransferase 2A
      • Protein or peptide: Set1/Ash2 histone methyltransferase complex subunit ASH2
    • Complex: nucleosome
      • Protein or peptide: Histone H3
      • Protein or peptide: Histone H4
      • Protein or peptide: Histone H2A
      • Protein or peptide: Histone H2B 1.1
      • DNA: DNA (146-MER)
      • DNA: DNA (146-MER)

+
Supramolecule #1: MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nu...

SupramoleculeName: MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Mode02)
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all

+
Supramolecule #2: RbBP5, WDR5, SET1, and ASH2L

SupramoleculeName: RbBP5, WDR5, SET1, and ASH2L / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#4
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #3: nucleosome

SupramoleculeName: nucleosome / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #5-#10
Source (natural)Organism: Xenopus laevis (African clawed frog)

+
Macromolecule #1: Retinoblastoma-binding protein 5

MacromoleculeName: Retinoblastoma-binding protein 5 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 59.179359 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: SNLELLESFG QNYPEEADGT LDCISMALTC TFNRWGTLLA VGCNDGRIVI WDFLTRGIAK IISAHIHPVC SLCWSRDGHK LVSASTDNI VSQWDVLSGD CDQRFRFPSP ILKVQYHPRD QNKVLVCPMK SAPVMLTLSD SKHVVLPVDD DSDLNVVASF D RRGEYIYT ...String:
SNLELLESFG QNYPEEADGT LDCISMALTC TFNRWGTLLA VGCNDGRIVI WDFLTRGIAK IISAHIHPVC SLCWSRDGHK LVSASTDNI VSQWDVLSGD CDQRFRFPSP ILKVQYHPRD QNKVLVCPMK SAPVMLTLSD SKHVVLPVDD DSDLNVVASF D RRGEYIYT GNAKGKILVL KTDSQDLVAS FRVTTGTSNT TAIKSIEFAR KGSCFLINTA DRIIRVYDGR EILTCGRDGE PE PMQKLQD LVNRTPWKKC CFSGDGEYIV AGSARQHALY IWEKSIGNLV KILHGTRGEL LLDVAWHPVR PIIASISSGV VSI WAQNQV ENWSAFAPDF KELDENVEYE ERESEFDIED EDKSEPEQTG ADAAEDEEVD VTSVDPIAAF CSSDEELEDS KALL YLPIA PEVEDPEENP YGPPPDAVQT SLMDEGASSE KKRQSSADGS QPPKKKPKTT NIELQGVPND EVHPLLGVKG DGKSK KKQA GRPKGSKGKE KDSPFKPKLY KGDRGLPLEG SAKGKVQAEL SQPLTAGGAI SELL

UniProtKB: Retinoblastoma-binding protein 5

+
Macromolecule #2: WD repeat-containing protein 5

MacromoleculeName: WD repeat-containing protein 5 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 34.390992 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: SATQSKPTPV KPNYALKFTL AGHTKAVSSV KFSPNGEWLA SSSADKLIKI WGAYDGKFEK TISGHKLGIS DVAWSSDSNL LVSASDDKT LKIWDVSSGK CLKTLKGHSN YVFCCNFNPQ SNLIVSGSFD ESVRIWDVKT GKCLKTLPAH SDPVSAVHFN R DGSLIVSS ...String:
SATQSKPTPV KPNYALKFTL AGHTKAVSSV KFSPNGEWLA SSSADKLIKI WGAYDGKFEK TISGHKLGIS DVAWSSDSNL LVSASDDKT LKIWDVSSGK CLKTLKGHSN YVFCCNFNPQ SNLIVSGSFD ESVRIWDVKT GKCLKTLPAH SDPVSAVHFN R DGSLIVSS SYDGLCRIWD TASGQCLKTL IDDDNPPVSF VKFSPNGKYI LAATLDNTLK LWDYSKGKCL KTYTGHKNEK YC IFANFSV TGGKWIVSGS EDNLVYIWNL QTKEIVQKLQ GHTDVVISTA CHPTENIIAS AALENDKTIK LWKSDC

UniProtKB: WD repeat-containing protein 5

+
Macromolecule #3: Histone-lysine N-methyltransferase 2A

MacromoleculeName: Histone-lysine N-methyltransferase 2A / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO / EC number: [histone H3]-lysine4 N-trimethyltransferase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 24.141732 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: SGSARAEVHL RKSAFDMFNF LASKHRQPPE YNPNDEEEEE VQLKSARRAT SMDLPMPMRF RHLKKTSKEA VGVYRSPIHG RGLFCKRNI DAGEMVIEYA GIVIRSILTD KREKYYDSKG IGCYMFRIDD SEVVDATMHG NAARFINHSC EPNCYSRVIN I DGQKHIVI ...String:
SGSARAEVHL RKSAFDMFNF LASKHRQPPE YNPNDEEEEE VQLKSARRAT SMDLPMPMRF RHLKKTSKEA VGVYRSPIHG RGLFCKRNI DAGEMVIEYA GIVIRSILTD KREKYYDSKG IGCYMFRIDD SEVVDATMHG NAARFINHSC EPNCYSRVIN I DGQKHIVI FAMRKIYRGE ELTYDYKFPI EDASNKLPCN CGAKKCRKFL N

UniProtKB: Histone-lysine N-methyltransferase 2A

+
Macromolecule #4: Set1/Ash2 histone methyltransferase complex subunit ASH2

MacromoleculeName: Set1/Ash2 histone methyltransferase complex subunit ASH2
type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 60.244641 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: SDTQAGSVDE ENGRQLGEVE LQCGICTKWF TADTFGIDTS SCLPFMTNYS FHCNVCHHSG NTYFLRKQAN LKEMCLSALA NLTWQSRTQ DEHPKTMFSK DKDIIPFIDK YWECMTTRQR PGKMTWPNNI VKTMSKERDV FLVKEHPDPG SKDPEEDYPK F GLLDQDLS ...String:
SDTQAGSVDE ENGRQLGEVE LQCGICTKWF TADTFGIDTS SCLPFMTNYS FHCNVCHHSG NTYFLRKQAN LKEMCLSALA NLTWQSRTQ DEHPKTMFSK DKDIIPFIDK YWECMTTRQR PGKMTWPNNI VKTMSKERDV FLVKEHPDPG SKDPEEDYPK F GLLDQDLS NIGPAYDNQK QSSAVSTSGN LNGGIAAGSS GKGRGAKRKQ QDGGTTGTTK KARSDPLFSA QRLPPHGYPL EH PFNKDGY RYILAEPDPH APDPEKLELD CWAGKPIPGD LYRACLYERV LLALHDRAPQ LKISDDRLTV VGEKGYSMVR ASH GVRKGA WYFEITVDEM PPDTAARLGW SQPLGNLQAP LGYDKFSYSW RSKKGTKFHQ SIGKHYSSGY GQGDVLGFYI NLPE DTETA KSLPDTYKDK ALIKFKSYLY FEEKDFVDKA EKSLKQTPHS EIIFYKNGVN QGVAYKDIFE GVYFPAISLY KSCTV SINF GPCFKYPPKD LTYRPMSDMG WGAVVEHTLA DVLYHVETEV DGRRSPPWEP

UniProtKB: Set1/Ash2 histone methyltransferase complex subunit ASH2

+
Macromolecule #5: Histone H3

MacromoleculeName: Histone H3 / type: protein_or_peptide / ID: 5 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 15.437144 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MARTMQTARK STGGKAPRKQ LATKAARKSA PATGGVKKPH RYRPGTVALR EIRRYQKSTE LLIRKLPFQR LVREIAQDFK TDLRFQSSA VMALQEASEA YLVALFEDTN LCAIHAKRVT IMPKDIQLAR RIRGERA

UniProtKB: Histone H3

+
Macromolecule #6: Histone H4

MacromoleculeName: Histone H4 / type: protein_or_peptide / ID: 6 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 11.394426 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSGRGKGGKG LGKGGAKRHR KVLRDNIQGI TKPAIRRLAR RGGVKRISGL IYEETRGVLK VFLENVIRDA VTYTEHAKRK TVTAMDVVY ALKRQGRTLY GFGG

UniProtKB: Histone H4

+
Macromolecule #7: Histone H2A

MacromoleculeName: Histone H2A / type: protein_or_peptide / ID: 7 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 13.978241 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
SGRGKQGGKT RAKAKTRSSR AGLQFPVGRV HRLLRKGNYA ERVGAGAPVY LAAVLEYLTA EILELAGNAA RDNKKTRIIP RHLQLAVRN DEELNKLLGR VTIAQGGVLP NIQSVLLPKK TESSKSAKSK

UniProtKB: Histone H2A

+
Macromolecule #8: Histone H2B 1.1

MacromoleculeName: Histone H2B 1.1 / type: protein_or_peptide / ID: 8 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 13.655948 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKSAPAPKK GSKKAVTKTQ KKDGKKRRKT RKESYAIYVY KVLKQVHPDT GISSKAMSIM NSFVNDVFER IAGEASRLAH YNKRSTITS REIQTAVRLL LPGELAKHAV SEGTKAVTKY TSAK

UniProtKB: Histone H2B 1.1

+
Macromolecule #9: DNA (146-MER)

MacromoleculeName: DNA (146-MER) / type: dna / ID: 9 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 45.13877 KDa
SequenceString: (DA)(DT)(DC)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DG)(DC)(DC)(DG)(DA) (DG)(DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA)(DT)(DT)(DG)(DG)(DT)(DC)(DG)(DT)(DA) (DG) (DA)(DC)(DA)(DG)(DC)(DT) ...String:
(DA)(DT)(DC)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DG)(DC)(DC)(DG)(DA) (DG)(DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA)(DT)(DT)(DG)(DG)(DT)(DC)(DG)(DT)(DA) (DG) (DA)(DC)(DA)(DG)(DC)(DT)(DC)(DT) (DA)(DG)(DC)(DA)(DC)(DC)(DG)(DC)(DT)(DT) (DA)(DA) (DA)(DC)(DG)(DC)(DA)(DC)(DG) (DT)(DA)(DC)(DG)(DC)(DG)(DC)(DT)(DG)(DT) (DC)(DC)(DC) (DC)(DC)(DG)(DC)(DG)(DT) (DT)(DT)(DT)(DA)(DA)(DC)(DC)(DG)(DC)(DC) (DA)(DA)(DG)(DG) (DG)(DG)(DA)(DT)(DT) (DA)(DC)(DT)(DC)(DC)(DC)(DT)(DA)(DG)(DT) (DC)(DT)(DC)(DC)(DA) (DG)(DG)(DC)(DA) (DC)(DG)(DT)(DG)(DT)(DC)(DA)(DG)(DA)(DT) (DA)(DT)(DA)(DT)(DA)(DC) (DA)(DT)(DC) (DC)(DG)(DA)(DT)

+
Macromolecule #10: DNA (146-MER)

MacromoleculeName: DNA (146-MER) / type: dna / ID: 10 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 45.610043 KDa
SequenceString: (DA)(DT)(DC)(DG)(DG)(DA)(DT)(DG)(DT)(DA) (DT)(DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA)(DC) (DA)(DC)(DG)(DT)(DG)(DC)(DC)(DT)(DG) (DG)(DA)(DG)(DA)(DC)(DT)(DA)(DG)(DG)(DG) (DA) (DG)(DT)(DA)(DA)(DT)(DC) ...String:
(DA)(DT)(DC)(DG)(DG)(DA)(DT)(DG)(DT)(DA) (DT)(DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA)(DC) (DA)(DC)(DG)(DT)(DG)(DC)(DC)(DT)(DG) (DG)(DA)(DG)(DA)(DC)(DT)(DA)(DG)(DG)(DG) (DA) (DG)(DT)(DA)(DA)(DT)(DC)(DC)(DC) (DC)(DT)(DT)(DG)(DG)(DC)(DG)(DG)(DT)(DT) (DA)(DA) (DA)(DA)(DC)(DG)(DC)(DG)(DG) (DG)(DG)(DG)(DA)(DC)(DA)(DG)(DC)(DG)(DC) (DG)(DT)(DA) (DC)(DG)(DT)(DG)(DC)(DG) (DT)(DT)(DT)(DA)(DA)(DG)(DC)(DG)(DG)(DT) (DG)(DC)(DT)(DA) (DG)(DA)(DG)(DC)(DT) (DG)(DT)(DC)(DT)(DA)(DC)(DG)(DA)(DC)(DC) (DA)(DA)(DT)(DT)(DG) (DA)(DG)(DC)(DG) (DG)(DC)(DC)(DT)(DC)(DG)(DG)(DC)(DA)(DC) (DC)(DG)(DG)(DG)(DA)(DT) (DT)(DC)(DT) (DC)(DG)(DA)(DT)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Average electron dose: 53.4 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: OTHER / Imaging mode: BRIGHT FIELD
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: EMDB MAP
Final reconstructionResolution.type: BY AUTHOR / Resolution: 4.02 Å / Number images used: 30847
Initial angle assignmentType: RANDOM ASSIGNMENT
Final angle assignmentType: ANGULAR RECONSTITUTION
FSC plot (resolution estimation)

-
Atomic model buiding 1

RefinementProtocol: RIGID BODY FIT
Output model

PDB-7mbn:
Cryo-EM structure of MLL1-NCP (H3K4M) complex, mode02

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
