Basic information

Entry
Database: EMDB / ID: EMD-72148
TitleDX2-CX3-RAD51 structure in the intermediate state
Map dataDX2-CX3-RAD51 map in the intermediate state, unsharpened
Sample
  • Complex: DX2-CX3-RAD51 filament
    • Protein or peptide: DNA repair protein RAD51 homolog 3
    • Protein or peptide: DNA repair protein RAD51 homolog 4
    • Protein or peptide: DNA repair protein RAD51 homolog 1
    • DNA: ssDNA (6-mer)
    • Protein or peptide: DNA repair protein XRCC3
  • Protein or peptide: DNA repair protein XRCC2
  • Ligand: ADENOSINE-5'-DIPHOSPHATE
  • Ligand: MAGNESIUM ION
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
KeywordsRAD51 paralog / DX2-CX3 complex / DNA BINDING PROTEIN / DNA BINDING PROTEIN-DNA complex
Function / homology
Function and homology information


telomeric loop disassembly / meiotic DNA recombinase assembly / Rad51C-XRCC3 complex / Rad51B-Rad51C-Rad51D-XRCC2 complex / female meiosis sister chromatid cohesion / double-strand break repair via synthesis-dependent strand annealing / telomere maintenance via telomere trimming / resolution of mitotic recombination intermediates / presynaptic intermediate filament cytoskeleton / response to glucoside ...telomeric loop disassembly / meiotic DNA recombinase assembly / Rad51C-XRCC3 complex / Rad51B-Rad51C-Rad51D-XRCC2 complex / female meiosis sister chromatid cohesion / double-strand break repair via synthesis-dependent strand annealing / telomere maintenance via telomere trimming / resolution of mitotic recombination intermediates / presynaptic intermediate filament cytoskeleton / response to glucoside / positive regulation of mitotic cell cycle spindle assembly checkpoint / crossover junction DNA endonuclease activity / mitotic recombination-dependent replication fork processing / DNA recombinase assembly / chromosome organization involved in meiotic cell cycle / telomere maintenance via telomere lengthening / double-strand break repair involved in meiotic recombination / nuclear ubiquitin ligase complex / cellular response to cisplatin / regulation of centrosome duplication / DNA strand invasion / t-circle formation / mitotic recombination / cellular response to hydroxyurea / cellular response to camptothecin / replication-born double-strand break repair via sister chromatid exchange / lateral element / DNA strand exchange activity / regulation of DNA damage checkpoint / gamma-tubulin binding / Impaired BRCA2 binding to PALB2 / telomere maintenance via recombination / regulation of fibroblast apoptotic process / reciprocal meiotic recombination / single-stranded DNA helicase activity / centrosome cycle / sister chromatid cohesion / positive regulation of neurogenesis / ATP-dependent DNA damage sensor activity / regulation of double-strand break repair via homologous recombination / HDR through Single Strand Annealing (SSA) / Homologous DNA Pairing and Strand Exchange / Defective homologous recombination repair (HRR) due to BRCA1 loss of function / Defective HDR through Homologous Recombination Repair (HRR) due to PALB2 loss of BRCA1 binding function / Defective HDR through Homologous Recombination Repair (HRR) due to PALB2 loss of BRCA2/RAD51/RAD51C binding function / Resolution of D-loop Structures through Synthesis-Dependent Strand Annealing (SDSA) / nuclear chromosome / Resolution of D-loop Structures through Holliday Junction Intermediates / Transcriptional Regulation by E2F6 / Impaired BRCA2 binding to RAD51 / microtubule organizing center / male meiosis I / replication fork processing / positive regulation of G2/M transition of mitotic cell cycle / Presynaptic phase of homologous DNA pairing and strand exchange / response to X-ray / somitogenesis / ATP-dependent activity, acting on DNA / interstrand cross-link repair / condensed chromosome / DNA polymerase binding / neurogenesis / telomere maintenance / replication fork / condensed nuclear chromosome / male germ cell nucleus / cellular response to ionizing radiation / response to gamma radiation / meiotic cell cycle / TP53 Regulates Transcription of DNA Repair Genes / cellular response to gamma radiation / protein-DNA complex / PML body / double-strand break repair via homologous recombination / Meiotic recombination / HDR through Homologous Recombination (HRR) / Hydrolases; Acting on acid anhydrides; Acting on acid anhydrides to facilitate cellular and subcellular movement / multicellular organism growth / response to toxic substance / cell junction / mitotic cell cycle / single-stranded DNA binding / site of double-strand break / Factors involved in megakaryocyte development and platelet production / double-stranded DNA binding / DNA recombination / spermatogenesis / in utero embryonic development / negative regulation of neuron apoptotic process / chromosome, telomeric region / regulation of cell cycle / mitochondrial matrix / response to xenobiotic stimulus / DNA repair / chromatin binding / DNA damage response / centrosome / chromatin / nucleolus / perinuclear region of cytoplasm
Similarity search - Function
: / DNA repair protein XRCC2 / : / : / : / RAD51D, N-terminal domain / : / : / XRCC3/RpoA-like, helix-hairpin-helix domain / DNA recombination/repair protein Rad51 ...: / DNA repair protein XRCC2 / : / : / : / RAD51D, N-terminal domain / : / : / XRCC3/RpoA-like, helix-hairpin-helix domain / DNA recombination/repair protein Rad51 / DNA recombination and repair protein, RecA-like / DNA recombination and repair protein Rad51-like, C-terminal / Rad51 / DNA recombination and repair protein RecA, monomer-monomer interface / RecA family profile 2. / DNA recombination and repair protein RecA-like, ATP-binding domain / RecA family profile 1. / DNA repair Rad51/transcription factor NusA, alpha-helical / Helix-hairpin-helix domain / ATPases associated with a variety of cellular activities / AAA+ ATPase domain / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
DNA repair protein RAD51 homolog 3 / DNA repair protein XRCC3 / DNA repair protein XRCC2 / DNA repair protein RAD51 homolog 4 / DNA repair protein RAD51 homolog 1
Similarity search - Component
Biological speciesHomo sapiens (human) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.84 Å
AuthorsKoo CW / Ciferri C / Yatskevich S
Funding support1 items
OrganizationGrant numberCountry
Not funded
CitationJournal: To Be Published
Title: Tumor suppressors BCDX2-CX3 supercomplex and DX2-CX3 complex template RAD51 filament formation
Authors: Koo CW / Ciferri C / Yatskevich S
History
DepositionAug 14, 2025-
Header (metadata) releaseMar 4, 2026-
Map releaseMar 4, 2026-
UpdateMar 4, 2026-
Current statusMar 4, 2026Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_72148.map.gz / Format: CCP4 / Size: 244.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationDX2-CX3-RAD51 map in the intermediate state, unsharpened
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.93 Å/pix.
x 400 pix.
= 371.2 Å		0.93 Å/pix.
x 400 pix.
= 371.2 Å		0.93 Å/pix.
x 400 pix.
= 371.2 Å

Surface

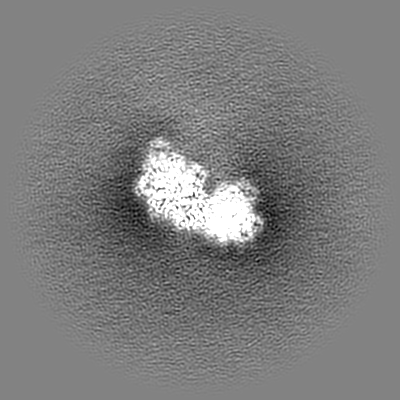

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.928 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.155
Minimum - Maximum-0.3952547 - 0.9254691
Average (Standard dev.)-0.00019053844 (±0.016231064)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions400400400
Spacing400400400
CellA=B=C: 371.19998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: DX2-CX3-RAD51 map in the intermediate state, sharpened

Fileemd_72148_additional_1.map
AnnotationDX2-CX3-RAD51 map in the intermediate state, sharpened
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: DX2-CX3-RAD51 map in the intermediate state, half-map B

Fileemd_72148_half_map_1.map
AnnotationDX2-CX3-RAD51 map in the intermediate state, half-map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: DX2-CX3-RAD51 map in the intermediate state, half-map A

Fileemd_72148_half_map_2.map
AnnotationDX2-CX3-RAD51 map in the intermediate state, half-map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : DX2-CX3-RAD51 filament

EntireName: DX2-CX3-RAD51 filament
Components
  • Complex: DX2-CX3-RAD51 filament
    • Protein or peptide: DNA repair protein RAD51 homolog 3
    • Protein or peptide: DNA repair protein RAD51 homolog 4
    • Protein or peptide: DNA repair protein RAD51 homolog 1
    • DNA: ssDNA (6-mer)
    • Protein or peptide: DNA repair protein XRCC3
  • Protein or peptide: DNA repair protein XRCC2
  • Ligand: ADENOSINE-5'-DIPHOSPHATE
  • Ligand: MAGNESIUM ION
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE

+
Supramolecule #1: DX2-CX3-RAD51 filament

SupramoleculeName: DX2-CX3-RAD51 filament / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#5
Source (natural)Organism: Homo sapiens (human)

+
Macromolecule #1: DNA repair protein RAD51 homolog 3

MacromoleculeName: DNA repair protein RAD51 homolog 3 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 42.244609 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MRGKTFRFEM QRDLVSFPLS PAVRVKLVSA GFQTAEELLE VKPSELSKEV GISKAEALET LQIIRRECLT NKPRYAGTSE SHKKCTALE LLEQEHTQGF IITFCSALDD ILGGGVPLMK TTEICGAPGV GKTQLCMQLA VDVQIPECFG GVAGEAVFID T EGSFMVDR ...String:
MRGKTFRFEM QRDLVSFPLS PAVRVKLVSA GFQTAEELLE VKPSELSKEV GISKAEALET LQIIRRECLT NKPRYAGTSE SHKKCTALE LLEQEHTQGF IITFCSALDD ILGGGVPLMK TTEICGAPGV GKTQLCMQLA VDVQIPECFG GVAGEAVFID T EGSFMVDR VVDLATACIQ HLQLIAEKHK GEEHRKALED FTLDNILSHI YYFRCRDYTE LLAQVYLLPD FLSEHSKVRL VI VDGIAFP FRHDLDDLSL RTRLLNGLAQ QMISLANNHR LAVILTNQMT TKIDRNQALL VPALGESWGH AATIRLIFHW DRK QRLATL YKSPSQKECT VLFQIKPQGF RDTVVTSACS LQTEGSLSTR KRSRDPEEEL

UniProtKB: DNA repair protein RAD51 homolog 3

+
Macromolecule #2: DNA repair protein RAD51 homolog 4

MacromoleculeName: DNA repair protein RAD51 homolog 4 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 35.084254 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MGVLRVGLCP GLTEEMIQLL RSHRIKTVVD LVSADLEEVA QKCGLSYKAL VALRRVLLAQ FSAFPVNGAD LYEELKTSTA ILSTGIGSL DKLLDAGLYT GEVTEIVGGP GSGKTQVCLC MAANVAHGLQ QNVLYVDSNG GLTASRLLQL LQAKTQDEEE Q AEALRRIQ ...String:
MGVLRVGLCP GLTEEMIQLL RSHRIKTVVD LVSADLEEVA QKCGLSYKAL VALRRVLLAQ FSAFPVNGAD LYEELKTSTA ILSTGIGSL DKLLDAGLYT GEVTEIVGGP GSGKTQVCLC MAANVAHGLQ QNVLYVDSNG GLTASRLLQL LQAKTQDEEE Q AEALRRIQ VVHAFDIFQM LDVLQELRGT VAQQVTGSSG TVKVVVVDSV TAVVSPLLGG QQREGLALMM QLARELKTLA RD LGMAVVV TNHITRDRDS GRLKPALGRS WSFVPSTRIL LDTIEGAGAS GGRRMACLAK SSRQPTGFQE MVDIGTWGTS EQS ATLQGD QT

UniProtKB: DNA repair protein RAD51 homolog 4

+
Macromolecule #3: DNA repair protein RAD51 homolog 1

MacromoleculeName: DNA repair protein RAD51 homolog 1 / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 37.009125 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MAMQMQLEAN ADTSVEEESF GPQPISRLEQ CGINANDVKK LEEAGFHTVE AVAYAPKKEL INIKGISEAK ADKILAEAAK LVPMGFTTA TEFHQRRSEI IQITTGSKEL DKLLQGGIET GSITEMFGEF RTGKTQICHT LAVTCQLPID RGGGEGKAMY I DTEGTFRP ...String:
MAMQMQLEAN ADTSVEEESF GPQPISRLEQ CGINANDVKK LEEAGFHTVE AVAYAPKKEL INIKGISEAK ADKILAEAAK LVPMGFTTA TEFHQRRSEI IQITTGSKEL DKLLQGGIET GSITEMFGEF RTGKTQICHT LAVTCQLPID RGGGEGKAMY I DTEGTFRP ERLLAVAERY GLSGSDVLDN VAYARAFNTD HQTQLLYQAS AMMVESRYAL LIVDSATALY RTDYSGRGEL SA RQMHLAR FLRMLLRLAD EFGVAVVITN QVVAQVDGAA MFAADPKKPI GGNIIAHAST TRLYLRKGRG ETRICKIYDS PCL PEAEAM FAINADGVGD AKD

UniProtKB: DNA repair protein RAD51 homolog 1

+
Macromolecule #5: DNA repair protein XRCC3

MacromoleculeName: DNA repair protein XRCC3 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 37.899781 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MDLDLLDLNP RIIAAIKKAK LKSVKEVLHF SGPDLKRLTN LSSPEVWHLL RTASLHLRGS SILTALQLHQ QKERFPTQHQ RLSLGCPVL DALLRGGLPL DGITELAGRS SAGKTQLALQ LCLAVQFPRQ HGGLEAGAVY ICTEDAFPHK RLQQLMAQQP R LRTDVPGE ...String:
MDLDLLDLNP RIIAAIKKAK LKSVKEVLHF SGPDLKRLTN LSSPEVWHLL RTASLHLRGS SILTALQLHQ QKERFPTQHQ RLSLGCPVL DALLRGGLPL DGITELAGRS SAGKTQLALQ LCLAVQFPRQ HGGLEAGAVY ICTEDAFPHK RLQQLMAQQP R LRTDVPGE LLQKLRFGSQ IFIEHVADVD TLLECVNKKV PVLLSRGMAR LVVIDSVAAP FRCEFDSQAS APRARHLQSL GA TLRELSS AFQSPVLCIN QVTEAMEEQG AAHGPLGFWD ERVSPALGIT WANQLLVRLL ADRLREEEAA LGCPARTLRV LSA PHLPPS SCSYTISAEG VRGTPGTQSH

UniProtKB: DNA repair protein XRCC3

+
Macromolecule #6: DNA repair protein XRCC2

MacromoleculeName: DNA repair protein XRCC2 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 31.995525 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MCSAFHRAES GTELLARLEG RSSLKEIEPN LFADEDSPVH GDILEFHGPE GTGKTEMLYH LTARCILPKS EGGLEVEVLF IDTDYHFDM LRLVTILEHR LSQSSEEIIK YCLGRFFLVY CSSSTHLLLT LYSLESMFCS HPSLCLLILD SLSAFYWIDR V NGGESVNL ...String:
MCSAFHRAES GTELLARLEG RSSLKEIEPN LFADEDSPVH GDILEFHGPE GTGKTEMLYH LTARCILPKS EGGLEVEVLF IDTDYHFDM LRLVTILEHR LSQSSEEIIK YCLGRFFLVY CSSSTHLLLT LYSLESMFCS HPSLCLLILD SLSAFYWIDR V NGGESVNL QESTLRKCSQ CLEKLVNDYR LVLFATTQTI MQKASSSSEE PSHASRRLCD VDIDYRPYLC KAWQQLVKHR MF FSKQDDS QSSNQFSLVS RCLKSNSLKK HFFIIGESGV EFC

UniProtKB: DNA repair protein XRCC2

+
Macromolecule #4: ssDNA (6-mer)

MacromoleculeName: ssDNA (6-mer) / type: dna / ID: 4 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 1.780199 KDa
SequenceString:
(DT)(DT)(DT)(DT)(DT)(DT)

+
Macromolecule #7: ADENOSINE-5'-DIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-DIPHOSPHATE / type: ligand / ID: 7 / Number of copies: 2 / Formula: ADP
Molecular weightTheoretical: 427.201 Da
Chemical component information

ChemComp-ADP:
ADENOSINE-5'-DIPHOSPHATE / ADP, energy-carrying molecule*YM

+
Macromolecule #8: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 8 / Number of copies: 4 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #9: ADENOSINE-5'-TRIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-TRIPHOSPHATE / type: ligand / ID: 9 / Number of copies: 2 / Formula: ATP
Molecular weightTheoretical: 507.181 Da
Chemical component information

ChemComp-ATP:
ADENOSINE-5'-TRIPHOSPHATE / ATP, energy-carrying molecule*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.2
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 12.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.2 µm / Nominal defocus min: 0.8 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.84 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 55384
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
