Basic information

Entry
Database: EMDB / ID: EMD-70758
TitleE.coli GroEL/ES in the football conformation 700ms after addition of ATP
Map dataSharpened
Sample
  • Complex: GroEL/ES2
    • Complex: GroEL
      • Protein or peptide: GroEL
    • Complex: GroES
      • Protein or peptide: GroES
KeywordsGroEL / GroES / Chaperone
Biological speciesEscherichia coli (E. coli)
Methodsingle particle reconstruction / cryo EM / Resolution: 7.1 Å
AuthorsAlexandrescu L / Lander GC
Funding support United States, 3 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)1F31NS136003-01 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM154216 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM143805 United States
CitationJournal: To Be Published
Title: "Mix-it-up": Accessible time-resolved cryo-EM on the millisecond timescale
Authors: Alexandrescu L / Lander GC
History
DepositionMay 20, 2025-
Header (metadata) releaseJun 4, 2025-
Map releaseJun 4, 2025-
UpdateJun 4, 2025-
Current statusJun 4, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_70758.map.gz / Format: CCP4 / Size: 282.6 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationSharpened
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.94 Å/pix.
x 420 pix.
= 394.8 Å		0.94 Å/pix.
x 420 pix.
= 394.8 Å		0.94 Å/pix.
x 420 pix.
= 394.8 Å

Surface

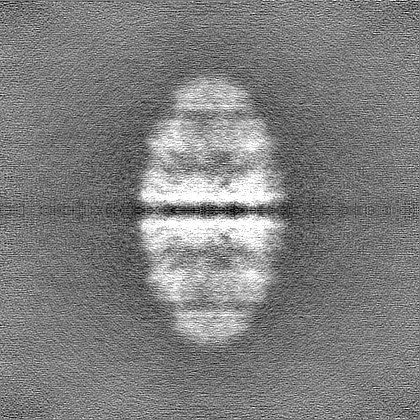

Projections

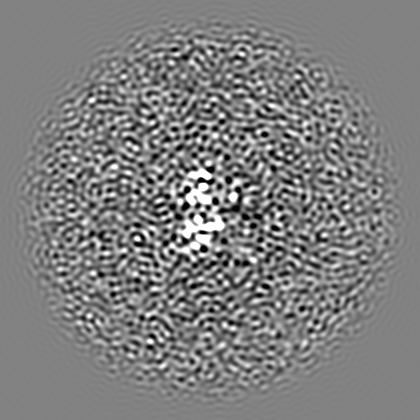

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.94 Å
Density

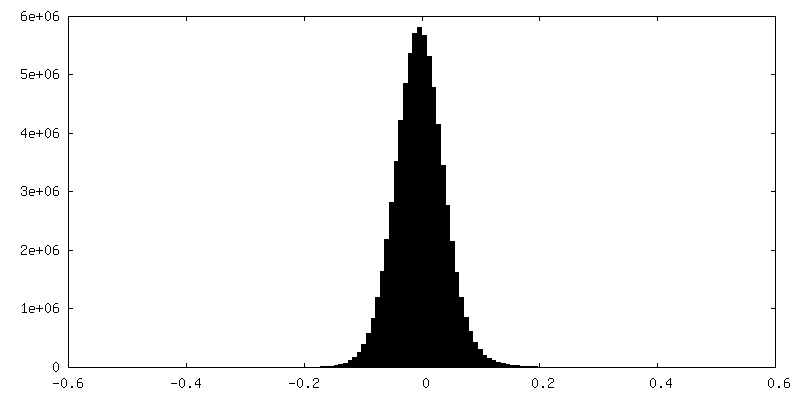

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.107
Minimum - Maximum-0.4708659 - 0.6360715
Average (Standard dev.)0.00018848057 (±0.02550697)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions420420420
Spacing420420420
CellA=B=C: 394.8 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_70758_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Unsharpeneed

Fileemd_70758_additional_1.map
AnnotationUnsharpeneed
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_70758_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_70758_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : GroEL/ES2

EntireName: GroEL/ES2
Components
  • Complex: GroEL/ES2
    • Complex: GroEL
      • Protein or peptide: GroEL
    • Complex: GroES
      • Protein or peptide: GroES

-
Supramolecule #1: GroEL/ES2

SupramoleculeName: GroEL/ES2 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 10.39 KDa

-
Supramolecule #2: GroEL

SupramoleculeName: GroEL / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1
Source (natural)Organism: Escherichia coli (E. coli)

-
Supramolecule #3: GroES

SupramoleculeName: GroES / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #2
Source (natural)Organism: Escherichia coli (E. coli)

-
Macromolecule #1: GroEL

MacromoleculeName: GroEL / type: protein_or_peptide / ID: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MAAKDVKFGN DARVKMLRGV NVLADAVKVT LGPKGRNVVL DKSFGAPTIT KDGVSVAREI ELEDKFENMG AQMVKEVASK ANDAAGDGTT TATVLAQAII TEGLKAVAAG MNPMDLKRGI DKAVTAAVEE LKALSVPCSD SKAIAQVGTI SANSDETVGK LIAEAMDKVG ...String:
MAAKDVKFGN DARVKMLRGV NVLADAVKVT LGPKGRNVVL DKSFGAPTIT KDGVSVAREI ELEDKFENMG AQMVKEVASK ANDAAGDGTT TATVLAQAII TEGLKAVAAG MNPMDLKRGI DKAVTAAVEE LKALSVPCSD SKAIAQVGTI SANSDETVGK LIAEAMDKVG KEGVITVEDG TGLQDELDVV EGMQFDRGYL SPYFINKPET GAVELESPFI LLADKKISNI REMLPVLEAV AKAGKPLLII AEDVEGEALA TLVVNTMRGI VKVAAVKAPG FGDRRKAMLQ DIATLTGGTV ISEEIGMELE KATLEDLGQA KRVVINKDTT TIIDGVGEEA AIQGRVAQIR QQIEEATSDY DREKLQERVA KLAGGVAVIK VGAATEVEMK EKKARVEDAL HATRAAVEEG VVAGGGVALI RVASKLADLR GQNEDQNVGI KVALRAMEAP LRQIVLNCGE EPSVVANTVK GGDGNYGYNA ATEEYGNMID MGILDPTKVT RSALQYAASV AGLMITTECM VTDLPKNDAA DLGAAGGMGG MGGMGGMM

-
Macromolecule #2: GroES

MacromoleculeName: GroES / type: protein_or_peptide / ID: 2 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MNIRPLHDRV IVKRKEVETK SAGGIVLTGS AAAKSTRGEV LAVGNGRILE NGEVKPLDVK VGDIVIFNDG YGVKSEKIDN EEVLIMSESD ILAIVEA

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation #1

Preparation ID1
Concentration7.22 mg/mL
BufferpH: 7.4
Component:
ConcentrationFormulaName
50.0 mMC4H11NO3Tris
50.0 mMKClPotassium chloride
1.0 mMMgCl2Magnesium chloride
GridModel: UltrAuFoil R2/2 / Material: GOLD / Mesh: 200 / Support film - Film type ID: 1 / Support film - Material: GOLD / Support film - topology: HOLEY / Support film - Film thickness: 50 / Pretreatment - Type: PLASMA CLEANING / Pretreatment - Time: 14 sec. / Pretreatment - Atmosphere: OTHER / Pretreatment - Pressure: 23.998 kPa
VitrificationCryogen name: ETHANE / Chamber humidity: 68 % / Chamber temperature: 296 K
Details: Vitrified at ambient humidity and room temperature using specialized electrospray device, "Mix-it-Up".

-
Sample preparation #2

Preparation ID2
Concentration1.2 mg/mL
BufferpH: 7.4
Component:
ConcentrationFormulaName
50.0 mMC4H11NO3Tris
50.0 mMKClPotassium chloride
1.0 mMMgCl2Magnesium chloride
GridModel: UltrAuFoil R2/2 / Material: GOLD / Mesh: 200 / Support film - Film type ID: 1 / Support film - Material: GOLD / Support film - topology: HOLEY / Support film - Film thickness: 50 / Pretreatment - Type: PLASMA CLEANING / Pretreatment - Time: 14 sec. / Pretreatment - Atmosphere: OTHER / Pretreatment - Pressure: 23.998 kPa
VitrificationCryogen name: ETHANE / Chamber humidity: 68 % / Chamber temperature: 296 K
Details: Vitrified at ambient humidity and room temperature using specialized electrospray device, "Mix-it-Up".

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
TemperatureMin: 70.0 K / Max: 77.0 K
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Digitization - Dimensions - Width: 4096 pixel / Digitization - Dimensions - Height: 4096 pixel / Number grids imaged: 1 / Number real images: 2535 / Average exposure time: 4.08 sec. / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 30.0 µm / Calibrated defocus max: 3.998 µm / Calibrated defocus min: 0.1 µm / Calibrated magnification: 148936 / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.4000000000000001 µm / Nominal defocus min: 1.0 µm / Nominal magnification: 150000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 372251
CTF correctionSoftware - Name: cryoSPARC (ver. v4.6.2) / Type: PHASE FLIPPING ONLY
Startup modelType of model: NONE
Final reconstructionNumber classes used: 1 / Applied symmetry - Point group: D7 (2x7 fold dihedral) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 7.1 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. v4.6.2) / Number images used: 2111
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. v4.6.2)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. v4.6.2)
Final 3D classificationNumber classes: 50 / Avg.num./class: 24 / Software - Name: cryoSPARC (ver. v4.6.2)
FSC plot (resolution estimation)

+
