Entry
Database: EMDB / ID: EMD-65085
Titlecryo-EM structure of alligator haemoglobin in the T-like conformation
Map data
Sample
  • Complex: alligator haemoglobin in carboxy form
    • Protein or peptide: Hemoglobin subunit alpha
    • Protein or peptide: Hemoglobin subunit beta
  • Ligand: PROTOPORPHYRIN IX CONTAINING FE
  • Ligand: CARBON MONOXIDE
Keywordshaemoglobin / OXYGEN BINDING
Function / homology
Function and homology information


haptoglobin binding / organic acid binding / haptoglobin-hemoglobin complex / hemoglobin complex / hydrogen peroxide catabolic process / oxygen carrier activity / peroxidase activity / oxygen binding / blood microparticle / iron ion binding ...haptoglobin binding / organic acid binding / haptoglobin-hemoglobin complex / hemoglobin complex / hydrogen peroxide catabolic process / oxygen carrier activity / peroxidase activity / oxygen binding / blood microparticle / iron ion binding / heme binding / metal ion binding
Similarity search - Function
Hemoglobin, pi / Hemoglobin, alpha-type / Hemoglobin, beta-type / : / Globin/Protoglobin / Globin / Globin / Globin domain profile. / Globin-like superfamily
Similarity search - Domain/homology
Hemoglobin subunit alpha / Hemoglobin subunit beta
Similarity search - Component
Biological speciesAlligator mississippiensis (American alligator)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.38 Å
AuthorsTakahashi K / Lee Y / Nishizawa T / Tame JRH
Funding support Japan, 1 items
OrganizationGrant numberCountry
Japan Society for the Promotion of Science (JSPS) Japan
CitationJournal: Biorxiv / Year: 2025
Title: Conformational analysis of liganded human hemoglobin by cryo electron microscopy
Authors: Takahashi K / Lee Y / Nishizawa T / Tame JRH
History
DepositionJun 18, 2025-
Header (metadata) releaseJul 23, 2025-
Map releaseJul 23, 2025-
UpdateJul 23, 2025-
Current statusJul 23, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_65085.map.gz / Format: CCP4 / Size: 64 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.02 Å/pix.
x 256 pix.
= 261.12 Å		1.02 Å/pix.
x 256 pix.
= 261.12 Å		1.02 Å/pix.
x 256 pix.
= 261.12 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.02 Å
Density

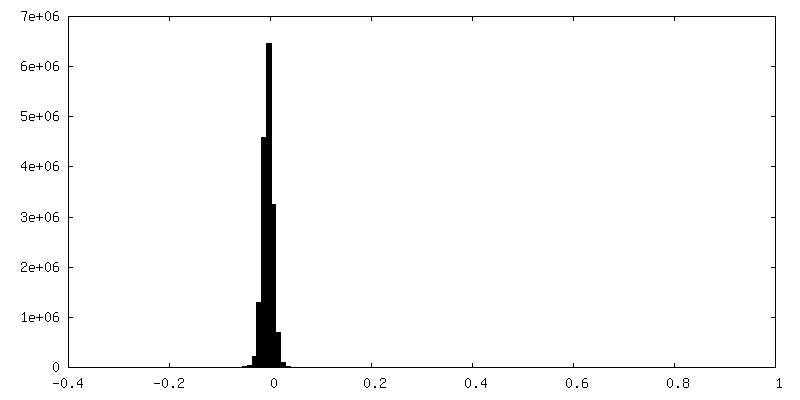

Histogram

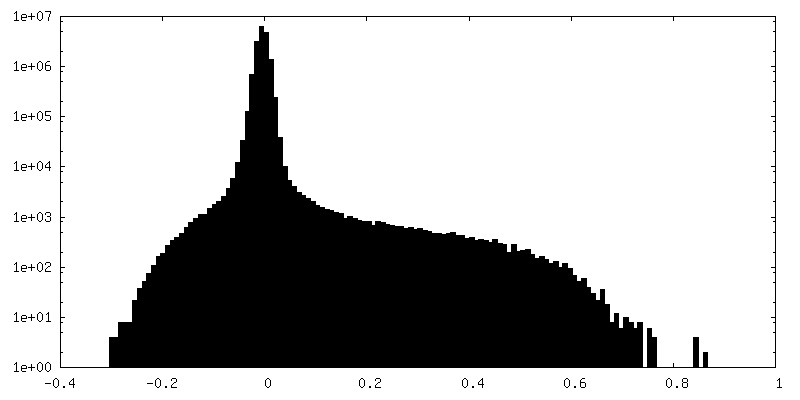

Histogram (log scale)
Contour LevelBy AUTHOR: 0.5
Minimum - Maximum-2.1414192 - 3.3190079
Average (Standard dev.)-0.000005115495 (±0.056780048)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions256256256
Spacing256256256
CellA=B=C: 261.12 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_65085_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

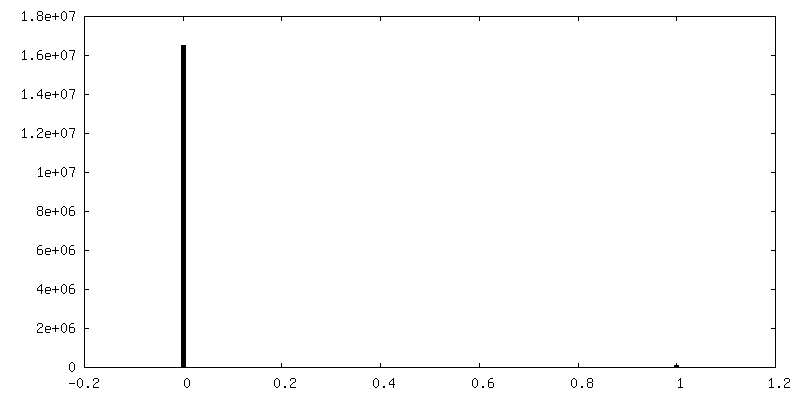

Histogram

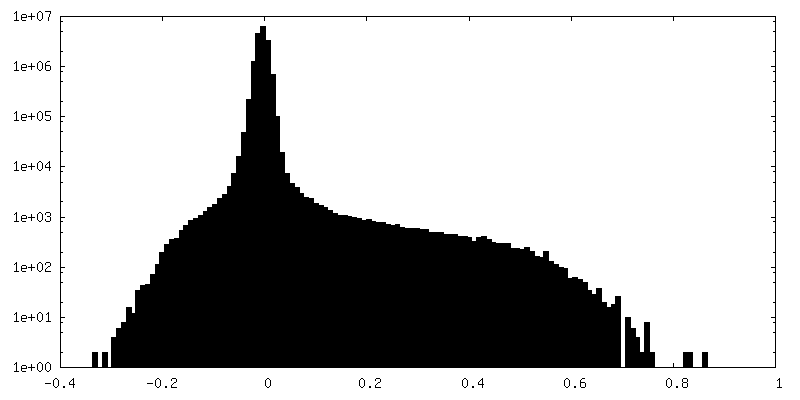

Histogram (log scale)

-
Half map: #2

Fileemd_65085_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_65085_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : alligator haemoglobin in carboxy form

EntireName: alligator haemoglobin in carboxy form
Components
  • Complex: alligator haemoglobin in carboxy form
    • Protein or peptide: Hemoglobin subunit alpha
    • Protein or peptide: Hemoglobin subunit beta
  • Ligand: PROTOPORPHYRIN IX CONTAINING FE
  • Ligand: CARBON MONOXIDE

-
Supramolecule #1: alligator haemoglobin in carboxy form

SupramoleculeName: alligator haemoglobin in carboxy form / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#2
Source (natural)Organism: Alligator mississippiensis (American alligator)
Molecular weightTheoretical: 100 KDa

-
Macromolecule #1: Hemoglobin subunit alpha

MacromoleculeName: Hemoglobin subunit alpha / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Alligator mississippiensis (American alligator)
Molecular weightTheoretical: 15.891368 KDa
SequenceString:
MVLSMEDKSN VKAIWGKASG HLEEYGAEAL ERMFCAYPQT KIYFPHFDMS HNSAQIRAHG KKVFSALHEA VNHIDDLPGA LCRLSELHA HSLRVDPVNF KFLAHCVLVV FAIHHPSALS PEIHASLDKF LCAVSAVLTS KYR

UniProtKB: Hemoglobin subunit alpha

-
Macromolecule #2: Hemoglobin subunit beta

MacromoleculeName: Hemoglobin subunit beta / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Alligator mississippiensis (American alligator)
Molecular weightTheoretical: 16.641213 KDa
SequenceString:
ASFDAHERKF IVDLWAKVDV AQCGADALSR MLIVYPWKRR YFEHFGKMCN AHDILHNSKV QEHGKKVLAS FGEAVKHLDN IKGHFANLS KLHCEKFHVD PENFKLLGDI IIIVLAAHHP EDFSVECHAA FQKLVRQVAA ALAAEYH

UniProtKB: Hemoglobin subunit beta

-
Macromolecule #3: PROTOPORPHYRIN IX CONTAINING FE

MacromoleculeName: PROTOPORPHYRIN IX CONTAINING FE / type: ligand / ID: 3 / Number of copies: 2 / Formula: HEM
Molecular weightTheoretical: 616.487 Da
Chemical component information

ChemComp-HEM:
PROTOPORPHYRIN IX CONTAINING FE

-
Macromolecule #4: CARBON MONOXIDE

MacromoleculeName: CARBON MONOXIDE / type: ligand / ID: 4 / Number of copies: 2 / Formula: CMO
Molecular weightTheoretical: 28.01 Da
Chemical component information

ChemComp-CMO:
CARBON MONOXIDE

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
GridModel: Quantifoil / Support film - Material: CARBON / Support film - topology: HOLEY
VitrificationCryogen name: ETHANE / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 15 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.2 µm / Nominal defocus min: 0.4 µm / Nominal magnification: 165000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionSoftware - Name: cryoSPARC (ver. 4.6.2) / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

8wix

Final reconstructionApplied symmetry - Point group: C2 (2 fold cyclic) / Resolution.type: BY AUTHOR / Resolution: 2.38 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 4.6.2) / Number images used: 238763
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.6.2)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.6.2)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelPDB ID:

8wix


Chain - Source name: PDB / Chain - Initial model type: experimental model
Output model

PDB-9vie:
cryo-EM structure of alligator haemoglobin in the T-like conformation

+
