Basic information

Entry
Database: EMDB / ID: EMD-62009
TitleThe cryo-EM density map of S102 and SARS-CoV-2 Spike (6P) complex protein
Map data
Sample
  • Complex: S102 and SARS-CoV-2 Spike
KeywordsNanobody / Spike / S2 subunit / complex / ANTIVIRAL PROTEIN
Biological speciesSevere acute respiratory syndrome coronavirus 2
Methodsingle particle reconstruction / cryo EM / Resolution: 2.97 Å
AuthorsWang X / Xie Y
Funding support China, 5 items
OrganizationGrant numberCountry
Ministry of Science and Technology (MoST, China)2022YFC2303403, 2021YFA1301404 China
Chinese Academy of SciencesYSBR-010 China
National Natural Science Foundation of China (NSFC)82225021, 81830050 China
Chinese Academy of SciencesXDB29040203 China
Chinese Academy of SciencesY2022037 China
CitationJournal: Sci Bull (Beijing) / Year: 2023
Title: A broadly neutralizing nanobody targeting the highly conserved S2 subunit of sarbecoviruses.
Authors: Xiaoyun Wang / Yufeng Xie / Honghui Liu / Wenwen Lei / Ke Xu / Lili Wu / Ruiwen Fan / Guizhen Wu / George Fu Gao / Qihui Wang /
History
DepositionOct 18, 2024-
Header (metadata) releaseJun 25, 2025-
Map releaseJun 25, 2025-
UpdateJun 25, 2025-
Current statusJun 25, 2025Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_62009.map.gz / Format: CCP4 / Size: 421.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.88 Å/pix.
x 480 pix.
= 422.4 Å		0.88 Å/pix.
x 480 pix.
= 422.4 Å		0.88 Å/pix.
x 480 pix.
= 422.4 Å

Surface

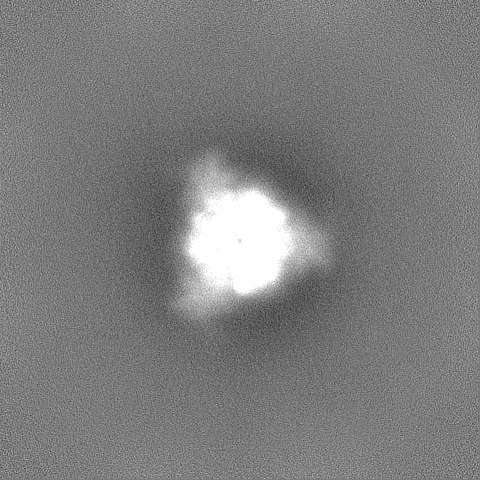

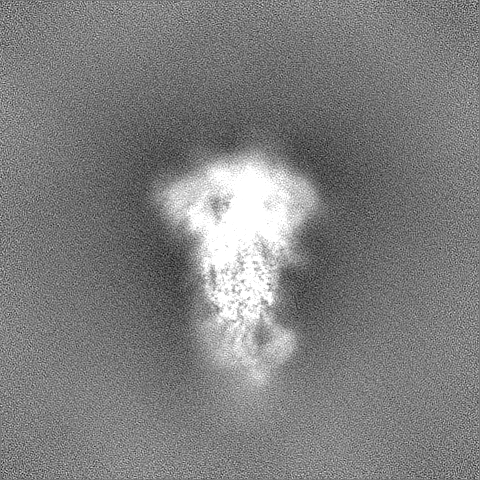

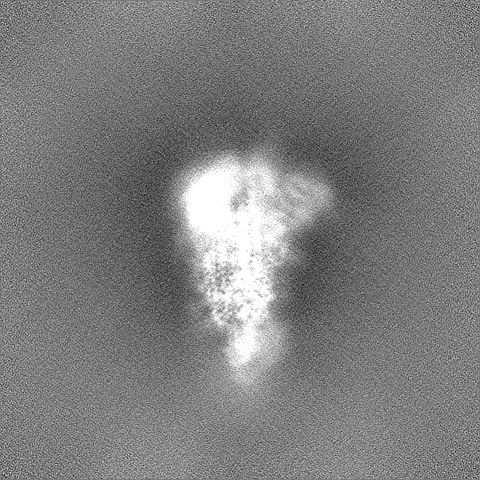

Projections

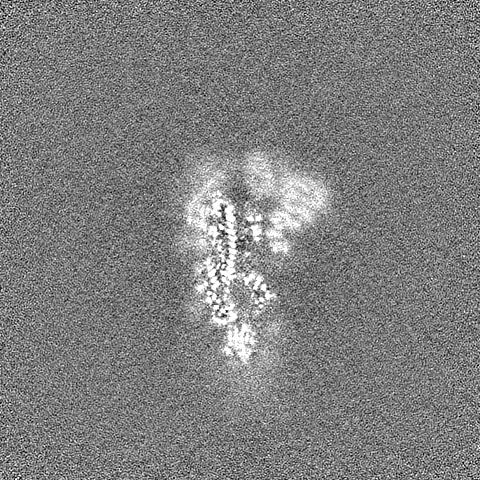

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.88 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.095
Minimum - Maximum-0.0017258385 - 1.7648723
Average (Standard dev.)0.00057212677 (±0.015997034)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions480480480
Spacing480480480
CellA=B=C: 422.4 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_62009_half_map_1.map
Projections & Slices
AxesZYX

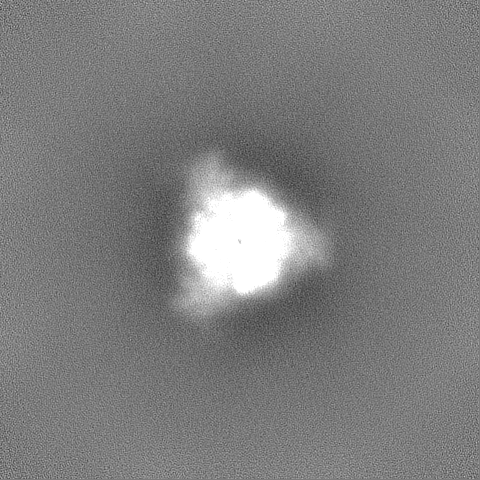

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_62009_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : S102 and SARS-CoV-2 Spike

EntireName: S102 and SARS-CoV-2 Spike
Components
  • Complex: S102 and SARS-CoV-2 Spike

-
Supramolecule #1: S102 and SARS-CoV-2 Spike

SupramoleculeName: S102 and SARS-CoV-2 Spike / type: complex / ID: 1 / Parent: 0
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation state3D array

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.97 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 183386
Initial angle assignmentType: OTHER
Details: Ab initio models were generated from 837,454 Topaz-picked particles using cryoSPARC.
Final angle assignmentType: OTHER

+
