Basic information

Entry
Database: EMDB / ID: EMD-60937
TitleStructure of Adenovirus serotype 3 mature hexon
Map data
Sample
  • Complex: Complex of Adenovirus serotype3 hexon trimer
    • Protein or peptide: Hexon protein
Keywordsmajor capsid protein / VIRAL PROTEIN
Function / homology
Function and homology information


T=25 icosahedral viral capsid / microtubule-dependent intracellular transport of viral material towards nucleus / host cell / symbiont entry into host cell / host cell nucleus / structural molecule activity
Similarity search - Function
Adenovirus Pll, hexon, subdomain 3 / Adenovirus hexon protein / Adenovirus Pll, hexon, N-terminal / Adenovirus Pll, hexon, C-terminal / Adenovirus Pll, hexon, subdomain 2 / Hexon, adenovirus major coat protein, N-terminal domain / Hexon, adenovirus major coat protein, C-terminal domain / Group II dsDNA virus coat/capsid protein
Similarity search - Domain/homology
Biological speciesHuman adenovirus B3
Methodsingle particle reconstruction / Resolution: 3.24 Å
AuthorsLiu Q / Li H / Xiang Y
Funding support China, 1 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC) China
CitationJournal: Nat Commun / Year: 2025
Title: Molecular mechanisms of the viral encoded chaperone 100K in capsid folding and assembly of adenovirus.
Authors: Haining Li / Luyuan Shao / Zhe Liu / Qi Liu / Ye Xiang /
Abstract: Adenovirus is an icosahedral, non-enveloped DNA virus that infects humans and other animals. The capsid of adenovirus is mainly assembled by the major capsid protein hexon. Folding and assembly of ...Adenovirus is an icosahedral, non-enveloped DNA virus that infects humans and other animals. The capsid of adenovirus is mainly assembled by the major capsid protein hexon. Folding and assembly of hexon require the viral encoded chaperone 100K, of which the detailed structure and chaperoning mechanism remain unknown. Here, we report the cryoEM structure of 100K in complex with a pre-mature hexon trimer. The structure shows that 100K dimers bind to the bottom double jelly-roll domains of the pre-mature hexon, mainly through a hook-like domain and a loop extruded from the dimerization domain. Additionally, a groove formed at the dimerization interface of 100K accommodates the N-terminal fragment 49-53 of an adjacent hexon protomer. Mutagenesis studies indicate that the interactions at the jelly-roll domain and the N-terminus of hexon are all essential for the proper folding and assembly of hexon. 100K binds and stabilizes the partially folded hexon, preventing premature aggregation of hexon, promoting the folding of the hexon top insertion loops, and facilitating hexon trimerization.
History
DepositionJul 24, 2024-
Header (metadata) releaseMay 14, 2025-
Map releaseMay 14, 2025-
UpdateMay 14, 2025-
Current statusMay 14, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_60937.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.25 Å/pix.
x 320 pix.
= 400. Å		1.25 Å/pix.
x 320 pix.
= 400. Å		1.25 Å/pix.
x 320 pix.
= 400. Å

Surface

Projections

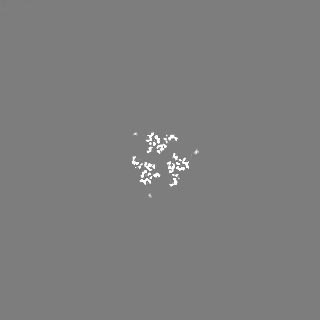

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.25 Å
Density

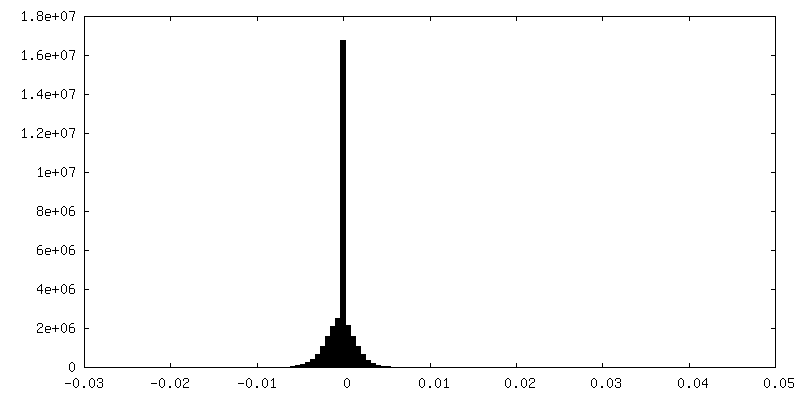

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.022
Minimum - Maximum-0.0017799655 - 2.1129355
Average (Standard dev.)0.00086565735 (±0.02272489)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions320320320
Spacing320320320
CellA=B=C: 400.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_60937_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_60937_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Complex of Adenovirus serotype3 hexon trimer

EntireName: Complex of Adenovirus serotype3 hexon trimer
Components
  • Complex: Complex of Adenovirus serotype3 hexon trimer
    • Protein or peptide: Hexon protein

-
Supramolecule #1: Complex of Adenovirus serotype3 hexon trimer

SupramoleculeName: Complex of Adenovirus serotype3 hexon trimer / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Human adenovirus B3

-
Macromolecule #1: Hexon protein

MacromoleculeName: Hexon protein / type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Human adenovirus B3
Molecular weightTheoretical: 110.205797 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MDYKDHDGDY KDHDIDYKDD DDKLEVLFQG PGSMATPSMM PQWAYMHIAG QDASEYLSPG LVQFARATDT YFSMGNKFRN PTVAPTHDV TTDRSQRLML RFVPVDREDN TYSYKVRYTL AVGDNRVLDM ASTFFDIRGV LDRGPSFKPY SGTAYNSLAP K GAPNTSQW ...String:
MDYKDHDGDY KDHDIDYKDD DDKLEVLFQG PGSMATPSMM PQWAYMHIAG QDASEYLSPG LVQFARATDT YFSMGNKFRN PTVAPTHDV TTDRSQRLML RFVPVDREDN TYSYKVRYTL AVGDNRVLDM ASTFFDIRGV LDRGPSFKPY SGTAYNSLAP K GAPNTSQW IVTTNGDNAV TTTTNTFGIA SMKGDNITKE GLQIGKDITT TEGEEKPIYA DKTYQPEPQV GEESWTDTDG TN EKFGGRA LKPATNMKPC YGSFARPTNI KGGQAKNRKV KPTTEGGVET EEPDIDMEFF DGRDAVAGAL APEIVLYTEN VNL ETPDSH VVYKPETSNN SHANLGQQAM PNRPNYIGFR DNFVGLMYYN STGNMGVLAG QASQLNAVVD LQDRNTELSY QLLL DSLGD RTRYFSMWNQ AVDSYDPDVR IIENHGIEDE LPNYCFPLNG IGPGHTYQGI KVKTDDTNGW EKDANVAPAN EITIG NNLA MEINIQANLW RSFLYSNVAL YLPDVYKYTP PNITLPTNTN TYEYMNGRVV SPSLVDSYIN IGARWSLDPM DNVNPF NHH RNAGLRYRSM LLGNGRYVPF HIQVPQKFFA VKNLLLLPGS YTYEWNFRKD VNMVLQSSLG NDLRTDGATI SFTSINL YA TFFPMAHNTA STLEAMLRND TNDQSFNDYL SAANMLYPIP ANATNIPISI PSRNWAAFRG WSFTRLKTKE TPSLGSGF D PYFVYSGSIP YLDGTFYLNH TFKKVSIMFD SSVSWPGNDR LLSPNEFEIK RTVDGEGYNV AQCNMTKDWF LVQMLANYN IGYQGFYIPE GYKDRMYSFF RNFQPMSRQV VDEVNYTDYK AVTLPYQHNN SGFVGYLAPT MRQGEPYPAN YPYPLIGTTA VKSVTQKKF LCDRTMWRIP FSSNFMSMGA LTDLGQNMLY ANSAHALDMT FEVDPMDEPT LLYLLFEVFD VVRVHQPHRG V IEAVYLRT PFSAGNATT

UniProtKB: Hexon protein

-
Experimental details

-
Structure determination

Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.5 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.24 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 510414
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
