Entry
Database: EMDB / ID: EMD-54577
TitleMutlbody refinement cryo-EM density map of the base of the Saccharomyces cerevisiae KMN junction complex
Map dataRaw map output by Refine3D. Note not resampled to consensus to preserve higher resolution information.
Sample
  • Complex: Saccharomyces cerevisiae outer kinetochore KMN junction complex
    • Complex: Saccharomyces cerevisiae outer kinetochore Mis12c(Mtw1c) subcomplex
KeywordsKinetochore / chromosome segregation / mitosis / cell cycle
Biological speciesSaccharomyces cerevisiae (brewer's yeast)
Methodsingle particle reconstruction / cryo EM / Resolution: 4.9 Å
AuthorsTurner NN / Barford DB
Funding support United Kingdom, 3 items
OrganizationGrant numberCountry
Cancer Research UKC576/A25675 United Kingdom
Cancer Research UKC576/A14109 United Kingdom
UK Research and Innovation (UKRI)MC_UP_1201/6 United Kingdom
CitationJournal: To Be Published
Title: Assembly and phospho-regulatory mechanisms of the budding yeast outer kinetochore KMN complex
Authors: Turner NN / Zhang Z / Yang J / Muir KW / McLaughlin SH / Morgan T / Barford D
History
DepositionJul 28, 2025-
Header (metadata) releaseApr 8, 2026-
Map releaseApr 8, 2026-
UpdateApr 8, 2026-
Current statusApr 8, 2026Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_54577.map.gz / Format: CCP4 / Size: 27 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationRaw map output by Refine3D. Note not resampled to consensus to preserve higher resolution information.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.65 Å/pix.
x 192 pix.
= 316.8 Å		1.65 Å/pix.
x 192 pix.
= 316.8 Å		1.65 Å/pix.
x 192 pix.
= 316.8 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.65 Å
Density

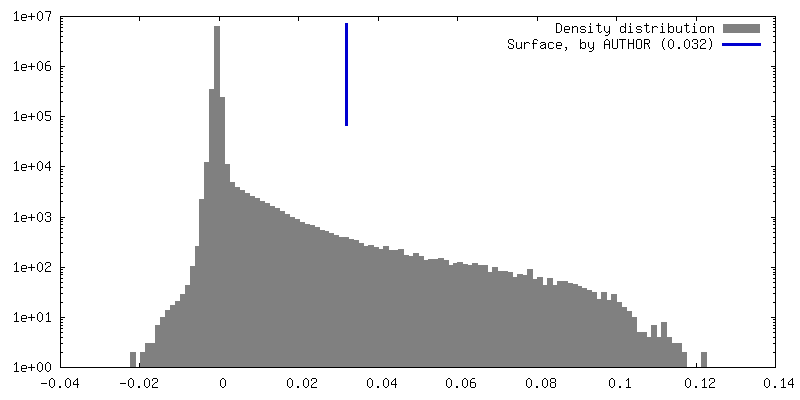

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.032
Minimum - Maximum-0.022992546 - 0.13562104
Average (Standard dev.)0.00014273528 (±0.002092193)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions192192192
Spacing192192192
CellA=B=C: 316.8 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Local resolution file for the resampled map

Fileemd_54577_additional_1.map
AnnotationLocal resolution file for the resampled map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Note not resampled to consensus to preserve higher...

Fileemd_54577_half_map_1.map
AnnotationNote not resampled to consensus to preserve higher resolution information
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Note not resampled to consensus to preserve higher...

Fileemd_54577_half_map_2.map
AnnotationNote not resampled to consensus to preserve higher resolution information
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Saccharomyces cerevisiae outer kinetochore KMN junction complex

EntireName: Saccharomyces cerevisiae outer kinetochore KMN junction complex
Components
  • Complex: Saccharomyces cerevisiae outer kinetochore KMN junction complex
    • Complex: Saccharomyces cerevisiae outer kinetochore Mis12c(Mtw1c) subcomplex

-
Supramolecule #1: Saccharomyces cerevisiae outer kinetochore KMN junction complex

SupramoleculeName: Saccharomyces cerevisiae outer kinetochore KMN junction complex
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Details: Imaged sample also contained Saccharomyces cerevisiae kinetochore protein NDC80 (UniProtKB accession P40460), and Saccharomyces cerevisiae kinetochore protein NUF2 (UniProtKB accession ...Details: Imaged sample also contained Saccharomyces cerevisiae kinetochore protein NDC80 (UniProtKB accession P40460), and Saccharomyces cerevisiae kinetochore protein NUF2 (UniProtKB accession P33895) with a C-terminal HRV-3C protease cleavage site and twin-strep-tag II affinity tag.
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast) / Strain: 288c
Molecular weightTheoretical: 438.876 KDa

-
Supramolecule #2: Saccharomyces cerevisiae outer kinetochore Mis12c(Mtw1c) subcomplex

SupramoleculeName: Saccharomyces cerevisiae outer kinetochore Mis12c(Mtw1c) subcomplex
type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#2, #5, #8 / Details: Complex of Mtw1, Dsn1, Nsl1, Nnf1
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast) / Strain: 288c / Location in cell: Nucleus

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration1 mg/mL
BufferpH: 7.5
Component:
ConcentrationNameFormula
20.0 mMHEPES
150.0 mMSodium chlorideNaCl
1.0 mMTCEP

Details: As indicated above
GridModel: UltrAuFoil R1.2/1.3 / Material: GOLD / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Time: 60 sec.
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK III
DetailsSample was monodisperse

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number grids imaged: 1 / Number real images: 26390 / Average exposure time: 1.75 sec. / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.0 µm / Nominal defocus min: 1.4000000000000001 µm / Nominal magnification: 105000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 2592458
Details: Selected using Topaz particle picker trained on manually picked micrographs
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionNumber classes used: 1 / Algorithm: BACK PROJECTION / Resolution.type: BY AUTHOR / Resolution: 4.9 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: RELION (ver. 5) / Number images used: 113688
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
Final 3D classificationNumber classes: 4 / Avg.num./class: 28422
Details: Focussed classification using Blush regularization.
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChain

9731

chain_id: Mt, residue_range: 1-131, source_name: AlphaFold, initial_model_type: in silico model

7149

chain_id: Nn, residue_range: 1-138, source_name: AlphaFold, initial_model_type: in silico model

2143

chain_id: Ns, residue_range: 97-142, source_name: AlphaFold, initial_model_type: in silico model

0568

chain_id: Ds, residue_range: 431-482, source_name: AlphaFold, initial_model_type: in silico model
DetailsFlexible fitting using Isolde, real-space refinement using Phenix
RefinementSpace: REAL / Protocol: FLEXIBLE FIT

+
