- EMDB-54548: Outer genome layer of Chaetoceros lorenzianus DNA virus (ClorDNAV... -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-54548
TitleOuter genome layer of Chaetoceros lorenzianus DNA virus (ClorDNAV), a CRESS-DNA bacilladnavirus
Map data
Sample
  • Virus: Chaetoceros lorenzianus DNA virus
KeywordsCRESS-DNA virus / Cressdnaviricota / Bacilladnaviridae / ClorDNAV / spooled genome / single-stranded DNA virus / structural virology / VIRUS
Biological speciesChaetoceros lorenzianus DNA virus
Methodsingle particle reconstruction / cryo EM / Resolution: 21.0 Å
AuthorsMunke A / Gebhard J
Funding support Sweden, 1 items
OrganizationGrant numberCountry
Carl Trygger Foundation23:2665 Sweden
CitationJournal: Virol J / Year: 2025
Title: Structural diversity and conservation among CRESS-DNA bacilladnaviruses revealed through cryo-EM and computational modelling.
Authors: L Johanna Gebhard / Yuji Tomaru / Kenta Okamoto / Anna Munke /
Abstract: Viruses that infect single-celled algae strongly regulate microalgae growth and community composition through cell lysis, enable nutrient recycling in marine ecosystems, and offer valuable insights ...Viruses that infect single-celled algae strongly regulate microalgae growth and community composition through cell lysis, enable nutrient recycling in marine ecosystems, and offer valuable insights into early stages of viral evolution. One major group, the Bacilladnaviridae family of single-stranded DNA viruses, infects diatoms in marine environments. Here, we present the capsid structure of Chaetoceros lorenzianus DNA virus (ClorDNAV, Protobacilladnavirus chaelor) determined at 2.2 Å resolution, thereby expanding the known structural diversity within the Cressdnaviricota phylum. The ClorDNAV capsid protein (CP) contains a conserved jelly-roll fold and a surface-exposed projection domain, with both N- and C-termini oriented toward the capsid interior. A low-resolution reconstruction of the genome revealed a spooled arrangement of the outer DNA layer, similar to that observed in Chaetoceros tenuissimus DNA virus type II (CtenDNAV-II). Structural comparison with CtenDNAV-II revealed five key CP differences: the absence of surface-exposed C-terminal tails in ClorDNAV, the presence of a helical domain, differences in the projection domain conformation, variation in the number of β-strands in the jelly-roll fold, and the lack of ion-attributed densities at subunit interfaces. Together with the genome reconstruction, these findings underscore the importance of experimentally determined structures for understanding viral architecture and evolution. To complement these results, we analyzed AlphaFold3-predicted CPs from all classified Bacilladnaviridae genera. These models confirmed the conservation of the jelly-roll fold across the family while revealing variability in the surface-exposed and terminal regions, likely reflecting host-specific adaptations and genome packaging strategies. Together, the experimental and predicted structures provide a comprehensive view of structural conservation and divergence in Bacilladnaviridae. Furthermore, the results provide additional structural evidence for the evolution of ssDNA Bacilladnaviridae from a noda-like ssRNA virus ancestor and suggest a shared genome organization resembling that of double-stranded viruses.
History
DepositionJul 24, 2025-
Header (metadata) releaseAug 13, 2025-
Map releaseAug 13, 2025-
UpdateDec 17, 2025-
Current statusDec 17, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_54548.map.gz / Format: CCP4 / Size: 1.1 GB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 672 pix.
= 554.4 Å		0.83 Å/pix.
x 672 pix.
= 554.4 Å		0.83 Å/pix.
x 672 pix.
= 554.4 Å

Surface

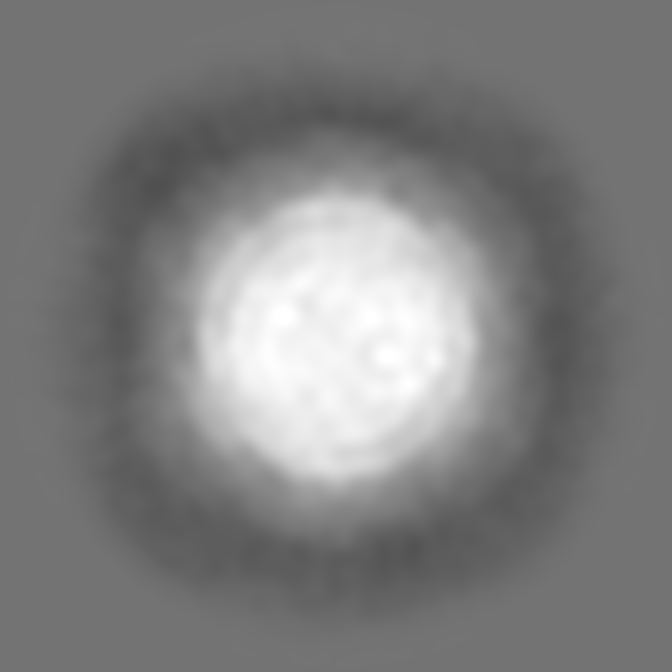

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.825 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.1
Minimum - Maximum-0.036357794 - 0.16034904
Average (Standard dev.)0.004089267 (±0.024137335)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions672672672
Spacing672672672
CellA=B=C: 554.39996 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_54548_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Mask #2

Fileemd_54548_msk_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Sharpened map

Fileemd_54548_additional_1.map
AnnotationSharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_54548_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_54548_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Chaetoceros lorenzianus DNA virus

EntireName: Chaetoceros lorenzianus DNA virus
Components
  • Virus: Chaetoceros lorenzianus DNA virus

-
Supramolecule #1: Chaetoceros lorenzianus DNA virus

SupramoleculeName: Chaetoceros lorenzianus DNA virus / type: virus / ID: 1 / Parent: 0 / Macromolecule list: #1 / NCBI-ID: 754441 / Sci species name: Chaetoceros lorenzianus DNA virus / Virus type: VIRION / Virus isolate: STRAIN / Virus enveloped: No / Virus empty: No
Host (natural)Organism: Chaetoceros lorenzianus (Diatom)
Virus shellShell ID: 1 / Diameter: 350.0 Å / T number (triangulation number): 3

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE / Chamber humidity: 95 % / Chamber temperature: 277 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Number real images: 9352 / Average exposure time: 2.4 sec. / Average electron dose: 45.156 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.2 µm / Nominal defocus min: 0.4 µm / Nominal magnification: 105000
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionSoftware - Name: cryoSPARC (ver. 4.5.3) / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL
Final reconstructionApplied symmetry - Point group: C1 (asymmetric) / Resolution.type: BY AUTHOR / Resolution: 21.0 Å / Resolution method: FSC 0.5 CUT-OFF / Software - Name: cryoSPARC (ver. 4.5.3) / Number images used: 3117
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.5.3)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.5.3)
Final 3D classificationSoftware - Name: cryoSPARC (ver. 4.5.3)
FSC plot (resolution estimation)

+
