Basic information

Entry
Database: EMDB / ID: EMD-53041
TitleStructure of EspB 14-mers determined by cryoEM prepared with foam film vitrification method
Map dataSharpened by Locspiral.
Sample
  • Complex: EspB from Mycobacterium tuberculosis
KeywordsEspB / 14-mers / cryoEM structure / PROTEIN TRANSPORT
Biological speciesMycobacterium tuberculosis H37Rv (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.34 Å
AuthorsZhang Y / Nandy B / Sader K / Russo CJ / Lowe J
Funding support United Kingdom, 1 items
OrganizationGrant numberCountry
Medical Research Council (MRC, United Kingdom)BSF2-08 United Kingdom
CitationJournal: Nat Commun / Year: 2025
Title: Foam film vitrification for cryo-EM.
Authors: Yue Zhang / Biplob Nandy / Kasim Sader / Christopher J Russo / Jan Löwe /
Abstract: Electron cryomicroscopy (cryo-EM) has revolutionised structural biology, enhancing applicability, size limits and speed. Despite these successes, cryo-EM sample preparation remains a major bottleneck ...Electron cryomicroscopy (cryo-EM) has revolutionised structural biology, enhancing applicability, size limits and speed. Despite these successes, cryo-EM sample preparation remains a major bottleneck for routinely achieving high-resolution structures through single particle analysis. Challenges such as inconsistent ice thicknesses, air-water interface interactions and preferred particle orientation persist. Here, we introduce a blot-free vitrification method that uses free-standing surfactant-stabilised foam films to address some of these issues. The method achieves uniform ice thicknesses, enables thickness control of the foam film prior to vitrification, and for some specimens enhances orientation distribution efficiency. Furthermore, it reduces particle adsorption to carbon foil on the specimen support. The method simplifies cryo-EM specimen preparation, offering improved control over ice thickness and particle orientation, to help streamline and accelerate structure determination.
History
DepositionMar 7, 2025-
Header (metadata) releaseJun 11, 2025-
Map releaseJun 11, 2025-
UpdateJul 16, 2025-
Current statusJul 16, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_53041.map.gz / Format: CCP4 / Size: 229.8 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationSharpened by Locspiral.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.96 Å/pix.
x 392 pix.
= 374.36 Å		0.96 Å/pix.
x 392 pix.
= 374.36 Å		0.96 Å/pix.
x 392 pix.
= 374.36 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.955 Å
Density

Histogram

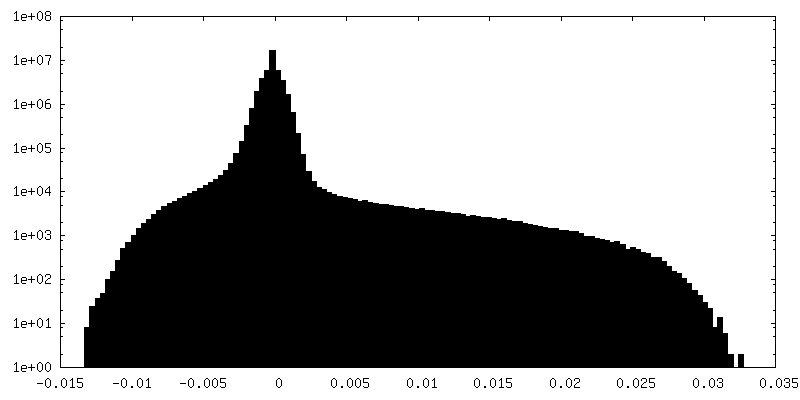

Histogram (log scale)
Contour LevelBy AUTHOR: 5.0
Minimum - Maximum0.0 - 24.474004999999998
Average (Standard dev.)0.2112729 (±0.72624797)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions392392392
Spacing392392392
CellA=B=C: 374.36 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_53041_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_53041_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_53041_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : EspB from Mycobacterium tuberculosis

EntireName: EspB from Mycobacterium tuberculosis
Components
  • Complex: EspB from Mycobacterium tuberculosis

-
Supramolecule #1: EspB from Mycobacterium tuberculosis

SupramoleculeName: EspB from Mycobacterium tuberculosis / type: complex / ID: 1 / Parent: 0
Source (natural)Organism: Mycobacterium tuberculosis H37Rv (bacteria)
Molecular weightTheoretical: 440 KDa

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration5 mg/mL
BufferpH: 8
GridModel: Quantifoil R1.2/1.3 / Material: COPPER / Mesh: 300 / Support film - Material: CARBON / Support film - topology: HOLEY
VitrificationCryogen name: ETHANE / Chamber humidity: 60 % / Chamber temperature: 18 K / Instrument: HOMEMADE PLUNGER
Details: The sample is prepared with the foam film vitrification method..

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Digitization - Dimensions - Width: 4096 pixel / Digitization - Dimensions - Height: 4096 pixel / Number grids imaged: 1 / Number real images: 3697 / Average exposure time: 4.61 sec. / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 100.0 µm / Calibrated defocus max: 2.4 µm / Calibrated defocus min: 0.6 µm / Calibrated magnification: 130000 / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.4 µm / Nominal defocus min: 0.6 µm / Nominal magnification: 130000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 1047418
CTF correctionSoftware - Name: RELION (ver. 5.0) / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionApplied symmetry - Point group: D7 (2x7 fold dihedral) / Resolution.type: BY AUTHOR / Resolution: 2.34 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 125960
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
