Basic information

Entry
Database: EMDB / ID: EMD-52130
TitleBAM-SurA complex in the swing-out state with BamC resolved
Map data
Sample
  • Complex: BAM-SurA insertase
    • Protein or peptide: Outer membrane protein assembly factor BamA
    • Protein or peptide: Outer membrane protein assembly factor BamB
    • Protein or peptide: Outer membrane protein assembly factor BamC
    • Protein or peptide: Outer membrane protein assembly factor BamD
    • Protein or peptide: Outer membrane protein assembly factor BamE
    • Protein or peptide: Chaperone SurA
Keywordsinsertase / outer membrane protein / chaperone / protein folding / protein complex / MEMBRANE PROTEIN
Function / homology
Function and homology information


: / maintenance of unfolded protein / Bam protein complex / Gram-negative-bacterium-type cell outer membrane assembly / protein insertion into membrane / : / peptide binding / peptidyl-prolyl cis-trans isomerase activity / RNA polymerase II CTD heptapeptide repeat P3 isomerase activity / RNA polymerase II CTD heptapeptide repeat P6 isomerase activity ...: / maintenance of unfolded protein / Bam protein complex / Gram-negative-bacterium-type cell outer membrane assembly / protein insertion into membrane / : / peptide binding / peptidyl-prolyl cis-trans isomerase activity / RNA polymerase II CTD heptapeptide repeat P3 isomerase activity / RNA polymerase II CTD heptapeptide repeat P6 isomerase activity / peptidylprolyl isomerase / cell outer membrane / unfolded protein binding / protein folding / outer membrane-bounded periplasmic space / protein-macromolecule adaptor activity / protein stabilization / cell adhesion / response to antibiotic / cell surface / identical protein binding / membrane
Similarity search - Function
Peptidyl-prolyl isomerase SurA / SurA N-terminal / SurA N-terminal domain / : / PPIC-type PPIASE domain / Trigger factor/SurA domain superfamily / Outer membrane protein assembly factor BamB / NlpB/DapX lipoprotein / Outer membrane protein assembly factor BamC / Outer membrane protein assembly factor BamC, C-terminal ...Peptidyl-prolyl isomerase SurA / SurA N-terminal / SurA N-terminal domain / : / PPIC-type PPIASE domain / Trigger factor/SurA domain superfamily / Outer membrane protein assembly factor BamB / NlpB/DapX lipoprotein / Outer membrane protein assembly factor BamC / Outer membrane protein assembly factor BamC, C-terminal / NlpB/DapX lipoprotein / Outer membrane protein assembly factor BamD / Outer membrane protein assembly factor BamE / Lipoprotein SmpA/OmlA / Outer membrane lipoprotein BamD-like / Outer membrane protein assembly factor BamE domain / Outer membrane lipoprotein / Peptidyl-prolyl cis-trans isomerase, PpiC-type, conserved site / PpiC-type peptidyl-prolyl cis-trans isomerase signature. / PPIC-type PPIASE domain / BamE-like / Outer membrane protein assembly factor BamA / PpiC-type peptidyl-prolyl cis-trans isomerase family profile. / Peptidyl-prolyl cis-trans isomerase, PpiC-type / Pyrrolo-quinoline quinone repeat / POTRA domain, BamA/TamA-like / Surface antigen variable number repeat / PQQ-like domain / Surface antigen D15-like / POTRA domain / POTRA domain profile. / Pyrrolo-quinoline quinone beta-propeller repeat / beta-propeller repeat / Bacterial surface antigen (D15) / Omp85 superfamily domain / Quinoprotein alcohol dehydrogenase-like superfamily / Peptidyl-prolyl cis-trans isomerase domain superfamily / Prokaryotic membrane lipoprotein lipid attachment site profile. / Tetratricopeptide-like helical domain superfamily / WD40/YVTN repeat-like-containing domain superfamily
Similarity search - Domain/homology
Outer membrane protein assembly factor BamC / Outer membrane protein assembly factor BamE / Outer membrane protein assembly factor BamA / Chaperone SurA / Outer membrane protein assembly factor BamD / Outer membrane protein assembly factor BamB
Similarity search - Component
Biological speciesEscherichia coli K-12 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.9 Å
AuthorsLehner PA / Jakob RP / Hiller S
Funding support Switzerland, 2 items
OrganizationGrant numberCountry
Swiss National Science Foundation207755 Switzerland
Swiss National Science Foundation180541 Switzerland
CitationJournal: Sci Adv / Year: 2025
Title: Architecture and conformational dynamics of the BAM-SurA holo insertase complex.
Authors: Philippe A Lehner / Morris Degen / Roman P Jakob / Seyed Majed Modaresi / Morgane Callon / Björn M Burmann / Timm Maier / Sebastian Hiller /
Abstract: The proper folding of outer membrane proteins in Gram-negative bacteria relies on their delivery to the β-barrel assembly machinery (BAM) complex. The mechanism by which survival protein A (SurA), ...The proper folding of outer membrane proteins in Gram-negative bacteria relies on their delivery to the β-barrel assembly machinery (BAM) complex. The mechanism by which survival protein A (SurA), the major periplasmic chaperone, facilitates this process is not well understood. We determine the structure of the holo insertase complex, where SurA binds BAM for substrate delivery. High-resolution cryo-electron microscopy structures of four different states and a three-dimensional variability analysis show that the holo insertase complex has a large motional spectrum. SurA bound to BAM can undergo a large swinging motion between two states. This motion is uncoupled from the conformational flexibility of the BamA barrel, which can open and close without affecting SurA binding. Notably, we observed conformational coupling of the SurA swing state and the carboxyl-terminal helix grip domain of BamC. Substrate delivery by SurA to BAM appears to follow a concerted motion that encodes a gated delivery pathway through the BAM accessory proteins to the membrane entry site.
History
DepositionNov 19, 2024-
Header (metadata) releaseApr 16, 2025-
Map releaseApr 16, 2025-
UpdateApr 16, 2025-
Current statusApr 16, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_52130.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.73 Å/pix.
x 384 pix.
= 280.32 Å		0.73 Å/pix.
x 384 pix.
= 280.32 Å		0.73 Å/pix.
x 384 pix.
= 280.32 Å

Surface

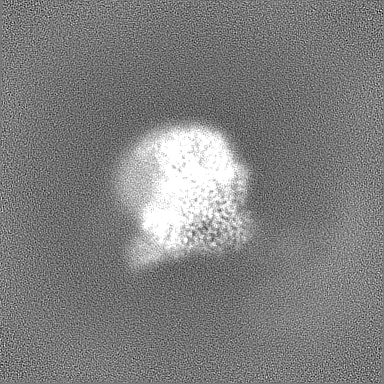

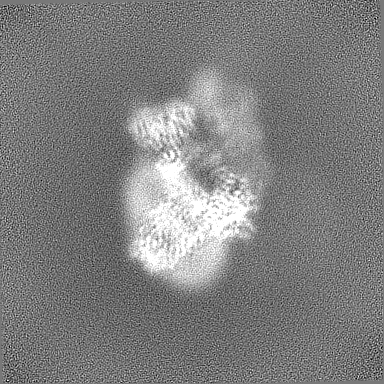

Projections

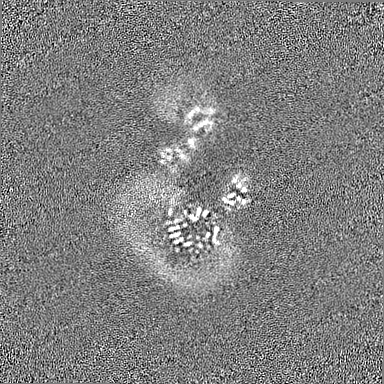

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.73 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.034
Minimum - Maximum-0.15998909 - 0.33872706
Average (Standard dev.)0.00068528194 (±0.008531786)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 280.32 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_52130_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_52130_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : BAM-SurA insertase

EntireName: BAM-SurA insertase
Components
  • Complex: BAM-SurA insertase
    • Protein or peptide: Outer membrane protein assembly factor BamA
    • Protein or peptide: Outer membrane protein assembly factor BamB
    • Protein or peptide: Outer membrane protein assembly factor BamC
    • Protein or peptide: Outer membrane protein assembly factor BamD
    • Protein or peptide: Outer membrane protein assembly factor BamE
    • Protein or peptide: Chaperone SurA

-
Supramolecule #1: BAM-SurA insertase

SupramoleculeName: BAM-SurA insertase / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Escherichia coli K-12 (bacteria)

-
Macromolecule #1: Outer membrane protein assembly factor BamA

MacromoleculeName: Outer membrane protein assembly factor BamA / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 88.514742 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: AEGFVVKDIH FEGLQRVAVG AALLSMPVRT GDTVNDEDIS NTIRALFATG NFEDVRVLRD GDTLLVQVKE RPTIASITFS GNKSVKDDM LKQNLEASGV RVGESLDRTT IADIEKGLED FYYSVGKYSA SVKAVVTPLP RNRVDLKLVF QEGVSAEIQQ I NIVGNHAF ...String:
AEGFVVKDIH FEGLQRVAVG AALLSMPVRT GDTVNDEDIS NTIRALFATG NFEDVRVLRD GDTLLVQVKE RPTIASITFS GNKSVKDDM LKQNLEASGV RVGESLDRTT IADIEKGLED FYYSVGKYSA SVKAVVTPLP RNRVDLKLVF QEGVSAEIQQ I NIVGNHAF TTDELISHFQ LRDEVPWWNV VGDRKYQKQK LAGDLETLRS YYLDRGYARF NIDSTQVSLT PDKKGIYVTV NI TEGDQYK LSGVEVSGNL AGHSAEIEQL TKIEPGELYN GTKVTKMEDD IKKLLGRYGY AYPRVQSMPE INDADKTVKL RVN VDAGNR FYVRKIRFEG NDTSKDAVLR REMRQMEGAW LGSDLVDQGK ERLNRLGFFE TVDTDTQRVP GSPDQVDVVY KVKE RNTGS FNFGIGYGTE SGVSFQAGVQ QDNWLGTGYA VGINGTKNDY QTYAELSVTN PYFTVDGVSL GGRLFYNDFQ ADDAD LSDY TNKSYGTDVT LGFPINEYNS LRAGLGYVHN SLSNMQPQVA MWRYLYSMGE HPSTSDQDNS FKTDDFTFNY GWTYNK LDR GYFPTDGSRV NLTGKVTIPG SDNEYYKVTL DTATYVPIDD DHKWVVLGRT RWGYGDGLGG KEMPFYENFY AGGSSTV RG FQSNTIGPKA VYFPHQASNY DPDYDYECAT QDGAKDLCKS DDAVGGNAMA VASLEFITPT PFISDKYANS VRTSFFWD M GTVWDTNWDS SQYSGYPDYS DPSNIRMSAG IALQWMSPLG PLVFSYAQPF KKYDGDKAEQ FQFNIGKTW

UniProtKB: Outer membrane protein assembly factor BamA

-
Macromolecule #2: Outer membrane protein assembly factor BamB

MacromoleculeName: Outer membrane protein assembly factor BamB / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 40.924516 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: CSLFNSEEDV VKMSPLPTVE NQFTPTTAWS TSVGSGIGNF YSNLHPALAD NVVYAADRAG LVKALNADDG KEIWSVSLAE KDGWFSKEP ALLSGGVTVS GGHVYIGSEK AQVYALNTSD GTVAWQTKVA GEALSRPVVS DGLVLIHTSN GQLQALNEAD G AVKWTVNL ...String:
CSLFNSEEDV VKMSPLPTVE NQFTPTTAWS TSVGSGIGNF YSNLHPALAD NVVYAADRAG LVKALNADDG KEIWSVSLAE KDGWFSKEP ALLSGGVTVS GGHVYIGSEK AQVYALNTSD GTVAWQTKVA GEALSRPVVS DGLVLIHTSN GQLQALNEAD G AVKWTVNL DMPSLSLRGE SAPTTAFGAA VVGGDNGRVS AVLMEQGQMI WQQRISQATG STEIDRLSDV DTTPVVVNGV VF ALAYNGN LTALDLRSGQ IMWKRELGSV NDFIVDGNRI YLVDQNDRVM ALTIDGGVTL WTQSDLLHRL LTSPVLYNGN LVV GDSEGY LHWINVEDGR FVAQQKVDSS GFQTEPVAAD GKLLIQAKDG TVYSITRWSH PQFEK

UniProtKB: Outer membrane protein assembly factor BamB

-
Macromolecule #3: Outer membrane protein assembly factor BamC

MacromoleculeName: Outer membrane protein assembly factor BamC / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 34.40125 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: CSSDSRYKRQ VSGDEAYLEA APLAELHAPA GMILPVTSGD YAIPVTNGSG AVGKALDIRP PAQPLALVSG ARTQFTGDTA SLLVENGRG NTLWPQVVSV LQAKNYTITQ RDDAGQTLTT DWVQWNRLDE DEQYRGRYQI SVKPQGYQQA VTVKLLNLEQ A GKPVADAA ...String:
CSSDSRYKRQ VSGDEAYLEA APLAELHAPA GMILPVTSGD YAIPVTNGSG AVGKALDIRP PAQPLALVSG ARTQFTGDTA SLLVENGRG NTLWPQVVSV LQAKNYTITQ RDDAGQTLTT DWVQWNRLDE DEQYRGRYQI SVKPQGYQQA VTVKLLNLEQ A GKPVADAA SMQRYSTEMM NVISAGLDKS ATDAANAAQN RASTTMDVQS AADDTGLPML VVRGPFNVVW QRLPAALEKV GM KVTDSTR SQGNMAVTYK PLSDSDWQEL GASDPGLASG DYKLQVGDLD NRSSLQFIDP KGHTLTQSQN DALVAVFQAA FSK

UniProtKB: Outer membrane protein assembly factor BamC

-
Macromolecule #4: Outer membrane protein assembly factor BamD

MacromoleculeName: Outer membrane protein assembly factor BamD / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 25.816818 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: CSGSKEEVPD NPPNEIYATA QQKLQDGNWR QAITQLEALD NRYPFGPYSQ QVQLDLIYAY YKNADLPLAQ AAIDRFIRLN PTHPNIDYV MYMRGLTNMA LDDSALQGFF GVDRSDRDPQ HARAAFSDFS KLVRGYPNSQ YTTDATKRLV FLKDRLAKYE Y SVAEYYTE ...String:
CSGSKEEVPD NPPNEIYATA QQKLQDGNWR QAITQLEALD NRYPFGPYSQ QVQLDLIYAY YKNADLPLAQ AAIDRFIRLN PTHPNIDYV MYMRGLTNMA LDDSALQGFF GVDRSDRDPQ HARAAFSDFS KLVRGYPNSQ YTTDATKRLV FLKDRLAKYE Y SVAEYYTE RGAWVAVVNR VEGMLRDYPD TQATRDALPL MENAYRQMQM NAQAEKVAKI IAANSSNT

UniProtKB: Outer membrane protein assembly factor BamD

-
Macromolecule #5: Outer membrane protein assembly factor BamE

MacromoleculeName: Outer membrane protein assembly factor BamE / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 11.462772 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
CSTLERVVYR PDINQGNYLT ANDVSKIRVG MTQQQVAYAL GTPLMSDPFG TNTWFYVFRQ QPGHEGVTQQ TLTLTFNSSG VLTNIDNKP ALSGNKLHHH HHH

UniProtKB: Outer membrane protein assembly factor BamE

-
Macromolecule #6: Chaperone SurA

MacromoleculeName: Chaperone SurA / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO / EC number: peptidylprolyl isomerase
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 45.545398 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: GSHMAPQVVD KVAAVVNNGV VLESDVDGLM QSVKLNAAQA RQQLPDDATL RHQIMERLIM DQIILQMGQK MGVKISDEQL DQAIANIAK QNNMTLDQMR SRLAYDGLNY NTYRNQIRKE MIISEVRNNE VRRRITILPQ EVESLAQQVG NQNDASTELN L SHILIPLP ...String:
GSHMAPQVVD KVAAVVNNGV VLESDVDGLM QSVKLNAAQA RQQLPDDATL RHQIMERLIM DQIILQMGQK MGVKISDEQL DQAIANIAK QNNMTLDQMR SRLAYDGLNY NTYRNQIRKE MIISEVRNNE VRRRITILPQ EVESLAQQVG NQNDASTELN L SHILIPLP ENPTSDQVNE AESQARAIVD QARNGADFGK LAIAHSADQQ ALNGGQMGWG RIQELPGIFA QALSTAKKGD IV GPIRSGV GFHILKVNDL RGESKNISVT EVHARHILLK PSPIMTDEQA RVKLEQIAAD IKSGKTTFAA AAKEFSQDPG SAN QGGDLG WATPDIFDPA FRDALTRLNK GQMSAPVHSS FGWHLIELLD TRNVDKTDAA QKDRAYRMLM NRKFSEEAAS WMQE QRASA YVKILSN

UniProtKB: Chaperone SurA

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration5 mg/mL
BufferpH: 8 / Details: 20mM Tris-HCl, 150mM NaCl, 0.05% DDM
GridModel: Quantifoil R2/1 / Material: GOLD / Mesh: 200 / Support film - Material: CARBON / Support film - topology: CONTINUOUS / Pretreatment - Type: PLASMA CLEANING
VitrificationCryogen name: ETHANE / Chamber humidity: 95 % / Chamber temperature: 289 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 10 eV
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Digitization - Dimensions - Width: 4096 pixel / Digitization - Dimensions - Height: 4096 pixel / Number grids imaged: 2 / Number real images: 68464 / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.6 µm / Nominal magnification: 165000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.9 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 325213
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final 3D classificationSoftware - Name: cryoSPARC
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChain

5ljo

source_name: PDB, initial_model_type: experimental model
source_name: AlphaFold, initial_model_type: in silico model
RefinementSpace: REAL / Protocol: RIGID BODY FIT
Output model

PDB-9hg8:
BAM-SurA complex in the swing-out state with BamC resolved

+
