Basic information

Entry
Database: EMDB / ID: EMD-48832
TitleCryo-EM structure of an extended F. johnsoniae BAM complex, consensus map
Map dataunsharpened map
Sample
  • Complex: BAM complex
KeywordsBAM complex / BamA / BamD / BamF / BamG / BamM / BamP / outer-membrane proteins / OMP / MEMBRANE PROTEIN
Biological speciesFlavobacterium johnsoniae UW101 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.7 Å
AuthorsDeme JC / Lea SM
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Cancer Institute (NIH/NCI)CCR Core Funding for Lea Group United States
CitationJournal: To Be Published
Title: An extended BAM complex in the Bacteroidota
Authors: Liu X / Orenday Tapia L / Deme JC / Lea SM / Berks BC
History
DepositionJan 28, 2025-
Header (metadata) releaseJul 9, 2025-
Map releaseJul 9, 2025-
UpdateJul 9, 2025-
Current statusJul 9, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_48832.map.gz / Format: CCP4 / Size: 512 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Annotationunsharpened map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.73 Å/pix.
x 512 pix.
= 374.784 Å		0.73 Å/pix.
x 512 pix.
= 374.784 Å		0.73 Å/pix.
x 512 pix.
= 374.784 Å

Surface

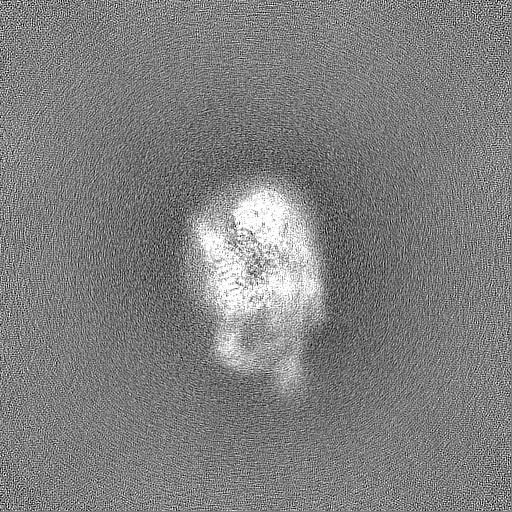

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.732 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.12
Minimum - Maximum-0.2751321 - 0.6287009
Average (Standard dev.)-0.00000748186 (±0.013305676)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions512512512
Spacing512512512
CellA=B=C: 374.784 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_48832_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: global B-factor sharpened map

Fileemd_48832_additional_1.map
Annotationglobal B-factor sharpened map
Projections & Slices
AxesZYX

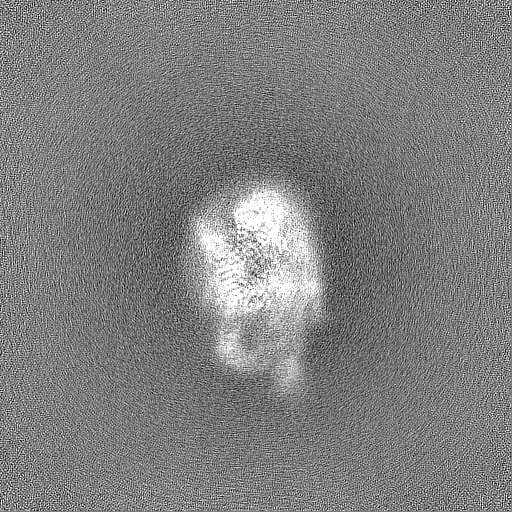

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: deepEMhancer sharpened map

Fileemd_48832_additional_2.map
AnnotationdeepEMhancer sharpened map
Projections & Slices
AxesZYX

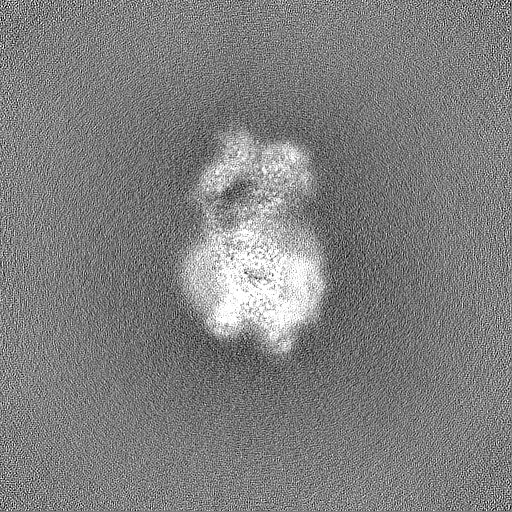

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: half map 1

Fileemd_48832_half_map_1.map
Annotationhalf map 1
Projections & Slices
AxesZYX

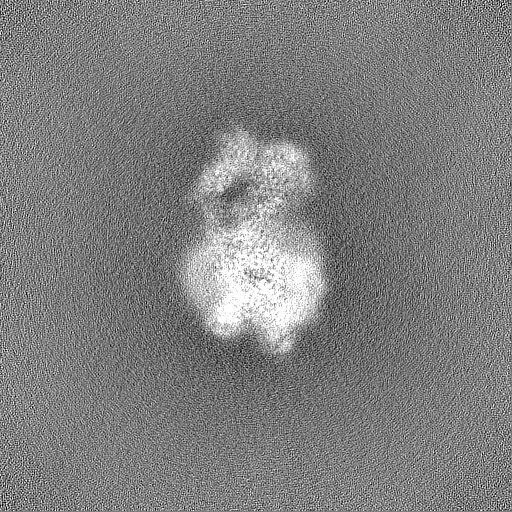

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: half map 2

Fileemd_48832_half_map_2.map
Annotationhalf map 2
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : BAM complex

EntireName: BAM complex
Components
  • Complex: BAM complex

-
Supramolecule #1: BAM complex

SupramoleculeName: BAM complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#6
Source (natural)Organism: Flavobacterium johnsoniae UW101 (bacteria)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Average electron dose: 60.3 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.5 µm / Nominal defocus min: 0.5 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.7 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 55796
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
