Basic information

Entry
Database: EMDB / ID: EMD-48507
TitleSARS-CoV2 Spike S2 Subunit in complex with M15 Antibody Fragment
Map dataUnsharpened map
Sample
  • Complex: SARS-CoV2 Spike S2 Trimer in complex with fAb M15
    • Protein or peptide: Spike protein S2
    • Protein or peptide: Fab M15 Heavy Chain
    • Protein or peptide: fAb M15 Light Chain
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose
Keywordsantibody / affinity maturation / SARS / fAb / IMMUNE SYSTEM
Function / homology
Function and homology information


Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell ...Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell / membrane fusion / Attachment and Entry / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / host cell surface receptor binding / symbiont-mediated suppression of host innate immune response / receptor ligand activity / endocytosis involved in viral entry into host cell / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / identical protein binding / membrane / plasma membrane
Similarity search - Function
Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, betacoronavirus / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus ...Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, betacoronavirus / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal / Spike glycoprotein S2, coronavirus, heptad repeat 1 / Spike glycoprotein S2, coronavirus, heptad repeat 2 / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 1 (HR1) region profile. / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 2 (HR2) region profile. / Spike glycoprotein S2 superfamily, coronavirus / Spike glycoprotein S2, coronavirus / Coronavirus spike glycoprotein S2
Similarity search - Domain/homology
Biological speciesHomo sapiens (human) / Severe acute respiratory syndrome coronavirus 2
Methodsingle particle reconstruction / cryo EM / Resolution: 3.37 Å
AuthorsSapse IA / Bajic G
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)AI168178 United States
CitationJournal: To Be Published
Title: SARS-CoV2 Spike S2 Subunit in complex with M15 Antibody Fragment
Authors: Sapse IA / Bajic G
History
DepositionDec 31, 2024-
Header (metadata) releaseJul 9, 2025-
Map releaseJul 9, 2025-
UpdateJul 9, 2025-
Current statusJul 9, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images

Downloads & links

-
Map

FileDownload / File: emd_48507.map.gz / Format: CCP4 / Size: 307.5 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationUnsharpened map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 432 pix.
= 356.832 Å
0.83 Å/pix.
x 432 pix.
= 356.832 Å
0.83 Å/pix.
x 432 pix.
= 356.832 Å

Surface

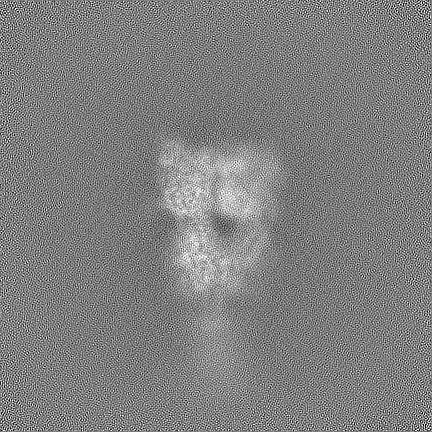

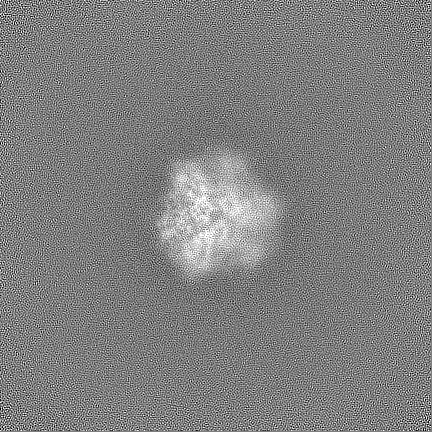

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.826 Å
Density
Contour LevelBy AUTHOR: 0.07
Minimum - Maximum-0.09895854 - 0.21327205
Average (Standard dev.)0.0001708968 (±0.005227425)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions432432432
Spacing432432432
CellA=B=C: 356.832 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_48507_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Additional map: Cryosparc sharpened map

Fileemd_48507_additional_1.map
AnnotationCryosparc sharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Additional map: DeepEMhancer sharpened map

Fileemd_48507_additional_2.map
AnnotationDeepEMhancer sharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Half map: half map

Fileemd_48507_half_map_1.map
Annotationhalf map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Half map: Half map

Fileemd_48507_half_map_2.map
AnnotationHalf map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Sample components

-
Entire : SARS-CoV2 Spike S2 Trimer in complex with fAb M15

EntireName: SARS-CoV2 Spike S2 Trimer in complex with fAb M15
Components
  • Complex: SARS-CoV2 Spike S2 Trimer in complex with fAb M15
    • Protein or peptide: Spike protein S2
    • Protein or peptide: Fab M15 Heavy Chain
    • Protein or peptide: fAb M15 Light Chain
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose

-
Supramolecule #1: SARS-CoV2 Spike S2 Trimer in complex with fAb M15

SupramoleculeName: SARS-CoV2 Spike S2 Trimer in complex with fAb M15 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#3
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Spike protein S2

MacromoleculeName: Spike protein S2 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 68.305328 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MGILPSPGMP ALLSLVSLLS VLLMGCVAET GTSVASQSII AYTMSLGAEN SVACSNNSIA IPTNFTISVT TEILPVSMTK TSVDCTMYI CGDSTECSNL LLQYGSFCTQ LNRALTGIAV EQDKNTQEVF AQVKQIYKTP PIKDFGGFNF SQILPDPSKP S KRSFIEDL ...String:
MGILPSPGMP ALLSLVSLLS VLLMGCVAET GTSVASQSII AYTMSLGAEN SVACSNNSIA IPTNFTISVT TEILPVSMTK TSVDCTMYI CGDSTECSNL LLQYGSFCTQ LNRALTGIAV EQDKNTQEVF AQVKQIYKTP PIKDFGGFNF SQILPDPSKP S KRSFIEDL LFNKVTLADA GFIKQYGDCL GDIAARDLIC AQKFNGLTVL PPLLTDEMIA QYTSALLAGT ICSGWTFGAG PA LQIPFPM QMAYRFEGIG VTQNVLYENQ KLIANQFNSA IGKIQDSLSS TPSALGKLQD VVNQNAQALN FLVKQLSSNC GAI SSVLND ILSRLDKPEA EVQIQRLITC RLQSLQTYVT QMLIRAAEYR ASANLAATKM SECVLGQSKR VDFCGKGYHL MSFP QSAPH GVVFLHVTYV PAQEKNFTTA PAICHDGKAH FPREGVFVSN GTHWFVTQRN FYEPQIITTD NTFVSGNCDV VIGIV NNTV YDPLQPELDS FKEELDKYFK NHTSPDVDLG DISGINASVV NIQKEIDRLN EVAKNLNESL IDLQELGKYE QGSGYI PEA PRDGQAYVRK DGEWVLLSTF LGRSLEVLFQ GPGSGGLNDI FEAQKIEWHE GSGHHHHHHH H

UniProtKB: Spike glycoprotein

-
Macromolecule #2: Fab M15 Heavy Chain

MacromoleculeName: Fab M15 Heavy Chain / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 22.932615 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: QVQLRESGPG LVKPSETLSL TCTVSGGSTS GYYWSWIRQP PGKGLEWIGY IYDIGSTNYN PSLKSRVTIS VSTSKNQFSL NLTSVTAAD TAVYYCARGF DSWGQGTLVT VSSASTKGPS VFPLAPSSKS TSGGTAALGC LVKDYFPEPV TVSWNSGALT S GVHTFPAV ...String:
QVQLRESGPG LVKPSETLSL TCTVSGGSTS GYYWSWIRQP PGKGLEWIGY IYDIGSTNYN PSLKSRVTIS VSTSKNQFSL NLTSVTAAD TAVYYCARGF DSWGQGTLVT VSSASTKGPS VFPLAPSSKS TSGGTAALGC LVKDYFPEPV TVSWNSGALT S GVHTFPAV LQSSGLYSLS SVVTVPSSSL GTQTYICNVN HKPSNTKVDK RVEPKSCDK

-
Macromolecule #3: fAb M15 Light Chain

MacromoleculeName: fAb M15 Light Chain / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.467094 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: EIVLTQSPGT LSLSPGERAT LSCRASQSVS SIYLAWYQQK PGQAPRLLIF AASSRAIGIP DRFSGSGSGT DFTLTISRLE AEDFAVYYC HQYGSSPWTF GQGTKVEIKR TVAAPSVFIF PPSDEQLKSG TASVVCLLNN FYPREAKVQW KVDNALQSGN S QESVTEQD ...String:
EIVLTQSPGT LSLSPGERAT LSCRASQSVS SIYLAWYQQK PGQAPRLLIF AASSRAIGIP DRFSGSGSGT DFTLTISRLE AEDFAVYYC HQYGSSPWTF GQGTKVEIKR TVAAPSVFIF PPSDEQLKSG TASVVCLLNN FYPREAKVQW KVDNALQSGN S QESVTEQD SKDSTYSLSS TLTLSKADYE KHKVYACEVT HQGLSSPVTK SFNRGEC

-
Macromolecule #5: 2-acetamido-2-deoxy-beta-D-glucopyranose

MacromoleculeName: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 5 / Number of copies: 5 / Formula: NAG
Molecular weightTheoretical: 221.208 Da
Chemical component information

ChemComp-NAG:
2-acetamido-2-deoxy-beta-D-glucopyranose

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 57.64 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 20.0 µm / Nominal defocus min: 0.45 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 2717456
CTF correctionSoftware - Name: cryoSPARC / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.37 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 40986
Initial angle assignmentType: ANGULAR RECONSTITUTION
Final angle assignmentType: ANGULAR RECONSTITUTION
FSC plot (resolution estimation)

+
