Basic information

Entry
Database: EMDB / ID: EMD-47992
TitleCannabinoid receptor 1-Gi complex with novel ligand
Map data
Sample
  • Complex: Signaling complex of the cannabinoid receptor 1 bound to Gi
    • Protein or peptide: Guanine nucleotide-binding protein G(i) subunit alpha-1
  • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
  • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
  • Protein or peptide: Cannabinoid receptor 1
  • Protein or peptide: scFv16
  • Ligand: methyl (2R)-2-({(1M)-5-methyl-1-[3-(trifluoromethyl)phenyl]-1H-pyrazole-3-carbonyl}amino)-2-(thiophen-2-yl)propanoate
KeywordsGPCR / G protein / Gi / cannabinoid receptor / CB1 / SIGNALING PROTEIN
Function / homology
Function and homology information


cannabinoid signaling pathway / retrograde trans-synaptic signaling by endocannabinoid / cannabinoid receptor activity / regulation of presynaptic cytosolic calcium ion concentration / Class A/1 (Rhodopsin-like receptors) / axonal fasciculation / regulation of metabolic process / G protein-coupled receptor signaling pathway, coupled to cyclic nucleotide second messenger / adenylate cyclase inhibitor activity / positive regulation of protein localization to cell cortex ...cannabinoid signaling pathway / retrograde trans-synaptic signaling by endocannabinoid / cannabinoid receptor activity / regulation of presynaptic cytosolic calcium ion concentration / Class A/1 (Rhodopsin-like receptors) / axonal fasciculation / regulation of metabolic process / G protein-coupled receptor signaling pathway, coupled to cyclic nucleotide second messenger / adenylate cyclase inhibitor activity / positive regulation of protein localization to cell cortex / Adenylate cyclase inhibitory pathway / T cell migration / D2 dopamine receptor binding / response to prostaglandin E / adenylate cyclase regulator activity / G protein-coupled serotonin receptor binding / adenylate cyclase-inhibiting serotonin receptor signaling pathway / cellular response to forskolin / regulation of mitotic spindle organization / Regulation of insulin secretion / positive regulation of cholesterol biosynthetic process / negative regulation of insulin secretion / G protein-coupled receptor binding / G protein-coupled receptor activity / response to peptide hormone / adenylate cyclase-inhibiting G protein-coupled receptor signaling pathway / GABA-ergic synapse / adenylate cyclase-modulating G protein-coupled receptor signaling pathway / G-protein beta/gamma-subunit complex binding / centriolar satellite / Olfactory Signaling Pathway / Activation of the phototransduction cascade / G beta:gamma signalling through PLC beta / Presynaptic function of Kainate receptors / Thromboxane signalling through TP receptor / G protein-coupled acetylcholine receptor signaling pathway / adenylate cyclase-activating G protein-coupled receptor signaling pathway / Activation of G protein gated Potassium channels / Inhibition of voltage gated Ca2+ channels via Gbeta/gamma subunits / G-protein activation / Prostacyclin signalling through prostacyclin receptor / G beta:gamma signalling through CDC42 / Glucagon signaling in metabolic regulation / G beta:gamma signalling through BTK / Synthesis, secretion, and inactivation of Glucagon-like Peptide-1 (GLP-1) / ADP signalling through P2Y purinoceptor 12 / photoreceptor disc membrane / Sensory perception of sweet, bitter, and umami (glutamate) taste / Glucagon-type ligand receptors / Adrenaline,noradrenaline inhibits insulin secretion / Vasopressin regulates renal water homeostasis via Aquaporins / GDP binding / Glucagon-like Peptide-1 (GLP1) regulates insulin secretion / G alpha (z) signalling events / cellular response to catecholamine stimulus / ADP signalling through P2Y purinoceptor 1 / ADORA2B mediated anti-inflammatory cytokines production / G beta:gamma signalling through PI3Kgamma / adenylate cyclase-activating dopamine receptor signaling pathway / Cooperation of PDCL (PhLP1) and TRiC/CCT in G-protein beta folding / GPER1 signaling / Inactivation, recovery and regulation of the phototransduction cascade / cellular response to prostaglandin E stimulus / G-protein beta-subunit binding / heterotrimeric G-protein complex / glucose homeostasis / G alpha (12/13) signalling events / sensory perception of taste / extracellular vesicle / actin cytoskeleton / signaling receptor complex adaptor activity / Thrombin signalling through proteinase activated receptors (PARs) / retina development in camera-type eye / G protein activity / presynaptic membrane / growth cone / GTPase binding / Ca2+ pathway / fibroblast proliferation / midbody / High laminar flow shear stress activates signaling by PIEZO1 and PECAM1:CDH5:KDR in endothelial cells / cell cortex / G alpha (i) signalling events / G alpha (s) signalling events / phospholipase C-activating G protein-coupled receptor signaling pathway / G alpha (q) signalling events / Hydrolases; Acting on acid anhydrides; Acting on GTP to facilitate cellular and subcellular movement / Ras protein signal transduction / mitochondrial outer membrane / Extra-nuclear estrogen signaling / cell population proliferation / ciliary basal body / G protein-coupled receptor signaling pathway / membrane raft / lysosomal membrane / cell division / GTPase activity / synapse / centrosome / GTP binding
Similarity search - Function
Cannabinoid receptor type 1 / Cannabinoid receptor family / G-protein alpha subunit, group I / Serpentine type 7TM GPCR chemoreceptor Srsx / Guanine nucleotide binding protein (G-protein), alpha subunit / G protein alpha subunit, helical insertion / G-protein alpha subunit / G-alpha domain profile. / G protein alpha subunit / G-protein, gamma subunit ...Cannabinoid receptor type 1 / Cannabinoid receptor family / G-protein alpha subunit, group I / Serpentine type 7TM GPCR chemoreceptor Srsx / Guanine nucleotide binding protein (G-protein), alpha subunit / G protein alpha subunit, helical insertion / G-protein alpha subunit / G-alpha domain profile. / G protein alpha subunit / G-protein, gamma subunit / G-protein gamma subunit domain profile. / G-protein gamma-like domain / G-protein gamma-like domain superfamily / GGL domain / G protein gamma subunit-like motifs / GGL domain / G protein beta WD-40 repeat protein / Guanine nucleotide-binding protein, beta subunit / G-protein, beta subunit / G-protein coupled receptors family 1 signature. / G protein-coupled receptor, rhodopsin-like / GPCR, rhodopsin-like, 7TM / G-protein coupled receptors family 1 profile. / 7 transmembrane receptor (rhodopsin family) / G-protein beta WD-40 repeat / WD40 repeat, conserved site / Trp-Asp (WD) repeats signature. / Trp-Asp (WD) repeats profile. / Trp-Asp (WD) repeats circular profile. / WD40 repeats / WD40 repeat / WD40-repeat-containing domain superfamily / WD40/YVTN repeat-like-containing domain superfamily / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Cannabinoid receptor 1 / Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 / Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 / Guanine nucleotide-binding protein G(i) subunit alpha-1
Similarity search - Component
Biological speciesHomo sapiens (human) / Mus musculus (house mouse)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.2 Å
AuthorsTummino TA / Iliopoulos-Tsoutsouvas C / Braz JM / O'Brien ES / Krishna Kumar K / Makriyannis M / Basbaum AI / Shoichet BK
Funding support United States, 1 items
OrganizationGrant numberCountry
Defense Advanced Research Projects Agency (DARPA)HR0011-19-2-0020 United States
CitationJournal: Nat Commun / Year: 2025
Title: Virtual library docking for cannabinoid-1 receptor agonists with reduced side effects.
Authors: Tia A Tummino / Christos Iliopoulos-Tsoutsouvas / Joao M Braz / Evan S O'Brien / Reed M Stein / Veronica Craik / Ngan K Tran / Suthakar Ganapathy / Fangyu Liu / Yuki Shiimura / Fei Tong / ...Authors: Tia A Tummino / Christos Iliopoulos-Tsoutsouvas / Joao M Braz / Evan S O'Brien / Reed M Stein / Veronica Craik / Ngan K Tran / Suthakar Ganapathy / Fangyu Liu / Yuki Shiimura / Fei Tong / Thanh C Ho / Dmytro S Radchenko / Yurii S Moroz / Sian Rodriguez Rosado / Karnika Bhardwaj / Jorge Benitez / Yongfeng Liu / Herthana Kandasamy / Claire Normand / Meriem Semache / Laurent Sabbagh / Isabella Glenn / John J Irwin / Kaavya Krishna Kumar / Alexandros Makriyannis / Allan I Basbaum / Brian K Shoichet /
Abstract: Virtual library docking can reveal unexpected chemotypes that complement the structures of biological targets. Seeking agonists for the cannabinoid-1 receptor (CB1R), we dock 74 million tangible ...Virtual library docking can reveal unexpected chemotypes that complement the structures of biological targets. Seeking agonists for the cannabinoid-1 receptor (CB1R), we dock 74 million tangible molecules and prioritize 46 high ranking ones for de novo synthesis and testing. Nine are active by radioligand competition, a 20% hit-rate. Structure-based optimization of one of the most potent of these (K = 0.7 µM) leads to '1350, a 0.95 nM ligand and a full CB1R agonist of G signaling. A cryo-EM structure of '1350 in complex with CB1R-G confirms its predicted docked pose. The lead agonist is strongly analgesic in male mice, with a 2-20-fold therapeutic window over hypolocomotion, sedation, and catalepsy and no observable conditioned place preference. These findings suggest that unique cannabinoid chemotypes may disentangle characteristic cannabinoid side-effects from analgesia, supporting the further development of cannabinoids as pain therapeutics.
History
DepositionNov 21, 2024-
Header (metadata) releaseApr 30, 2025-
Map releaseApr 30, 2025-
UpdateSep 10, 2025-
Current statusSep 10, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_47992.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.85 Å/pix.
x 320 pix.
= 272.672 Å		0.85 Å/pix.
x 320 pix.
= 272.672 Å		0.85 Å/pix.
x 320 pix.
= 272.672 Å

Surface

Projections

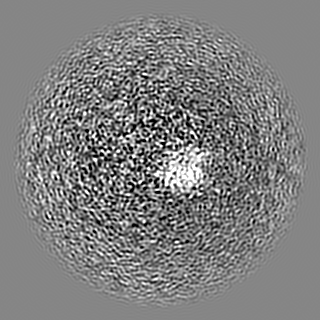

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.8521 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.458
Minimum - Maximum-2.8509276 - 4.415453
Average (Standard dev.)-0.0020415618 (±0.08101661)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions320320320
Spacing320320320
CellA=B=C: 272.672 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: #1

Fileemd_47992_additional_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_47992_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_47992_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Signaling complex of the cannabinoid receptor 1 bound to Gi

EntireName: Signaling complex of the cannabinoid receptor 1 bound to Gi
Components
  • Complex: Signaling complex of the cannabinoid receptor 1 bound to Gi
    • Protein or peptide: Guanine nucleotide-binding protein G(i) subunit alpha-1
  • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
  • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
  • Protein or peptide: Cannabinoid receptor 1
  • Protein or peptide: scFv16
  • Ligand: methyl (2R)-2-({(1M)-5-methyl-1-[3-(trifluoromethyl)phenyl]-1H-pyrazole-3-carbonyl}amino)-2-(thiophen-2-yl)propanoate

-
Supramolecule #1: Signaling complex of the cannabinoid receptor 1 bound to Gi

SupramoleculeName: Signaling complex of the cannabinoid receptor 1 bound to Gi
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Guanine nucleotide-binding protein G(i) subunit alpha-1

MacromoleculeName: Guanine nucleotide-binding protein G(i) subunit alpha-1
type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 40.415031 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MGCTLSAEDK AAVERSKMID RNLREDGEKA AREVKLLLLG AGESGKSTIV KQMKIIHEAG YSEEECKQYK AVVYSNTIQS IIAIIRAMG RLKIDFGDSA RADDARQLFV LAGAAEEGFM TAELAGVIKR LWKDSGVQAC FNRSREYQLN DSAAYYLNDL D RIAQPNYI ...String:
MGCTLSAEDK AAVERSKMID RNLREDGEKA AREVKLLLLG AGESGKSTIV KQMKIIHEAG YSEEECKQYK AVVYSNTIQS IIAIIRAMG RLKIDFGDSA RADDARQLFV LAGAAEEGFM TAELAGVIKR LWKDSGVQAC FNRSREYQLN DSAAYYLNDL D RIAQPNYI PTQQDVLRTR VKTTGIVETH FTFKDLHFKM FDVGGQRSER KKWIHCFEGV TAIIFCVALS DYDLVLAEDE EM NRMHESM KLFDSICNNK WFTDTSIILF LNKKDLFEEK IKKSPLTICY PEYAGSNTYE EAAAYIQCQF EDLNKRKDTK EIY THFTCA TDTKNVQFVF DAVTDVIIKN NLKDCGLF

UniProtKB: Guanine nucleotide-binding protein G(i) subunit alpha-1

-
Macromolecule #2: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

MacromoleculeName: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 37.671102 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: PGSSGSELDQ LRQEAEQLKN QIRDARKACA DATLSQITNN IDPVGRIQMR TRRTLRGHLA KIYAMHWGTD SRLLVSASQD GKLIIWDSY TTNKVHAIPL RSSWVMTCAY APSGNYVACG GLDNICSIYN LKTREGNVRV SRELAGHTGY LSCCRFLDDN Q IVTSSGDT ...String:
PGSSGSELDQ LRQEAEQLKN QIRDARKACA DATLSQITNN IDPVGRIQMR TRRTLRGHLA KIYAMHWGTD SRLLVSASQD GKLIIWDSY TTNKVHAIPL RSSWVMTCAY APSGNYVACG GLDNICSIYN LKTREGNVRV SRELAGHTGY LSCCRFLDDN Q IVTSSGDT TCALWDIETG QQTTTFTGHT GDVMSLSLAP DTRLFVSGAC DASAKLWDVR EGMCRQTFTG HESDINAICF FP NGNAFAT GSDDATCRLF DLRADQELMT YSHDNIICGI TSVSFSKSGR LLLAGYDDFN CNVWDALKAD RAGVLAGHDN RVS CLGVTD DGMAVATGSW DSFLKIWN

UniProtKB: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

-
Macromolecule #3: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

MacromoleculeName: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 7.861143 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString:
MASNNTASIA QARKLVEQLK MEANIDRIKV SKAAADLMAY CEAHAKEDPL LTPVPASENP FREKKFFCAI L

UniProtKB: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

-
Macromolecule #4: Cannabinoid receptor 1

MacromoleculeName: Cannabinoid receptor 1 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 55.678535 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: DYKDDDDAMK SILDGLADTT FRTITTDLLY VGSNDIQYED IKGDMASKLG YFPQKFPLTS FRGSPFQEKM TAGDNPQLVP ADQVNITEF YNKSLSENLY FQGSFKENEE NIQCGENFMD IECFMVLNPS QQLAIAVLSL TLGTFTVLEN LLVLCVILHS R SLRCRPSY ...String:
DYKDDDDAMK SILDGLADTT FRTITTDLLY VGSNDIQYED IKGDMASKLG YFPQKFPLTS FRGSPFQEKM TAGDNPQLVP ADQVNITEF YNKSLSENLY FQGSFKENEE NIQCGENFMD IECFMVLNPS QQLAIAVLSL TLGTFTVLEN LLVLCVILHS R SLRCRPSY HFIGSLAVAD LLGSVIFVYS FIDFHVFHRK DSRNVFLFKL GGVTASFTAS VGSLFLTAID RYISIHRPLA YK RIVTRPK AVVAFCLMWT IAIVIAVLPL LGWNCEKLQS VCSDIFPHID ETYLMFWIGV TSVLLLFIVY AYMYILWKAH SHA VRMIQR GTQKSIIIHT SEDGKVQVTR PDQARMDIRL AKTLVLILVV LIICWGPLLA IMVYDVFGKM NKLIKTVFAF CSML CLLNS TVNPIIYALR SKDLRHAFRS MFPSCEGTAQ PLDNSMGDSD CLHKHANNAA SVHRAAESCI KSTVKIAKVT MSVST DTSA EALGSHHHHH H

UniProtKB: Cannabinoid receptor 1

-
Macromolecule #5: scFv16

MacromoleculeName: scFv16 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 27.784896 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: DVQLVESGGG LVQPGGSRKL SCSASGFAFS SFGMHWVRQA PEKGLEWVAY ISSGSGTIYY ADTVKGRFTI SRDDPKNTLF LQMTSLRSE DTAMYYCVRS IYYYGSSPFD FWGQGTTLTV SSGGGGSGGG GSGGGGSDIV MTQATSSVPV TPGESVSISC R SSKSLLHS ...String:
DVQLVESGGG LVQPGGSRKL SCSASGFAFS SFGMHWVRQA PEKGLEWVAY ISSGSGTIYY ADTVKGRFTI SRDDPKNTLF LQMTSLRSE DTAMYYCVRS IYYYGSSPFD FWGQGTTLTV SSGGGGSGGG GSGGGGSDIV MTQATSSVPV TPGESVSISC R SSKSLLHS NGNTYLYWFL QRPGQSPQLL IYRMSNLASG VPDRFSGSGS GTAFTLTISR LEAEDVGVYY CMQHLEYPLT FG AGTKLEL KAAAHHHHHH HH

-
Macromolecule #6: methyl (2R)-2-({(1M)-5-methyl-1-[3-(trifluoromethyl)phenyl]-1H-py...

MacromoleculeName: methyl (2R)-2-({(1M)-5-methyl-1-[3-(trifluoromethyl)phenyl]-1H-pyrazole-3-carbonyl}amino)-2-(thiophen-2-yl)propanoate
type: ligand / ID: 6 / Number of copies: 1 / Formula: YVF
Molecular weightTheoretical: 437.435 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 56.6 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.7000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

6n4b

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.2 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 465411
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
