Basic information

Entry
Database: EMDB / ID: EMD-47209
TitleStructure of the phosphate exporter XPR1/SLC53A1, apo state, rotated dimer
Map dataPhosphate exporter XPR1/SLC53A1, apo state, rotated dimer
Sample
  • Organelle or cellular component: XPR1/SLC53A1
    • Protein or peptide: Solute carrier family 53 member 1
  • Ligand: PHOSPHATE ION
  • Ligand: CHOLESTEROL
  • Ligand: 1-PALMITOYL-2-LINOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
KeywordsInorganic phosphate exporter / TRANSPORT PROTEIN
Function / homology
Function and homology information


phosphate transmembrane transporter activity / phosphate ion transport / intracellular phosphate ion homeostasis / phosphate ion transmembrane transport / cellular response to phosphate starvation / inositol hexakisphosphate binding / efflux transmembrane transporter activity / response to virus / virus receptor activity / plasma membrane
Similarity search - Function
EXS, C-terminal / EXS family / EXS domain profile. / SPX domain / SPX domain / SPX domain profile.
Similarity search - Domain/homology
Solute carrier family 53 member 1
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.06 Å
AuthorsZhu Q / Diver MM
Funding support United States, 1 items
OrganizationGrant numberCountry
The Robertson Foundation United States
CitationJournal: Nat Commun / Year: 2025
Title: Transport and InsP gating mechanisms of the human inorganic phosphate exporter XPR1.
Authors: Qinyu Zhu / Madeleine F Yaggi / Nikolaus Jork / Henning J Jessen / Melinda M Diver /
Abstract: Inorganic phosphate (Pi) has essential metabolic and structural roles in living organisms. The Pi exporter, XPR1/SLC53A1, is critical for cellular Pi homeostasis. When intercellular Pi is high, cells ...Inorganic phosphate (Pi) has essential metabolic and structural roles in living organisms. The Pi exporter, XPR1/SLC53A1, is critical for cellular Pi homeostasis. When intercellular Pi is high, cells accumulate inositol pyrophosphate (1,5-InsP), a signaling molecule required for XPR1 function. Inactivating XPR1 mutations lead to brain calcifications, causing neurological symptoms including movement disorders, psychosis, and dementia. Here, cryo-electron microscopy structures of dimeric XPR1 and functional characterization delineate the substrate translocation pathway and how InsP initiates Pi transport. Binding of InsP to XPR1, but not the related inositol polyphosphate InsP, rigidifies the intracellular SPX domains, with InsP bridging the dimers and SPX and transmembrane domains. Locked in this state, the C-terminal tail is sequestered, revealing the entrance to the transport pathway, thus explaining the obligate roles of the SPX domain and InsP. Together, these findings advance our understanding of XPR1 transport activity and expand opportunities for rationalizing disease mechanisms and therapeutic intervention.
History
DepositionOct 8, 2024-
Header (metadata) releaseApr 2, 2025-
Map releaseApr 2, 2025-
UpdateApr 2, 2025-
Current statusApr 2, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_47209.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationPhosphate exporter XPR1/SLC53A1, apo state, rotated dimer
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 384 pix.
= 316.992 Å		0.83 Å/pix.
x 384 pix.
= 316.992 Å		0.83 Å/pix.
x 384 pix.
= 316.992 Å

Surface

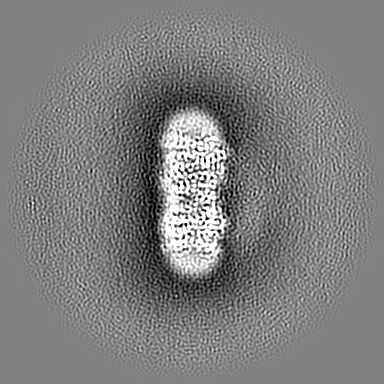

Projections

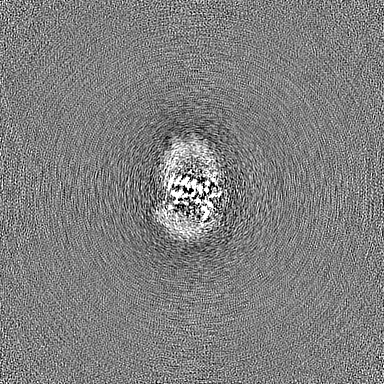

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.8255 Å
Density

Histogram

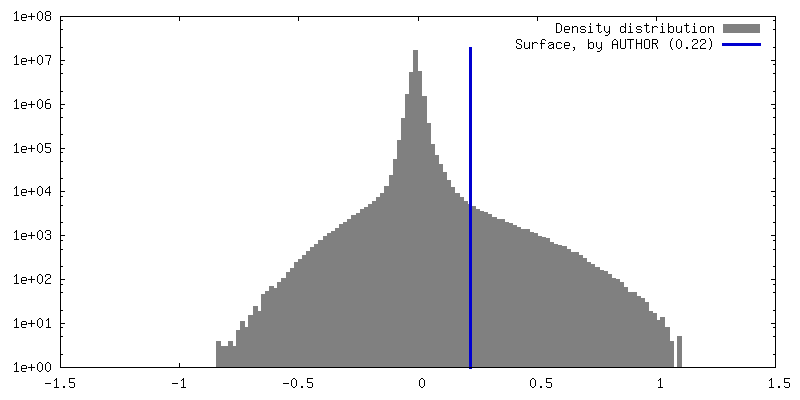

Histogram (log scale)
Contour LevelBy AUTHOR: 0.22
Minimum - Maximum-1.0115007 - 1.182887
Average (Standard dev.)-0.00010828848 (±0.021361157)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 316.992 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Density modified map

Fileemd_47209_additional_1.map
AnnotationDensity modified map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

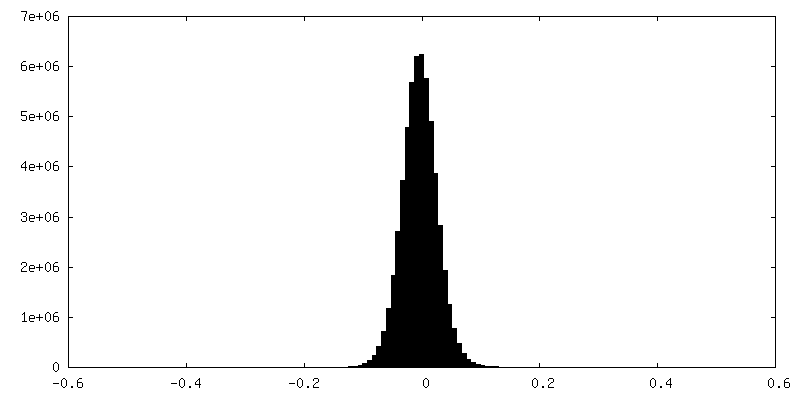

Histogram

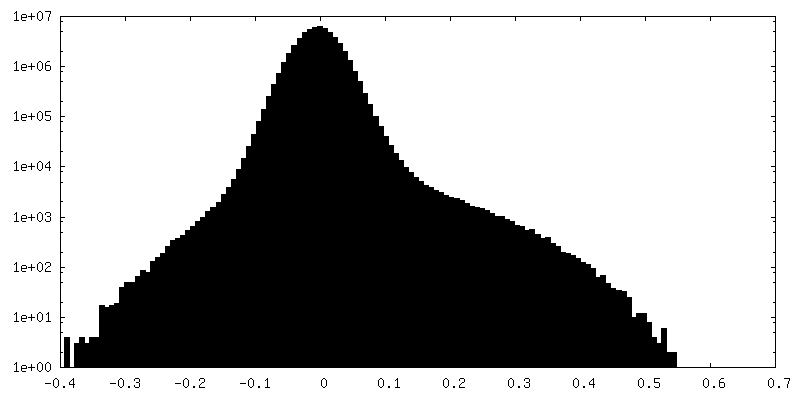

Histogram (log scale)

-
Half map: Half map A

Fileemd_47209_half_map_1.map
AnnotationHalf map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map B

Fileemd_47209_half_map_2.map
AnnotationHalf map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : XPR1/SLC53A1

EntireName: XPR1/SLC53A1
Components
  • Organelle or cellular component: XPR1/SLC53A1
    • Protein or peptide: Solute carrier family 53 member 1
  • Ligand: PHOSPHATE ION
  • Ligand: CHOLESTEROL
  • Ligand: 1-PALMITOYL-2-LINOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE

-
Supramolecule #1: XPR1/SLC53A1

SupramoleculeName: XPR1/SLC53A1 / type: organelle_or_cellular_component / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Solute carrier family 53 member 1

MacromoleculeName: Solute carrier family 53 member 1 / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 82.364734 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MKFAEHLSAH ITPEWRKQYI QYEAFKDMLY SAQDQAPSVE VTDEDTVKRY FAKFEEKFFQ TCEKELAKIN TFYSEKLAEA QRRFATLQN ELQSSLDAQK ESTGVTTLRQ RRKPVFHLSH EERVQHRNIK DLKLAFSEFY LSLILLQNYQ NLNFTGFRKI L KKHDKILE ...String:
MKFAEHLSAH ITPEWRKQYI QYEAFKDMLY SAQDQAPSVE VTDEDTVKRY FAKFEEKFFQ TCEKELAKIN TFYSEKLAEA QRRFATLQN ELQSSLDAQK ESTGVTTLRQ RRKPVFHLSH EERVQHRNIK DLKLAFSEFY LSLILLQNYQ NLNFTGFRKI L KKHDKILE TSRGADWRVA HVEVAPFYTC KKINQLISET EAVVTNELED GDRQKAMKRL RVPPLGAAQP APAWTTFRVG LF CGIFIVL NITLVLAAVF KLETDRSIWP LIRIYRGGFL LIEFLFLLGI NTYGWRQAGV NHVLIFELNP RSNLSHQHLF EIA GFLGIL WCLSLLACFF APISVIPTYV YPLALYGFMV FFLINPTKTF YYKSRFWLLK LLFRVFTAPF HKVGFADFWL ADQL NSLSV ILMDLEYMIC FYSLELKWDE SKGLLPNNSE ESGICHKYTY GVRAIVQCIP AWLRFIQCLR RYRDTKRAFP HLVNA GKYS TTFFMVTFAA LYSTHKERGH SDTMVFFYLW IVFYIISSCY TLIWDLKMDW GLFDKNAGEN TFLREEIVYP QKAYYY CAI IEDVILRFAW TIQISITSTT LLPHSGDIIA TVFAPLEVFR RFVWNFFRLE NEHLNNCGEF RAVRDISVAP LNADDQT LL EQMMDQDDGV RNRQKNRSWK YNQSISLRRP RLASQSKARD TKVLIEDTDD EANTLEVLFQ

UniProtKB: Solute carrier family 53 member 1

-
Macromolecule #2: PHOSPHATE ION

MacromoleculeName: PHOSPHATE ION / type: ligand / ID: 2 / Number of copies: 2 / Formula: PO4
Molecular weightTheoretical: 94.971 Da
Chemical component information

ChemComp-PO4:
PHOSPHATE ION

-
Macromolecule #3: CHOLESTEROL

MacromoleculeName: CHOLESTEROL / type: ligand / ID: 3 / Number of copies: 1 / Formula: CLR
Molecular weightTheoretical: 386.654 Da
Chemical component information

ChemComp-CLR:
CHOLESTEROL

-
Macromolecule #4: 1-PALMITOYL-2-LINOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE

MacromoleculeName: 1-PALMITOYL-2-LINOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE / type: ligand / ID: 4 / Number of copies: 3 / Formula: CPL
Molecular weightTheoretical: 758.06 Da
Chemical component information

ChemComp-CPL:
1-PALMITOYL-2-LINOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE / phospholipid*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 66.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.7 µm / Nominal defocus min: 0.7000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.06 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 124969
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
