Basic information

Entry
Database: EMDB / ID: EMD-46893
TitleCryo-EM structure of HURP bound to a microtubule
Map data
Sample
  • Complex: Microtubule-HURP complex
    • Protein or peptide: Disks large-associated protein 5
    • Protein or peptide: Tubulin beta chain
    • Protein or peptide: Tubulin alpha-1B chain
  • Ligand: TAXOL
  • Ligand: GUANOSINE-5'-DIPHOSPHATE
  • Ligand: GUANOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION
KeywordsHURP / Tubulin / K-fiber / mitosis / spindle / PROTEIN BINDING
Function / homology
Function and homology information


mitotic chromosome movement towards spindle pole / signaling / centrosome localization / spindle pole centrosome / positive regulation of mitotic metaphase/anaphase transition / Microtubule-dependent trafficking of connexons from Golgi to the plasma membrane / Resolution of Sister Chromatid Cohesion / Hedgehog 'off' state / Cargo trafficking to the periciliary membrane / Intraflagellar transport ...mitotic chromosome movement towards spindle pole / signaling / centrosome localization / spindle pole centrosome / positive regulation of mitotic metaphase/anaphase transition / Microtubule-dependent trafficking of connexons from Golgi to the plasma membrane / Resolution of Sister Chromatid Cohesion / Hedgehog 'off' state / Cargo trafficking to the periciliary membrane / Intraflagellar transport / COPI-dependent Golgi-to-ER retrograde traffic / Mitotic Prometaphase / Carboxyterminal post-translational modifications of tubulin / RHOH GTPase cycle / EML4 and NUDC in mitotic spindle formation / Sealing of the nuclear envelope (NE) by ESCRT-III / Kinesins / PKR-mediated signaling / Separation of Sister Chromatids / The role of GTSE1 in G2/M progression after G2 checkpoint / Aggrephagy / NOTCH3 Intracellular Domain Regulates Transcription / RHO GTPases activate IQGAPs / RHO GTPases Activate Formins / HSP90 chaperone cycle for steroid hormone receptors (SHR) in the presence of ligand / MHC class II antigen presentation / Recruitment of NuMA to mitotic centrosomes / COPI-mediated anterograde transport / kinetochore assembly / microtubule-based process / mitotic spindle organization / chromosome segregation / regulation of mitotic cell cycle / neuron migration / microtubule cytoskeleton organization / mitotic spindle / structural constituent of cytoskeleton / microtubule cytoskeleton / mitotic cell cycle / neuron differentiation / microtubule / microtubule binding / Hydrolases; Acting on acid anhydrides; Acting on GTP to facilitate cellular and subcellular movement / GTPase activity / GTP binding / nucleus / cytosol / cytoplasm
Similarity search - Function
SAPAP family / Guanylate-kinase-associated protein (GKAP) protein / Alpha tubulin / Tubulin-beta mRNA autoregulation signal. / Beta tubulin, autoregulation binding site / Beta tubulin / Tubulin / Tubulin, C-terminal / Tubulin C-terminal domain / Tubulin, conserved site ...SAPAP family / Guanylate-kinase-associated protein (GKAP) protein / Alpha tubulin / Tubulin-beta mRNA autoregulation signal. / Beta tubulin, autoregulation binding site / Beta tubulin / Tubulin / Tubulin, C-terminal / Tubulin C-terminal domain / Tubulin, conserved site / Tubulin subunits alpha, beta, and gamma signature. / Tubulin/FtsZ family, C-terminal domain / Tubulin/FtsZ-like, C-terminal domain / Tubulin/FtsZ, C-terminal / Tubulin/FtsZ, 2-layer sandwich domain / Tubulin/FtsZ family, GTPase domain / Tubulin/FtsZ family, GTPase domain / Tubulin/FtsZ, GTPase domain / Tubulin/FtsZ, GTPase domain superfamily
Similarity search - Domain/homology
Tubulin beta chain / Disks large-associated protein 5 / Tubulin alpha-1B chain
Similarity search - Component
Biological speciesHomo sapiens (human) / Sus scrofa (pig)
Methodhelical reconstruction / cryo EM / Resolution: 3.1 Å
AuthorsPerez-Bertoldi JM / Nogales E
Funding supportEuropean Union, United States, 3 items
OrganizationGrant numberCountry
European Research Council (ERC)European Union
Howard Hughes Medical Institute (HHMI) United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS) United States
CitationJournal: Nat Commun / Year: 2024
Title: HURP regulates Kif18A recruitment and activity to synergistically control microtubule dynamics.
Authors: Juan M Perez-Bertoldi / Yuanchang Zhao / Akanksha Thawani / Ahmet Yildiz / Eva Nogales /
Abstract: During mitosis, microtubule dynamics are regulated to ensure proper alignment and segregation of chromosomes. The dynamics of kinetochore-attached microtubules are regulated by hepatoma-upregulated ...During mitosis, microtubule dynamics are regulated to ensure proper alignment and segregation of chromosomes. The dynamics of kinetochore-attached microtubules are regulated by hepatoma-upregulated protein (HURP) and the mitotic kinesin-8 Kif18A, but the underlying mechanism remains elusive. Using single-molecule imaging in vitro, we demonstrate that Kif18A motility is regulated by HURP. While sparse decoration of HURP activates the motor, higher concentrations hinder processive motility. To shed light on this behavior, we determine the binding mode of HURP to microtubules using cryo-EM. The structure helps rationalize why HURP functions as a microtubule stabilizer. Additionally, HURP partially overlaps with the microtubule-binding site of the Kif18A motor domain, indicating that excess HURP inhibits Kif18A motility by steric exclusion. We also observe that HURP and Kif18A function together to suppress dynamics of the microtubule plus-end, providing a mechanistic basis for how they collectively serve in microtubule length control.
History
DepositionSep 4, 2024-
Header (metadata) releaseJul 16, 2025-
Map releaseJul 16, 2025-
UpdateJul 16, 2025-
Current statusJul 16, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_46893.map.gz / Format: CCP4 / Size: 512 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.14 Å/pix.
x 512 pix.
= 583.68 Å		1.14 Å/pix.
x 512 pix.
= 583.68 Å		1.14 Å/pix.
x 512 pix.
= 583.68 Å

Surface

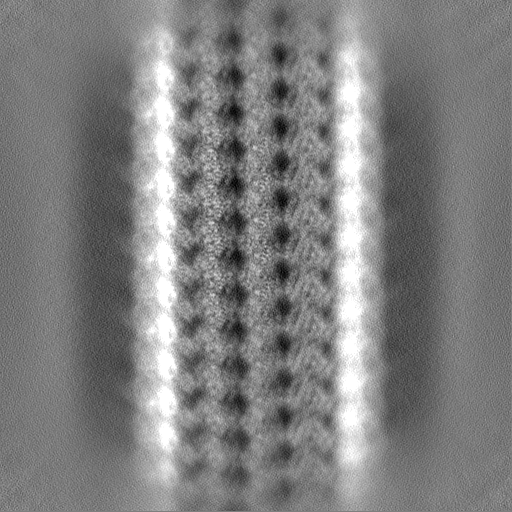

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.14 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.243
Minimum - Maximum-2.0549054 - 3.3504062
Average (Standard dev.)0.0014456431 (±0.09769311)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions512512512
Spacing512512512
CellA=B=C: 583.68 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_46893_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

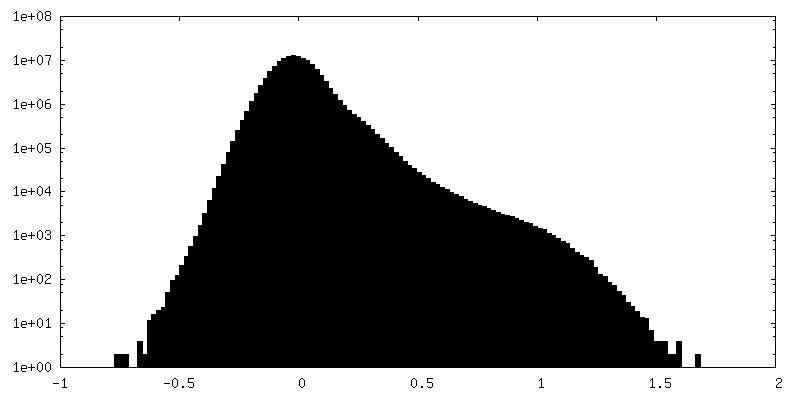

Histogram (log scale)

-
Half map: #1

Fileemd_46893_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_46893_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Microtubule-HURP complex

EntireName: Microtubule-HURP complex
Components
  • Complex: Microtubule-HURP complex
    • Protein or peptide: Disks large-associated protein 5
    • Protein or peptide: Tubulin beta chain
    • Protein or peptide: Tubulin alpha-1B chain
  • Ligand: TAXOL
  • Ligand: GUANOSINE-5'-DIPHOSPHATE
  • Ligand: GUANOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION

-
Supramolecule #1: Microtubule-HURP complex

SupramoleculeName: Microtubule-HURP complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#3
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Disks large-associated protein 5

MacromoleculeName: Disks large-associated protein 5 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 33.023805 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: GSEFELMSSS HFASRHRKDI STEMIRTKIA HRKSLSQKEN RHKEYERNRH FGLKDVNIPT LEGRILVELD ETSQGLVPEK TNVKPRAMK TILGDQRKQM LQKYKEEKQL QKLKEQREKA KRGIFKVGRY RPDMPCFLLS NQNAVKAEPK KAIPSSVRIT R SKAKDQME ...String:
GSEFELMSSS HFASRHRKDI STEMIRTKIA HRKSLSQKEN RHKEYERNRH FGLKDVNIPT LEGRILVELD ETSQGLVPEK TNVKPRAMK TILGDQRKQM LQKYKEEKQL QKLKEQREKA KRGIFKVGRY RPDMPCFLLS NQNAVKAEPK KAIPSSVRIT R SKAKDQME QTKIDNESDV RAIRPGPRQT SEKKVSDKEK KVVQPVMPTS LRMTRSATQA AKQVPRTVSS TTARKPVTRA AN ENEPEGK VPSKGRPAKN VETKPDKGIS CKVDSEENTL NSQTNATSGM NPDG

UniProtKB: Disks large-associated protein 5

-
Macromolecule #2: Tubulin beta chain

MacromoleculeName: Tubulin beta chain / type: protein_or_peptide / ID: 2 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Sus scrofa (pig)
Molecular weightTheoretical: 49.90777 KDa
SequenceString: MREIVHIQAG QCGNQIGAKF WEVISDEHGI DPTGSYHGDS DLQLERINVY YNEAAGNKYV PRAILVDLEP GTMDSVRSGP FGQIFRPDN FVFGQSGAGN NWAKGHYTEG AELVDSVLDV VRKESESCDC LQGFQLTHSL GGGTGSGMGT LLISKIREEY P DRIMNTFS ...String:
MREIVHIQAG QCGNQIGAKF WEVISDEHGI DPTGSYHGDS DLQLERINVY YNEAAGNKYV PRAILVDLEP GTMDSVRSGP FGQIFRPDN FVFGQSGAGN NWAKGHYTEG AELVDSVLDV VRKESESCDC LQGFQLTHSL GGGTGSGMGT LLISKIREEY P DRIMNTFS VVPSPKVSDT VVEPYNATLS VHQLVENTDE TYCIDNEALY DICFRTLKLT TPTYGDLNHL VSATMSGVTT CL RFPGQLN ADLRKLAVNM VPFPRLHFFM PGFAPLTSRG SQQYRALTVP ELTQQMFDAK NMMAACDPRH GRYLTVAAVF RGR MSMKEV DEQMLNVQNK NSSYFVEWIP NNVKTAVCDI PPRGLKMSAT FIGNSTAIQE LFKRISEQFT AMFRRKAFLH WYTG EGMDE MEFTEAESNM NDLVSEYQQY QDATADEQGE FEEEGEEDEA

UniProtKB: Tubulin beta chain

-
Macromolecule #3: Tubulin alpha-1B chain

MacromoleculeName: Tubulin alpha-1B chain / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Sus scrofa (pig)
Molecular weightTheoretical: 50.204445 KDa
SequenceString: MRECISIHVG QAGVQIGNAC WELYCLEHGI QPDGQMPSDK TIGGGDDSFN TFFSETGAGK HVPRAVFVDL EPTVIDEVRT GTYRQLFHP EQLITGKEDA ANNYARGHYT IGKEIIDLVL DRIRKLADQC TGLQGFLVFH SFGGGTGSGF TSLLMERLSV D YGKKSKLE ...String:
MRECISIHVG QAGVQIGNAC WELYCLEHGI QPDGQMPSDK TIGGGDDSFN TFFSETGAGK HVPRAVFVDL EPTVIDEVRT GTYRQLFHP EQLITGKEDA ANNYARGHYT IGKEIIDLVL DRIRKLADQC TGLQGFLVFH SFGGGTGSGF TSLLMERLSV D YGKKSKLE FSIYPAPQVS TAVVEPYNSI LTTHTTLEHS DCAFMVDNEA IYDICRRNLD IERPTYTNLN RLISQIVSSI TA SLRFDGA LNVDLTEFQT NLVPYPRIHF PLATYAPVIS AEKAYHEQLS VAEITNACFE PANQMVKCDP RHGKYMACCL LYR GDVVPK DVNAAIATIK TKRSIQFVDW CPTGFKVGIN YQPPTVVPGG DLAKVQRAVC MLSNTTAIAE AWARLDHKFD LMYA KRAFV HWYVGEGMEE GEFSEAREDM AALEKDYEEV GVDSVEGEGE EEGEEY

UniProtKB: Tubulin alpha-1B chain

-
Macromolecule #4: TAXOL

MacromoleculeName: TAXOL / type: ligand / ID: 4 / Number of copies: 2 / Formula: TA1
Molecular weightTheoretical: 853.906 Da
Chemical component information

ChemComp-TA1:
TAXOL / medication, chemotherapy, alkaloid*YM

-
Macromolecule #5: GUANOSINE-5'-DIPHOSPHATE

MacromoleculeName: GUANOSINE-5'-DIPHOSPHATE / type: ligand / ID: 5 / Number of copies: 2 / Formula: GDP
Molecular weightTheoretical: 443.201 Da
Chemical component information

ChemComp-GDP:
GUANOSINE-5'-DIPHOSPHATE / GDP, energy-carrying molecule*YM

-
Macromolecule #6: GUANOSINE-5'-TRIPHOSPHATE

MacromoleculeName: GUANOSINE-5'-TRIPHOSPHATE / type: ligand / ID: 6 / Number of copies: 2 / Formula: GTP
Molecular weightTheoretical: 523.18 Da
Chemical component information

ChemComp-GTP:
GUANOSINE-5'-TRIPHOSPHATE / GTP, energy-carrying molecule*YM

-
Macromolecule #7: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 7 / Number of copies: 2 / Formula: MG
Molecular weightTheoretical: 24.305 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statehelical array

-
Sample preparation

BufferpH: 6.9
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: OTHER / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.5 µm / Nominal defocus min: 0.8 µm
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

+
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 8.83 Å
Applied symmetry - Helical parameters - Δ&Phi: -25.77 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Resolution.type: BY AUTHOR / Resolution: 3.1 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 353980
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
