- EMDB-44384: The in situ structure of MacAB-TolC in native state -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-44384
TitleThe in situ structure of MacAB-TolC in native state
Map data
Sample
  • Cell: MacAB-TolC expressing E. coli
Keywordstripartite efflux pump / MacAB-TolC / MEMBRANE PROTEIN
Biological speciesEscherichia coli (E. coli)
Methodsubtomogram averaging / cryo EM / Resolution: 14.0 Å
AuthorsHuo T / Yu Z / Wang Z
Funding support United States, 4 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R01GM143380 United States
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)R01HL162842 United States
Welch FoundationQ-2173-20230405 United States
Cancer Prevention and Research Institute of Texas (CPRIT)RP190602 United States
CitationJournal: To Be Published
Title: The assembly and efflux processes revealed by in situ structures of the ABC-type tripartite pump MacAB-TolC
Authors: Huo T / Zheng W / Yu Z / Wu Y / Ren Q / Cao J / Wang Z / Shi X
History
DepositionApr 2, 2024-
Header (metadata) releaseMay 7, 2025-
Map releaseMay 7, 2025-
UpdateMay 7, 2025-
Current statusMay 7, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_44384.map.gz / Format: CCP4 / Size: 166.4 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.76 Å/pix.
x 352 pix.
= 619.52 Å		1.76 Å/pix.
x 352 pix.
= 619.52 Å		1.76 Å/pix.
x 352 pix.
= 619.52 Å

Surface

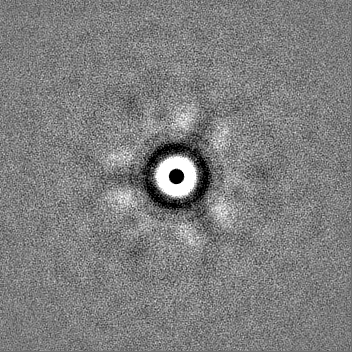

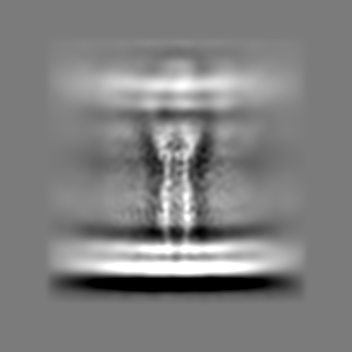

Projections

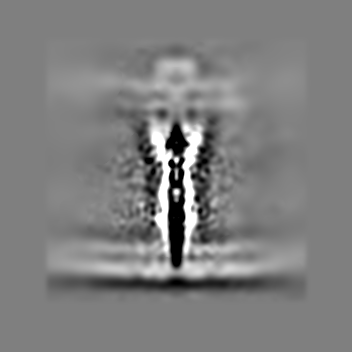

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.76 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 1.82
Minimum - Maximum-15.519558 - 23.104800999999998
Average (Standard dev.)0.049705047 (±0.99645334)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin-176-176-176
Dimensions352352352
Spacing352352352
CellA=B=C: 619.52 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_44384_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_44384_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : MacAB-TolC expressing E. coli

EntireName: MacAB-TolC expressing E. coli
Components
  • Cell: MacAB-TolC expressing E. coli

-
Supramolecule #1: MacAB-TolC expressing E. coli

SupramoleculeName: MacAB-TolC expressing E. coli / type: cell / ID: 1 / Parent: 0
Source (natural)Organism: Escherichia coli (E. coli)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsubtomogram averaging
Aggregation statecell

-
Sample preparation

BufferpH: 7
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Average electron dose: 3.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 5.0 µm / Nominal defocus min: 3.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Final reconstructionApplied symmetry - Point group: C3 (3 fold cyclic) / Resolution.type: BY AUTHOR / Resolution: 14.0 Å / Resolution method: FSC 0.143 CUT-OFF / Number subtomograms used: 5183
ExtractionNumber tomograms: 70 / Number images used: 8734
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Final angle assignmentType: PROJECTION MATCHING
FSC plot (resolution estimation)

+
