- EMDB-43792: phi29 empty capsid lacking pentons and portal -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-43792
Titlephi29 empty capsid lacking pentons and portal
Map dataphi29 capsid with no pentons or portal
Sample
  • Virus: Baccilus phage phi29 (bacteria)
Keywordsbacteriophage / prohead / HK97 fold / VIRUS / VIRUS LIKE PARTICLE
Biological speciesBaccilus phage phi29 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 6.3 Å
AuthorsWoodson ME / Morais MC / Seth S / Zhang W / Jardine PJ
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM122979 United States
CitationJournal: Sci Adv / Year: 2025
Title: Phi29 assembly intermediates reveal how scaffold interactions with capsid protein drive capsid construction and maturation.
Authors: Michael Woodson / Nikolai S Prokhorov / Seth D Scott / Wei Zhao / Wei Zhang / Kyung H Choi / Paul J Jardine / Marc C Morais /
Abstract: The self-assembly of bacteriophage capsids from major capsid proteins (MCPs) and scaffolding proteins (SPs) and the subsequent expansion of these capsids are essential steps in bacteriophage life ...The self-assembly of bacteriophage capsids from major capsid proteins (MCPs) and scaffolding proteins (SPs) and the subsequent expansion of these capsids are essential steps in bacteriophage life cycles. However, the mechanism by which assembly occurs remains poorly understood, and few intermediate states are available to illuminate the expansion of meta-stable procapsids into robust mature capsids. Here, we present the structure of a partially expanded phi29 procapsid that reveals distinct conformations of MCPs and allows visualization of SPs in multiple oligomeric states. These results suggest that formation of SP dimers, tetramers, and higher-order oligomers drives dissociation of SP from MCP to actuate capsid expansion. Hexons expand first, and we propose penton maturation is delayed by a symmetry match with SP oligomers. We further show that the prolate shape of phi29's capsid is possible due to concave hexons in the equatorial region of the capsid that may alter interactions with SP and explain the observed dependence of the prolate shape on SP.
History
DepositionFeb 23, 2024-
Header (metadata) releaseFeb 26, 2025-
Map releaseFeb 26, 2025-
UpdateMay 28, 2025-
Current statusMay 28, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_43792.map.gz / Format: CCP4 / Size: 2.7 GB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Annotationphi29 capsid with no pentons or portal
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.11 Å/pix.
x 900 pix.
= 997.2 Å		1.11 Å/pix.
x 900 pix.
= 997.2 Å		1.11 Å/pix.
x 900 pix.
= 997.2 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.108 Å
Density

Histogram

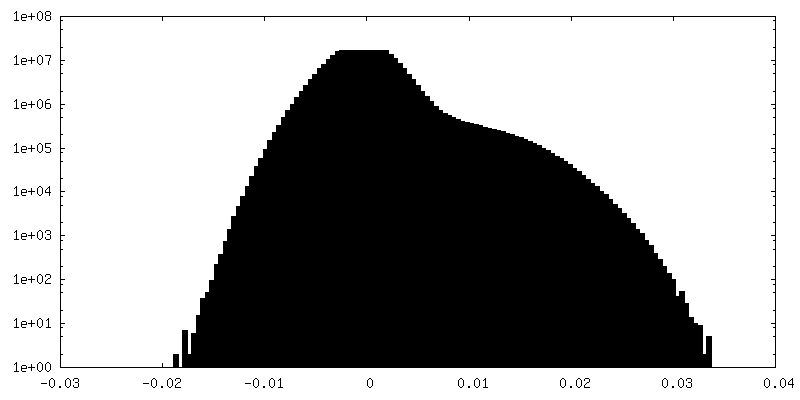

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0128
Minimum - Maximum-0.07677105 - 0.11165122
Average (Standard dev.)0.00015568732 (±0.0027091822)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions900900900
Spacing900900900
CellA=B=C: 997.2 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_43792_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_43792_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Baccilus phage phi29

EntireName: Baccilus phage phi29 (bacteria)
Components
  • Virus: Baccilus phage phi29 (bacteria)

-
Supramolecule #1: Baccilus phage phi29

SupramoleculeName: Baccilus phage phi29 / type: virus / ID: 1 / Parent: 0 / NCBI-ID: 884424 / Sci species name: Baccilus phage phi29 / Virus type: VIRUS-LIKE PARTICLE / Virus isolate: OTHER / Virus enveloped: No / Virus empty: Yes
Host (natural)Organism: Bacillus subtilis (bacteria)
Virus shellShell ID: 1 / Name: capsid / Diameter: 35.0 Å / T number (triangulation number): 3

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.8
Component:
ConcentrationFormulaName
25.0 mMC4H11NO3Tris
5.0 mMMgCl2magnesium chloride
50.0 mMNaClsodium chloride
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 100.0 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.0 mm / Nominal defocus max: 3.5 µm / Nominal defocus min: 1.0 µm
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionSoftware - Name: CTFFIND (ver. 4) / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final reconstructionApplied symmetry - Point group: C5 (5 fold cyclic) / Resolution.type: BY AUTHOR / Resolution: 6.3 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: RELION (ver. 4.0) / Number images used: 27412
Initial angle assignmentType: OTHER / Software - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION (ver. 3.0)
FSC plot (resolution estimation)

+
