- EMDB-39998: Focused refinement cryo-EM map of Mycobacteriophage Douge basepla... -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-39998
TitleFocused refinement cryo-EM map of Mycobacteriophage Douge baseplate (gp17 and gp23)
Map data
Sample
  • Virus: Mycolicibacterium smegmatis MC2 155 (bacteria)
KeywordsMycobacteriophage / phage structure / Icosahedral / cryo-EM / protein assembly / VIRUS / VIRAL PROTEIN
Biological speciesMycolicibacterium smegmatis MC2 155 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.75 Å
AuthorsMaharana J / Wang CH / Tsai LA / Lowary TL / Ho MC
Funding support Taiwan, 2 items
OrganizationGrant numberCountry
Academia Sinica (Taiwan) Taiwan
Ministry of Science and Technology (MoST, Taiwan) Taiwan
CitationJournal: To Be Published
Title: Mycobacteriophage cryo-EM studies reveal the siphophage architecture at the amino acid level and its host interaction for viral genome ejection
Authors: Maharana J / Wang CH / Tsai LA / Lowary TL / Ho MC
History
DepositionMay 2, 2024-
Header (metadata) releaseJun 25, 2025-
Map releaseJun 25, 2025-
UpdateJun 25, 2025-
Current statusJun 25, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_39998.map.gz / Format: CCP4 / Size: 512 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.06 Å/pix.
x 512 pix.
= 543.232 Å		1.06 Å/pix.
x 512 pix.
= 543.232 Å		1.06 Å/pix.
x 512 pix.
= 543.232 Å

Surface

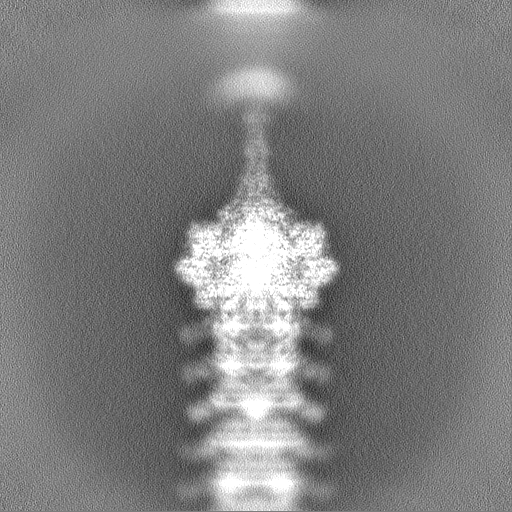

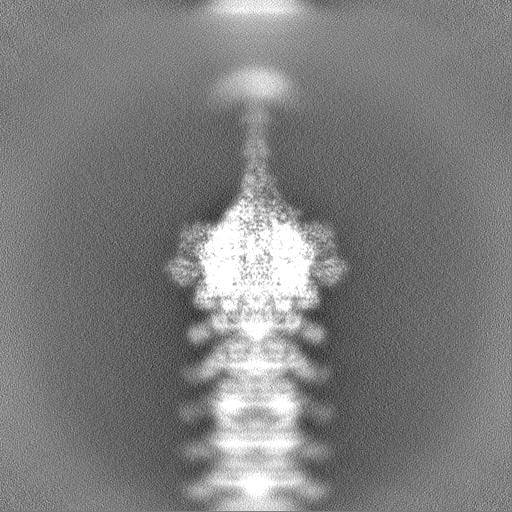

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.061 Å
Density

Histogram

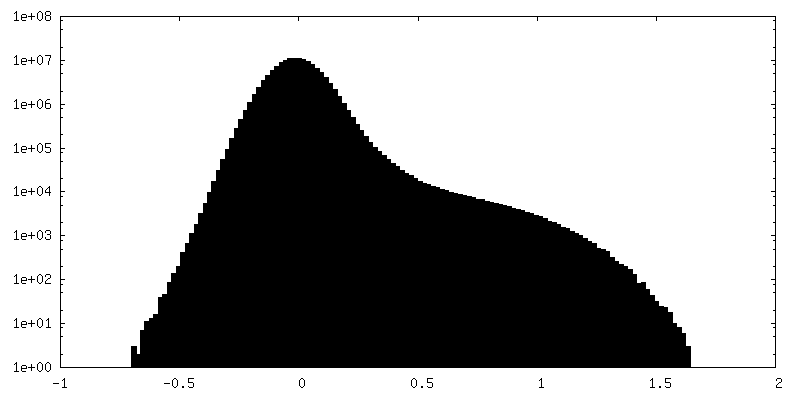

Histogram (log scale)
Contour LevelBy AUTHOR: 0.25
Minimum - Maximum-2.1055982 - 3.9288375
Average (Standard dev.)0.00070884946 (±0.11294141)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions512512512
Spacing512512512
CellA=B=C: 543.232 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_39998_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_39998_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Mycolicibacterium smegmatis MC2 155

EntireName: Mycolicibacterium smegmatis MC2 155 (bacteria)
Components
  • Virus: Mycolicibacterium smegmatis MC2 155 (bacteria)

-
Supramolecule #1: Mycolicibacterium smegmatis MC2 155

SupramoleculeName: Mycolicibacterium smegmatis MC2 155 / type: virus / ID: 1 / Parent: 0 / Macromolecule list: #1-#3 / NCBI-ID: 246196 / Sci species name: Mycolicibacterium smegmatis MC2 155 / Virus type: VIRION / Virus isolate: STRAIN / Virus enveloped: No / Virus empty: No

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.0 µm / Nominal defocus min: 0.43 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.75 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 78927
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
