- EMDB-39695: The structure of Banal-52 RBD and hACE2 complex -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-39695
TitleThe structure of Banal-52 RBD and hACE2 complex
Map data
Sample
  • Complex: The Banal52 RBD-hACE2 complex
    • Protein or peptide: Angiotensin-converting enzyme 2
    • Protein or peptide: Spike protein S1
KeywordsPDCoV / PROTEIN BINDING / ISOMERASE
Function / homology
Function and homology information


positive regulation of amino acid transport / angiotensin-converting enzyme 2 / positive regulation of L-proline import across plasma membrane / Hydrolases; Acting on peptide bonds (peptidases); Metallocarboxypeptidases / angiotensin-mediated drinking behavior / regulation of systemic arterial blood pressure by renin-angiotensin / positive regulation of gap junction assembly / tryptophan transport / regulation of cardiac conduction / regulation of vasoconstriction ...positive regulation of amino acid transport / angiotensin-converting enzyme 2 / positive regulation of L-proline import across plasma membrane / Hydrolases; Acting on peptide bonds (peptidases); Metallocarboxypeptidases / angiotensin-mediated drinking behavior / regulation of systemic arterial blood pressure by renin-angiotensin / positive regulation of gap junction assembly / tryptophan transport / regulation of cardiac conduction / regulation of vasoconstriction / peptidyl-dipeptidase activity / maternal process involved in female pregnancy / angiotensin maturation / Metabolism of Angiotensinogen to Angiotensins / receptor-mediated endocytosis of virus by host cell / negative regulation of signaling receptor activity / carboxypeptidase activity / Attachment and Entry / viral life cycle / positive regulation of cardiac muscle contraction / regulation of cytokine production / blood vessel diameter maintenance / regulation of transmembrane transporter activity / negative regulation of smooth muscle cell proliferation / brush border membrane / negative regulation of ERK1 and ERK2 cascade / cilium / positive regulation of reactive oxygen species metabolic process / metallopeptidase activity / endocytic vesicle membrane / regulation of cell population proliferation / virus receptor activity / regulation of inflammatory response / endopeptidase activity / Maturation of spike protein / viral translation / host cell surface / Translation of Structural Proteins / Virion Assembly and Release / host extracellular space / symbiont-mediated-mediated suppression of host tetherin activity / Potential therapeutics for SARS / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell / membrane fusion / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / Attachment and Entry / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / host cell surface receptor binding / symbiont-mediated suppression of host innate immune response / apical plasma membrane / receptor ligand activity / membrane raft / endocytosis involved in viral entry into host cell / endoplasmic reticulum lumen / symbiont entry into host cell / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / cell surface / extracellular space / extracellular exosome / zinc ion binding / extracellular region / identical protein binding / membrane / plasma membrane
Similarity search - Function
Collectrin domain / Renal amino acid transporter / Collectrin-like domain profile. / Peptidase M2, peptidyl-dipeptidase A / Angiotensin-converting enzyme / Peptidase family M2 domain profile. / Neutral zinc metallopeptidases, zinc-binding region signature. / Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal ...Collectrin domain / Renal amino acid transporter / Collectrin-like domain profile. / Peptidase M2, peptidyl-dipeptidase A / Angiotensin-converting enzyme / Peptidase family M2 domain profile. / Neutral zinc metallopeptidases, zinc-binding region signature. / Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, betacoronavirus / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal / Spike glycoprotein S2, coronavirus, heptad repeat 1 / Spike glycoprotein S2, coronavirus, heptad repeat 2 / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 1 (HR1) region profile. / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 2 (HR2) region profile. / Spike glycoprotein S2 superfamily, coronavirus / Spike glycoprotein S2, coronavirus / Coronavirus spike glycoprotein S2
Similarity search - Domain/homology
Spike glycoprotein / Angiotensin-converting enzyme 2
Similarity search - Component
Biological speciesBat coronavirus / Homo sapiens (human) / Coronavirinae (virus)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.95 Å
AuthorsSun JQ / Xu ZP
Funding support China, 1 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC)32270157 China
CitationJournal: To Be Published
Title: The structure of Banal52 RBD and hACE2 complex
Authors: Sun JQ
History
DepositionApr 7, 2024-
Header (metadata) releaseApr 9, 2025-
Map releaseApr 9, 2025-
UpdateApr 9, 2025-
Current statusApr 9, 2025Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_39695.map.gz / Format: CCP4 / Size: 149.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.85 Å/pix.
x 340 pix.
= 289. Å		0.85 Å/pix.
x 340 pix.
= 289. Å		0.85 Å/pix.
x 340 pix.
= 289. Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.85 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.127
Minimum - Maximum-0.0018180172 - 1.8672304
Average (Standard dev.)0.00061542395 (±0.018107463)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions340340340
Spacing340340340
CellA=B=C: 289.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_39695_half_map_1.map
Projections & Slices
AxesZYX

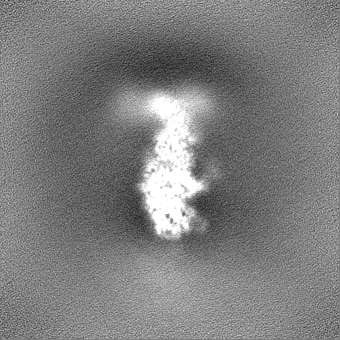

Projections

Slices (1/2)
Density Histograms

Histogram

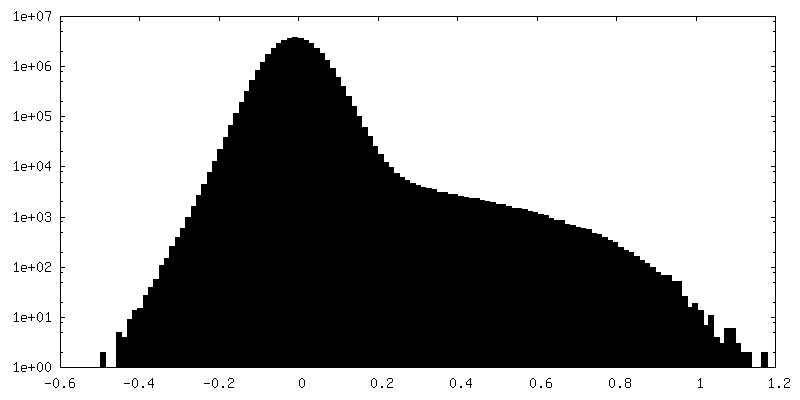

Histogram (log scale)

-
Half map: #1

Fileemd_39695_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : The Banal52 RBD-hACE2 complex

EntireName: The Banal52 RBD-hACE2 complex
Components
  • Complex: The Banal52 RBD-hACE2 complex
    • Protein or peptide: Angiotensin-converting enzyme 2
    • Protein or peptide: Spike protein S1

-
Supramolecule #1: The Banal52 RBD-hACE2 complex

SupramoleculeName: The Banal52 RBD-hACE2 complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Bat coronavirus

-
Macromolecule #1: Angiotensin-converting enzyme 2

MacromoleculeName: Angiotensin-converting enzyme 2 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: angiotensin-converting enzyme 2
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 92.556695 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSSSSWLLLS LVAVTAAQST IEEQAKTFLD KFNHEAEDLF YQSSLASWNY NTNITEENVQ NMNNAGDKWS AFLKEQSTLA QMYPLQEIQ NLTVKLQLQA LQQNGSSVLS EDKSKRLNTI LNTMSTIYST GKVCNPDNPQ ECLLLEPGLN EIMANSLDYN E RLWAWESW ...String:
MSSSSWLLLS LVAVTAAQST IEEQAKTFLD KFNHEAEDLF YQSSLASWNY NTNITEENVQ NMNNAGDKWS AFLKEQSTLA QMYPLQEIQ NLTVKLQLQA LQQNGSSVLS EDKSKRLNTI LNTMSTIYST GKVCNPDNPQ ECLLLEPGLN EIMANSLDYN E RLWAWESW RSEVGKQLRP LYEEYVVLKN EMARANHYED YGDYWRGDYE VNGVDGYDYS RGQLIEDVEH TFEEIKPLYE HL HAYVRAK LMNAYPSYIS PIGCLPAHLL GDMWGRFWTN LYSLTVPFGQ KPNIDVTDAM VDQAWDAQRI FKEAEKFFVS VGL PNMTQG FWENSMLTDP GNVQKAVCHP TAWDLGKGDF RILMCTKVTM DDFLTAHHEM GHIQYDMAYA AQPFLLRNGA NEGF HEAVG EIMSLSAATP KHLKSIGLLS PDFQEDNETE INFLLKQALT IVGTLPFTYM LEKWRWMVFK GEIPKDQWMK KWWEM KREI VGVVEPVPHD ETYCDPASLF HVSNDYSFIR YYTRTLYQFQ FQEALCQAAK HEGPLHKCDI SNSTEAGQKL FNMLRL GKS EPWTLALENV VGAKNMNVRP LLNYFEPLFT WLKDQNKNSF VGWSTDWSPY ADQSIKVRIS LKSALGDKAY EWNDNEM YL FRSSVAYAMR QYFLKVKNQM ILFGEEDVRV ANLKPRISFN FFVTAPKNVS DIIPRTEVEK AIRMSRSRIN DAFRLNDN S LEFLGIQPTL GPPNQPPVSI WLIVFGVVMG VIVVGIVILI FTGIRDRKKK NKARSGENPY ASIDISKGEN NPGFQNTDD VQTSF

UniProtKB: Angiotensin-converting enzyme 2

-
Macromolecule #2: Spike protein S1

MacromoleculeName: Spike protein S1 / type: protein_or_peptide / ID: 2
Details: Sequence reference for Banal-52 is not available in UniProt at the time of biocuration. Current sequence reference is from UniProt entry P0DTC2.
Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Coronavirinae (virus)
Molecular weightTheoretical: 25.082246 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: RVQPTESIVR FPNITNLCPF GEVFNATTFA SVYAWNRKRI SNCVADYSVL YNSTSFSTFK CYGVSPTKLN DLCFTNVYAD SFVVRGDEV RQIAPGQTGK IADYNYKLPD DFTGCVIAWN SNNLDSKVGG NYNYLYRLFR KSNLKPFERD ISTEIYQAGS T PCNGVEGF ...String:
RVQPTESIVR FPNITNLCPF GEVFNATTFA SVYAWNRKRI SNCVADYSVL YNSTSFSTFK CYGVSPTKLN DLCFTNVYAD SFVVRGDEV RQIAPGQTGK IADYNYKLPD DFTGCVIAWN SNNLDSKVGG NYNYLYRLFR KSNLKPFERD ISTEIYQAGS T PCNGVEGF NCYFPLQSYG FHPTNGVGYQ PYRVVVLSFE LLNAPATVCG PKKSTNLIKN KCVNF

UniProtKB: Spike glycoprotein

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 0.001 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.95 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 263892
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
