Basic information

Entry
Database: EMDB / ID: EMD-37460
TitleCryo-EM structure of the ATP-bound DppABCD complex
Map data
Sample
  • Complex: DppABCD
    • Protein or peptide: Probable dipeptide-transport ATP-binding protein ABC transporter DppD
    • Protein or peptide: Probable dipeptide-transport integral membrane protein ABC transporter DppB
    • Protein or peptide: Probable dipeptide-transport integral membrane protein ABC transporter DppC
    • Protein or peptide: Probable periplasmic dipeptide-binding lipoprotein DppA
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION
KeywordsDppABCD / ABC importer / Mycobacterium tuberculosis / MEMBRANE PROTEIN
Function / homology
Function and homology information


peptide transport / peptide transmembrane transporter activity / transmembrane transporter activity / ATP-binding cassette (ABC) transporter complex / transmembrane transport / periplasmic space / ATP hydrolysis activity / ATP binding / plasma membrane
Similarity search - Function
ABC transporter type 1, GsiC-like, N-terminal domain / : / : / Binding-prot-dependent transport system membrane comp, N-term / Oligopeptide/dipeptide ABC transporter, C-terminal / Oligopeptide/dipeptide transporter, C-terminal region / ABC transporter type 1, transmembrane domain MetI-like / MetI-like superfamily / Binding-protein-dependent transport system inner membrane component / ABC transporter integral membrane type-1 domain profile. ...ABC transporter type 1, GsiC-like, N-terminal domain / : / : / Binding-prot-dependent transport system membrane comp, N-term / Oligopeptide/dipeptide ABC transporter, C-terminal / Oligopeptide/dipeptide transporter, C-terminal region / ABC transporter type 1, transmembrane domain MetI-like / MetI-like superfamily / Binding-protein-dependent transport system inner membrane component / ABC transporter integral membrane type-1 domain profile. / Peptide/nickel binding protein, MppA-type / Solute-binding protein family 5 domain / Solute-binding protein family 5 / Bacterial extracellular solute-binding proteins, family 5 Middle / ABC transporter-like, conserved site / ABC transporters family signature. / ABC transporter / ABC transporter-like, ATP-binding domain / ATP-binding cassette, ABC transporter-type domain profile. / ATPases associated with a variety of cellular activities / AAA+ ATPase domain / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Probable periplasmic dipeptide-binding lipoprotein DppA / Probable dipeptide-transport ATP-binding protein ABC transporter DppD / Probable dipeptide-transport integral membrane protein ABC transporter DppB / Probable dipeptide-transport integral membrane protein ABC transporter DppC
Similarity search - Component
Biological speciesMycobacterium tuberculosis (strain ATCC 25618 / H37Rv) (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.86 Å
AuthorsHu T / Zhang B / Rao Z
Funding support China, 1 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC)32171217 China
CitationJournal: To Be Published
Title: Cryo-EM structure of the ATP-bound DppABCD complex
Authors: Hu T / Zhang B / Rao Z
History
DepositionSep 14, 2023-
Header (metadata) releaseSep 18, 2024-
Map releaseSep 18, 2024-
UpdateJul 16, 2025-
Current statusJul 16, 2025Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_37460.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.82 Å/pix.
x 384 pix.
= 314.88 Å		0.82 Å/pix.
x 384 pix.
= 314.88 Å		0.82 Å/pix.
x 384 pix.
= 314.88 Å

Surface

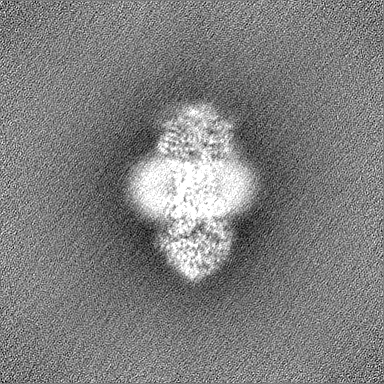

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.82 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.252
Minimum - Maximum-1.4430974 - 3.4207802
Average (Standard dev.)-0.00091403077 (±0.0798664)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 314.88 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_37460_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_37460_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : DppABCD

EntireName: DppABCD
Components
  • Complex: DppABCD
    • Protein or peptide: Probable dipeptide-transport ATP-binding protein ABC transporter DppD
    • Protein or peptide: Probable dipeptide-transport integral membrane protein ABC transporter DppB
    • Protein or peptide: Probable dipeptide-transport integral membrane protein ABC transporter DppC
    • Protein or peptide: Probable periplasmic dipeptide-binding lipoprotein DppA
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION

-
Supramolecule #1: DppABCD

SupramoleculeName: DppABCD / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#4
Source (natural)Organism: Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv) (bacteria)

-
Macromolecule #1: Probable dipeptide-transport ATP-binding protein ABC transporter DppD

MacromoleculeName: Probable dipeptide-transport ATP-binding protein ABC transporter DppD
type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv) (bacteria)
Molecular weightTheoretical: 59.018547 KDa
Recombinant expressionOrganism: Mycolicibacterium smegmatis MC2 155 (bacteria)
SequenceString: MSVPAAPLLS VEGLEVTFGT DAPAVCGVDL AVRSGQTVAV VGESGSGKST TAAAILGLLP AGGRITAGRV VFDGRDITGA DAKRLRSIR GREIGYVPQD PMTNLNPVWK VGFQVTEALR ANTDGRAARR RAVELLAEAG LPDPAKQAGR YPHQLSGGMC Q RALIAIGL ...String:
MSVPAAPLLS VEGLEVTFGT DAPAVCGVDL AVRSGQTVAV VGESGSGKST TAAAILGLLP AGGRITAGRV VFDGRDITGA DAKRLRSIR GREIGYVPQD PMTNLNPVWK VGFQVTEALR ANTDGRAARR RAVELLAEAG LPDPAKQAGR YPHQLSGGMC Q RALIAIGL AGRPRLLIAD QPTSALDVTV QRQVLDHLQG LTDELGTALL LITHDLALAA QRAEAVVVVR RGVVVESGAA QS ILQSPQH EYTRRLVAAA PSLTARSRRP PESRSRATTQ AGDILVVSEL TKIYRESRGA PWRRVESRAV DGVSFRLPRA STL AIVGES GSGKSTLARM VLGLLQPTSG TVVFDGTYDV GALARDQVLA FRRRVQPVFQ NPYSSLDPMY SVFRAIEEPL RVHH VGDRR QRQRAVRELV DQVALPSSIL GRRPRELSGG QRQRVAIARA LALRPEVLVC DQAVSALDVL VQAQILDLLA DLQAD LGLT YLFISHDLAV IRQIADDVLV MRAGRVVEHA STEEVFSRPR HEYTRQLLQA IPGAPSAPRK VGNL

UniProtKB: Probable dipeptide-transport ATP-binding protein ABC transporter DppD

-
Macromolecule #2: Probable dipeptide-transport integral membrane protein ABC transp...

MacromoleculeName: Probable dipeptide-transport integral membrane protein ABC transporter DppB
type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv) (bacteria)
Molecular weightTheoretical: 32.563557 KDa
Recombinant expressionOrganism: Mycolicibacterium smegmatis MC2 155 (bacteria)
SequenceString: MGWYVARRVA VMVPVFLGAT LLIYGMVFLL PGDPVAALAG DRPLTPAVAA QLRSHYHLDD PFLVQYLRYL GGILHGDLGR AYSGLPVSA VLAHAFPVTI RLALIALAVE AVLGIGFGVI AGLRQGGIFD SAVLVTGLVI IAIPIFVLGF LAQFLFGVQL E IAPVTVGE ...String:
MGWYVARRVA VMVPVFLGAT LLIYGMVFLL PGDPVAALAG DRPLTPAVAA QLRSHYHLDD PFLVQYLRYL GGILHGDLGR AYSGLPVSA VLAHAFPVTI RLALIALAVE AVLGIGFGVI AGLRQGGIFD SAVLVTGLVI IAIPIFVLGF LAQFLFGVQL E IAPVTVGE RASVGRLLLP GIVLGAMSFA YVVRLTRSAV AANAHADYVR TATAKGLSRP RVVTVHILRN SLIPVVTFLG AD LGALMGG AIVTEGIFNI HGVGGVLYQA VTRQETPTVV SIVTVLVLIY LITNLLVDLL YAALDPRIRY G

UniProtKB: Probable dipeptide-transport integral membrane protein ABC transporter DppB

-
Macromolecule #3: Probable dipeptide-transport integral membrane protein ABC transp...

MacromoleculeName: Probable dipeptide-transport integral membrane protein ABC transporter DppC
type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv) (bacteria)
Molecular weightTheoretical: 30.48573 KDa
Recombinant expressionOrganism: Mycolicibacterium smegmatis MC2 155 (bacteria)
SequenceString: MAEHTGFWLD AWRGLRRRPK FVIAAALILL ILVVAAFPSL FTAADPTYAD PSQSMLAPSA AHWFGTDLQG HDIYSRTVYG ARASVTVGL GATLAVFVVG GALGALAGFY GSWIDAVVSR VTDVFLGLPL LLAAIVLMQV MHHRTVWTVI AILALFGWPQ V ARIARGAV ...String:
MAEHTGFWLD AWRGLRRRPK FVIAAALILL ILVVAAFPSL FTAADPTYAD PSQSMLAPSA AHWFGTDLQG HDIYSRTVYG ARASVTVGL GATLAVFVVG GALGALAGFY GSWIDAVVSR VTDVFLGLPL LLAAIVLMQV MHHRTVWTVI AILALFGWPQ V ARIARGAV LEVRASDYVL AAKALGLNRF QILLRHALPN AVGPVIAVAT VALGIFIVTE ATLSYLGVGL PTSVVSWGGD IN VAQTRLR SGSPILFYPA GALAITVLAF MMMGDALRDA LDPASRAWRA

UniProtKB: Probable dipeptide-transport integral membrane protein ABC transporter DppC

-
Macromolecule #4: Probable periplasmic dipeptide-binding lipoprotein DppA

MacromoleculeName: Probable periplasmic dipeptide-binding lipoprotein DppA
type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv) (bacteria)
Molecular weightTheoretical: 56.057242 KDa
Recombinant expressionOrganism: Mycolicibacterium smegmatis MC2 155 (bacteria)
SequenceString: CGGGVLSPDV VLVNGGEPPN PLIPTGTNDS NGGRIIDRLF AGLMSYDAVG KPSLEVAQSI ESADNVNYRI TVKPGWKFTD GSPVTAHSF VDAWNYGALS TNAQLQQHFF SPIEGFDDVA GAPGDKSRTT MSGLRVVNDL EFTVRLKAPT IDFTLRLGHS S FYPLPDSA ...String:
CGGGVLSPDV VLVNGGEPPN PLIPTGTNDS NGGRIIDRLF AGLMSYDAVG KPSLEVAQSI ESADNVNYRI TVKPGWKFTD GSPVTAHSF VDAWNYGALS TNAQLQQHFF SPIEGFDDVA GAPGDKSRTT MSGLRVVNDL EFTVRLKAPT IDFTLRLGHS S FYPLPDSA FRDMAAFGRN PIGNGPYKLA DGPAGPAWEH NVRIDLVPNP DYHGNRKPRN KGLRFEFYAN LDTAYADLLS GN LDVLDTI PPSALTVYQR DLGDHATSGP AAINQTLDTP LRLPHFGGEE GRLRRLALSA AINRPQICQQ IFAGTRSPAR DFT ARSLPG FDPNLPGNEV LDYDPQRARR LWAQADAISP WSGRYAIAYN ADAGHRDWVD AVANSIKNVL GIDAVAAPQP TFAG FRTQI TNRAIDSAFR AGWRGDYPSM IEFLAPLFTA GAGSNDVGYI NPEFDAALAA AEAAPTLTES HELVNDAQRI LFHDM PVVP LWDYISVVGW SSQVSNVTVT WNGLPDYENI VKA

UniProtKB: Probable periplasmic dipeptide-binding lipoprotein DppA

-
Macromolecule #5: ADENOSINE-5'-TRIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-TRIPHOSPHATE / type: ligand / ID: 5 / Number of copies: 2 / Formula: ATP
Molecular weightTheoretical: 507.181 Da
Chemical component information

ChemComp-ATP:
ADENOSINE-5'-TRIPHOSPHATE / ATP, energy-carrying molecule*YM

-
Macromolecule #6: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 6 / Number of copies: 2 / Formula: MG
Molecular weightTheoretical: 24.305 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.2 µm / Nominal defocus min: 1.4000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.86 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 65444
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
