Basic information

Entry
Database: EMDB / ID: EMD-33242
TitleCryo-EM structure of Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, state 1
Map dataNa -NQR state 1
Sample
  • Complex: Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, state 1
    • Protein or peptide: x 6 types
  • Ligand: x 7 types
Function / homology
Function and homology information


riboflavin binding / NADH:ubiquinone reductase (Na+-transporting) / Gram-negative-bacterium-type cell wall / oxidoreductase activity, acting on NAD(P)H, quinone or similar compound as acceptor / sodium ion transport / FAD binding / respiratory electron transport chain / transmembrane transport / 2 iron, 2 sulfur cluster binding / FMN binding ...riboflavin binding / NADH:ubiquinone reductase (Na+-transporting) / Gram-negative-bacterium-type cell wall / oxidoreductase activity, acting on NAD(P)H, quinone or similar compound as acceptor / sodium ion transport / FAD binding / respiratory electron transport chain / transmembrane transport / 2 iron, 2 sulfur cluster binding / FMN binding / electron transfer activity / metal ion binding / plasma membrane
Similarity search - Function
Na(+)-translocating NADH-quinone reductase subunit B / Na(+)-translocating NADH-quinone reductase subunit E / Na(+)-translocating NADH-quinone reductase subunit D / Na(+)-translocating NADH-quinone reductase subunit A / Na(+)-translocating NADH-quinone reductase subunit A, C-terminal domain / Na(+)-translocating NADH-quinone reductase subunit A (NQRA) / NQRA C-terminal domain / Na(+)-translocating NADH-quinone reductase subunit C / NqrDE/RnfAE / Ion-translocating oxidoreductase NqrB/RnfD ...Na(+)-translocating NADH-quinone reductase subunit B / Na(+)-translocating NADH-quinone reductase subunit E / Na(+)-translocating NADH-quinone reductase subunit D / Na(+)-translocating NADH-quinone reductase subunit A / Na(+)-translocating NADH-quinone reductase subunit A, C-terminal domain / Na(+)-translocating NADH-quinone reductase subunit A (NQRA) / NQRA C-terminal domain / Na(+)-translocating NADH-quinone reductase subunit C / NqrDE/RnfAE / Ion-translocating oxidoreductase NqrB/RnfD / Na(+)-translocating NADH-quinone reductase subunit F / : / Rnf-Nqr subunit, membrane protein / NQR2, RnfD, RnfE family / FMN-binding / FMN-binding domain / FMN_bind / Flavoprotein pyridine nucleotide cytochrome reductase-like, FAD-binding domain / Oxidoreductase FAD-binding domain / 2Fe-2S iron-sulfur cluster binding domain / Beta-grasp domain superfamily / 2Fe-2S ferredoxin-type iron-sulfur binding domain profile. / 2Fe-2S ferredoxin-type iron-sulfur binding domain / 2Fe-2S ferredoxin-like superfamily / Oxidoreductase FAD/NAD(P)-binding / Oxidoreductase NAD-binding domain / FAD-binding domain, ferredoxin reductase-type / Ferredoxin-NADP reductase (FNR), nucleotide-binding domain / Ferredoxin reductase-type FAD binding domain profile. / Riboflavin synthase-like beta-barrel
Similarity search - Domain/homology
Na(+)-translocating NADH-quinone reductase subunit B / Na(+)-translocating NADH-quinone reductase subunit A / Na(+)-translocating NADH-quinone reductase subunit F / Na(+)-translocating NADH-quinone reductase subunit E / Na(+)-translocating NADH-quinone reductase subunit D / Na(+)-translocating NADH-quinone reductase subunit C
Similarity search - Component
Biological speciesVibrio cholerae O395 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.1 Å
AuthorsKishikawa J / Ishikawa M / Masuya T / Murai M / Barquera B / Miyoshi H
Funding support Japan, United States, 5 items
OrganizationGrant numberCountry
Japan Society for the Promotion of Science (JSPS)20K06514 Japan
Japan Society for the Promotion of Science (JSPS)21H02130 Japan
Japan Society for the Promotion of Science (JSPS)22K14837 Japan
Japan Society for the Promotion of Science (JSPS)22H02273 Japan
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)R01-AI132580 United States
CitationJournal: Nat Commun / Year: 2022
Title: Cryo-EM structures of Na-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae.
Authors: Jun-Ichi Kishikawa / Moe Ishikawa / Takahiro Masuya / Masatoshi Murai / Yuki Kitazumi / Nicole L Butler / Takayuki Kato / Blanca Barquera / Hideto Miyoshi /
Abstract: The Na-pumping NADH-ubiquinone oxidoreductase (Na-NQR) couples electron transfer from NADH to ubiquinone with Na-pumping, generating an electrochemical Na gradient that is essential for energy- ...The Na-pumping NADH-ubiquinone oxidoreductase (Na-NQR) couples electron transfer from NADH to ubiquinone with Na-pumping, generating an electrochemical Na gradient that is essential for energy-consuming reactions in bacteria. Since Na-NQR is exclusively found in prokaryotes, it is a promising target for highly selective antibiotics. However, the molecular mechanism of inhibition is not well-understood for lack of the atomic structural information about an inhibitor-bound state. Here we present cryo-electron microscopy structures of Na-NQR from Vibrio cholerae with or without a bound inhibitor at 2.5- to 3.1-Å resolution. The structures reveal the arrangement of all six redox cofactors including a herein identified 2Fe-2S cluster located between the NqrD and NqrE subunits. A large part of the hydrophilic NqrF is barely visible in the density map, suggesting a high degree of flexibility. This flexibility may be responsible to reducing the long distance between the 2Fe-2S centers in NqrF and NqrD/E. Two different types of specific inhibitors bind to the N-terminal region of NqrB, which is disordered in the absence of inhibitors. The present study provides a foundation for understanding the function of Na-NQR and the binding manner of specific inhibitors.
History
DepositionApr 19, 2022-
Header (metadata) releaseJul 20, 2022-
Map releaseJul 20, 2022-
UpdateAug 10, 2022-
Current statusAug 10, 2022Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_33242.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationNa -NQR state 1
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.88 Å/pix.
x 320 pix.
= 281.6 Å		0.88 Å/pix.
x 320 pix.
= 281.6 Å		0.88 Å/pix.
x 320 pix.
= 281.6 Å

Surface

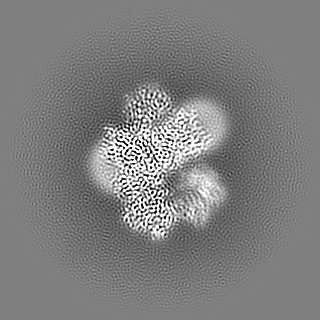

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.88 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.5
Minimum - Maximum-2.6202404 - 3.871993
Average (Standard dev.)-1.4573784e-06 (±0.09820299)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions320320320
Spacing320320320
CellA=B=C: 281.6 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_33242_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: The consensus map of Na -NQR

Fileemd_33242_additional_1.map
AnnotationThe consensus map of Na -NQR
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Na -NQR state 1, half map 2

Fileemd_33242_half_map_1.map
AnnotationNa -NQR state 1, half map 2
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Na -NQR state 1, half map 1

Fileemd_33242_half_map_2.map
AnnotationNa -NQR state 1, half map 1
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, ...

EntireName: Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, state 1
Components
  • Complex: Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, state 1
    • Protein or peptide: Na(+)-translocating NADH-quinone reductase subunit A
    • Protein or peptide: Na(+)-translocating NADH-quinone reductase subunit B
    • Protein or peptide: Na(+)-translocating NADH-quinone reductase subunit C
    • Protein or peptide: Na(+)-translocating NADH-quinone reductase subunit D
    • Protein or peptide: Na(+)-translocating NADH-quinone reductase subunit E
    • Protein or peptide: Na(+)-translocating NADH-quinone reductase subunit F
  • Ligand: FLAVIN MONONUCLEOTIDE
  • Ligand: RIBOFLAVIN
  • Ligand: 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine
  • Ligand: DODECYL-BETA-D-MALTOSIDE
  • Ligand: FE2/S2 (INORGANIC) CLUSTER
  • Ligand: CALCIUM ION
  • Ligand: FLAVIN-ADENINE DINUCLEOTIDE

+
Supramolecule #1: Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, ...

SupramoleculeName: Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, state 1
type: complex / Chimera: Yes / ID: 1 / Parent: 0 / Macromolecule list: #1-#6
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Recombinant expressionOrganism: Vibrio cholerae (bacteria) / Recombinant plasmid: pBAD
Molecular weightExperimental: 220 KDa

+
Macromolecule #1: Na(+)-translocating NADH-quinone reductase subunit A

MacromoleculeName: Na(+)-translocating NADH-quinone reductase subunit A / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: NADH:ubiquinone reductase (Na+-transporting)
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Molecular weightTheoretical: 48.680734 KDa
Recombinant expressionOrganism: Vibrio cholerae (bacteria)
SequenceString: MITIKKGLDL PIAGTPSQVI SDGKAIKKVA LLGEEYVGMR PTMHVRVGDE VKKAQILFED KKNPGVKFTS PVSGKVVEIN RGAKRVLQS VVIEVAGDDQ VTFDKFEANQ LASLNRDAIK TQLVESGLWT AFRTRPFSKV PAIDSTSEAI FVTAMDTNPL A AEPTVVIN ...String:
MITIKKGLDL PIAGTPSQVI SDGKAIKKVA LLGEEYVGMR PTMHVRVGDE VKKAQILFED KKNPGVKFTS PVSGKVVEIN RGAKRVLQS VVIEVAGDDQ VTFDKFEANQ LASLNRDAIK TQLVESGLWT AFRTRPFSKV PAIDSTSEAI FVTAMDTNPL A AEPTVVIN EQSEAFVAGL DVLSALTTGK VYVCKKGTSL PRSQQPNVEE HVFDGPHPAG LAGTHMHFLY PVSADHVAWS IN YQDVIAV GQLFLTGELY TQRVVSLAGP VVNKPRLVRT VMGASLEQLV DSEIMPGEVR IISGSVLSGT KATGPHAYLG RYH LQVSVL REGRDKELFG WAMPGKNKFS VTRSFLGHLF KGQVYNMTTT TNGSDRSMVP IGNYEKVMPL DMEPTLLLRD LCAG DSDSA VRLGALELDE EDLALCTFVC PGKYEYGQLL RECLDKIEKE G

+
Macromolecule #2: Na(+)-translocating NADH-quinone reductase subunit B

MacromoleculeName: Na(+)-translocating NADH-quinone reductase subunit B / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO / EC number: NADH:ubiquinone reductase (Na+-transporting)
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Molecular weightTheoretical: 45.390883 KDa
Recombinant expressionOrganism: Vibrio cholerae (bacteria)
SequenceString: MGLKKFLEDI EHHFEPGGKH EKWFALYEAA ATLFYTPGLV TKRSSHVRDS VDLKRIMIMV WLAVFPAMFW GMYNAGGQAI AALNHLYSG DQLAAIVAGN WHYWLTEMLG GTMSSDAGWG SKMLLGATYF LPIYATVFIV GGFWEVLFCM VRKHEVNEGF F VTSILFAL ...String:
MGLKKFLEDI EHHFEPGGKH EKWFALYEAA ATLFYTPGLV TKRSSHVRDS VDLKRIMIMV WLAVFPAMFW GMYNAGGQAI AALNHLYSG DQLAAIVAGN WHYWLTEMLG GTMSSDAGWG SKMLLGATYF LPIYATVFIV GGFWEVLFCM VRKHEVNEGF F VTSILFAL IVPPTLPLWQ AALGITFGVV VAKEVFGGTG RNFLNPALAG RAFLFFAYPA QISGDLVWTA ADGYSGATAL SQ WAQGGAG ALINNATGQT ITWMDAFIGN IPGSIGEVST LALMIGAAFI VYMGIASWRI IGGVMIGMIL LSTLFNVIGS DTN AMFNMP WHWHLVLGGF AFGMFFMATD PVSASFTNSG KWAYGILIGV MCVLIRVVNP AYPEGMMLAI LFANLFAPLF DHVV VERNI KRRLARYGKQ

+
Macromolecule #3: Na(+)-translocating NADH-quinone reductase subunit C

MacromoleculeName: Na(+)-translocating NADH-quinone reductase subunit C / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO / EC number: NADH:ubiquinone reductase (Na+-transporting)
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Molecular weightTheoretical: 27.65227 KDa
Recombinant expressionOrganism: Vibrio cholerae (bacteria)
SequenceString: MASNNDSIKK TLFVVIALSL VCSIIVSAAA VGLRDKQKEN AALDKQSKIL QVAGIEAKGS KQIVELFNKS IEPRLVDFNT GDFVEGDAA NYDQRKAAKE ASESIKLTAE QDKAKIQRRA NVGVVYLVKD GDKTSKVILP VHGNGLWSMM YAFVAVETDG N TVSGLTYY ...String:
MASNNDSIKK TLFVVIALSL VCSIIVSAAA VGLRDKQKEN AALDKQSKIL QVAGIEAKGS KQIVELFNKS IEPRLVDFNT GDFVEGDAA NYDQRKAAKE ASESIKLTAE QDKAKIQRRA NVGVVYLVKD GDKTSKVILP VHGNGLWSMM YAFVAVETDG N TVSGLTYY EQGETPGLGG EVENPAWRAQ WVGKKLFDEN HKPAIKIVKG GAPQGSEHGV DGLSGATLTS NGVQNTFDFW LG DMGFGPF LTKVRDGGLN

+
Macromolecule #4: Na(+)-translocating NADH-quinone reductase subunit D

MacromoleculeName: Na(+)-translocating NADH-quinone reductase subunit D / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO / EC number: NADH:ubiquinone reductase (Na+-transporting)
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Molecular weightTheoretical: 22.853217 KDa
Recombinant expressionOrganism: Vibrio cholerae (bacteria)
SequenceString: MSSAKELKKS VLAPVLDNNP IALQVLGVCS ALAVTTKLET AFVMTLAVMF VTALSNFFVS LIRNHIPNSV RIIVQMAIIA SLVIVVDQI LKAYLYDISK QLSVFVGLII TNCIVMGRAE AFAMKSEPIP SFIDGIGNGL GYGFVLMTVG FFRELLGSGK L FGLEVLPL ...String:
MSSAKELKKS VLAPVLDNNP IALQVLGVCS ALAVTTKLET AFVMTLAVMF VTALSNFFVS LIRNHIPNSV RIIVQMAIIA SLVIVVDQI LKAYLYDISK QLSVFVGLII TNCIVMGRAE AFAMKSEPIP SFIDGIGNGL GYGFVLMTVG FFRELLGSGK L FGLEVLPL ISNGGWYQPN GLMLLAPSAF FLIGFMIWAI RTFKPEQVEA KE

+
Macromolecule #5: Na(+)-translocating NADH-quinone reductase subunit E

MacromoleculeName: Na(+)-translocating NADH-quinone reductase subunit E / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO / EC number: NADH:ubiquinone reductase (Na+-transporting)
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Molecular weightTheoretical: 21.481678 KDa
Recombinant expressionOrganism: Vibrio cholerae (bacteria)
SequenceString: MEHYISLLVK SIFIENMALS FFLGMCTFLA VSKKVKTSFG LGIAVIVVLT ISVPVNNLVY NLVLKPDALV EGVDLSFLNF ITFIGVIAA LVQILEMILD RFFPPLYNAL GIFLPLITVN CAIFGGVSFM VQRDYSFAES VVYGFGSGVG WMLAIVALAG I REKMKYSD ...String:
MEHYISLLVK SIFIENMALS FFLGMCTFLA VSKKVKTSFG LGIAVIVVLT ISVPVNNLVY NLVLKPDALV EGVDLSFLNF ITFIGVIAA LVQILEMILD RFFPPLYNAL GIFLPLITVN CAIFGGVSFM VQRDYSFAES VVYGFGSGVG WMLAIVALAG I REKMKYSD VPPGLRGLGI TFITAGLMAL GFMSFSGVQL

+
Macromolecule #6: Na(+)-translocating NADH-quinone reductase subunit F

MacromoleculeName: Na(+)-translocating NADH-quinone reductase subunit F / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO / EC number: NADH:ubiquinone reductase (Na+-transporting)
Source (natural)Organism: Vibrio cholerae O395 (bacteria)
Molecular weightTheoretical: 45.942363 KDa
Recombinant expressionOrganism: Vibrio cholerae (bacteria)
SequenceString: MSTIIFGVVM FTLIILALVL VILFAKSKLV PTGDITISIN GDPEKAIVTQ PGGKLLTALA GAGVFVSSAC GGGGSCGQCR VKIKSGGGD ILPTELDHIS KGEAREGERL ACQVAVKADM DLELPEEIFG VKKWECTVIS NDNKATFIKE LKLAIPDGES V PFRAGGYI ...String:
MSTIIFGVVM FTLIILALVL VILFAKSKLV PTGDITISIN GDPEKAIVTQ PGGKLLTALA GAGVFVSSAC GGGGSCGQCR VKIKSGGGD ILPTELDHIS KGEAREGERL ACQVAVKADM DLELPEEIFG VKKWECTVIS NDNKATFIKE LKLAIPDGES V PFRAGGYI QIEAPAHHVK YADFDVPEKY RGDWDKFNLF RYESKVDEPI IRAYSMANYP EEFGIIMLNV RIATPPPNNP NV PPGQMSS YIWSLKAGDK CTISGPFGEF FAKDTDAEMV FIGGGAGMAP MRSHIFDQLK RLKSKRKMSY WYGARSKREM FYV EDFDGL AAENDNFVWH CALSDPQPED NWTGYTGFIH NVLYENYLKD HEAPEDCEYY MCGPPMMNAA VINMLKNLGV EEEN ILLDD FGGHHHHHH

+
Macromolecule #7: FLAVIN MONONUCLEOTIDE

MacromoleculeName: FLAVIN MONONUCLEOTIDE / type: ligand / ID: 7 / Number of copies: 2 / Formula: FMN
Molecular weightTheoretical: 456.344 Da
Chemical component information

ChemComp-FMN:
FLAVIN MONONUCLEOTIDE

+
Macromolecule #8: RIBOFLAVIN

MacromoleculeName: RIBOFLAVIN / type: ligand / ID: 8 / Number of copies: 1 / Formula: RBF
Molecular weightTheoretical: 376.364 Da
Chemical component information

ChemComp-RBF:
RIBOFLAVIN

+
Macromolecule #9: 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine

MacromoleculeName: 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine / type: ligand / ID: 9 / Number of copies: 2 / Formula: PEE
Molecular weightTheoretical: 744.034 Da
Chemical component information

ChemComp-PEE:
1,2-dioleoyl-sn-glycero-3-phosphoethanolamine / DOPE, phospholipid*YM

+
Macromolecule #10: DODECYL-BETA-D-MALTOSIDE

MacromoleculeName: DODECYL-BETA-D-MALTOSIDE / type: ligand / ID: 10 / Number of copies: 2 / Formula: LMT
Molecular weightTheoretical: 510.615 Da
Chemical component information

ChemComp-LMT:
DODECYL-BETA-D-MALTOSIDE / detergent*YM

+
Macromolecule #11: FE2/S2 (INORGANIC) CLUSTER

MacromoleculeName: FE2/S2 (INORGANIC) CLUSTER / type: ligand / ID: 11 / Number of copies: 2 / Formula: FES
Molecular weightTheoretical: 175.82 Da
Chemical component information

ChemComp-FES:
FE2/S2 (INORGANIC) CLUSTER

+
Macromolecule #12: CALCIUM ION

MacromoleculeName: CALCIUM ION / type: ligand / ID: 12 / Number of copies: 1 / Formula: CA
Molecular weightTheoretical: 40.078 Da

+
Macromolecule #13: FLAVIN-ADENINE DINUCLEOTIDE

MacromoleculeName: FLAVIN-ADENINE DINUCLEOTIDE / type: ligand / ID: 13 / Number of copies: 1 / Formula: FAD
Molecular weightTheoretical: 785.55 Da
Chemical component information

ChemComp-FAD:
FLAVIN-ADENINE DINUCLEOTIDE / FAD*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration11 mg/mL
BufferpH: 8
Component:
ConcentrationName
50.0 mMTris-HCl
100.0 mMNaCl
1.0 mMEDTA
0.05 %DDM
GridModel: Quantifoil R1.2/1.3 / Material: COPPER / Mesh: 300 / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Atmosphere: AIR
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Number grids imaged: 1 / Number real images: 9027 / Average exposure time: 6.5 sec. / Average electron dose: 65.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 0.0039 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.8 µm / Nominal magnification: 81000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 2570565
CTF correctionSoftware - Name: cryoSPARC (ver. 3.3.1)
Final reconstructionApplied symmetry - Point group: C1 (asymmetric) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 3.1 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 3.3.1) / Number images used: 82790
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 3.3.1)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 3.3.1)
Final 3D classificationNumber classes: 15 / Software - Name: cryoSPARC (ver. 3.3.1)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelPDB ID:

4p6v
PDB Unreleased entry

RefinementSpace: REAL / Protocol: OTHER
Output model

PDB-7xk3:
Cryo-EM structure of Na+-pumping NADH-ubiquinone oxidoreductase from Vibrio cholerae, state 1

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
