Basic information

Entry
Database: EMDB / ID: EMD-26302
TitleRFC:PCNA bound to DNA with a ssDNA gap of five nucleotides
Map dataDensity modified map
Sample
  • Complex: RFC bound to PCNA and DNA with a ssDNA gap of five nucleotides
    • Protein or peptide: x 6 types
    • DNA: x 3 types
  • Ligand: x 3 types
Keywordssliding clamp / DNA replication&repair / AAA+ / clamp loader / BRCT domain / REPLICATION / REPLICATION-DNA complex
Function / homology
Function and homology information


positive regulation of DNA metabolic process / Rad17 RFC-like complex / Mismatch repair (MMR) directed by MSH2:MSH6 (MutSalpha) / Gap-filling DNA repair synthesis and ligation in GG-NER / meiotic mismatch repair / Processive synthesis on the lagging strand / Elg1 RFC-like complex / Removal of the Flap Intermediate / DNA replication factor C complex / Ctf18 RFC-like complex ...positive regulation of DNA metabolic process / Rad17 RFC-like complex / Mismatch repair (MMR) directed by MSH2:MSH6 (MutSalpha) / Gap-filling DNA repair synthesis and ligation in GG-NER / meiotic mismatch repair / Processive synthesis on the lagging strand / Elg1 RFC-like complex / Removal of the Flap Intermediate / DNA replication factor C complex / Ctf18 RFC-like complex / Polymerase switching / E3 ubiquitin ligases ubiquitinate target proteins / maintenance of DNA trinucleotide repeats / DNA clamp loader activity / SUMOylation of DNA replication proteins / Translesion synthesis by REV1 / Translesion synthesis by POLK / Translesion synthesis by POLI / Translesion Synthesis by POLH / DNA replication checkpoint signaling / establishment of mitotic sister chromatid cohesion / Termination of translesion DNA synthesis / Activation of ATR in response to replication stress / PCNA complex / lagging strand elongation / DNA damage tolerance / silent mating-type cassette heterochromatin formation / sister chromatid cohesion / mitotic sister chromatid cohesion / error-free translesion synthesis / DNA polymerase processivity factor activity / leading strand elongation / Gap-filling DNA repair synthesis and ligation in TC-NER / Dual incision in TC-NER / translesion synthesis / subtelomeric heterochromatin formation / mismatch repair / positive regulation of DNA repair / DNA damage checkpoint signaling / positive regulation of DNA replication / replication fork / nucleotide-excision repair / DNA-templated DNA replication / mitotic cell cycle / chromosome, telomeric region / cell division / DNA repair / ATP hydrolysis activity / DNA binding / ATP binding / identical protein binding / nucleus / cytosol
Similarity search - Function
Replication factor C subunit 1 / DNA replication factor RFC1, C-terminal / Replication factor RFC1 C terminal domain / RFC1-like, AAA+ ATPase lid domain / Replication factor C subunit 3, C-terminal domain / RCF1/5-like, AAA+ ATPase lid domain / Replication factor C, C-terminal / Replication factor C C-terminal domain / : / DNA polymerase III, delta subunit ...Replication factor C subunit 1 / DNA replication factor RFC1, C-terminal / Replication factor RFC1 C terminal domain / RFC1-like, AAA+ ATPase lid domain / Replication factor C subunit 3, C-terminal domain / RCF1/5-like, AAA+ ATPase lid domain / Replication factor C, C-terminal / Replication factor C C-terminal domain / : / DNA polymerase III, delta subunit / : / DNA polymerase III, clamp loader complex, gamma/delta/delta subunit, C-terminal / Proliferating cell nuclear antigen signature 2. / Proliferating cell nuclear antigen, PCNA, conserved site / Proliferating cell nuclear antigen signature 1. / Proliferating cell nuclear antigen, PCNA / Proliferating cell nuclear antigen, PCNA, N-terminal / Proliferating cell nuclear antigen, PCNA, C-terminal / Proliferating cell nuclear antigen, N-terminal domain / Proliferating cell nuclear antigen, C-terminal domain / BRCA1 C Terminus (BRCT) domain / : / breast cancer carboxy-terminal domain / BRCT domain profile. / BRCT domain / BRCT domain superfamily / ATPase family associated with various cellular activities (AAA) / ATPase, AAA-type, core / ATPases associated with a variety of cellular activities / AAA+ ATPase domain / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Proliferating cell nuclear antigen / Replication factor C subunit 5 / Replication factor C subunit 3 / Replication factor C subunit 1 / Replication factor C subunit 4 / Replication factor C subunit 2
Similarity search - Component
Biological speciesSaccharomyces cerevisiae (brewer's yeast) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.0 Å
AuthorsLiu X / Gaubitz C
Funding support United States, Switzerland, 3 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R01-GM127776 United States
Swiss National Science Foundation168972 Switzerland
Swiss National Science Foundation177859 Switzerland
CitationJournal: Elife / Year: 2022
Title: A second DNA binding site on RFC facilitates clamp loading at gapped or nicked DNA.
Authors: Xingchen Liu / Christl Gaubitz / Joshua Pajak / Brian A Kelch /
Abstract: Clamp loaders place circular sliding clamp proteins onto DNA so that clamp-binding partner proteins can synthesize, scan, and repair the genome. DNA with nicks or small single-stranded gaps are ...Clamp loaders place circular sliding clamp proteins onto DNA so that clamp-binding partner proteins can synthesize, scan, and repair the genome. DNA with nicks or small single-stranded gaps are common clamp-loading targets in DNA repair, yet these substrates would be sterically blocked given the known mechanism for binding of primer-template DNA. Here, we report the discovery of a second DNA binding site in the yeast clamp loader replication factor C (RFC) that aids in binding to nicked or gapped DNA. This DNA binding site is on the external surface and is only accessible in the open conformation of RFC. Initial DNA binding at this site thus provides access to the primary DNA binding site in the central chamber. Furthermore, we identify that this site can partially unwind DNA to create an extended single-stranded gap for DNA binding in RFC's central chamber and subsequent ATPase activation. Finally, we show that deletion of the BRCT domain, a major component of the external DNA binding site, results in defective yeast growth in the presence of DNA damage where nicked or gapped DNA intermediates occur. We propose that RFC's external DNA binding site acts to enhance DNA binding and clamp loading, particularly at DNA architectures typically found in DNA repair.
History
DepositionFeb 21, 2022-
Header (metadata) releaseJul 6, 2022-
Map releaseJul 6, 2022-
UpdateFeb 21, 2024-
Current statusFeb 21, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_26302.map.gz / Format: CCP4 / Size: 23.8 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationDensity modified map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
0.83 Å/pix.
x 205 pix.
= 170.15 Å		0.83 Å/pix.
x 180 pix.
= 149.4 Å		0.83 Å/pix.
x 169 pix.
= 140.27 Å

Surface

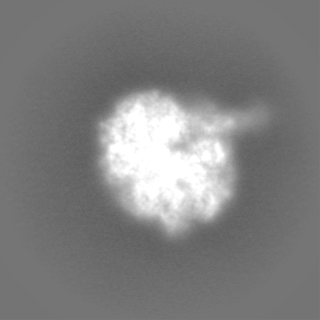

Projections

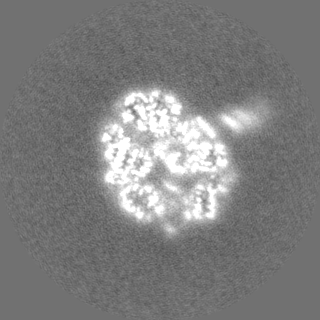

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

generated in cubic-lattice coordinate

Voxel sizeX=Y=Z: 0.83 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 1.0
Minimum - Maximum-10.557765 - 21.505693000000001
Average (Standard dev.)0.000000000016276 (±1.0)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin737680
Dimensions180169205
Spacing205180169
CellA: 170.15 Å / B: 149.4 Å / C: 140.27 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: #1

Fileemd_26302_additional_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_26302_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_26302_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : RFC bound to PCNA and DNA with a ssDNA gap of five nucleotides

EntireName: RFC bound to PCNA and DNA with a ssDNA gap of five nucleotides
Components
  • Complex: RFC bound to PCNA and DNA with a ssDNA gap of five nucleotides
    • Protein or peptide: Replication factor C subunit 1
    • Protein or peptide: Replication factor C subunit 4
    • Protein or peptide: Replication factor C subunit 3
    • Protein or peptide: Replication factor C subunit 2
    • Protein or peptide: Replication factor C subunit 5
    • Protein or peptide: Proliferating cell nuclear antigen
    • DNA: DNA - Primer
    • DNA: DNA - Template
    • DNA: DNA - non primer
  • Ligand: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
  • Ligand: MAGNESIUM ION
  • Ligand: ADENOSINE-5'-DIPHOSPHATE

+
Supramolecule #1: RFC bound to PCNA and DNA with a ssDNA gap of five nucleotides

SupramoleculeName: RFC bound to PCNA and DNA with a ssDNA gap of five nucleotides
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#9
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 364 KDa

+
Macromolecule #1: Replication factor C subunit 1

MacromoleculeName: Replication factor C subunit 1 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 95.048195 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MVNISDFFGK NKKSVRSSTS RPTRQVGSSK PEVIDLDTES DQESTNKTPK KMPVSNVIDV SETPEGEKKL PLPAKRKASS PTVKPASSK KTKPSSKSSD SASNITAQDV LDKIPSLDLS NVHVKENAKF DFKSANSNAD PDEIVSEIGS FPEGKPNCLL G LTIVFTGV ...String:
MVNISDFFGK NKKSVRSSTS RPTRQVGSSK PEVIDLDTES DQESTNKTPK KMPVSNVIDV SETPEGEKKL PLPAKRKASS PTVKPASSK KTKPSSKSSD SASNITAQDV LDKIPSLDLS NVHVKENAKF DFKSANSNAD PDEIVSEIGS FPEGKPNCLL G LTIVFTGV LPTLERGASE ALAKRYGARV TKSISSKTSV VVLGDEAGPK KLEKIKQLKI KAIDEEGFKQ LIAGMPAEGG DG EAAEKAR RKLEEQHNIA TKEAELLVKK EEERSKKLAA TRVSGGHLER DNVVREEDKL WTVKYAPTNL QQVCGNKGSV MKL KNWLAN WENSKKNSFK HAGKDGSGVF RAAMLYGPPG IGKTTAAHLV AQELGYDILE QNASDVRSKT LLNAGVKNAL DNMS VVGYF KHNEEAQNLN GKHFVIIMDE VDGMSGGDRG GVGQLAQFCR KTSTPLILIC NERNLPKMRP FDRVCLDIQF RRPDA NSIK SRLMTIAIRE KFKLDPNVID RLIQTTRGDI RQVINLLSTI STTTKTINHE NINEISKAWE KNIALKPFDI AHKMLD GQI YSDIGSRNFT LNDKIALYFD DFDFTPLMIQ ENYLSTRPSV LKPGQSHLEA VAEAANCISL GDIVEKKIRS SEQLWSL LP LHAVLSSVYP ASKVAGHMAG RINFTAWLGQ NSKSAKYYRL LQEIHYHTRL GTSTDKIGLR LDYLPTFRKR LLDPFLKQ G ADAISSVIEV MDDYYLTKED WDSIMEFFVG PDVTTAIIKK IPATVKSGFT RKYNSMTHPV AIYRTGSTIG GGGVGTSTS TPDFEDVVDA DDNPVPADDE ETQDSSTDLK KDKLIKQKAK PTKRKTATSK PGGSKKRKTK A

UniProtKB: Replication factor C subunit 1

+
Macromolecule #2: Replication factor C subunit 4

MacromoleculeName: Replication factor C subunit 4 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 36.201039 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MSKTLSLQLP WVEKYRPQVL SDIVGNKETI DRLQQIAKDG NMPHMIISGM PGIGKTTSVH CLAHELLGRS YADGVLELNA SDDRGIDVV RNQIKHFAQK KLHLPPGKHK IVILDEADSM TAGAQQALRR TMELYSNSTR FAFACNQSNK IIEPLQSRCA I LRYSKLSD ...String:
MSKTLSLQLP WVEKYRPQVL SDIVGNKETI DRLQQIAKDG NMPHMIISGM PGIGKTTSVH CLAHELLGRS YADGVLELNA SDDRGIDVV RNQIKHFAQK KLHLPPGKHK IVILDEADSM TAGAQQALRR TMELYSNSTR FAFACNQSNK IIEPLQSRCA I LRYSKLSD EDVLKRLLQI IKLEDVKYTN DGLEAIIFTA EGDMRQAINN LQSTVAGHGL VNADNVFKIV DSPHPLIVKK ML LASNLED SIQILRTDLW KKGYSSIDIV TTSFRVTKNL AQVKESVRLE MIKEIGLTHM RILEGVGTYL QLASMLAKIH KLN NKA

UniProtKB: Replication factor C subunit 4

+
Macromolecule #3: Replication factor C subunit 3

MacromoleculeName: Replication factor C subunit 3 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 38.254543 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MSTSTEKRSK ENLPWVEKYR PETLDEVYGQ NEVITTVRKF VDEGKLPHLL FYGPPGTGKT STIVALAREI YGKNYSNMVL ELNASDDRG IDVVRNQIKD FASTRQIFSK GFKLIILDEA DAMTNAAQNA LRRVIERYTK NTRFCVLANY AHKLTPALLS R CTRFRFQP ...String:
MSTSTEKRSK ENLPWVEKYR PETLDEVYGQ NEVITTVRKF VDEGKLPHLL FYGPPGTGKT STIVALAREI YGKNYSNMVL ELNASDDRG IDVVRNQIKD FASTRQIFSK GFKLIILDEA DAMTNAAQNA LRRVIERYTK NTRFCVLANY AHKLTPALLS R CTRFRFQP LPQEAIERRI ANVLVHEKLK LSPNAEKALI ELSNGDMRRV LNVLQSCKAT LDNPDEDEIS DDVIYECCGA PR PSDLKAV LKSILEDDWG TAHYTLNKVR SAKGLALIDL IEGIVKILED YELQNEETRV HLLTKLADIE YSISKGGNDQ IQG SAVIGA IKASFENETV KANV

UniProtKB: Replication factor C subunit 3

+
Macromolecule #4: Replication factor C subunit 2

MacromoleculeName: Replication factor C subunit 2 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 39.794473 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MFEGFGPNKK RKISKLAAEQ SLAQQPWVEK YRPKNLDEVT AQDHAVTVLK KTLKSANLPH MLFYGPPGTG KTSTILALTK ELYGPDLMK SRILELNASD ERGISIVREK VKNFARLTVS KPSKHDLENY PCPPYKIIIL DEADSMTADA QSALRRTMET Y SGVTRFCL ...String:
MFEGFGPNKK RKISKLAAEQ SLAQQPWVEK YRPKNLDEVT AQDHAVTVLK KTLKSANLPH MLFYGPPGTG KTSTILALTK ELYGPDLMK SRILELNASD ERGISIVREK VKNFARLTVS KPSKHDLENY PCPPYKIIIL DEADSMTADA QSALRRTMET Y SGVTRFCL ICNYVTRIID PLASRCSKFR FKALDASNAI DRLRFISEQE NVKCDDGVLE RILDISAGDL RRGITLLQSA SK GAQYLGD GKNITSTQVE ELAGVVPHDI LIEIVEKVKS GDFDEIKKYV NTFMKSGWSA ASVVNQLHEY YITNDNFDTN FKN QISWLL FTTDSRLNNG TNEHIQLLNL LVKISQL

UniProtKB: Replication factor C subunit 2

+
Macromolecule #5: Replication factor C subunit 5

MacromoleculeName: Replication factor C subunit 5 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 39.993582 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MSLWVDKYRP KSLNALSHNE ELTNFLKSLS DQPRDLPHLL LYGPNGTGKK TRCMALLESI FGPGVYRLKI DVRQFVTASN RKLELNVVS SPYHLEITPS DMGNNDRIVI QELLKEVAQM EQVDFQDSKD GLAHRYKCVI INEANSLTKD AQAALRRTME K YSKNIRLI ...String:
MSLWVDKYRP KSLNALSHNE ELTNFLKSLS DQPRDLPHLL LYGPNGTGKK TRCMALLESI FGPGVYRLKI DVRQFVTASN RKLELNVVS SPYHLEITPS DMGNNDRIVI QELLKEVAQM EQVDFQDSKD GLAHRYKCVI INEANSLTKD AQAALRRTME K YSKNIRLI MVCDSMSPII APIKSRCLLI RCPAPSDSEI STILSDVVTN ERIQLETKDI LKRIAQASNG NLRVSLLMLE SM ALNNELA LKSSSPIIKP DWIIVIHKLT RKIVKERSVN SLIECRAVLY DLLAHCIPAN IILKELTFSL LDVETLNTTN KSS IIEYSS VFDERLSLGN KAIFHLEGFI AKVMCCLD

UniProtKB: Replication factor C subunit 5

+
Macromolecule #6: Proliferating cell nuclear antigen

MacromoleculeName: Proliferating cell nuclear antigen / type: protein_or_peptide / ID: 6 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 29.525713 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: GPHMASMLEA KFEEASLFKR IIDGFKDCVQ LVNFQCKEDG IIAQAVDDSR VLLVSLEIGV EAFQEYRCDH PVTLGMDLTS LSKILRCGN NTDTLTLIAD NTPDSIILLF EDTKKDRIAE YSLKLMDIDA DFLKIEELQY DSTLSLPSSE FSKIVRDLSQ L SDSINIMI ...String:
GPHMASMLEA KFEEASLFKR IIDGFKDCVQ LVNFQCKEDG IIAQAVDDSR VLLVSLEIGV EAFQEYRCDH PVTLGMDLTS LSKILRCGN NTDTLTLIAD NTPDSIILLF EDTKKDRIAE YSLKLMDIDA DFLKIEELQY DSTLSLPSSE FSKIVRDLSQ L SDSINIMI TKETIKFVAD GDIGSGSVII KPFVDMEHPE TSIKLEMDQP VDLTFGAKYL LDIIKGSSLS DRVGIRLSSE AP ALFQFDL KSGFLQFFLA PKFNDEE

UniProtKB: Proliferating cell nuclear antigen

+
Macromolecule #7: DNA - Primer

MacromoleculeName: DNA - Primer / type: dna / ID: 7 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 7.733987 KDa
SequenceString:
(DG)(DG)(DG)(DA)(DC)(DG)(DC)(DA)(DC)(DG) (DC)(DG)(DG)(DC)(DA)(DT)(DT)(DC)(DA)(DA) (DG)(DG)(DA)(DC)(DT)

+
Macromolecule #8: DNA - Template

MacromoleculeName: DNA - Template / type: dna / ID: 8 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 15.417887 KDa
SequenceString:
(DT)(DT)(DG)(DT)(DG)(DG)(DG)(DT)(DA)(DG) (DA)(DT)(DA)(DA)(DA)(DT)(DA)(DC)(DA)(DG) (DA)(DC)(DC)(DT)(DA)(DA)(DG)(DT)(DC) (DC)(DT)(DT)(DG)(DA)(DA)(DT)(DG)(DC)(DC) (DG) (DC)(DG)(DT)(DG)(DC)(DG)(DT)(DC) (DC)(DC)

+
Macromolecule #9: DNA - non primer

MacromoleculeName: DNA - non primer / type: dna / ID: 9 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 6.027929 KDa
SequenceString:
(DC)(DT)(DG)(DT)(DA)(DT)(DT)(DT)(DA)(DT) (DC)(DT)(DA)(DC)(DC)(DC)(DA)(DC)(DA)(DA)

+
Macromolecule #10: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER

MacromoleculeName: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER / type: ligand / ID: 10 / Number of copies: 3 / Formula: AGS
Molecular weightTheoretical: 523.247 Da
Chemical component information

ChemComp-AGS:
PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER / ATP-gamma-S, energy-carrying molecule analogue*YM

+
Macromolecule #11: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 11 / Number of copies: 4 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #12: ADENOSINE-5'-DIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-DIPHOSPHATE / type: ligand / ID: 12 / Number of copies: 2 / Formula: ADP
Molecular weightTheoretical: 427.201 Da
Chemical component information

ChemComp-ADP:
ADENOSINE-5'-DIPHOSPHATE / ADP, energy-carrying molecule*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number grids imaged: 1 / Average electron dose: 47.7381 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.2 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 1098517
Startup modelType of model: EMDB MAP
EMDB ID:

25617


Details: reference for the 3D classification, downfiltered
Final reconstructionApplied symmetry - Point group: C1 (asymmetric) / Resolution.type: BY AUTHOR / Resolution: 3.0 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: RELION (ver. 3.1) / Number images used: 271745
Initial angle assignmentType: RANDOM ASSIGNMENT / Software - Name: RELION
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION
Final 3D classificationSoftware - Name: RELION
FSC plot (resolution estimation)

-
Atomic model buiding 1

RefinementSpace: REAL / Protocol: FLEXIBLE FIT
Output model

PDB-7u1p:
RFC:PCNA bound to DNA with a ssDNA gap of five nucleotides

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
