Basic information

Entry
Database: EMDB / ID: EMD-25657
TitleHelical reconstruction of A92E HIV capsid in presence of FG mutant CPSF6 construct
Map dataA92E HIV capsid
Sample
  • Complex: HIV Capsid Protein Hexamer
Biological speciesHuman immunodeficiency virus 1
Methodhelical reconstruction / cryo EM / Resolution: 7.0 Å
AuthorsIqbal N / Asturias F / Kvaratskhelia M
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID) United States
CitationJournal: To Be Published
Title: Helical reconstruction of A92E HIV capsid in presence of FG mutant CPSF6 construct
Authors: Iqbal N / Asturias F / Kvaratskhelia M
History
DepositionDec 7, 2021-
Header (metadata) releaseDec 14, 2022-
Map releaseDec 14, 2022-
UpdateDec 14, 2022-
Current statusDec 14, 2022Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_25657.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationA92E HIV capsid
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
2.8 Å/pix.
x 300 pix.
= 840. Å		2.8 Å/pix.
x 300 pix.
= 840. Å		2.8 Å/pix.
x 300 pix.
= 840. Å

Surface

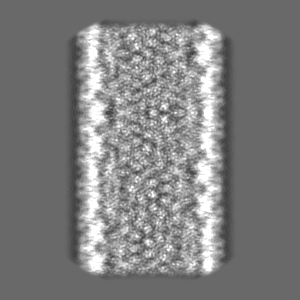

Projections

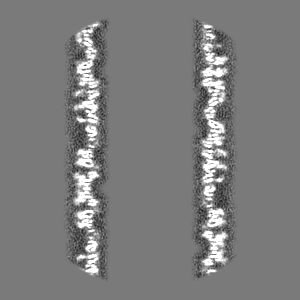

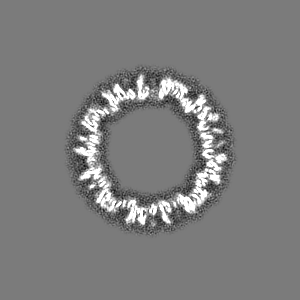

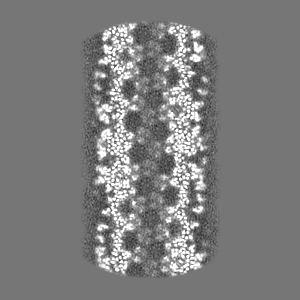

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 2.8 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.04
Minimum - Maximum-0.036094476 - 0.15716374
Average (Standard dev.)0.0010821358 (±0.0103013)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 840.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Sample components

-
Entire : HIV Capsid Protein Hexamer

EntireName: HIV Capsid Protein Hexamer
Components
  • Complex: HIV Capsid Protein Hexamer

-
Supramolecule #1: HIV Capsid Protein Hexamer

SupramoleculeName: HIV Capsid Protein Hexamer / type: complex / Chimera: Yes / ID: 1 / Parent: 0
Source (natural)Organism: Human immunodeficiency virus 1

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation state3D array

-
Sample preparation

Concentration3 mg/mL
BufferpH: 8 / Details: 1M NaCl, 50mM Tris pH 8, 0.2mM IP6
GridModel: C-flat / Pretreatment - Type: PLASMA CLEANING / Pretreatment - Time: 6 sec.
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Digitization - Dimensions - Width: 5760 pixel / Digitization - Dimensions - Height: 4092 pixel / Number grids imaged: 2 / Number real images: 2157 / Average electron dose: 45.65 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsCalibrated magnification: 28000 / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.5 µm / Nominal magnification: 28000
Sample stageCooling holder cryogen: NITROGEN
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

-
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 6.95455 Å
Applied symmetry - Helical parameters - Δ&Phi: 82.5822 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Resolution.type: BY AUTHOR / Resolution: 7.0 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: RELION / Number images used: 3023
Segment selectionNumber selected: 109696 / Software - Name: RELION
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
