Basic information

Entry
Database: EMDB / ID: EMD-24226
TitleMouse norovirus (MNV-1) capsid at pH 7.5
Map dataMouse norovirus at pH 7.5
Sample
  • Virus: Murine norovirus 1
    • Protein or peptide: Capsid protein
Keywordsnorovirus / mouse / pH 7.5 / VIRUS
Function / homologyCalicivirus coat protein C-terminal / Calicivirus coat protein C-terminal / Calicivirus coat protein / Calicivirus coat protein / Picornavirus/Calicivirus coat protein / Viral coat protein subunit / metal ion binding / Capsid protein VP1
Function and homology information
Biological speciesMurine norovirus 1
Methodsingle particle reconstruction / cryo EM / Resolution: 3.0 Å
AuthorsSmith TJ
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)1R01-AI141465 United States
CitationJournal: J Virol / Year: 2021
Title: Multiple Signals in the Gut Contract the Mouse Norovirus Capsid To Block Antibody Binding While Enhancing Receptor Affinity.
Authors: Alexis N Williams / Michael B Sherman / Hong Q Smith / Stefan Taube / B Montgomery Pettitt / Christiane E Wobus / Thomas J Smith /
Abstract: Human norovirus is the leading cause of gastroenteritis worldwide, with no approved vaccine or antiviral treatment to mitigate infection. These plus-strand RNA viruses have T = 3 icosahedral ...Human norovirus is the leading cause of gastroenteritis worldwide, with no approved vaccine or antiviral treatment to mitigate infection. These plus-strand RNA viruses have T = 3 icosahedral protein capsids with 90 pronounced protruding (P) domain dimers, to which antibodies and cellular receptors bind. We previously demonstrated that bile binding to the capsid of mouse norovirus (MNV) causes several major conformational changes; the entire P domain rotates by ∼90° and contracts onto the shell, the P domain dimers rotate about each other, and the structural equilibrium of the epitopes at the top of the P domain shifts toward the closed conformation, which favors receptor binding while blocking antibody binding. Here, we demonstrate that MNV undergoes reversible conformational changes at pH 5.0 that are nearly identical to those observed when bile binds. Notably, at low pH or when metals bind, a cluster of acidic resides in the G'-H' loop interact and distort the G'-H' loop, and this may drive C'-D' loop movement toward the closed conformation. Enzyme-linked immunosorbent assays with infectious virus particles at low pH or in the presence of metals demonstrated that all tested antibodies do not bind to this contracted form, akin to what was observed with the MNV-bile complex. Therefore, low pH, cationic metals, and bile salts are physiological triggers in the gut for P domain contraction and structural rearrangement, which synergistically prime the virus for receptor binding while blocking antibody binding. The protruding domains on the calicivirus capsids are recognized by cell receptors and antibodies. We demonstrated that MNV P domains are highly mobile, and bile causes contraction onto the shell surface while allosterically blocking antibody binding. We present the near-atomic cryo-electron microscopy structures of infectious MNV at pH 5.0 and pH 7.5. Surprisingly, low pH is sufficient to cause the same conformational changes as when bile binds. A cluster of acidic residues on the G'-H' loop were most likely involved in the pH effects. These residues also bound divalent cations and had the same conformation as observed here at pH 5. Binding assays demonstrated that low pH and metals block antibody binding, and thus the G'-H' loop might be driving the conformational changes. Therefore, low pH, cationic metals, and bile salts in the gut synergistically prime the virus for receptor binding while blocking antibody binding.
History
DepositionJun 10, 2021-
Header (metadata) releaseSep 8, 2021-
Map releaseSep 8, 2021-
UpdateJun 5, 2024-
Current statusJun 5, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.35
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by radius
  • Surface level: 0.35
  • Imaged by UCSF Chimera
  • Download
  • Surface view with fitted model
  • Atomic models: PDB-7n7f
  • Surface level: 0.35
  • Imaged by UCSF Chimera
  • Download
  • Simplified surface model + fitted atomic model
  • Atomic modelsPDB-7n7f
  • Imaged by Jmol
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol

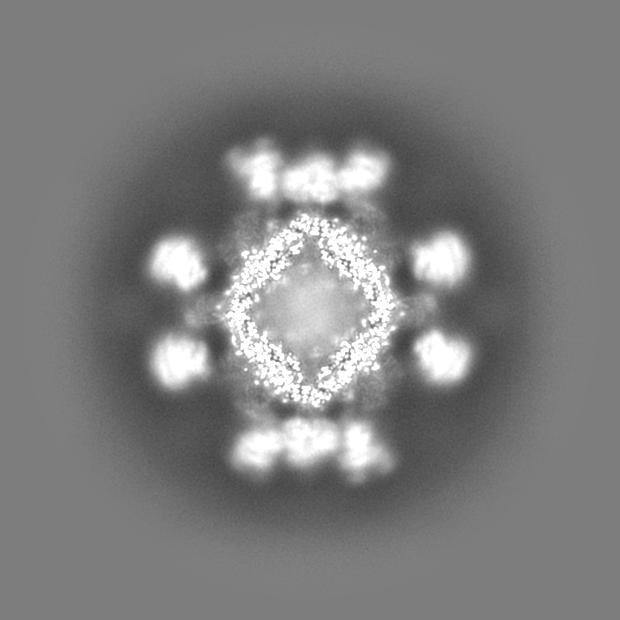

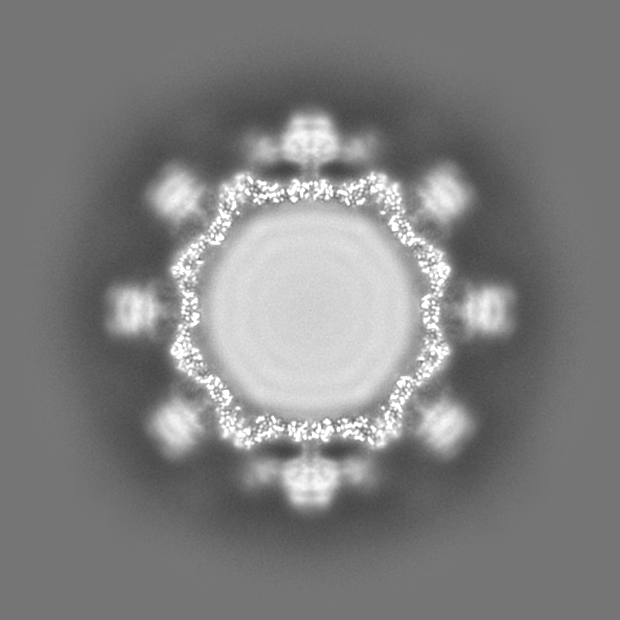

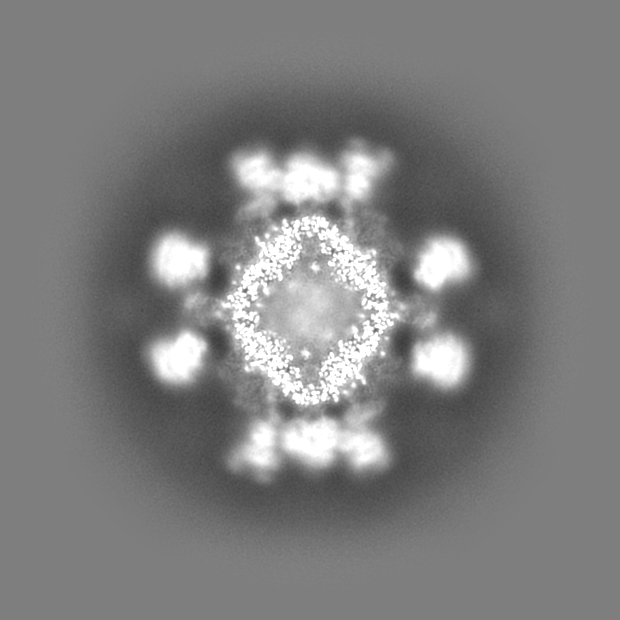

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_24226.map.gz / Format: CCP4 / Size: 909.2 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationMouse norovirus at pH 7.5
Voxel sizeX=Y=Z: 1.0855 Å
Density
Contour LevelBy AUTHOR: 0.35 / Movie #1: 0.35
Minimum - Maximum-0.15412493 - 0.84181017
Average (Standard dev.)0.0048525757 (±0.084414266)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions620620620
Spacing620620620
CellA=B=C: 673.01 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z1.08551.08551.0855
M x/y/z620620620
origin x/y/z0.0000.0000.000
length x/y/z673.010673.010673.010
α/β/γ90.00090.00090.000
start NX/NY/NZ000
NX/NY/NZ360360360
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS620620620
D min/max/mean-0.1540.8420.005

-
Supplemental data

-
Sample components

-
Entire : Murine norovirus 1

EntireName: Murine norovirus 1
Components
  • Virus: Murine norovirus 1
    • Protein or peptide: Capsid protein

-
Supramolecule #1: Murine norovirus 1

SupramoleculeName: Murine norovirus 1 / type: virus / ID: 1 / Parent: 0 / Macromolecule list: all / Details: Grown in mouse BV2 cell line / NCBI-ID: 223997 / Sci species name: Murine norovirus 1 / Virus type: VIRION / Virus isolate: STRAIN / Virus enveloped: No / Virus empty: No

-
Macromolecule #1: Capsid protein

MacromoleculeName: Capsid protein / type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Murine norovirus 1
Molecular weightTheoretical: 58.70066 KDa
SequenceString: MRMSDGAAPK ANGSEASGQD LVPAAVEQAV PIQPVAGAAL AAPAAGQINQ IDPWIFQNFV QCPLGEFSIS PRNTPGEILF DLALGPGLN PYLAHLSAMY TGWVGNMEVQ LVLAGNAFTA GKVVVALVPP YFPKGSLTTA QITCFPHVMC DVRTLEPIQL P LLDVRRVL ...String:
MRMSDGAAPK ANGSEASGQD LVPAAVEQAV PIQPVAGAAL AAPAAGQINQ IDPWIFQNFV QCPLGEFSIS PRNTPGEILF DLALGPGLN PYLAHLSAMY TGWVGNMEVQ LVLAGNAFTA GKVVVALVPP YFPKGSLTTA QITCFPHVMC DVRTLEPIQL P LLDVRRVL WHATQDQEES MRLVCMLYTP LRTNSPGDES FVVSGRLLSK PAADFNFVYL TPPIERTIYR MVDLPVIQPR LC THARWPA PVYGLLVDPS LPSNPQWQNG RVHVDGTLLG TTPISGSWVS CFAAEAAYKF QSGTGEVATF TLIEQDGSAY VPG DRAAPL GYPDFSGQLE IEVQTETTKT GDKLKVTTFE MILGPTTNAD QAPYQGRVFA SVTAAASLDL VDGRVRAVPR SIYG FQDTI PEYNDGLLVP LAPPIGPFLP GEVLLRFRTY MRQIDTADAA AEAIDCALPQ EFVSWFASNA FTVQSEALLL RYRNT LTGQ LLFECKLYNE GYIALSYSGS GPLTFPTDGI FEVVSWVPRL YQLASVGSLA TGRMLKQ

UniProtKB: Capsid protein VP1

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
Details: 25 mM citrate, 25 mM phosphate, pH 7.5, 100 mM NaCl
VitrificationCryogen name: ETHANE-PROPANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 48.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.0 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 145347
Initial angle assignmentType: PROJECTION MATCHING
Final angle assignmentType: PROJECTION MATCHING

+
