- EMDB-18418: Human DNA methyltransferase 1 -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-18418
TitleHuman DNA methyltransferase 1
Map data
Sample
  • Complex: Human DNA methyltransferase 1
KeywordsDNA methylation / methyltransferase / TRANSFERASE
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.3 Å
AuthorsDe I / Mueller CW / Concha N
Funding support1 items
OrganizationGrant numberCountry
Not funded
CitationJournal: PLoS One / Year: 2024
Title: Structural insight into the DNMT1 reaction cycle by cryo-electron microscopy.
Authors: Inessa De / Jonas Weidenhausen / Nestor Concha / Christoph W Müller /
Abstract: DNMT1 is an essential DNA methyltransferase that catalyzes the transfer of methyl groups to CpG islands in DNA and generates a prominent epigenetic mark. The catalytic activity of DNMT1 relies on its ...DNMT1 is an essential DNA methyltransferase that catalyzes the transfer of methyl groups to CpG islands in DNA and generates a prominent epigenetic mark. The catalytic activity of DNMT1 relies on its conformational plasticity and ability to change conformation from an auto-inhibited to an activated state. Here, we present four cryo-EM reconstructions of apo DNMT1 and DNTM1: non-productive DNA, DNTM1: H3Ub2-peptide, DNTM1: productive DNA complexes. Our structures demonstrate the flexibility of DNMT1's N-terminal regulatory domains during the transition from an apo 'auto-inhibited' to a DNA-bound 'non-productive' and finally a DNA-bound 'productive' state of DNMT1. Furthermore, we address the regulation of DNMT1's methyltransferase activity by a DNMT1-selective small-molecule inhibitor and ubiquitinated histone H3. We observe that DNMT1 binds DNA in a 'non-productive' state despite the presence of the inhibitor and present the cryo-EM reconstruction of full-length DNMT1 in complex with a di-ubiquitinated H3 peptide analogue. Taken together, our results provide structural insights into the reaction cycle of DNMT1.
History
DepositionSep 10, 2023-
Header (metadata) releaseJul 24, 2024-
Map releaseJul 24, 2024-
UpdateSep 11, 2024-
Current statusSep 11, 2024Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_18418.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
3.78 Å/pix.
x 64 pix.
= 241.92 Å		3.78 Å/pix.
x 64 pix.
= 241.92 Å		3.78 Å/pix.
x 64 pix.
= 241.92 Å

Surface

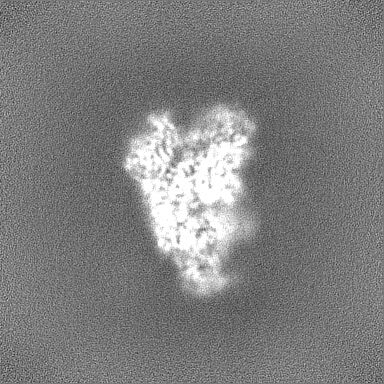

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel size
XYZ
EMDB info.0.6450.6450.645
CCP4 map header3.783.783.78
Density

Histogram

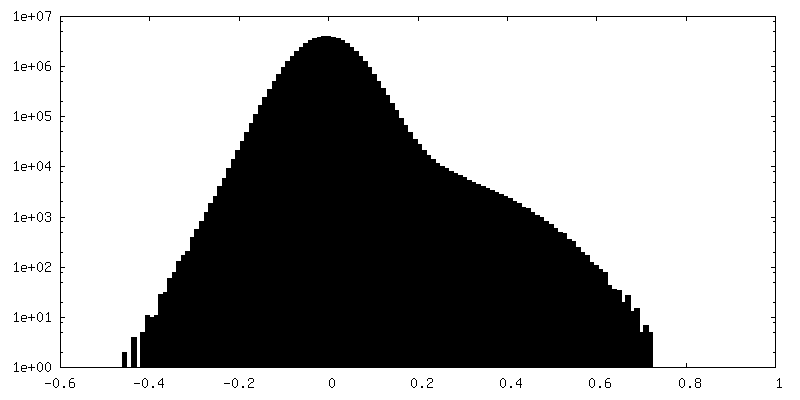

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0955
Minimum - Maximum-0.25122282 - 0.65529674
Average (Standard dev.)0.000924854 (±0.01842291)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 247.68 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_18418_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Human DNA methyltransferase 1

EntireName: Human DNA methyltransferase 1
Components
  • Complex: Human DNA methyltransferase 1

-
Supramolecule #1: Human DNA methyltransferase 1

SupramoleculeName: Human DNA methyltransferase 1 / type: complex / ID: 1 / Parent: 0
Source (natural)Organism: Homo sapiens (human)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration0.25 mg/mL
BufferpH: 7.5
GridModel: Quantifoil R1.2/1.3 / Material: GOLD / Mesh: 200 / Pretreatment - Type: PLASMA CLEANING / Pretreatment - Time: 45 sec.
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.6 µm / Nominal defocus min: 0.5 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.3 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 224910
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
