Basic information

Entry
Database: EMDB / ID: EMD-45543
TitleCryo-EM Local Refinement of Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein RBD
Map dataLocal Refinement of Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein RBD
Sample
  • Complex: Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein
    • Protein or peptide: heavy chain
    • Protein or peptide: light chain
    • Protein or peptide: Spike protein S1
KeywordsNeutralizing Antibody / Viral Fusion Protein / SARS-CoV-2 / VIRAL PROTEIN-IMMUNE SYSTEM complex / VIRAL PROTEIN
Function / homology
Function and homology information


symbiont-mediated disruption of host tissue / Maturation of spike protein / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / viral translation / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion ...symbiont-mediated disruption of host tissue / Maturation of spike protein / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / viral translation / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / membrane fusion / entry receptor-mediated virion attachment to host cell / Attachment and Entry / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / host cell surface receptor binding / symbiont-mediated suppression of host innate immune response / receptor ligand activity / endocytosis involved in viral entry into host cell / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / symbiont entry into host cell / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / identical protein binding / membrane / plasma membrane
Similarity search - Function
Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, N-terminal domain superfamily / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Spike glycoprotein, betacoronavirus / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus ...Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, N-terminal domain superfamily / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Spike glycoprotein, betacoronavirus / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal / Spike glycoprotein S2 superfamily, coronavirus / Spike glycoprotein S2, coronavirus, heptad repeat 1 / Spike glycoprotein S2, coronavirus, heptad repeat 2 / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 1 (HR1) region profile. / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 2 (HR2) region profile. / Spike glycoprotein S2, coronavirus / Coronavirus spike glycoprotein S2
Similarity search - Domain/homology
Biological speciesSevere acute respiratory syndrome coronavirus 2 / Homo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.03 Å
AuthorsCasner RG / Shapiro L
Funding support China, 1 items
OrganizationGrant numberCountry
Jack Ma Foundation China
CitationJournal: Nat Commun / Year: 2025
Title: Optimizing a human monoclonal antibody for better neutralization of SARS-CoV-2.
Authors: Qian Wang / Yicheng Guo / Ryan G Casner / Jian Yu / Manoj S Nair / Jerren Ho / Eswar R Reddem / Ian A Mellis / Madeline Wu / Chih-Chen Tzang / Hsiang Hong / Yaoxing Huang / Lawrence Shapiro ...Authors: Qian Wang / Yicheng Guo / Ryan G Casner / Jian Yu / Manoj S Nair / Jerren Ho / Eswar R Reddem / Ian A Mellis / Madeline Wu / Chih-Chen Tzang / Hsiang Hong / Yaoxing Huang / Lawrence Shapiro / Lihong Liu / David D Ho /
Abstract: SARS-CoV-2 has largely evolved to resist antibody pressure, with each successive viral variant becoming more and more resistant to serum antibodies in the population. This evolution renders all ...SARS-CoV-2 has largely evolved to resist antibody pressure, with each successive viral variant becoming more and more resistant to serum antibodies in the population. This evolution renders all previously authorized anti-spike therapeutic monoclonal antibodies inactive, and it threatens the remaining pipelines against COVID-19. We report herein the isolation of a human monoclonal antibody with a broad but incomplete SARS-CoV-2 neutralization profile, but structural analyses and mutational scanning lead to the engineering of variants that result in greater antibody flexibility while binding to the viral spike. Three such optimized monoclonal antibodies neutralize all SARS-CoV-2 strains tested with much improved potency and breadth, including against subvariants XEC and LP.8.1. The findings of this study not only present antibody candidates for clinical development against COVID-19, but also introduce an engineering approach to improve antibody activity via increasing conformational flexibility.
History
DepositionJun 27, 2024-
Header (metadata) releaseJul 2, 2025-
Map releaseJul 2, 2025-
UpdateOct 1, 2025-
Current statusOct 1, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_45543.map.gz / Format: CCP4 / Size: 325 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationLocal Refinement of Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein RBD
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 440 pix.
= 365.2 Å		0.83 Å/pix.
x 440 pix.
= 365.2 Å		0.83 Å/pix.
x 440 pix.
= 365.2 Å

Surface

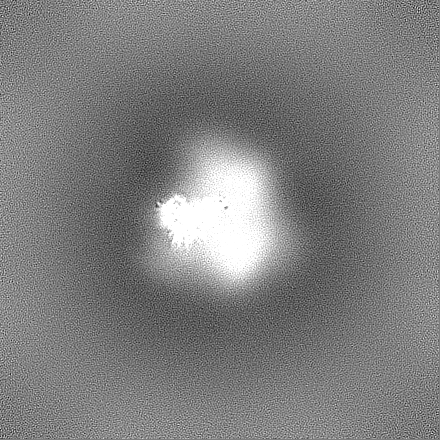

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.83 Å
Density

Histogram

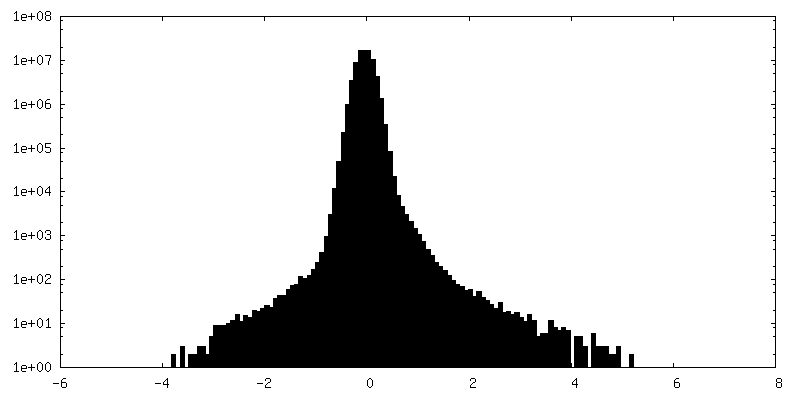

Histogram (log scale)
Contour LevelBy AUTHOR: 0.4
Minimum - Maximum-1.5959599 - 3.5830922
Average (Standard dev.)-0.00046088058 (±0.023215985)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions440440440
Spacing440440440
CellA=B=C: 365.19998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Map Sharp

Fileemd_45543_additional_1.map
AnnotationMap Sharp
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half Map A

Fileemd_45543_half_map_1.map
AnnotationHalf Map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half Map B

Fileemd_45543_half_map_2.map
AnnotationHalf Map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein

EntireName: Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein
Components
  • Complex: Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein
    • Protein or peptide: heavy chain
    • Protein or peptide: light chain
    • Protein or peptide: Spike protein S1

-
Supramolecule #1: Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein

SupramoleculeName: Antibody 19-77 in complex with prefusion SARS-CoV-2 Spike glycoprotein
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2

-
Macromolecule #1: heavy chain

MacromoleculeName: heavy chain / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 12.585059 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
EVQVVESGGG LIQPGGSLRL SCTASELIIS RNYMSWVRQA PGKGLEWLSV IYPGGSSFYT DSLKGRFTIS RDNSKNTLYL QMNRLGVED TAIYYCVRDA PSESDWGQGT LVTVSS

-
Macromolecule #2: light chain

MacromoleculeName: light chain / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 11.901239 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
EIVLTQSPAT LSLFPGERAT LSCRASQNIG HFLTWYQQKP GQAPRLLIYD ASNRATGVPA RFSGSGSETE FTLTISSLGP EDFAVYYCQ ERSDWPRGTF GQGTKVEIK

-
Macromolecule #3: Spike protein S1

MacromoleculeName: Spike protein S1 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 21.658289 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: LCPFGEVFNA TRFASVYAWN RKRISNCVAD YSVLYNSASF STFKCYGVSP TKLNDLCFTN VYADSFVIRG DEVRQIAPGQ TGKIADYNY KLPDDFTGCV IAWNSNNLDS KVGGNYNYLY RLFRKSNLKP FERDISTEIY QAGSTPCNGV EGFNCYFPLQ S YGFQPTNG ...String:
LCPFGEVFNA TRFASVYAWN RKRISNCVAD YSVLYNSASF STFKCYGVSP TKLNDLCFTN VYADSFVIRG DEVRQIAPGQ TGKIADYNY KLPDDFTGCV IAWNSNNLDS KVGGNYNYLY RLFRKSNLKP FERDISTEIY QAGSTPCNGV EGFNCYFPLQ S YGFQPTNG VGYQPYRVVV LSFELLHAPA TVCGP

UniProtKB: Spike glycoprotein

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration1 mg/mL
BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 58.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.8 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.03 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 3.3) / Number images used: 329845
Initial angle assignmentType: OTHER
Final angle assignmentType: OTHER
FSC plot (resolution estimation)

+
