Basic information

Entry
Database: EMDB / ID: EMD-33766
TitleSARS-CoV-2 Spike (6P) in complex with 3 R1-32 Fabs
Map data
Sample
  • Complex: SARS-COV-2 Spike_GSAS_6P bound with three R1-32 Fabs
    • Complex: SARS-COV-2 Spike_GSAS_6P
      • Protein or peptide: Spike glycoproteinSpike protein
    • Complex: FabFragment antigen-binding
      • Protein or peptide: Heavy chain of R1-32 Fab
      • Protein or peptide: Light chain of R1-32 Fab
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose
Function / homology
Function and homology information


Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / suppression by virus of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / host cell endoplasmic reticulum-Golgi intermediate compartment membrane ...Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / suppression by virus of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / entry receptor-mediated virion attachment to host cell / receptor-mediated endocytosis of virus by host cell / Attachment and Entry / membrane fusion / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / receptor ligand activity / host cell surface receptor binding / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / symbiont-mediated suppression of host type I interferon-mediated signaling pathway / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / membrane / identical protein binding / plasma membrane
Similarity search - Function
Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike glycoprotein, betacoronavirus / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like ...Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike glycoprotein, betacoronavirus / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal / Spike glycoprotein S2, coronavirus, heptad repeat 1 / Spike glycoprotein S2, coronavirus, heptad repeat 2 / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 2 (HR2) region profile. / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 1 (HR1) region profile. / Spike glycoprotein S2 superfamily, coronavirus / Spike glycoprotein S2, coronavirus / Coronavirus spike glycoprotein S2 / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal
Similarity search - Domain/homology
Biological speciesSevere acute respiratory syndrome coronavirus 2 / Homo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 4.17 Å
AuthorsLiu B / Gao X / Li Z / Chen X / He J / Chen L / Xiong X
Funding support China, 1 items
OrganizationGrant numberCountry
Other government82041014 China
CitationJournal: Nat Microbiol / Year: 2022
Title: SARS-CoV-2 Delta and Omicron variants evade population antibody response by mutations in a single spike epitope.
Authors: Ping He / Banghui Liu / Xijie Gao / Qihong Yan / Rongjuan Pei / Jing Sun / Qiuluan Chen / Ruitian Hou / Zimu Li / Yanjun Zhang / Jincun Zhao / Hao Sun / Bo Feng / Qian Wang / Haisu Yi / ...Authors: Ping He / Banghui Liu / Xijie Gao / Qihong Yan / Rongjuan Pei / Jing Sun / Qiuluan Chen / Ruitian Hou / Zimu Li / Yanjun Zhang / Jincun Zhao / Hao Sun / Bo Feng / Qian Wang / Haisu Yi / Peiyu Hu / Pingchao Li / Yudi Zhang / Zhilong Chen / Xuefeng Niu / Xiaolin Zhong / Liang Jin / Xiaofeng Liu / Kun Qu / Katarzyna A Ciazynska / Andrew P Carter / John A G Briggs / Jizheng Chen / Jinsong Liu / Xinwen Chen / Jun He / Ling Chen / Xiaoli Xiong /
Abstract: Population antibody response is thought to be important in selection of virus variants. We report that SARS-CoV-2 infection elicits a population immune response that is mediated by a lineage of VH1- ...Population antibody response is thought to be important in selection of virus variants. We report that SARS-CoV-2 infection elicits a population immune response that is mediated by a lineage of VH1-69 germline antibodies. A representative antibody R1-32 from this lineage was isolated. By cryo-EM, we show that it targets a semi-cryptic epitope in the spike receptor-binding domain. Binding to this non-ACE2 competing epitope results in spike destruction, thereby inhibiting virus entry. On the basis of epitope location, neutralization mechanism and analysis of antibody binding to spike variants, we propose that recurrent substitutions at 452 and 490 are associated with immune evasion of the identified population antibody response. These substitutions, including L452R (present in the Delta variant), disrupt interactions mediated by the VH1-69-specific hydrophobic HCDR2 to impair antibody-antigen association, enabling variants to escape. The first Omicron variants were sensitive to antibody R1-32 but subvariants that harbour L452R quickly emerged and spread. Our results provide insights into how SARS-CoV-2 variants emerge and evade host immune responses.
History
DepositionJul 5, 2022-
Header (metadata) releaseAug 24, 2022-
Map releaseAug 24, 2022-
UpdateMay 3, 2023-
Current statusMay 3, 2023Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_33766.map.gz / Format: CCP4 / Size: 27 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Voxel sizeX=Y=Z: 1.76 Å
Density
Contour LevelBy AUTHOR: 0.03
Minimum - Maximum-0.09059103 - 0.20680909
Average (Standard dev.)0.00018955815 (±0.007549522)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions192192192
Spacing192192192
CellA=B=C: 337.91998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_33766_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)

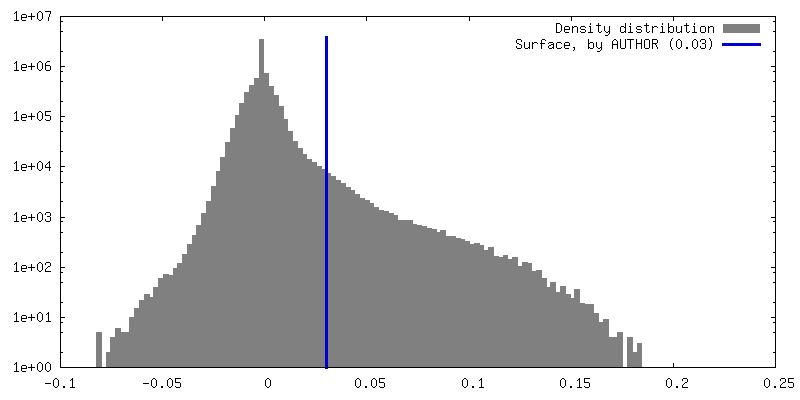

Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_33766_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : SARS-COV-2 Spike_GSAS_6P bound with three R1-32 Fabs

EntireName: SARS-COV-2 Spike_GSAS_6P bound with three R1-32 Fabs
Components
  • Complex: SARS-COV-2 Spike_GSAS_6P bound with three R1-32 Fabs
    • Complex: SARS-COV-2 Spike_GSAS_6P
      • Protein or peptide: Spike glycoproteinSpike protein
    • Complex: FabFragment antigen-binding
      • Protein or peptide: Heavy chain of R1-32 Fab
      • Protein or peptide: Light chain of R1-32 Fab
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose

-
Supramolecule #1: SARS-COV-2 Spike_GSAS_6P bound with three R1-32 Fabs

SupramoleculeName: SARS-COV-2 Spike_GSAS_6P bound with three R1-32 Fabs / type: complex / ID: 1 / Chimera: Yes / Parent: 0 / Macromolecule list: #1-#3
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2

-
Supramolecule #2: SARS-COV-2 Spike_GSAS_6P

SupramoleculeName: SARS-COV-2 Spike_GSAS_6P / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)

-
Supramolecule #3: Fab

SupramoleculeName: Fab / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #2-#3

-
Macromolecule #1: Spike glycoprotein

MacromoleculeName: Spike glycoprotein / type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 133.781312 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MFVFLVLLPL VSSQCVNLTT RTQLPPAYTN SFTRGVYYPD KVFRSSVLHS TQDLFLPFFS NVTWFHAIHV SGTNGTKRFD NPVLPFNDG VYFASTEKSN IIRGWIFGTT LDSKTQSLLI VNNATNVVIK VCEFQFCNDP FLGVYYHKNN KSWMESEFRV Y SSANNCTF ...String:
MFVFLVLLPL VSSQCVNLTT RTQLPPAYTN SFTRGVYYPD KVFRSSVLHS TQDLFLPFFS NVTWFHAIHV SGTNGTKRFD NPVLPFNDG VYFASTEKSN IIRGWIFGTT LDSKTQSLLI VNNATNVVIK VCEFQFCNDP FLGVYYHKNN KSWMESEFRV Y SSANNCTF EYVSQPFLMD LEGKQGNFKN LREFVFKNID GYFKIYSKHT PINLVRDLPQ GFSALEPLVD LPIGINITRF QT LLALHRS YLTPGDSSSG WTAGAAAYYV GYLQPRTFLL KYNENGTITD AVDCALDPLS ETKCTLKSFT VEKGIYQTSN FRV QPTESI VRFPNITNLC PFGEVFNATR FASVYAWNRK RISNCVADYS VLYNSASFST FKCYGVSPTK LNDLCFTNVY ADSF VIRGD EVRQIAPGQT GKIADYNYKL PDDFTGCVIA WNSNNLDSKV GGNYNYLYRL FRKSNLKPFE RDISTEIYQA GSTPC NGVE GFNCYFPLQS YGFQPTNGVG YQPYRVVVLS FELLHAPATV CGPKKSTNLV KNKCVNFNFN GLTGTGVLTE SNKKFL PFQ QFGRDIADTT DAVRDPQTLE ILDITPCSFG GVSVITPGTN TSNQVAVLYQ DVNCTEVPVA IHADQLTPTW RVYSTGS NV FQTRAGCLIG AEHVNNSYEC DIPIGAGICA SYQTQTNSPG SASSVASQSI IAYTMSLGAE NSVAYSNNSI AIPTNFTI S VTTEILPVSM TKTSVDCTMY ICGDSTECSN LLLQYGSFCT QLNRALTGIA VEQDKNTQEV FAQVKQIYKT PPIKDFGGF NFSQILPDPS KPSKRSPIED LLFNKVTLAD AGFIKQYGDC LGDIAARDLI CAQKFNGLTV LPPLLTDEMI AQYTSALLAG TITSGWTFG AGPALQIPFP MQMAYRFNGI GVTQNVLYEN QKLIANQFNS AIGKIQDSLS STPSALGKLQ DVVNQNAQAL N TLVKQLSS NFGAISSVLN DILSRLDPPE AEVQIDRLIT GRLQSLQTYV TQQLIRAAEI RASANLAATK MSECVLGQSK RV DFCGKGY HLMSFPQSAP HGVVFLHVTY VPAQEKNFTT APAICHDGKA HFPREGVFVS NGTHWFVTQR NFYEPQIITT DNT FVSGNC DVVIGIVNNT VYDPLQPELD SFKEELDKYF KNHTSPDVDL GDISGINASV VNIQKEIDRL NEVAKNLNES LIDL QELGK YEQ

-
Macromolecule #2: Heavy chain of R1-32 Fab

MacromoleculeName: Heavy chain of R1-32 Fab / type: protein_or_peptide / ID: 2 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.840717 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: EVQLVESGAE VKKPGSSVKV SCKASGGTFS SYAISWVRQA PGQGLEWMGG IIPILGIANY AQKFQGRVTI TADKSTSTAY MELSSLRSE DTAVYYCARE NGYSGYGAAA NFDLWGRGTL VTVSSASTKG PSVFPLAPSS KSTSGGTAAL GCLVKDYFPE P VTVSWNSG ...String:
EVQLVESGAE VKKPGSSVKV SCKASGGTFS SYAISWVRQA PGQGLEWMGG IIPILGIANY AQKFQGRVTI TADKSTSTAY MELSSLRSE DTAVYYCARE NGYSGYGAAA NFDLWGRGTL VTVSSASTKG PSVFPLAPSS KSTSGGTAAL GCLVKDYFPE P VTVSWNSG ALTSGVHTFP AVLQSSGLYS LSSVVTVPSS SLGTQTYICN VNHKPSNTKV DKKVEPKSCD

-
Macromolecule #3: Light chain of R1-32 Fab

MacromoleculeName: Light chain of R1-32 Fab / type: protein_or_peptide / ID: 3 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 22.382643 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: QSVLTQPPSV SGAPGQRVTI SCTGSSSNIG AGYDVHWYQQ LPGTAPKLLI YGNSNRPSGV PDRFSGSKSG TSASLAITGL QAEDEADYY CQSYDSSLSG SVFGGGTKLT VLGQPKAAPS VTLFPPSSEE LQANKATLVC LISDFYPGAV TVAWKADSSP V KAGVETTT ...String:
QSVLTQPPSV SGAPGQRVTI SCTGSSSNIG AGYDVHWYQQ LPGTAPKLLI YGNSNRPSGV PDRFSGSKSG TSASLAITGL QAEDEADYY CQSYDSSLSG SVFGGGTKLT VLGQPKAAPS VTLFPPSSEE LQANKATLVC LISDFYPGAV TVAWKADSSP V KAGVETTT PSKQSNNKYA ASSYLSLTPE QWKSHRSYSC QVTHEGSTVE KTVAPT

-
Macromolecule #5: 2-acetamido-2-deoxy-beta-D-glucopyranose

MacromoleculeName: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 5 / Number of copies: 24 / Formula: NAG
Molecular weightTheoretical: 221.208 Da
Chemical component information

ChemComp-NAG:
2-acetamido-2-deoxy-beta-D-glucopyranose / N-Acetylglucosamine

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELDBright-field microscopy / Nominal defocus max: 2.5 µm / Nominal defocus min: 0.8 µm / Nominal magnification: 45000
Sample stageCooling holder cryogen: NITROGEN
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number real images: 6989 / Average exposure time: 1.6 sec. / Average electron dose: 63.0 e/Å2
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

-
Image processing

Particle selectionNumber selected: 619803
Startup modelType of model: EMDB MAP
EMDB ID:

11333

Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION (ver. 3.1)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION (ver. 3.1)
Final reconstructionResolution.type: BY AUTHOR / Resolution: 4.17 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 56902
FSC plot (resolution estimation)

+
